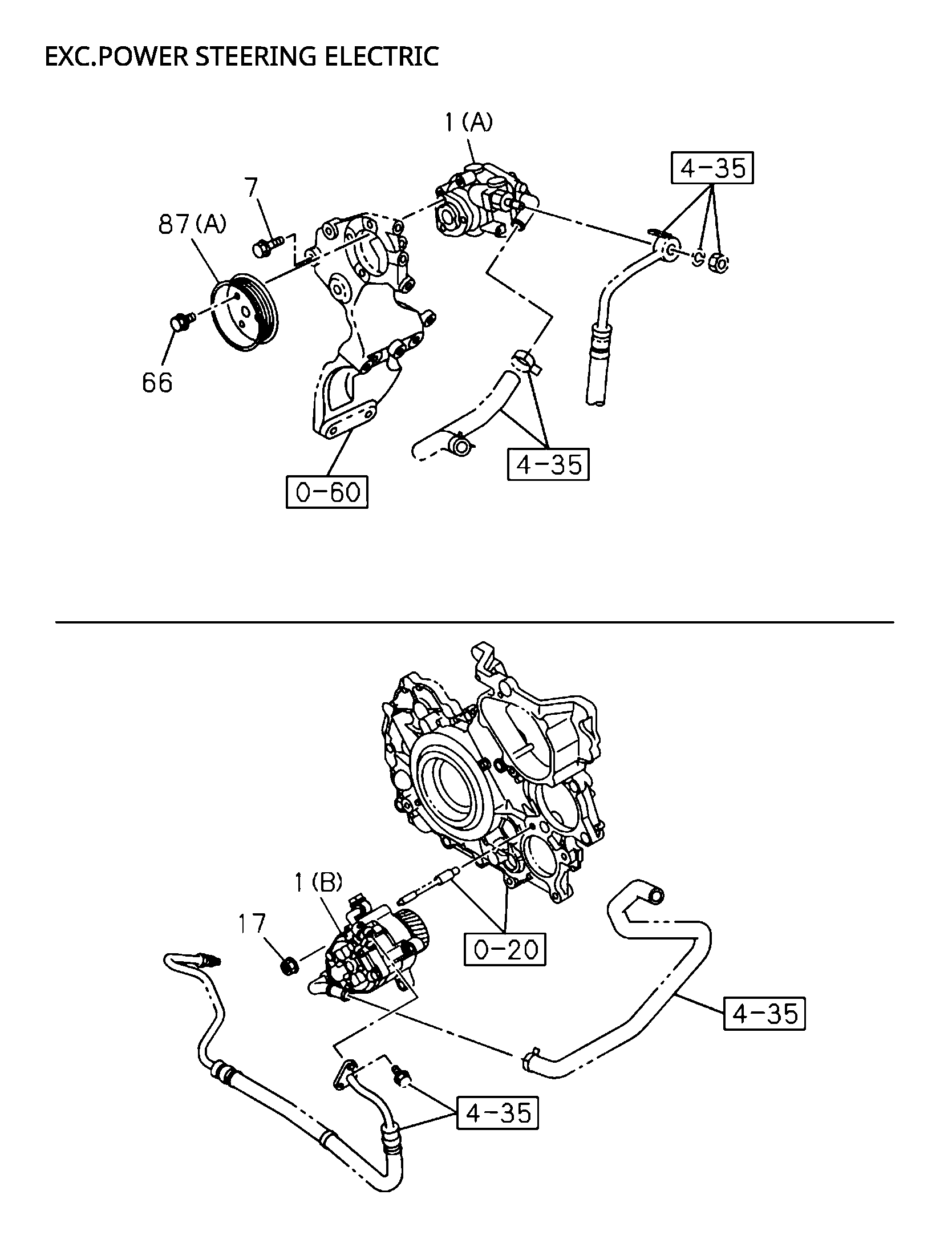

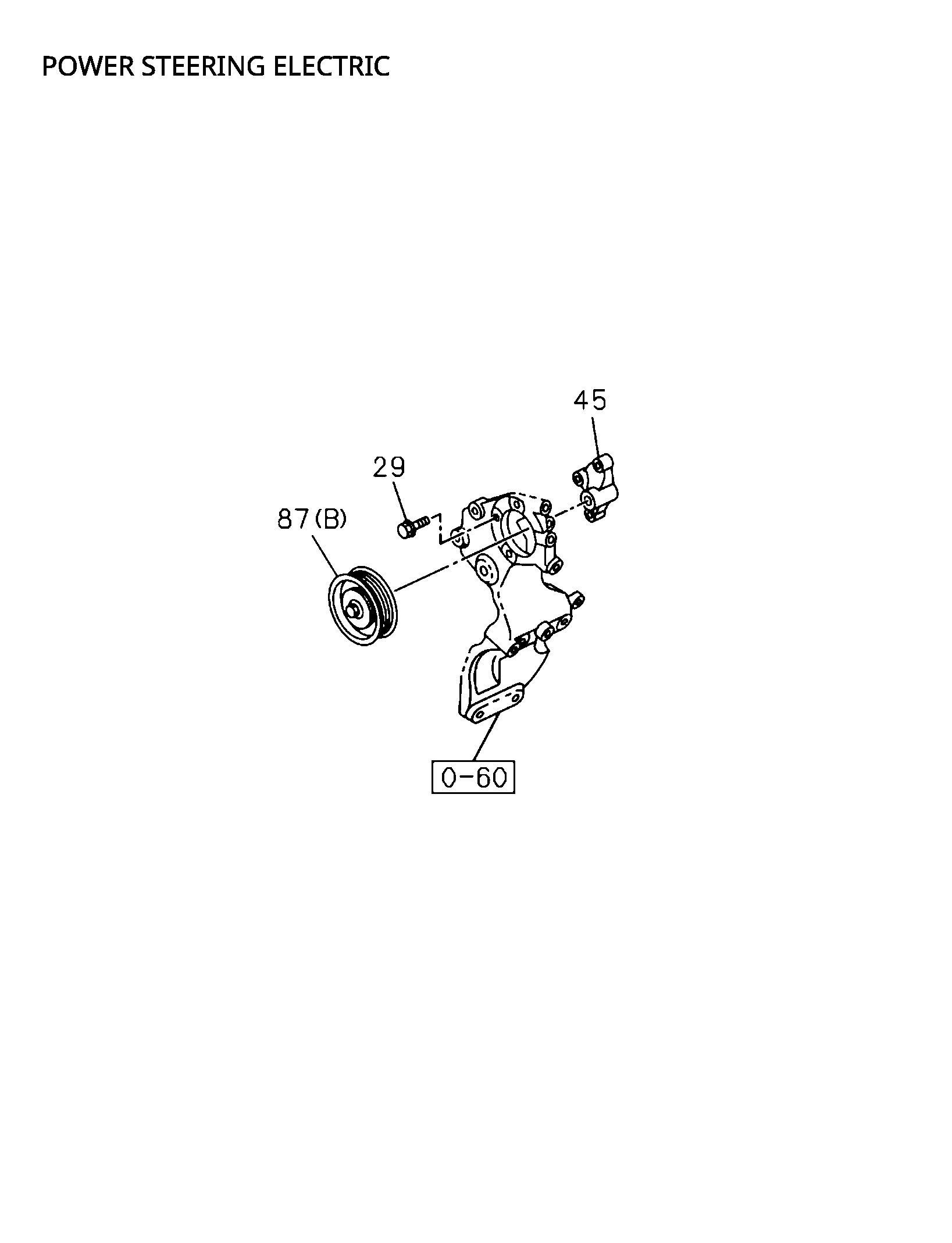

4-36 | 4-36 - POWER STEERING CONTROL; ENGINE SIDE
DMAX
D-MAX 2022
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 29 | I0-28050 830-0 | BOLT; BRKT,POWER STRG | 3 | 2110- | B D E F | RZ4E-TCX HI-POWER ENG(LNC) POWER STEERING ELECTRIC<NV9> M8X30 FLANGE | ||
| 29 | I0-28050 830-0 | BOLT; BRKT,POWER STRG | 3 | 2110- | A | RZ4E-TC ENG(RDZ) M8X30 FLANGE | ||
| 1 | I8-97824 300-0 | PUMP ASM; OIL,P/S | 1 | 2110- | BC D E F | RZ4E-TCX HI-POWER ENG(LNC) EXC. POWER STEERING ELECTRIC<NV9> (A) | ||
| 1 | I8-97824 300-0 | PUMP ASM; OIL,P/S | 1 | 2110- | BCDE F | RZ4E-TC ENG(RDZ) EUROO SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) (A) | ||
| 7 | I0-28050 830-0 | BOLT; OIL PUMP,P/S | 3 | 2110- | BCDE F | RZ4E-TCX HI-POWER ENG(LNC) EXC. POWER STEERING ELECTRIC<NV9> M8X30 FLANGE | ||
| 66 | I0-28050 812-A | BOLT; PULLEY | 3 | 2110- | BCDE F | RZ4E-TC ENG(RDZ) EUROO SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) M8X12 FLANGE | ||
| 66 | I0-28050 812-A | BOLT; PULLEY | 3 | 2110- | BCDE F | RZ4E-TCX HI-POWER ENG(LNC) EXC. POWER STEERING ELECTRIC<NV9> M8X12 FLANGE | ||
| 17 | I0-91180 208-0 | NUT; POWER STRG PUMP | 3 | 2110- | ABCDE F | 4JJ3 ENG(LNG) M8 FLANGE | ||
| 87 | I8-98383 519-0 | PULLEY; P/S PUMP | 1 | 2110- | BC D E F | RZ4E-TCX HI-POWER ENG(LNC) EXC. POWER STEERING ELECTRIC<NV9> (A) | ||
| 7 | I0-28050 830-0 | BOLT; OIL PUMP,P/S | 3 | 2110- | BCDE F | RZ4E-TC ENG(RDZ) EUROO SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) M8X30 FLANGE | ||
| 87 | I8-98383 519-0 | PULLEY; P/S PUMP | 1 | 2110- | BCDE F | RZ4E-TC ENG(RDZ) EUROO SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) (A) | ||
| 29 | I0-28050 830-0 | BOLT; BRKT,POWER STRG | 3 | 2110- | BCDE F | RZ4E-TC ENG(RDZ) EUROS SPECIFICATION(NT5) M8X30 FLANGE |
