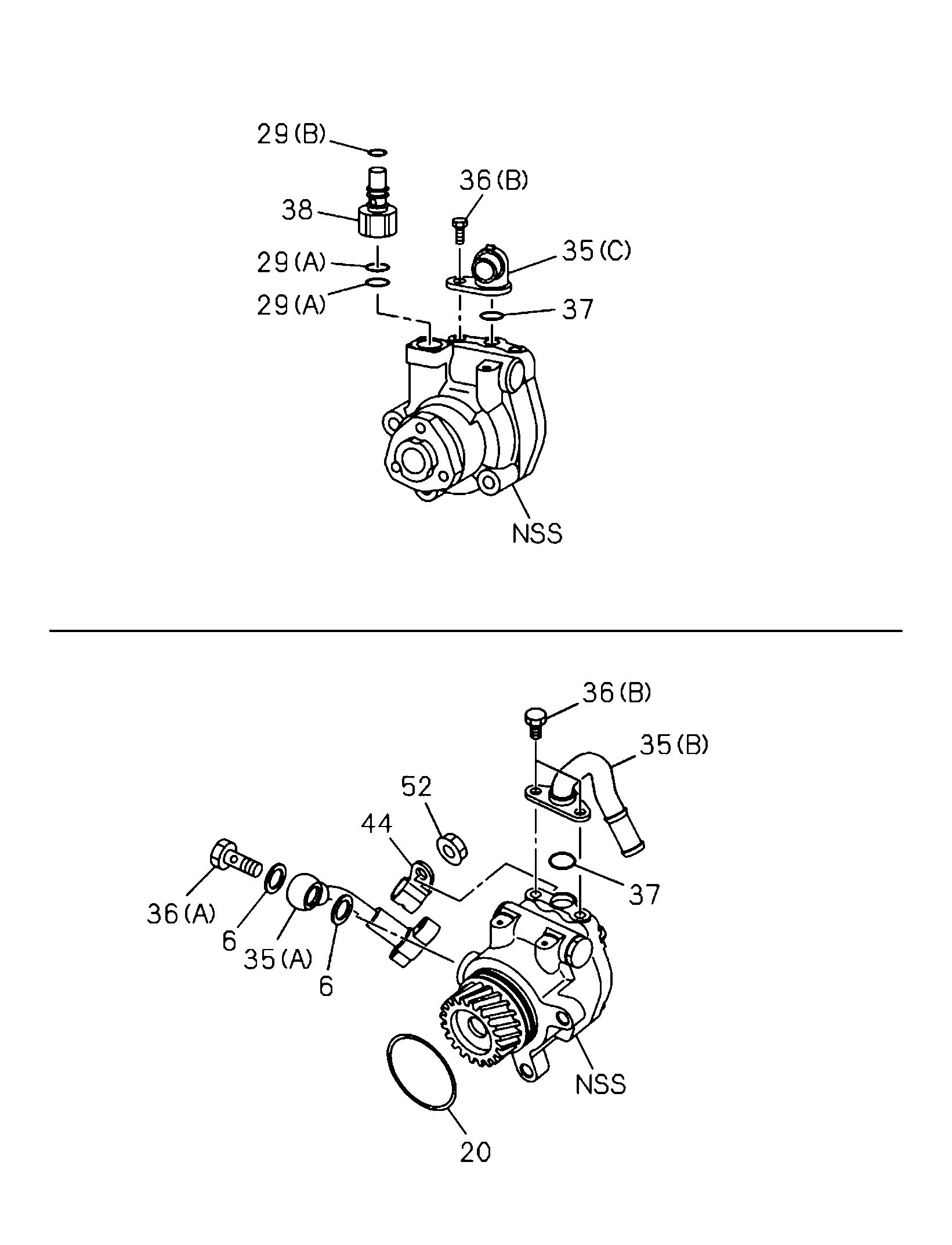

4-42 | 4-42 - POWER STEERING OIL PUMP
DMAX
D-MAX 2022
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 29 | I8-98481 774-0 | GASKET; PLUG TO VLV | 1 | A | (B) | |||
| 37 | I8-98166 384-0 | GASKET; PIPE CONN,OIL PUMP | 1 | A B | Assy 8978243000, Assy 8984898920 | |||
| 36 | I8-98166 386-0 | BOLT; CONN.PIPE | 2 | B | (B) | |||
| 29 | I8-98481 773-0 | GASKET; PLUG TO VLV | 2 | A | (A) | |||
| 35 | I8-98481 772-0 | PIPE; HOSE CONN,OIL PUMP | 1 | A | ( C ) Assy 8978243000 | |||
| 36 | I8-98166 386-0 | BOLT; CONN.PIPE | 1 | A | (B) | |||
| 38 | I8-98481 771-0 | CONNECTOR, OIL PUMP | 1 | A | Assy 8978243000 |
