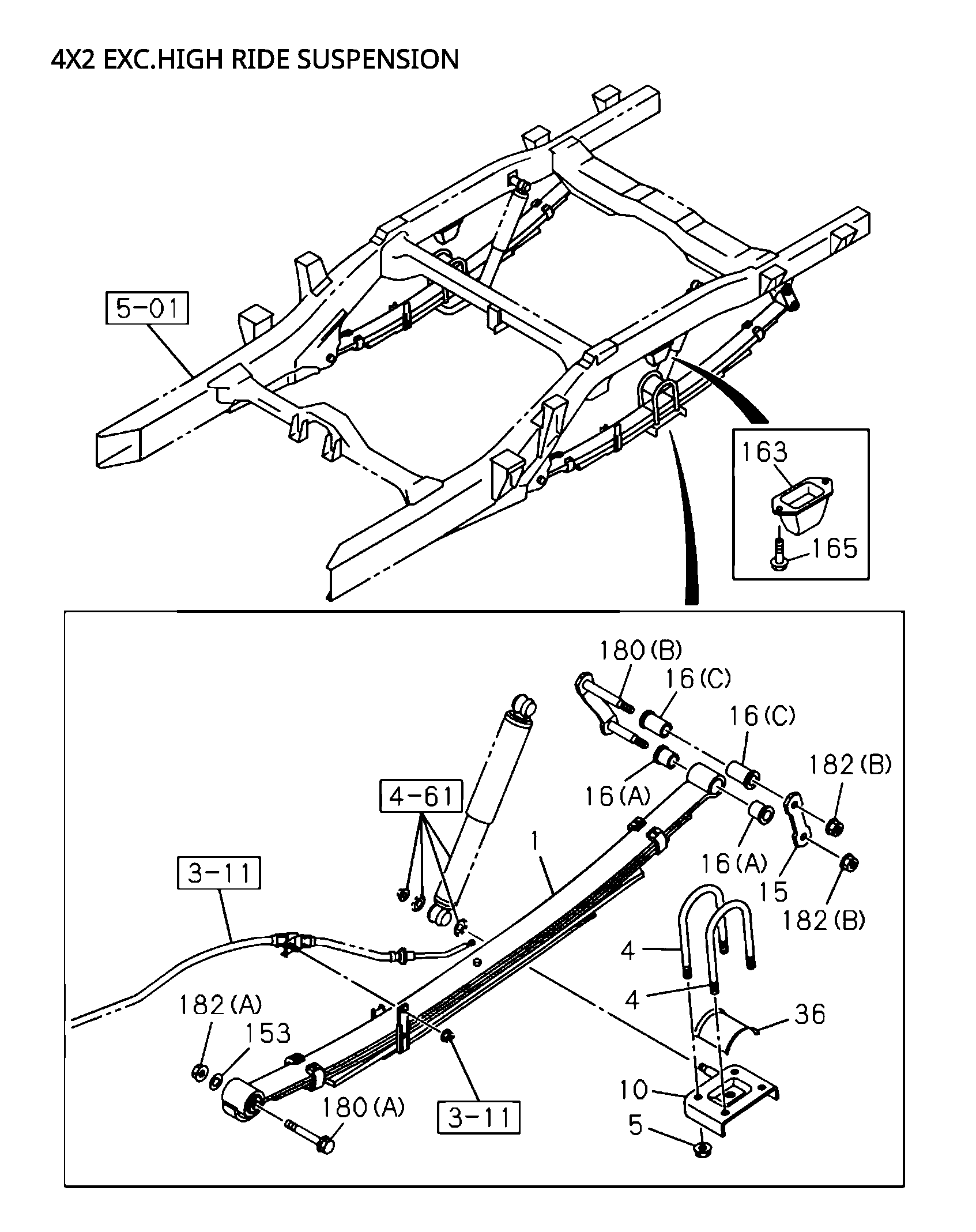

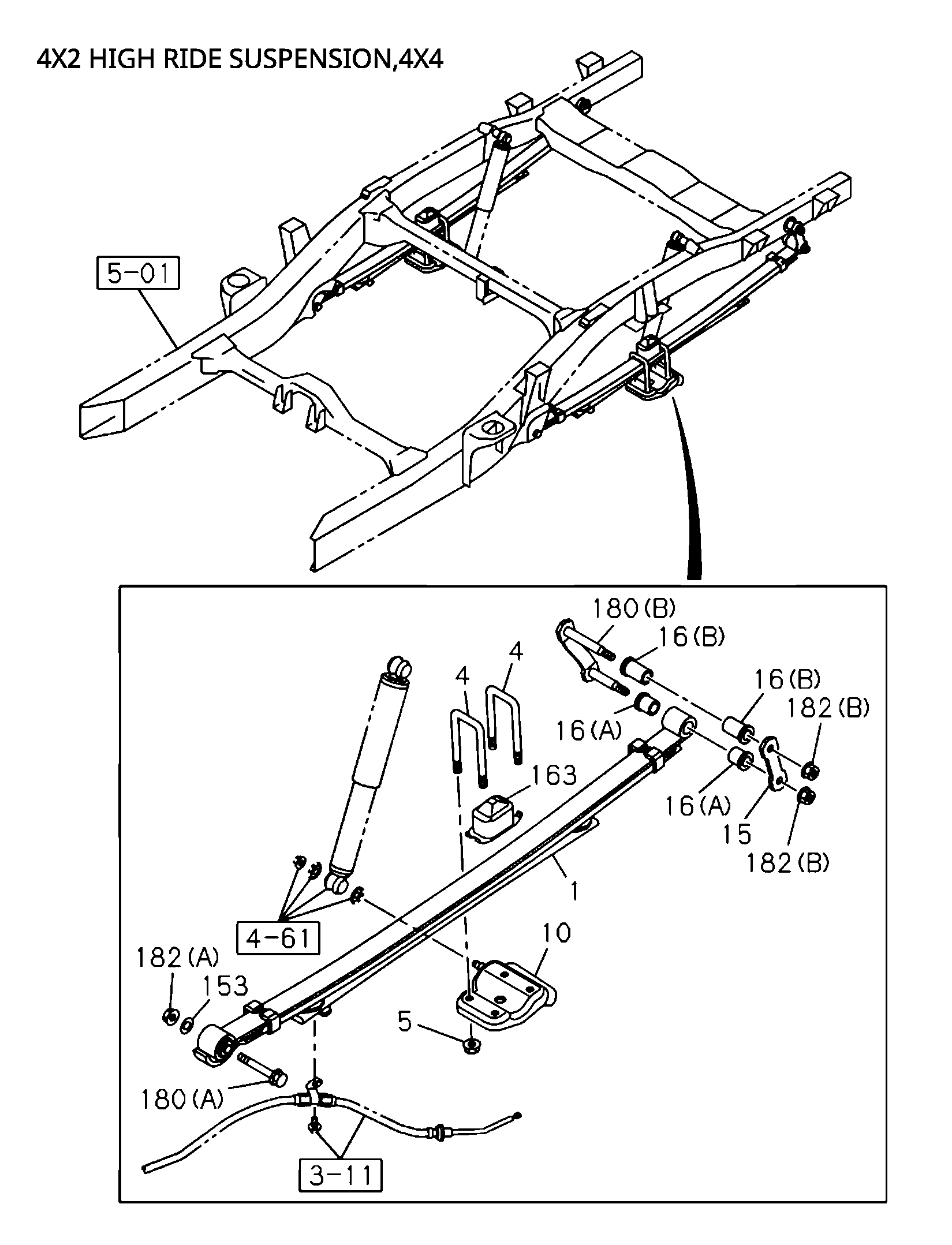

4-60 | 4-60 - REAR SUSPENSION
DMAX
D-MAX 2022
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 4 | I8-98394 822-1 | u-bolt; rr spr | 4 | 2110- | BC | HIGH RIDE SUSPENSION(7YC) L=150 | ||
| 182 | I0-91180 114-0 | NUT; PIN,RR SPR | 4 | 2110- | A BC D E F | (B) M14FLANGE | ||
| 1 | I8-98392 234-1 | spring asm; leaf.rr | 2 | 2110- | F | EXC. SOFT RIDE SUSPENSION SYSTEM<FE1>,REAR SPRING HEAVY DUTY(G50) 3-LEAF | ||
| 1 | I8-98392 234-1 | spring asm; leaf.rr | 2 | 2110- | A DE | EXC. REAR SPRING HEAVY DUTY(G50) 3-LEAF | ||
| 15 | I8-98394 804-0 | SHACKLE; RR SPR | 2 | 2110- | BC | HIGH RIDE SUSPENSION(7YC) | ||
| 163 | I8-98394 793-1 | RUBBER; HELPER,RR SPR | 2 | 2110- | BC | HIGH RIDE SUSPENSION(7YC) | ||
| 182 | I8-97682 304-0 | NUT; PIN,RR SPR | 2 | 2110- | A BC D E F | (A) M14FLANGE | ||
| 16 | I8-97357 492-0 | BUSHING; SHACKLE,RR SPR | 4 | 2110- | A BC D E F | (A) | ||
| 5 | I8-97245 635-0 | NUT; U-BOLT,RR SPR | 8 | 2110- | ABCDE F | M14FLANGE | ||
| 10 | I8-98394 802-0 | CLAMP; LWR.RR SPR | 1 | 2110- | A D E F | |||
| 163 | I8-98394 793-1 | RUBBER; HELPER,RR SPR | 2 | 2110- | A D E F | |||
| 180 | I8-97672 040-0 | PIN; RRSPR | 2 | 2110- | A BC D E F | (A) | ||
| 10 | I8-98394 803-0 | CLAMP; LWR.RR SPR | 1 | 2110- | A D E F | |||
| 1 | I8-98392 234-1 | spring asm; leaf.rr | 2 | 2110- | C | HIGH RIDE SUSPENSION(7YC) EXC. SOFT RIDE SUSPENSION SYSTEM<FE1>,REAR SPRING HEAVY DUTY(G50) 3-LEAF | ||
| 180 | I8-98394 806-0 | PIN; RRSPR | 2 | 2110- | BC | HIGH RIDE SUSPENSION(7YC) (B) | ||
| 180 | I8-98394 806-0 | PIN; RRSPR | 2 | 2110- | A D E F | (B) | ||
| 153 | I8-98005 921-0 | WASHER; PL.SPRING PIN | 2 | 2110- | A BC D E F | ID=14.5 OD=30 | ||
| 4 | I8-98394 822-1 | u-bolt; rr spr | 4 | 2110- | A D E F | L=150 | ||
| 15 | I8-98394 804-0 | SHACKLE; RR SPR | 2 | 2110- | A D E F | |||
| 16 | I6-97357 492-0 | BUSHING; SHACKLE,RR SPR | 4 | 2110- | A BC D E F | (IADG) (A) | ||
| 10 | I8-98394 802-0 | CLAMP; LWR.RR SPR | 1 | 2110- | BC | HIGH RIDE SUSPENSION(7YC) | ||
| 10 | I8-98394 803-0 | CLAMP; LWR.RR SPR | 1 | 2110- | BC | HIGH RIDE SUSPENSION(7YC) | ||
| 1 | I8-98392 234-1 | spring asm; leaf.rr | 2 | 2110- | B | HIGH RIDE SUSPENSION(7YC) EXC. REAR SPRING HEAVY DUTY(G50) 3-LEAF | ||
| 16 | I8-98394 936-0 | BUSHING; SHACKLE,RR SPR | 4 | 2110- | A D E F | (B) | ||
| 16 | I8-98394 936-0 | BUSHING; SHACKLE,RR SPR | 4 | 2110- | BC | HIGH RIDE SUSPENSION(7YC) (B) |
