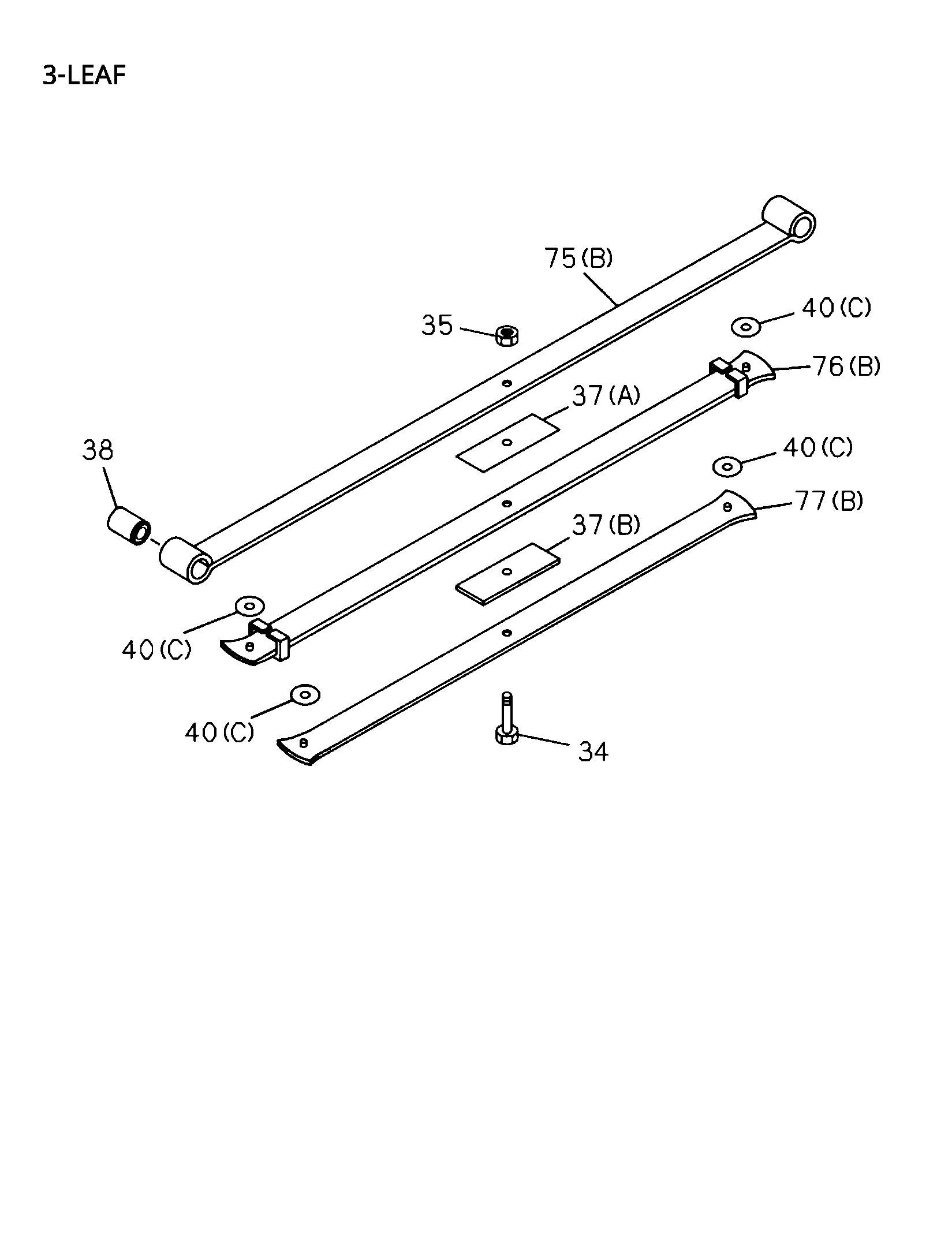

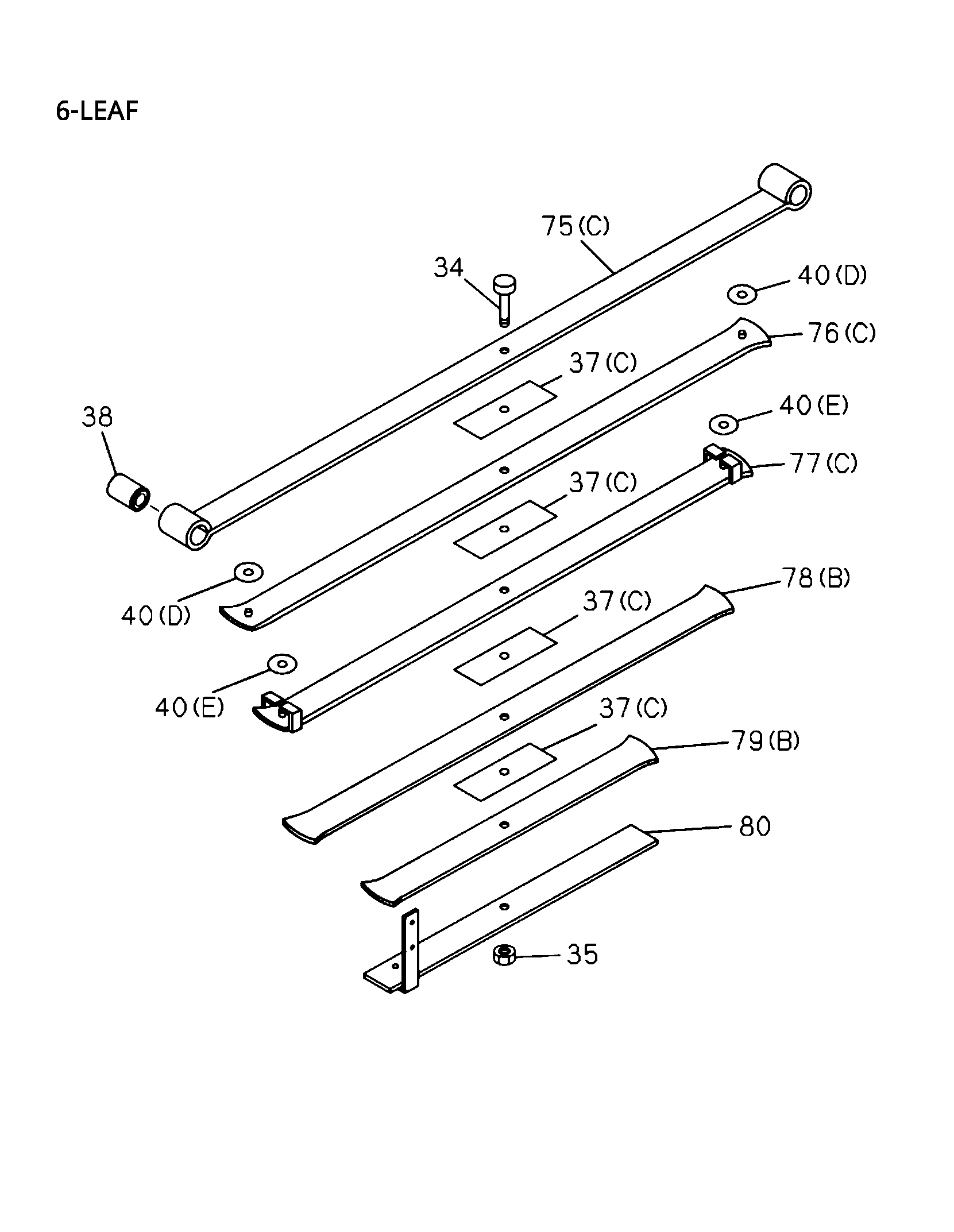

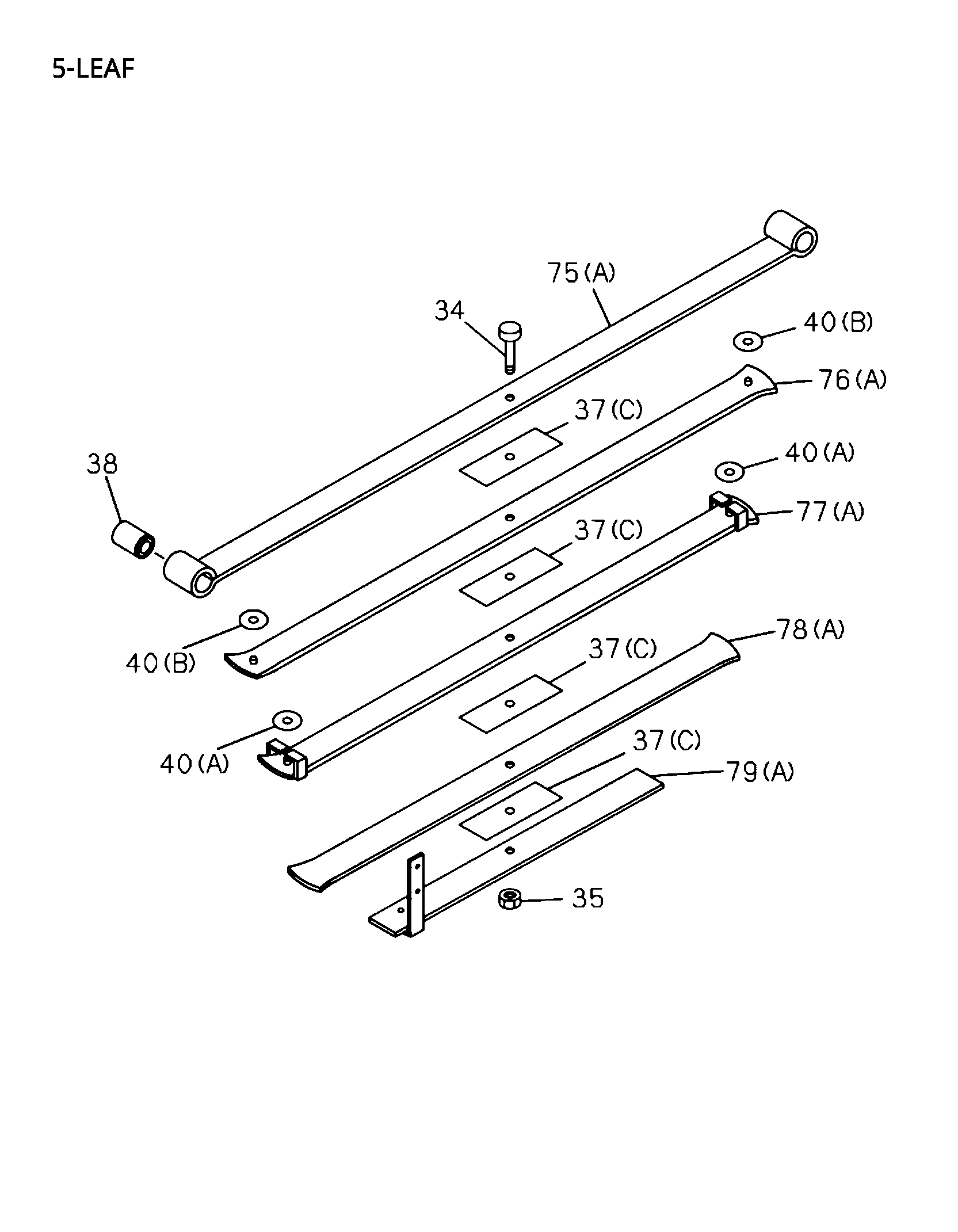

4-65 | 4-65 - REAR LEAF SPRING
DMAX
D-MAX 2022
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 75 | I8-97527 429-0 | SPRING; LEAF,NO 1, RR | 1 | D | (B) | |||
| 40 | I8-98302 724-0 | LINER; LEAF SPR,RR | 2 | A | (C) | |||
| 37 | I8-98296 472-0 | SPACER; CENTER.LEAF SPR.RR | 1 | D E F | (A) | |||
| 77 | I8-97527 431-0 | SPRING; LEAF,NO 3,RR | 1 | D | (B) | |||
| 40 | I8-98302 724-0 | LINER; LEAF SPR,RR | 4 | D E F | (C) | |||
| 35 | I1-09400 055-0 | NUT; CENTER BOLT,LEAF SPR.RR | 1 | D E F | M10 | |||
| 34 | I8-97527 433-0 | BOLT; CENTER.LEAF SPR,RR MAIN | 1 | D | M10X48 ASSY 8983922341 | |||
| 38 | I8-97947 171-0 | BUSHING; LEAF SPR,RR | 1 | ABC DE F | ||||
| 37 | I8-98288 935-0 | SPACER; CENTER.LEAF SPR.RR | 1 | D E F | (B) | |||
| 76 | I8-97527 430-0 | SPRING; LEAF,NO 2, RR | 1 | D | (B) |
