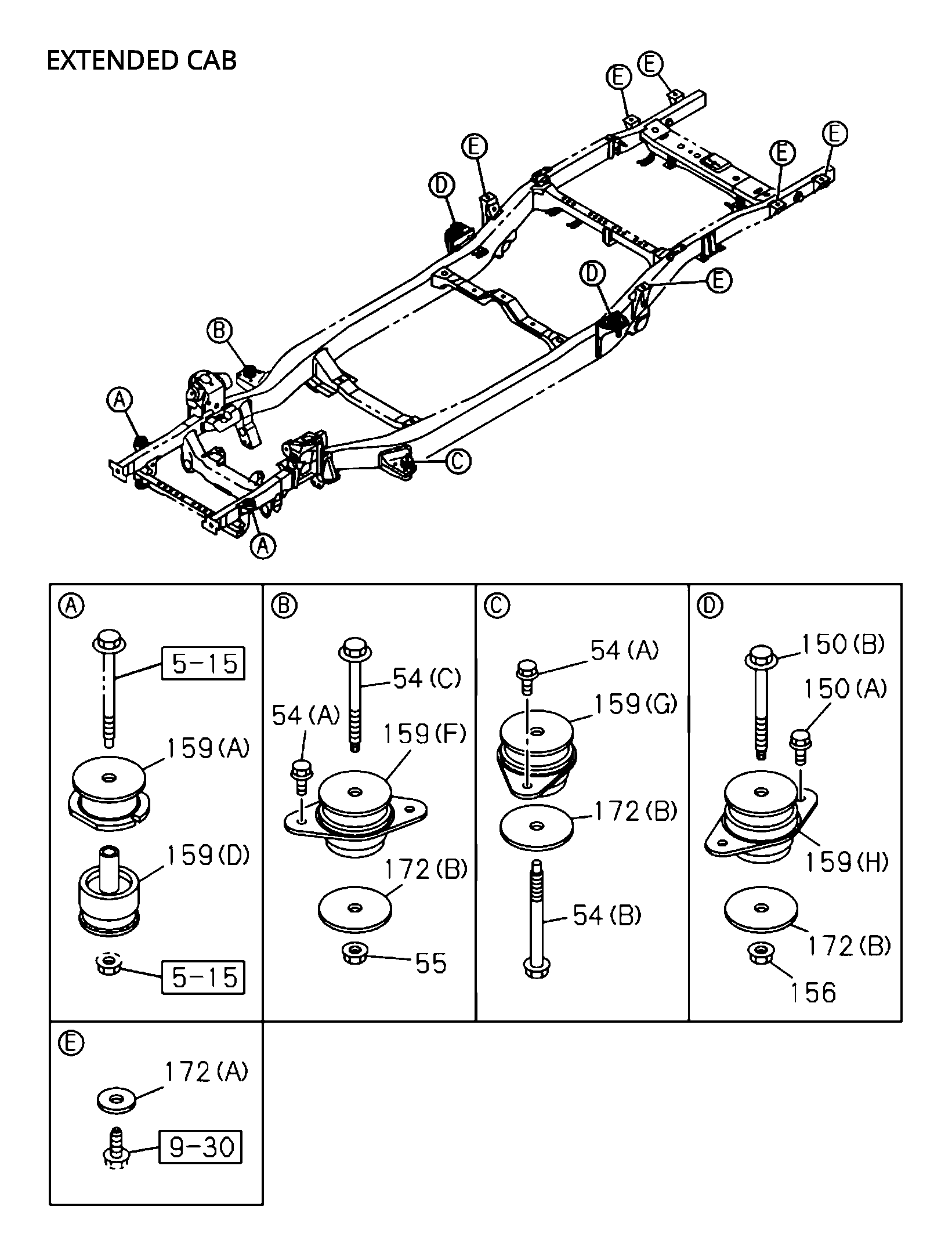

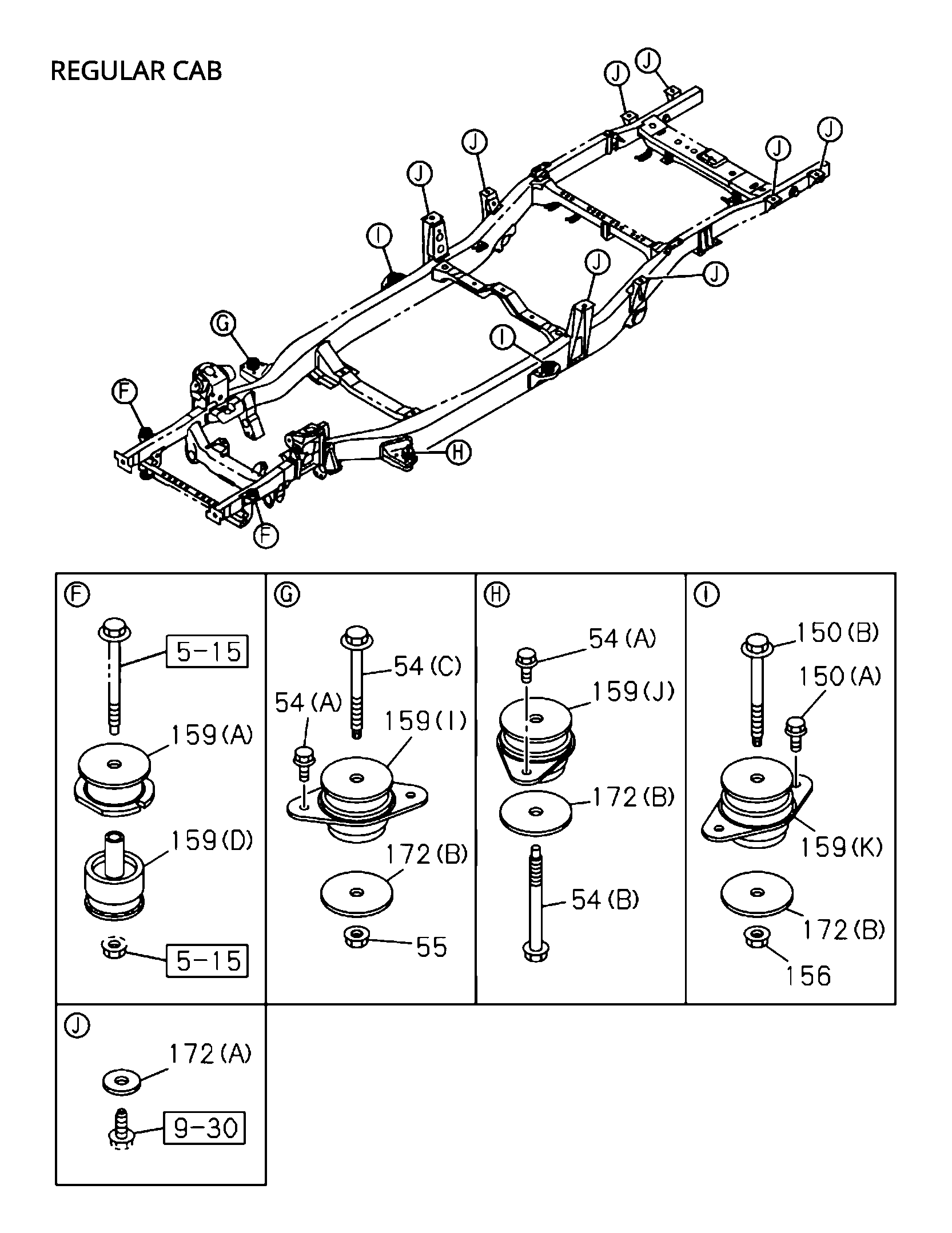

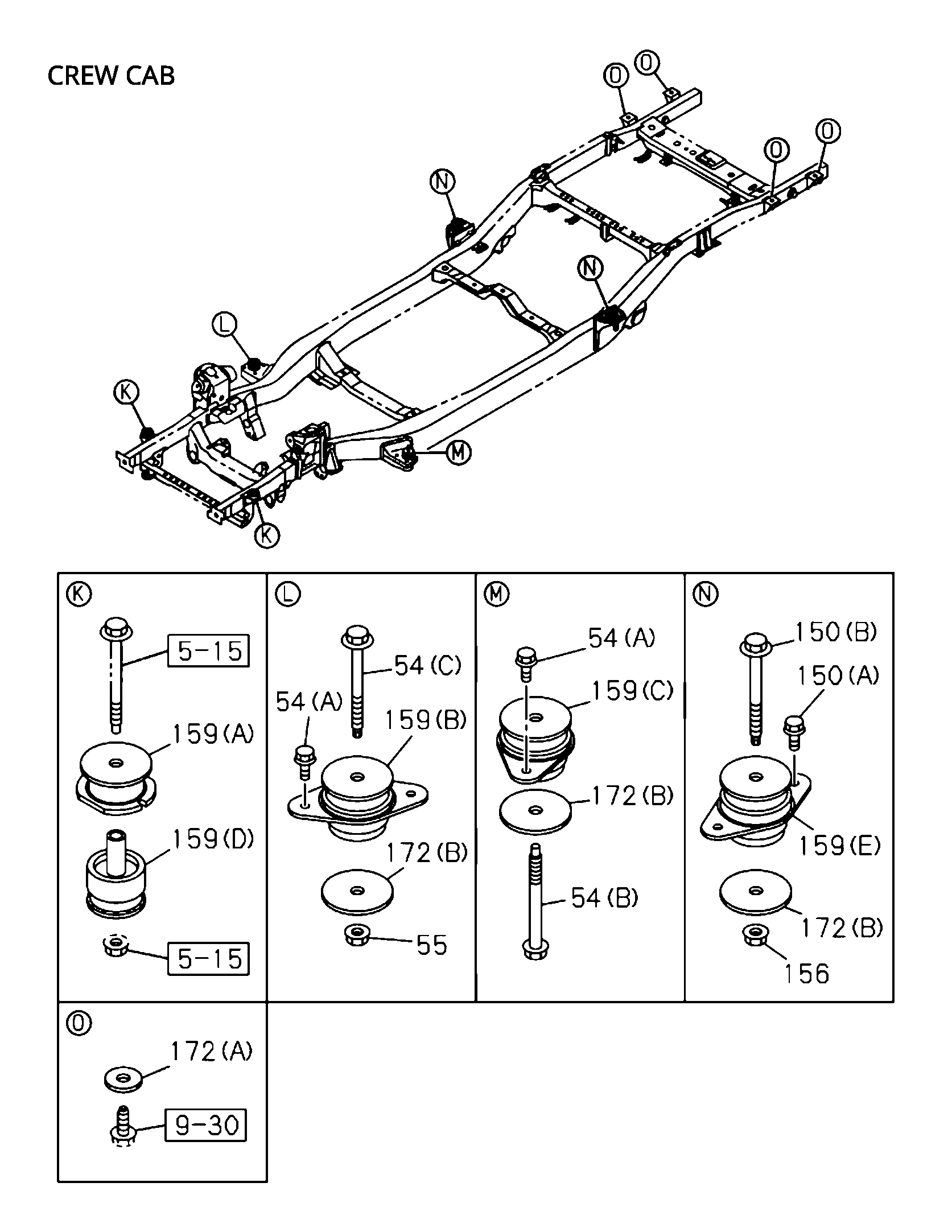

5-10 | 5-10 - CAB MOUNTING; FRAME SIDE
DMAX
D-MAX 2022
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 159 | I6-97367 285-0 | RUBBER; CUSHION.CAB MTG | 2 | 2110- | ABCDE F | (IADG) (A) | ||
| 54 | I0-28661 025-0 | BOLT; RUBBER | 4 | 2110- | A BC D E F | (A) M10X25 FLANGE | ||
| 159 | I8-98372 168-1 | RUBBER; CUSHION.CAB MTG | 1 | 2110- | C F | (B) | ||
| 172 | I8-98098 458-0 | WASHER; BODY MTG RUBBER | 6 | 2110- | A D | REAR BODY DBL WALL CTR PULL(E63) (A) ID=13 OD=40 T=6 | ||
| 159 | I8-98369 966-1 | RUBBER; CUSHION.CAB MTG | 1 | 2110- | B E | 0) | ||
| 159 | I6-98051 326-0 | RUBBER; CUSHION.CAB MTG | 2 | 2110- | A BC D E F | (IADG) (D) | ||
| 172 | I8-98098 458-0 | WASHER; BODY MTG RUBBER | 4 | 2110- | C F | REAR BODY DBL WALL CTR PULL(E63) (A) ID=13 OD=40 T=6 | ||
| 172 | I8-98098 458-0 | WASHER; BODY MTG RUBBER | 8 | 2110- | B E | REAR BODY DBL WALL CTR PULL(E63) (A) ID=13 OD=4Q T=6 | ||
| 54 | I8-98398 066-0 | BOLT; RUBBER | 1 | 2110- | ABCDE F | (C) M14X120 FLANGE | ||
| 55 | I8-98220 857-1 | NUT; RUBBER | 1 | 2110- | A BC D E F | M14 FLANGE | ||
| 159 | I8-97367 285-0 | RUBBER; CUSHION.CAB MTG | 2 | 2110- | ABCDE F | (A) | ||
| 159 | I8-98372 166-1 | RUBBER; CUSHION.CAB MTG | 1 | 2110- | B E | (i) | ||
| 150 | I8-97545 718-0 | BOLT; CAB MTG RR | 1 | 2110- | ABCDE F | (B) M14X120 FLANGE | ||
| 159 | I8-98051 326-0 | RUBBER; CUSHION.CAB MTG | 2 | 2110- | A BC D E F | (D) | ||
| 156 | I8-98220 857-1 | NUT; CAB MTG RR | 2 | 2110- | ABCDE F | M14 FLANGE | ||
| 150 | I0-28661 025-0 | BOLT; CAB MTG RR | 4 | 2110- | ABCDE F | (A) M10X25 FLANGE | ||
| 150 | I8-98398 066-0 | BOLT; CAB MTG RR | 1 | 2110- | ABCDE F | (B) M14X120 FLANGE | ||
| 54 | I8-98398 065-0 | BOLT; RUBBER | 1 | 2110- | A BC D E F | (B) M14X130 FLANGE | ||
| 159 | I8-98369 967-1 | RUBBER; CUSHION.CAB MTG | 2 | 2110- | B E | (k) | ||
| 172 | I8-98371 291-0 | WASHER; BODY MTG RUBBER | 4 | 2110- | ABCDE F | (B) ID=15.6 OD=75 T=4.5 | ||
| 159 | I8-98369 971-1 | RUBBER; CUSHION.CAB MTG | 2 | 2110- | C F | (E) | ||
| 159 | I8-98369 970-1 | RUBBER; CUSHION.CAB MTG | 1 | 2110- | C F | (C) |
