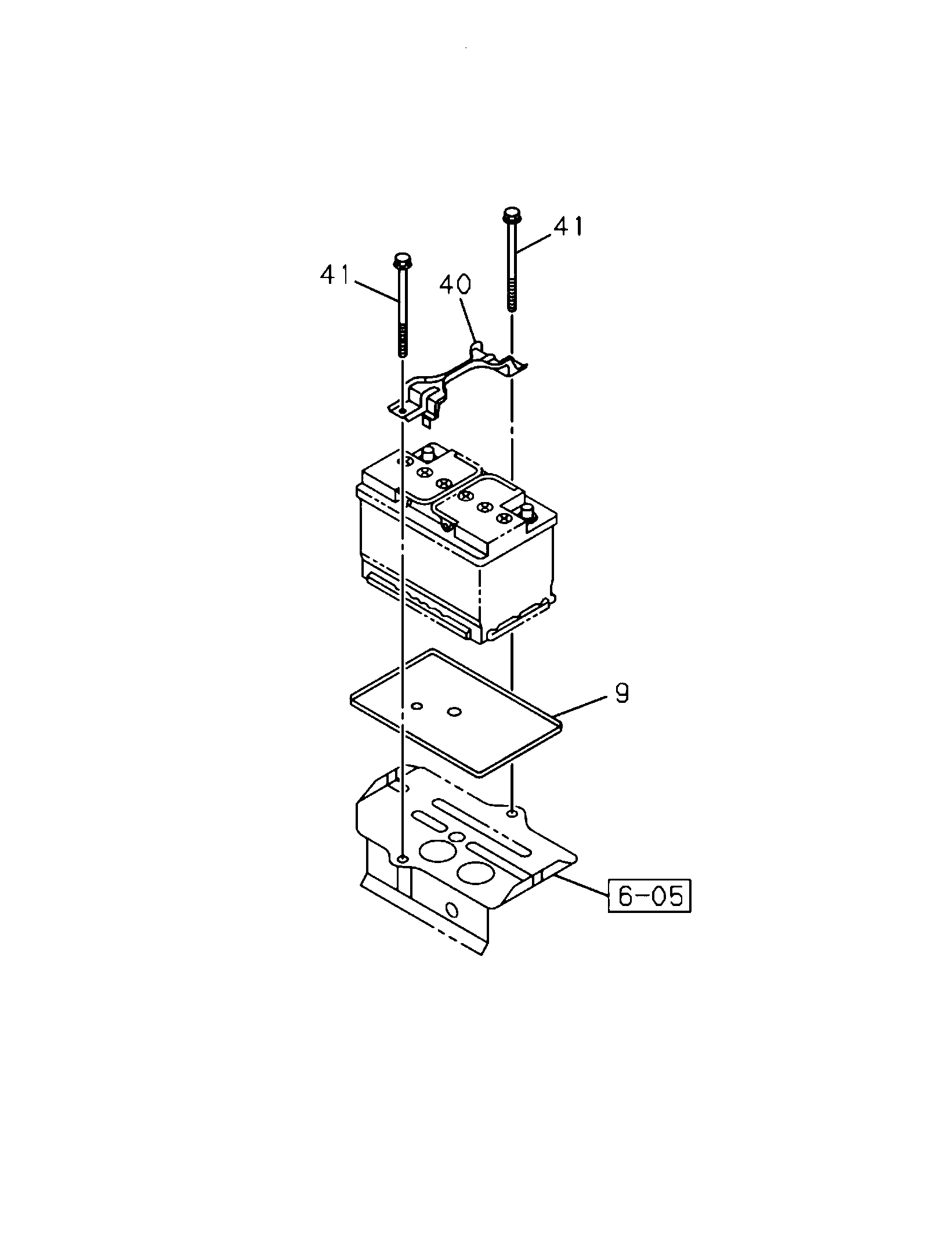

5-20 | 5-20 - BATTERY CARRIER
DMAX
D-MAX 2022
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 41 | I8-98391 842-0 | BOLT; CLAMP,BATTERY | 2 | 2110- | ABCDE F | M8X182 FLANGE | ||
| 9 | I8-98392 108-0 | SEAT; BATTERY | 1 | 2110- | ACE | BATTERY LN3 490 CCA(8TB) | ||
| 40 | I8-98391 763-0 | CLAMP; BATTERY | 1 | 2110- | ABCDE F | |||
| 9 | I8-98392 108-0 | SEAT; BATTERY | 1 | 2110- | B D F | BATTERY LN3 490 CCA(8TB),BATTERY LN3 673 CCA(8UN) |
