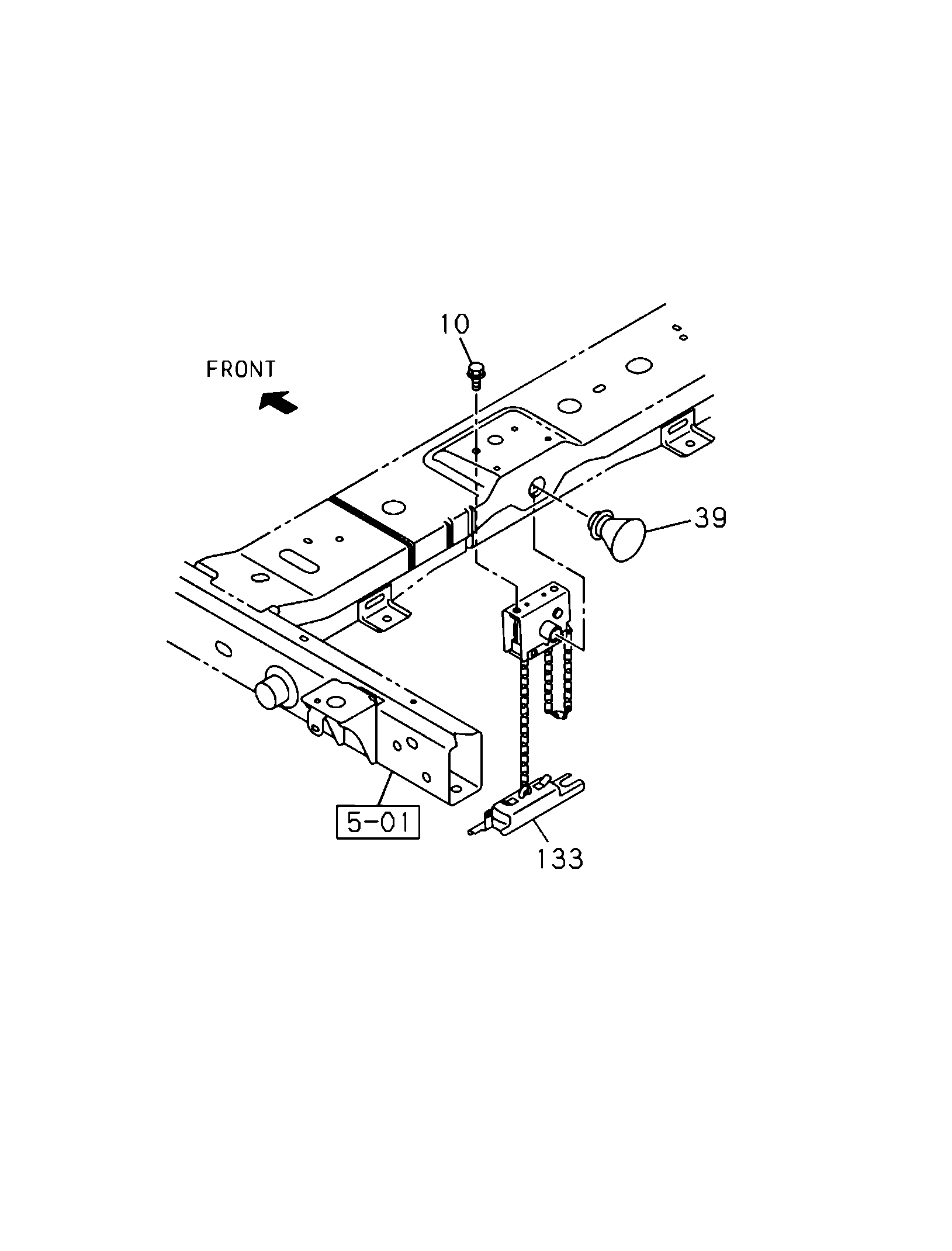

5-30 | 5-30 - SPARE TIRE CARRIER AND COVER
DMAX
D-MAX 2022
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 10 | I0-28650 820-0 | BOLT; TIRE HANGER | 2 | 2110- | A BC D E F | M8X20 FLANGE | ||
| 39 | I8-98163 063-2 | GUIDE; SPARE TIRE HANGER | 1 | 2110- | A BC D E F | |||
| 133 | I8-98395 478-2 | HANGER; SPARE TIRE | 1 | 2111- | A D E F | |||
| 133 | I8-98395 478-2 | HANGER; SPARE TIRE | 1 | 2111- | BC | HIGH RIDE SUSPENSION(7YC) | ||
| 133 | I8-98395 478-2 | HANGER; SPARE TIRE | 1 | 2110-2110 | ABCDE F |
