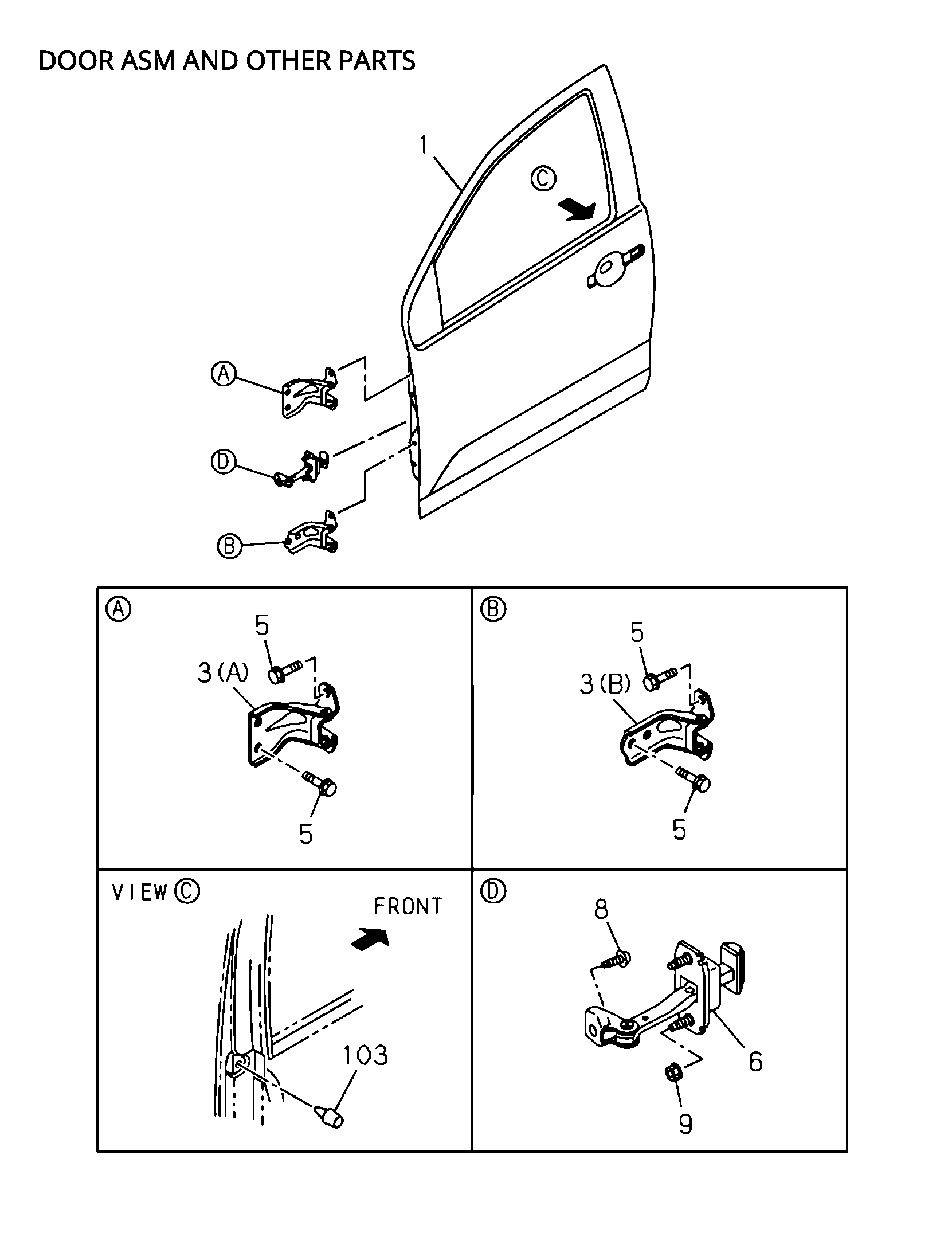

6-30 | 6-30 - FRONT DOOR AND HINGE
DMAX
D-MAX 2022
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 1 | I8-97820 934-0 | DOOR ASM; FRT.WO/TRIM | 1 | 2110- | AB DE | |||
| 6 | I8-97798 557-0 | ARM; CHECK,FRT DOOR | 2 | 2110- | A B C D E | |||

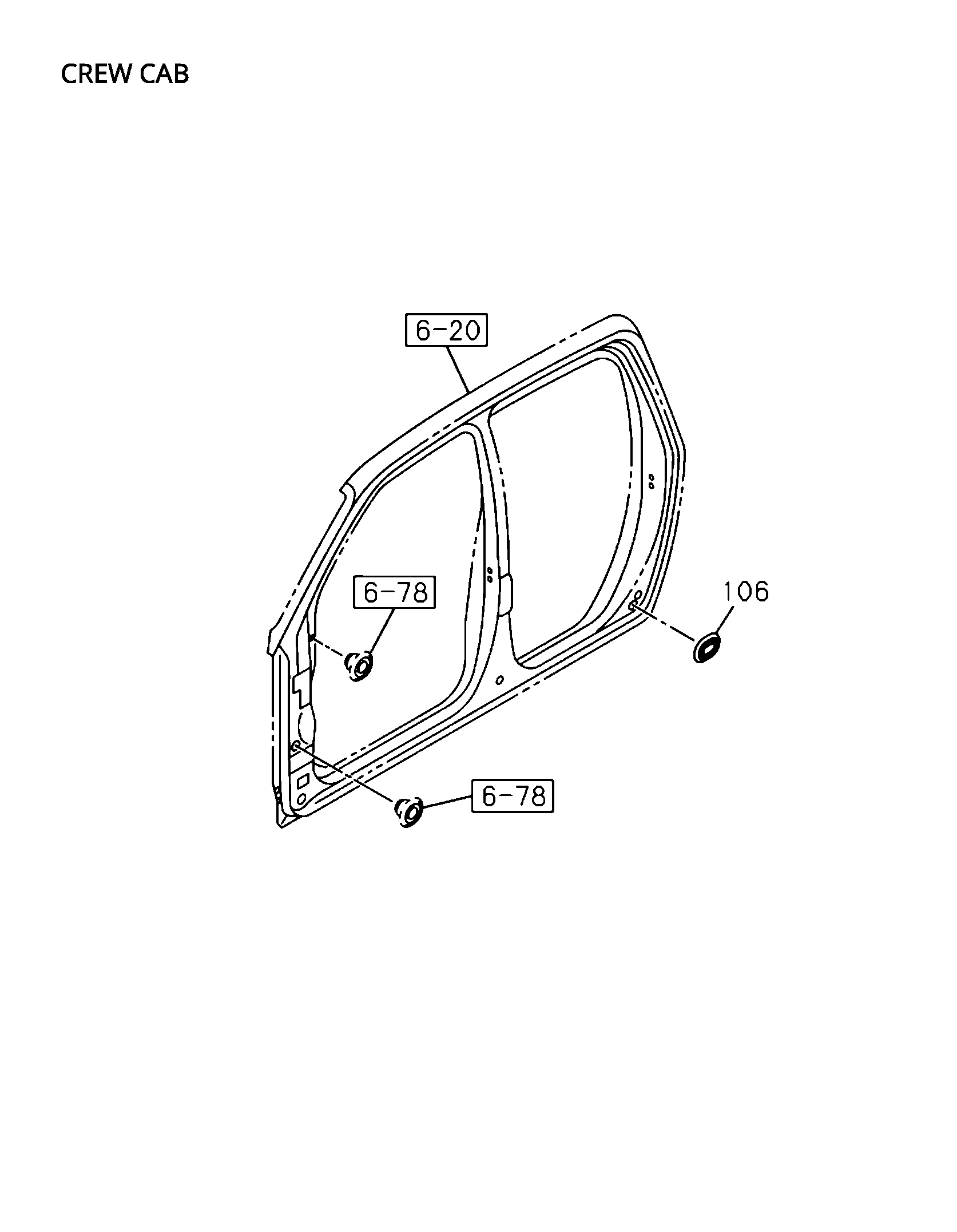

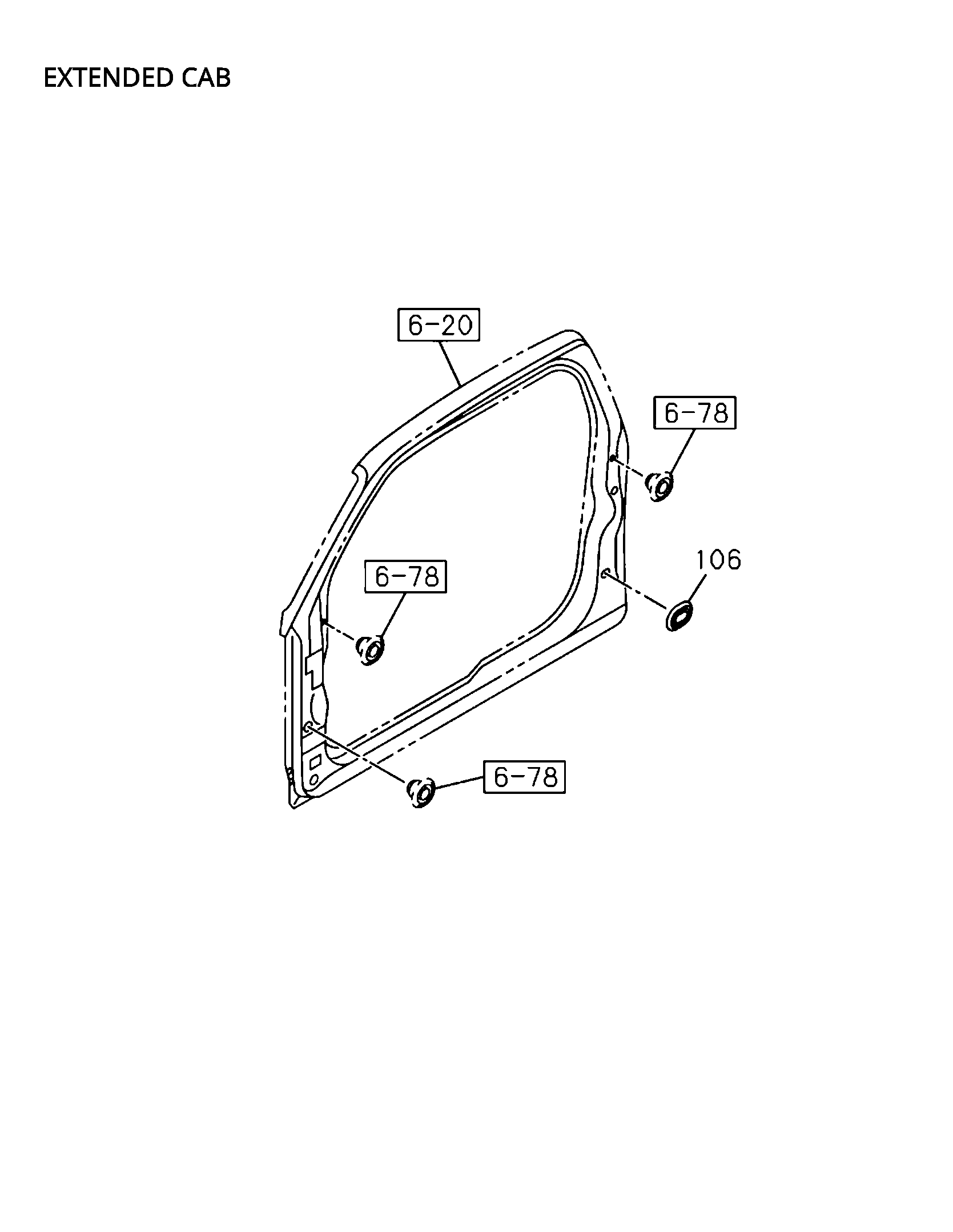

| 106 | I8-94279 724-0 | GROMMET; PROTECTOR | 2 | 2110- | A C D F | |||
| 8 | I8-98166 694-0 | BOLT; CHECK ARM | 2 | 2110- | A B C D E | M8X23 | ||
| 1 | I8-97820 933-0 | DOOR ASM; FRT.WO/TRIM | 1 | 2110- | AB DE | |||
| 3 | I8-98398 908-0 | HINGE; DOOR FRT | 2 | 2110- | A B C D E | (A) UPPER | ||
| 5 | I8-98005 842-0 | BOLT; HINGE | 8 | 2110- | A B C D E | M8X23 FLANGE | ||
| 1 | I8-97820 936-0 | DOOR ASM; FRT.WO/TRIM | 1 | 2110- | C F | |||
| 5 | I8-98005 842-0 | BOLT; HINGE | 8 | 2110- | A BC D E F | M8X23 FLANGE | ||
| 1 | I8-97820 935-0 | DOOR ASM; FRT.WO/TRIM | 1 | 2110- | C F | |||
| 9 | I8-98049 362-0 | NUT; CHECK ARM | 4 | 2110- | A B C D E | M6 FLANGE | ||
| 3 | I8-98398 909-0 | HINGE; DOOR FRT | 2 | 2110- | A B C D E | (B) LOWER | ||
| 103 | I8-98202 864-0 | PROTECTOR; | 2 | 2110- | A BC D E F |
