PORTAL SPAREPART

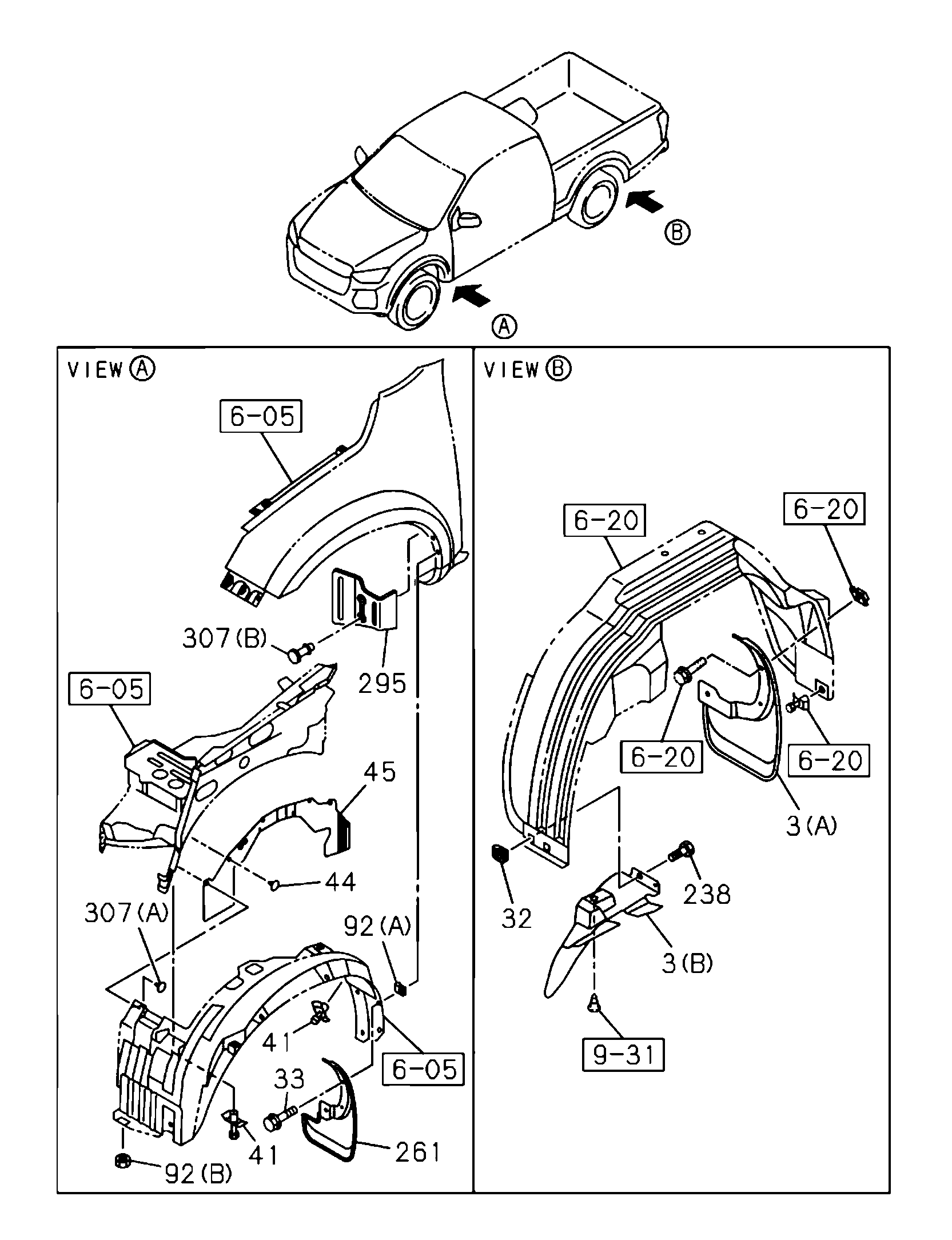

6-47 | 6-47 - MUD GUARD AND INSULATOR

Partial Engine

DMAX

D-MAX 2022

Key PART NO ITC DESCRIPTION QTY APP DATE LR MODEL REMARKS
41 I8-94221 150-0 RIVET; INNER LINER 14 2110- A D F
92 I8-97125 519-0 NUT; MUD COVER 6 2110- C FORMED MUD FLAP FRT & RR<Q8H>,FORMED MUD FLAP EXTEND FRT & RR<Q8J> EXC. HIGH RIDE SUSPENSION(7YC) (A)
3 I8-98393 939-0 GUARD; MUD,RR 1 2110- E REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP FRT &. RR<Q8H> (A)
33 I8-98167 444-0 BOLT; MUD COVER 6 2110- B E FORMED MUD FLAP FRT & RR<Q8H>,FORMED MUD FLAP EXTEND FRT & RR<Q8J> EXC. OVER FENDER<6GH> SCREW M6X20 TAPPING W/PL WASHER
32 I8-97125 519-0 NUT; MUD GUARD 4 2110- ABCDE F REAR BODY DBL WALL CTR PULL(E63)
92 I8-97125 519-0 NUT; MUD COVER 8 2110- A (A)
41 I8-94221 150-0 RIVET; INNER LINER 6 2110- B E EXC. FORMED MUD FLAP FRT 8. RR<Q8H>,FORMED MUD FLAP EXTEND FRT 8c RR<Q8J>,OVER FENDER<6GH>
92 I8-97125 519-0 NUT; MUD COVER 8 2110- B E OVER FENDER<6GH>
3 I8-98393 939-0 GUARD; MUD,RR 1 2110- B REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP FRT &. RR<Q8H> HIGH RIDE SUSPENSION(7YC) (A)
44 I8-94215 211-0 CLIP; ANCHOR 10 2110- A BC D E F OD=22 L=10.7
41 I8-94221 150-0 RIVET; INNER LINER 14 2110- B E OVER FENDER<6GH>
33 I8-98167 444-0 BOLT; MUD COVER 8 2110- C FORMED MUD FLAP FRT &. RR<Q8H>,FORMED MUD FLAP EXTEND FRT & RR<Q8J> HIGH RIDE SUSPENSION(7YC) SCREW
261 I8-98356 195-0 RUBBER; FRT.MUD GUARD 1 2110- C FORMED MUD FLAP FRT & RR<Q8H>,FORMED MUD FLAP EXTEND FRT & RR<Q8J> HIGH RIDE SUSPENSION(7YC)
92 I8-98049 368-0 NUT; MUD COVER 2 2110- ABCDE F (B) M6 W/DISHED WASHER
3 I8-98356 216-0 GUARD; MUD,RR 1 2110- D F REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP FRT & RR<Q8H> (A)
3 I8-98393 938-0 GUARD; MUD,RR 1 2110- B REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP FRT 8. RR<Q8H> HIGH RIDE SUSPENSION(7YC) (A)
261 I8-98356 198-0 RUBBER; FRT.MUD GUARD 1 2110- B FORMED MUD FLAP FRT 8c RR<Q8H> HIGH RIDE SUSPENSION(7YC) EXC. OVER FENDER<6GH>
3 I8-98356 215-0 GUARD; MUD,RR 1 2110- D F REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP FRT & RR<Q8H> (A)
3 I8-98356 215-0 GUARD; MUD,RR 1 2110- C REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP FRT & RR<Q8H> HIGH RIDE SUSPENSION(7YC) (A)
261 I8-98356 198-0 RUBBER; FRT.MUD GUARD 1 2110- BC E FORMED MUD FLAP FRT & RR<Q8H>,FORMED MUD FLAP EXTEND FRT 8. RR<Q8J> EXC. OVER FENDER<6GH>,HIGH RIDE SUSPENSION(7YC)
261 I8-98356 197-0 RUBBER; FRT.MUD GUARD 1 2110- B FORMED MUD FLAP FRT & RR<Q8H> HIGH RIDE SUSPENSION(7YC) EXC. OVER FENDER<6GH>
45 I8-98393 944-1 COVER; MUD,FENDER SKIRT 1 2110- A D E F
261 I8-98356 196-0 RUBBER; FRT.MUD GUARD 1 2110- A
33 I8-98167 444-0 BOLT; MUD COVER 8 2110- D F FORMED MUD FLAP FRT & RR<Q8H>,FORMED MUD FLAP EXTEND FRT & RR<Q8J> SCREW M6X20 TAPPING W/PL WASHER
307 I8-98050 462-0 RETAINER 6 2110- ABCDE F (A)
41 I8-94221 150-0 RIVET; INNER LINER 6 2110- C EXC. FORMED MUD FLAP FRT & RR<Q8H>,FORMED MUD FLAP EXTEND FRT & RR<Q8J>,HIGH RIDE SUSPENSION(7YC)
41 I8-94221 150-0 RIVET; INNER LINER 16 2110- C EXC. HIGH RIDE SUSPENSION(7YC)
261 I8-98356 197-0 RUBBER; FRT.MUD GUARD 1 2110- BC E FORMED MUD FLAP FRT & RR<Q8H>,FORMED MUD FLAP EXTEND FRT & RR<Q8J> EXC. OVER FENDER<6GH>,HIGH RIDE SUSPENSION(7YC)
92 I8-97125 519-0 NUT; MUD COVER 8 2110- C FORMED MUD FLAP FRT & RR<Q8H>,FORMED MUD FLAP EXTEND FRT & RR<Q8J> HIGH RIDE SUSPENSION(7YC) (A)
238 I8-98167 444-0 SCREW; MUD GUARD 4 2110- ABCDE F REAR BODY DBL WALL CTR PULL(E63) M6X20 TAPPING W/PL WASHER
41 I8-94221 150-0 RIVET; INNER LINER 8 2110- C HIGH RIDE SUSPENSION(7YC) EXC. FORMED MUD FLAP FRT & RR<Q8H>,FORMED MUD FLAP EXTEND FRT 8t RR<Q8J>
261 I8-98356 196-0 RUBBER; FRT.MUD GUARD 1 2110- C FORMED MUD FLAP FRT & RR<Q8H>,FORMED MUD FLAP EXTEND FRT & RR<Q8J> HIGH RIDE SUSPENSION(7YC)
261 I8-98356 195-0 RUBBER; FRT.MUD GUARD 1 2110- B D E F FORMED MUD FLAP FRT & RR<Q8H>,FORMED MUD FLAP EXTEND FRT & RR<Q8J> OVER FENDER<6GH>
45 I8-98393 945-1 COVER; MUD,FENDER SKIRT 1 2110- A D E F
41 I8-94221 150-0 RIVET; INNER LINER 16 2110- B E EXC. OVER FENDER<6GH>
33 I8-98167 444-0 BOLT; MUD COVER 8 2110- A SCREW M6X20 TAPPING W/PL WASHER
261 I8-98356 196-0 RUBBER; FRT.MUD GUARD 1 2110- D F FORMED MUD FLAP FRT & RR<Q8H>,FORMED MUD FLAP EXTEND FRT 8t RR<Q8J>
41 I8-94221 150-0 RIVET; INNER LINER 8 2110- D F EXC. FORMED MUD FLAP FRT & RR<Q8H>,FORMED MUD FLAP EXTEND FRT & RR<Q8J>
3 I8-98356 216-0 GUARD; MUD,RR 1 2110- C REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP FRT & RR<Q8H> HIGH RIDE SUSPENSION(7YC) (A)
261 I8-98356 195-0 RUBBER; FRT.MUD GUARD 1 2110- A
3 I8-98356 216-0 GUARD; MUD,RR 1 2110- A REAR BODY DBL WALL CTR PULL(E63) (A)
3 I8-98393 938-0 GUARD; MUD,RR 1 2110- E REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP FRT 8c RR<Q8H> (A)
3 I8-98356 215-0 GUARD; MUD,RR 1 2110- A REAR BODY DBL WALL CTR PULL(E63) (A)
33 I8-98167 444-0 BOLT; MUD COVER 6 2110- C FORMED MUD FLAP FRT & RR<Q8H>,FORMED MUD FLAP EXTEND FRT & RR<Q8J> EXC. HIGH RIDE SUSPENSION(7YC) SCREW M6X20 TAPPING W/PL WASHER
41 I8-94221 150-0 RIVET; INNER LINER 14 2110- C HIGH RIDE SUSPENSION(7YC)
261 I8-98356 196-0 RUBBER; FRT.MUD GUARD 1 2110- B E OVER FENDER<6GH>
92 I8-97125 519-0 NUT; MUD COVER 6 2110- B E FORMED MUD FLAP FRT 8c RR<Q8H>,FORMED MUD FLAP EXTEND FRT & RR<Q8J> EXC. OVER FENDER<6GH> (A)
92 I8-97125 519-0 NUT; MUD COVER 8 2110- D F FORMED MUD FLAP FRT & RR<Q8H>,FORMED MUD FLAP EXTEND FRT & RR<Q8J> (A)
33 I8-98167 444-0 BOLT; MUD COVER 8 2110- B E OVER FENDER<6GH> SCREW M6X20 TAPPING W/PL WASHER
45 I8-98393 944-1 COVER; MUD,FENDER SKIRT 1 2110- BC HIGH RIDE SUSPENSION(7YC)
45 I8-98393 945-1 COVER; MUD,FENDER SKIRT 1 2110- BC HIGH RIDE SUSPENSION(7YC)
