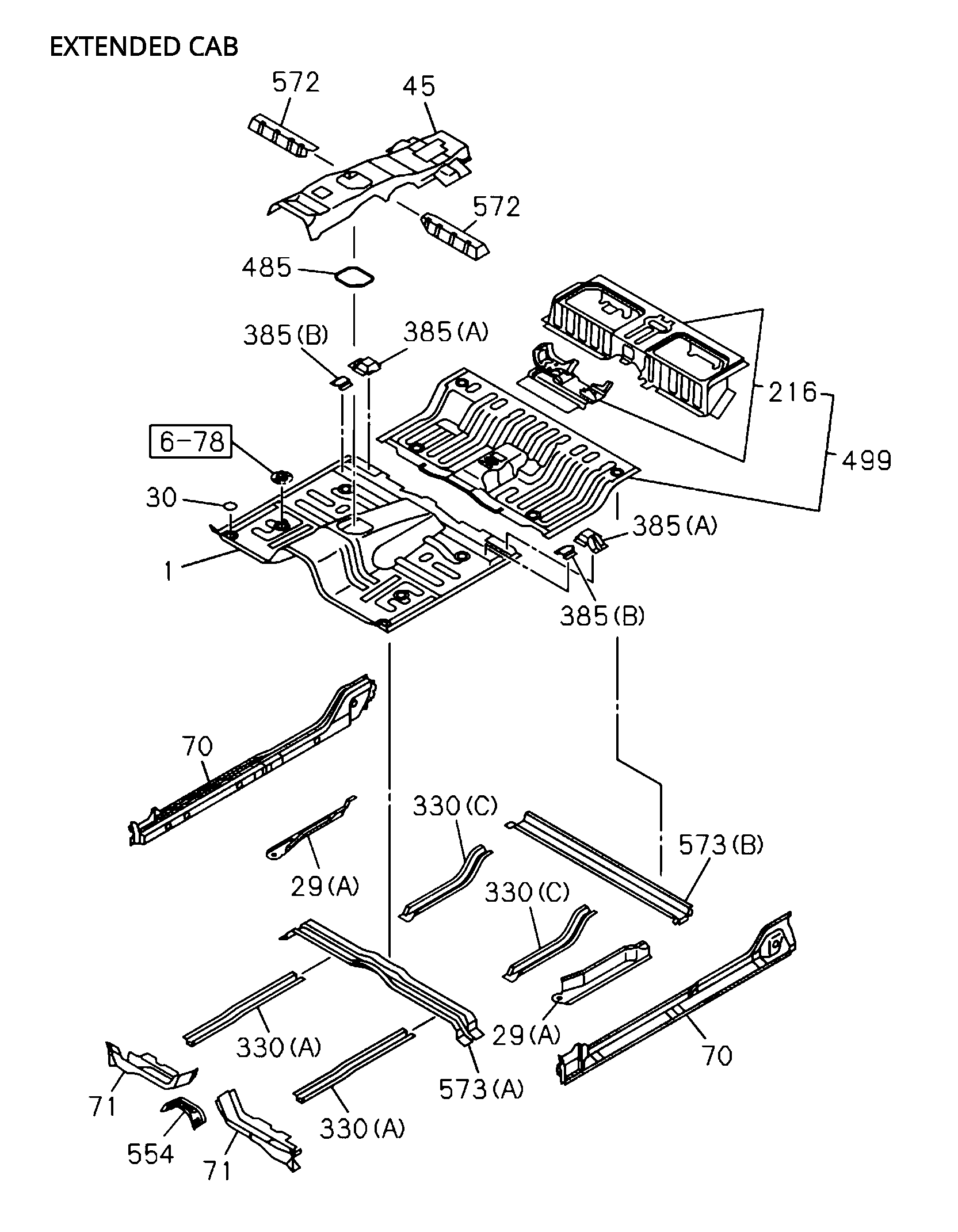

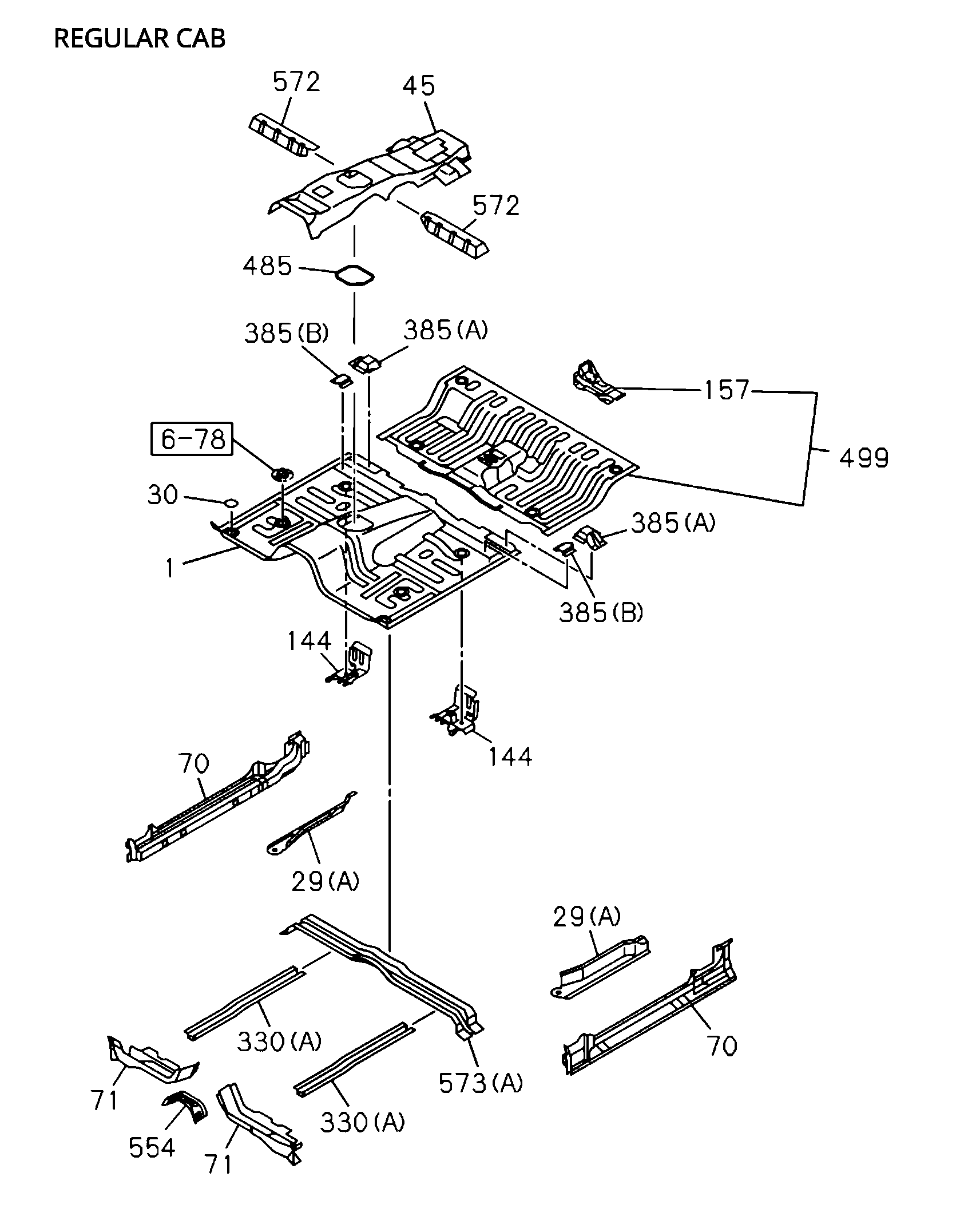

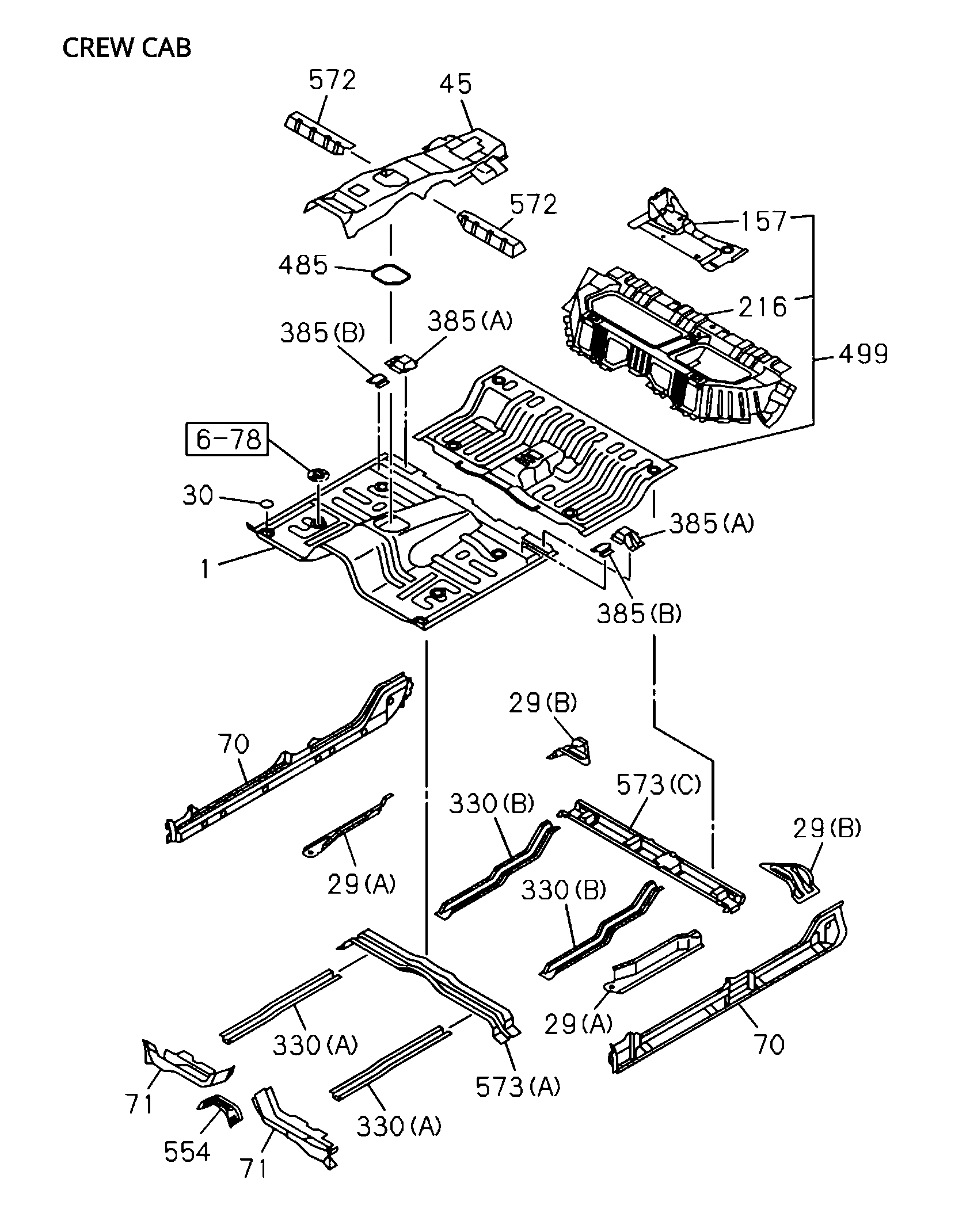

6-70 | 6-70 - FLOOR PANEL
DMAX
D-MAX 2022
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 29 | I8-98385 726-0 | GUSSET | 1 | 2110- | C F | (b) | ||
| 485 | I8-98385 817-1 | SEAL; TAPE TYPE | 1 | 2110- | ABCDE F | |||
| 70 | I8-98385 800-3 | PANEL; ROCKER INNER | 1 | 2110- | C F | |||
| 573 | I8-98392 363-1 | SILL; FLOOR,RR | 1 | 2110- | BC E F | FRONT SEAT SPLIT BENCH<AM6> (a) | ||
| 572 | I8-98385 462-2 | SILL; FLOOR,FRT | 1 | 2110- | ABCDE F | |||
| 71 | I8-98385 705-1 | BRACKET; CAB MTG,CENTER | 1 | 2110- | ABCDE F | |||
| 330 | I8-98385 728-0 | REINFORCEMENT; FLOOR | 1 | 2110- | C F | (b) | ||
| 157 | I8-98385 486-0 | BRACKET; TOOL BOX LID | 1 | 2110- | C F | |||
| 29 | I8-98385 697-0 | GUSSET | 1 | 2110-2201 | A BC D E F | (a) | ||
| 29 | I8-98385 700-0 | GUSSET | 1 | 2202- | A CD F | (a) | ||
| 330 | I8-98385 729-0 | REINFORCEMENT; FLOOR | 1 | 2110- | C F | (b) | ||
| 385 | I8-98385 471-2 | BRACKET | 1 | 2110- | ABCDE F | (a) | ||
| 216 | I8-98385 478-1 | PANEL; SEAT RISER | 1 | 2110- | C F | |||
| 45 | I8-98385 448-3 | REINFORCEMENT; TUNNEL, FRT | 1 | 2110- | A BC D E F | |||
| 554 | I8-98385 704-0 | REINFORCEMENT; FLOOR CENTER | 1 | 2110- | ABCDE F | |||
| 572 | I8-98385 459-2 | SILL; FLOOR,FRT | 1 | 2110- | ABCDE F | |||
| 29 | I8-98385 697-0 | GUSSET | 1 | 2202- | A C D F | (a) | ||
| 29 | I8-98385 700-0 | GUSSET | 1 | 2110-2201 | ABCDE F | (a) | ||
| 499 | I8-98385 475-1 | PANEL; FLOOR,RR | 1 | 2110- | C F | FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> | ||
| 70 | I8-98392 409-2 | PANEL; ROCKER INNER | 1 | 2110- | B E | |||
| 144 | I8-98392 402-1 | BRACKET; MTG,RR | 1 | 2110- | B E | |||
| 29 | I8-98385 727-0 | GUSSET | 1 | 2110- | C F | (b) | ||
| 385 | I8-98385 473-0 | BRACKET | 2 | 2110- | ABCDE F | (b) | ||
| 70 | I8-98392 422-2 | PANEL; ROCKER INNER | 1 | 2110- | B E | |||
| 499 | I8-98392 443-0 | PANEL; FLOOR,RR | 1 | 2110- | B E | FRONT SEAT SPLIT BENCH<AM6> | ||
| 71 | I8-98385 715-1 | BRACKET; CAB MTG,CENTER | 1 | 2110- | ABCDE F | |||
| 330 | I8-98385 720-2 | REINFORCEMENT; FLOOR | 1 | 2110- | ABCDE F | (a) | ||
| 573 | I8-98385 722-1 | SILL; FLOOR,RR | 1 | 2110- | BC E F | FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (a) | ||
| 385 | I8-98385 469-2 | BRACKET | 1 | 2110- | ABCDE F | (a) | ||
| 70 | I8-98385 804-3 | PANEL; ROCKER INNER | 1 | 2110- | C F | |||
| 573 | I8-98385 722-1 | SILL; FLOOR,RR | 1 | 2110- | A | (a) | ||
| 30 | I8-98202 803-0 | G ROM M ET; CAB MTG RAIL | 4 | 2110- | A BC D E F | OD=59 T=9 | ||
| 157 | I8-98392 491-0 | BRACKET; TOOL BOX LID | 1 | 2110- | B E | |||
| 1 | I8-98385 447-1 | PANEL; FLOOR | 1 | 2110- | A BC D E F | |||
| 330 | I8-98385 721-2 | REINFORCEMENT; FLOOR | 1 | 2110- | ABCDE F | (a) | ||
| 144 | I8-98392 405-1 | BRACKET; MTG,RR | 1 | 2110- | B E | |||
| 573 | I8-98385 790-2 | SILL; FLOOR,RR | 1 | 2110- | C F | (c) |
