6-76 | 6-76 - FLOOR EQUIPMENT AND SEALING
DMAX
D-MAX 2022
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

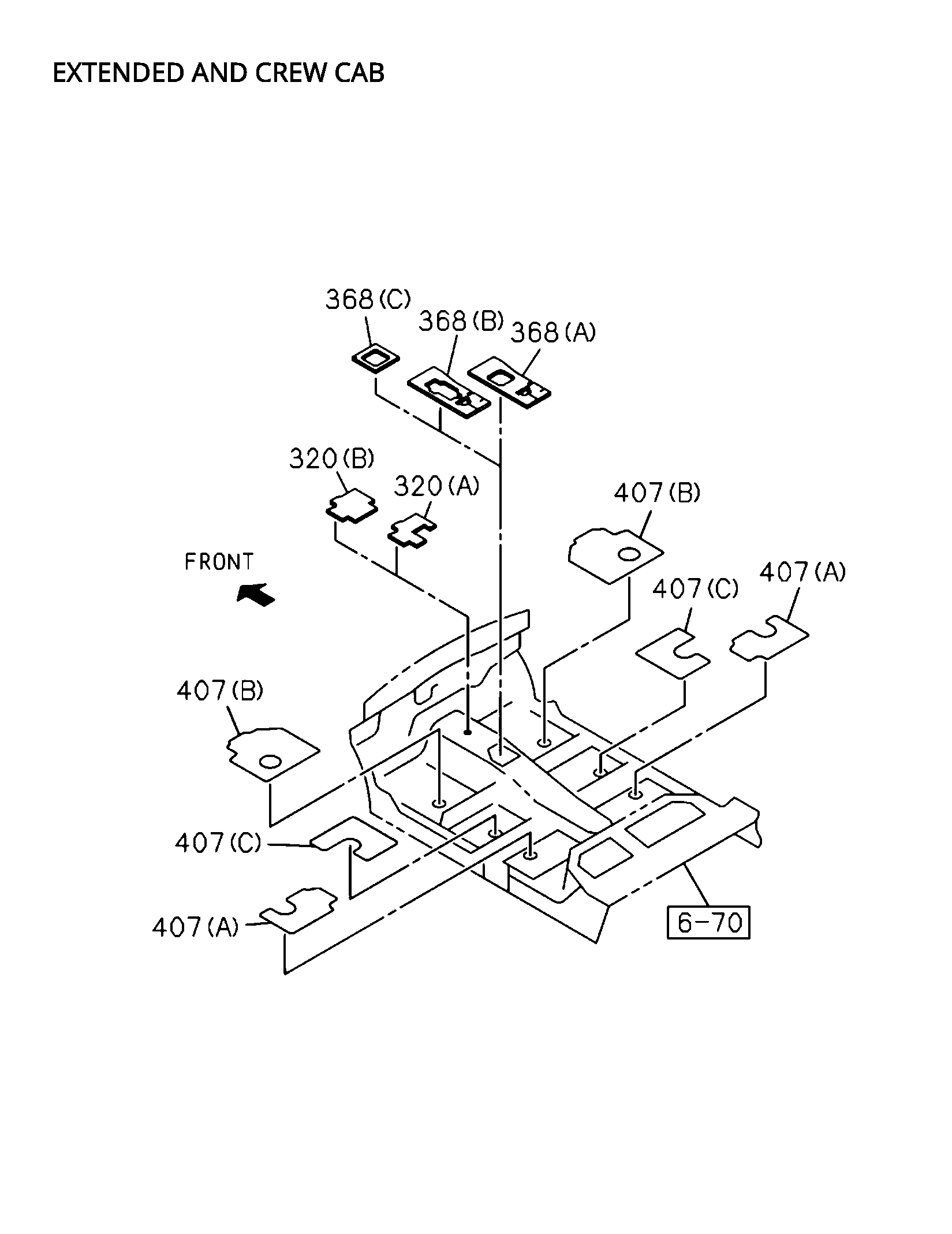

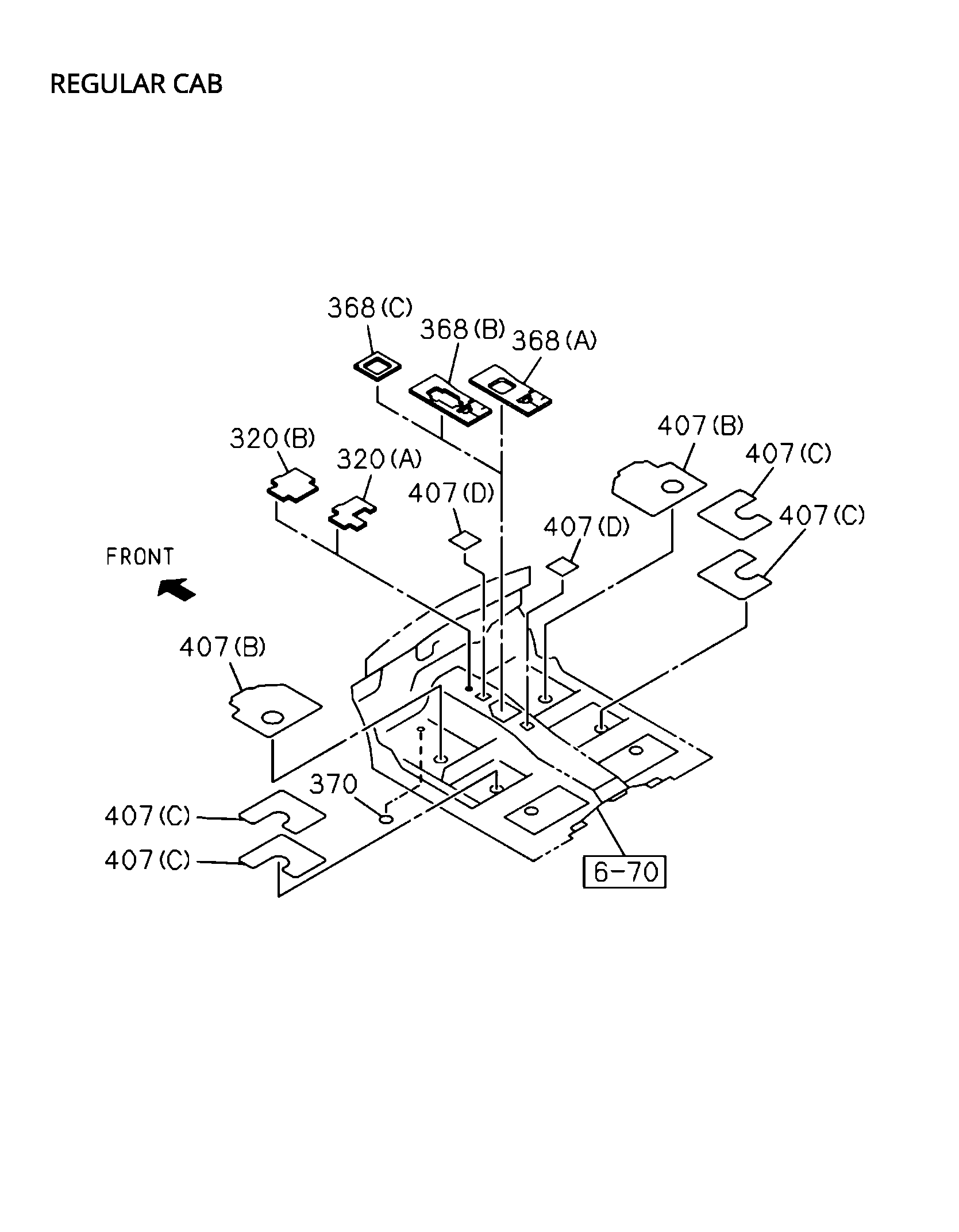

| 407 | I8-97826 682-0 | DEADENER; FLOOR PANEL | 2 | 2111- | AB DE | (B) | ||
| 368 | I8-97799 137-0 | INSULATOR; FLOOR,RR | 1 | 2110- | B E | COVERING FLOOR VINYL<B38> EXC. FLOOR CONSOLE W/LID<D55> (C) | ||
| 0 | 2110- | B E | (C) | 3653 | ||||
| 368 | I8-97543 554-1 | INSULATOR; FLOOR,RR | 1 | 2110- | C F | M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S) FLOOR CONSOLE W/LID & RR CUP HOLDER<D07>,FLOOR CONSOLE W/LID<D55> EXC. COVERING FLOOR VINYL<B38> (A) | ||
| 407 | I8-98391 192-2 | DEADENER; FLOOR PANEL | 2 | 2110-2110 | A B C D E | (B) | ||
| 368 | I8-97543 555-1 | INSULATOR; FLOOR,RR | 1 | 2110- | C F | A/T 6 SPEED-AISIN(Y6A) FLOOR CONSOLE W/LID & RR CUP HOLDER<D07>,FLOOR CONSOLE W/LID<D55> EXC. COVERING FLOOR VINYL<B38> (B) | ||
| 0 | 2110- | B E | (D) | 3652 | ||||
| 368 | I8-97799 137-0 | INSULATOR; FLOOR,RR | 1 | 2110- | CD F | COVERING FLOOR VINYL<B38> EXC. FLOOR CONSOLE W/LID &. RR CUP HOLDER<D07>,FLOOR CONSOLE W/LID<D55> (C) | ||
| 370 | I8-97826 301-0 | SEAL; LOCATION HOLE | 1 | 2110- | B E | OD=25BLACK | ||
| 320 | I8-97543 552-1 | INSULATOR; | 1 | 2110- | CD F | AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AYO),AIR BAG DRIVER&DRIVER KNEE&PASS&SIDE&ROOF(8TX),A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) FLOOR CONSOLE W/LID & RR CUP HOLDER<D07>,FLOOR CONSOLE W/LID<D55> EXC. COVERING FLOOR VINYL<B38> (A) | ||

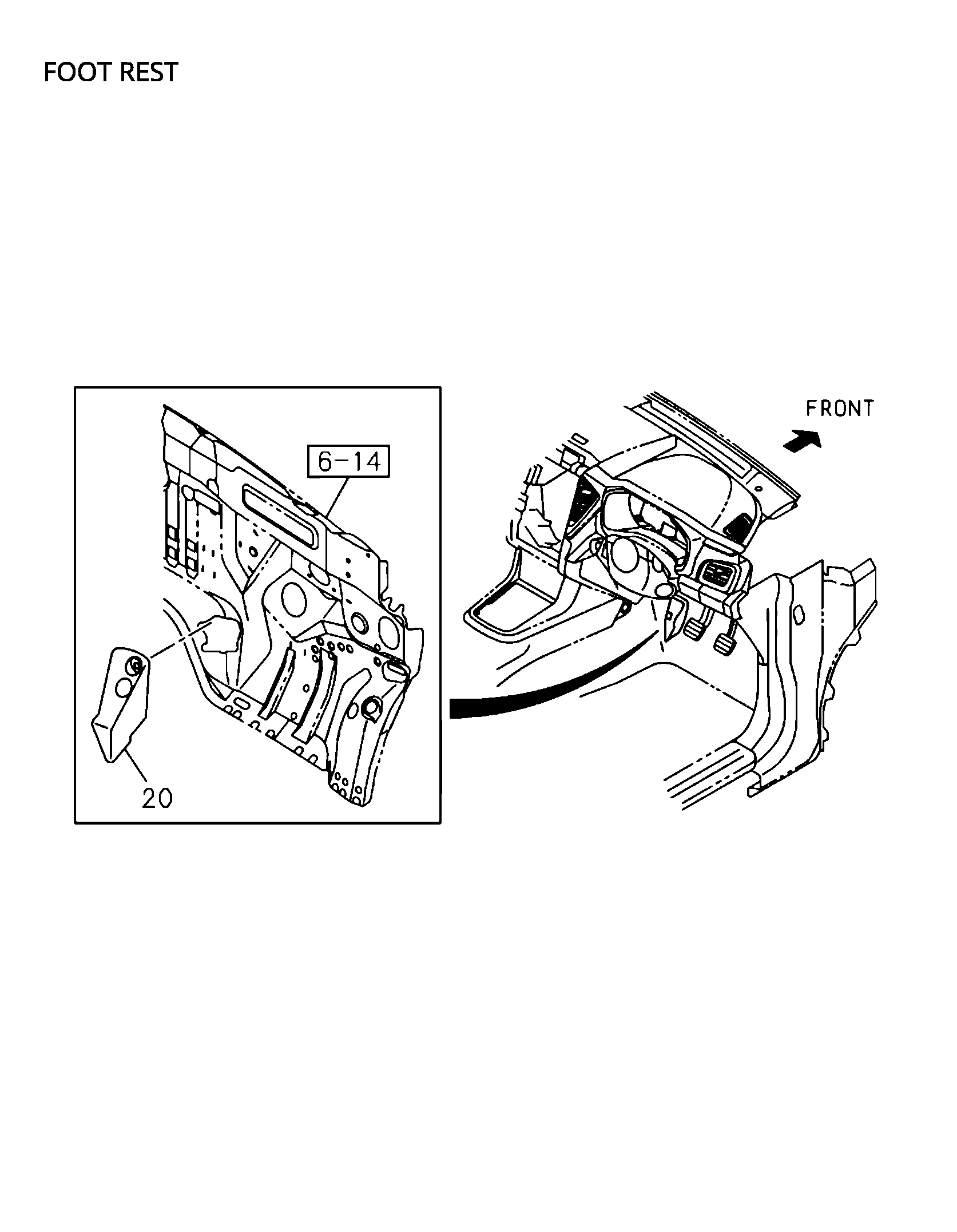

| 20 | I8-98392 739-0 | REST; FOOT | 1 | 2110- | A BC D E F | |||
| 407 | I8-98391 192-2 | DEADENER; FLOOR PANEL | 2 | 2111- | C F | (B) | ||
| 0 | 2110- | A C | (C) | 3651 |
