6-78 | 6-78 - FLOOR HOLE PLUG
DMAX
D-MAX 2022
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

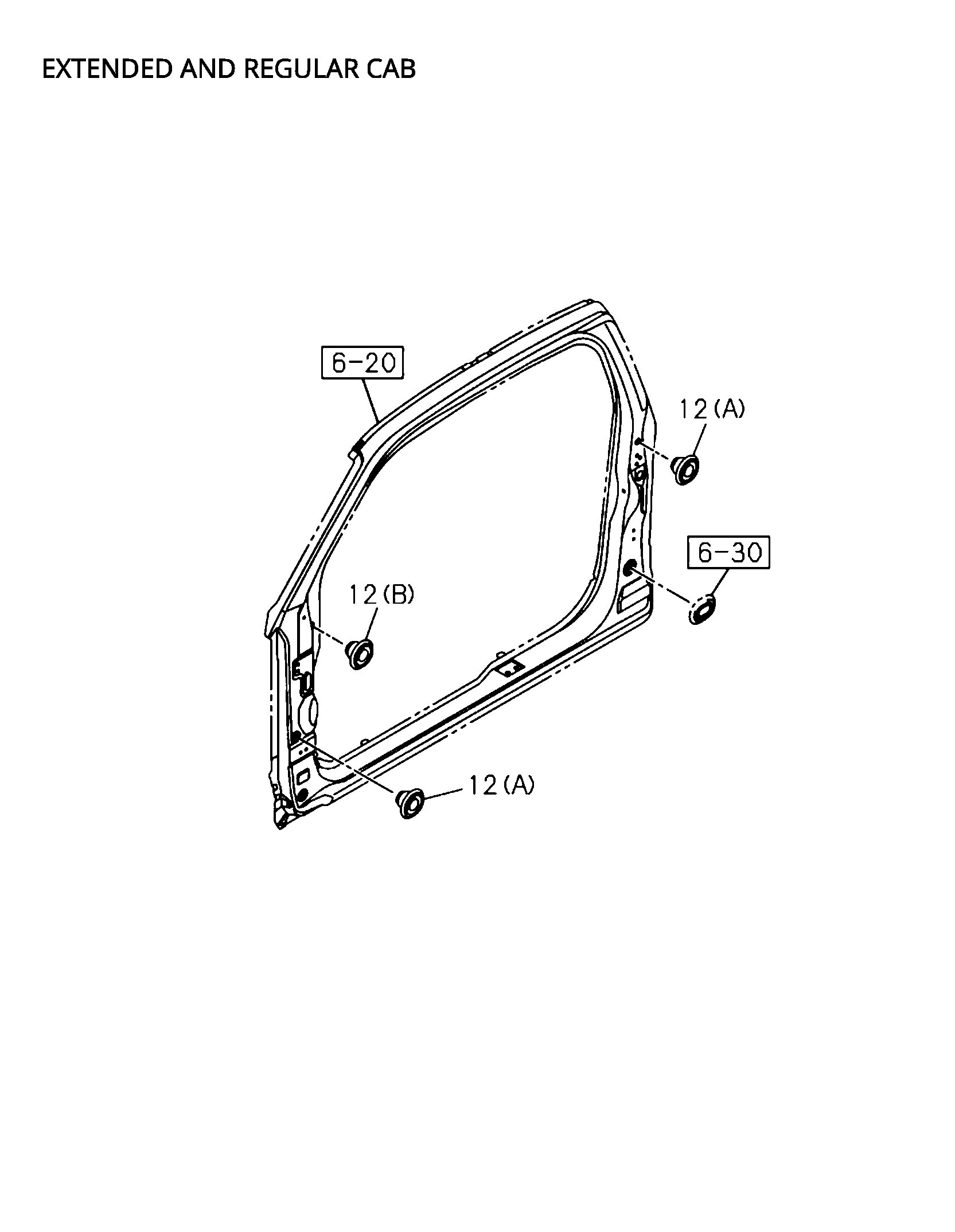

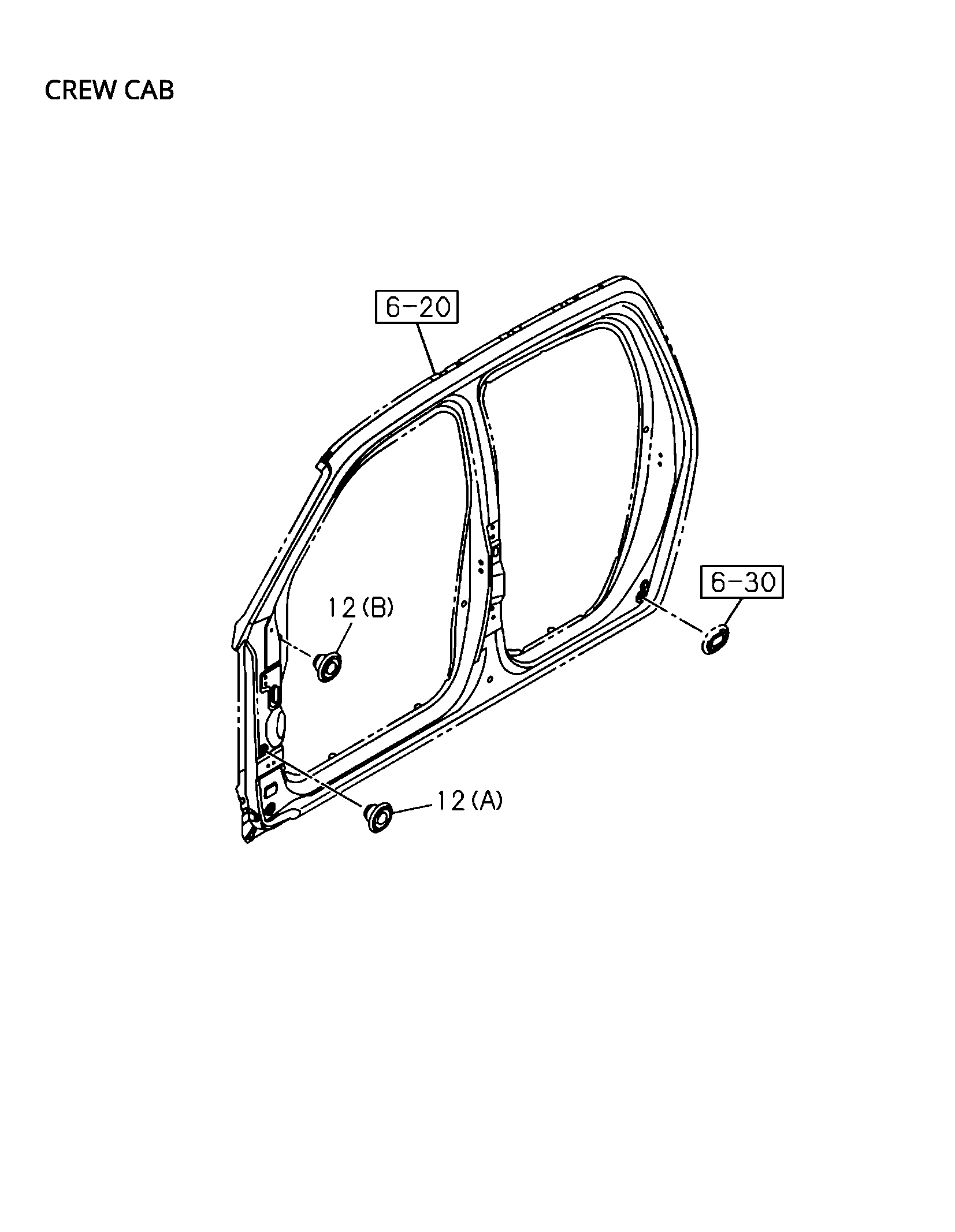

| 12 | I8-97320 908-0 | GROMMET; DRAIN HOLE.ROCKER RR | 2 | 2110- | BC E F | (A) OD=35 | ||
| 12 | I8-97320 908-0 | GROMMET; DRAIN HOLE.ROCKER RR | 14 | 2110- | A C D F | (A) OD=35 | ||

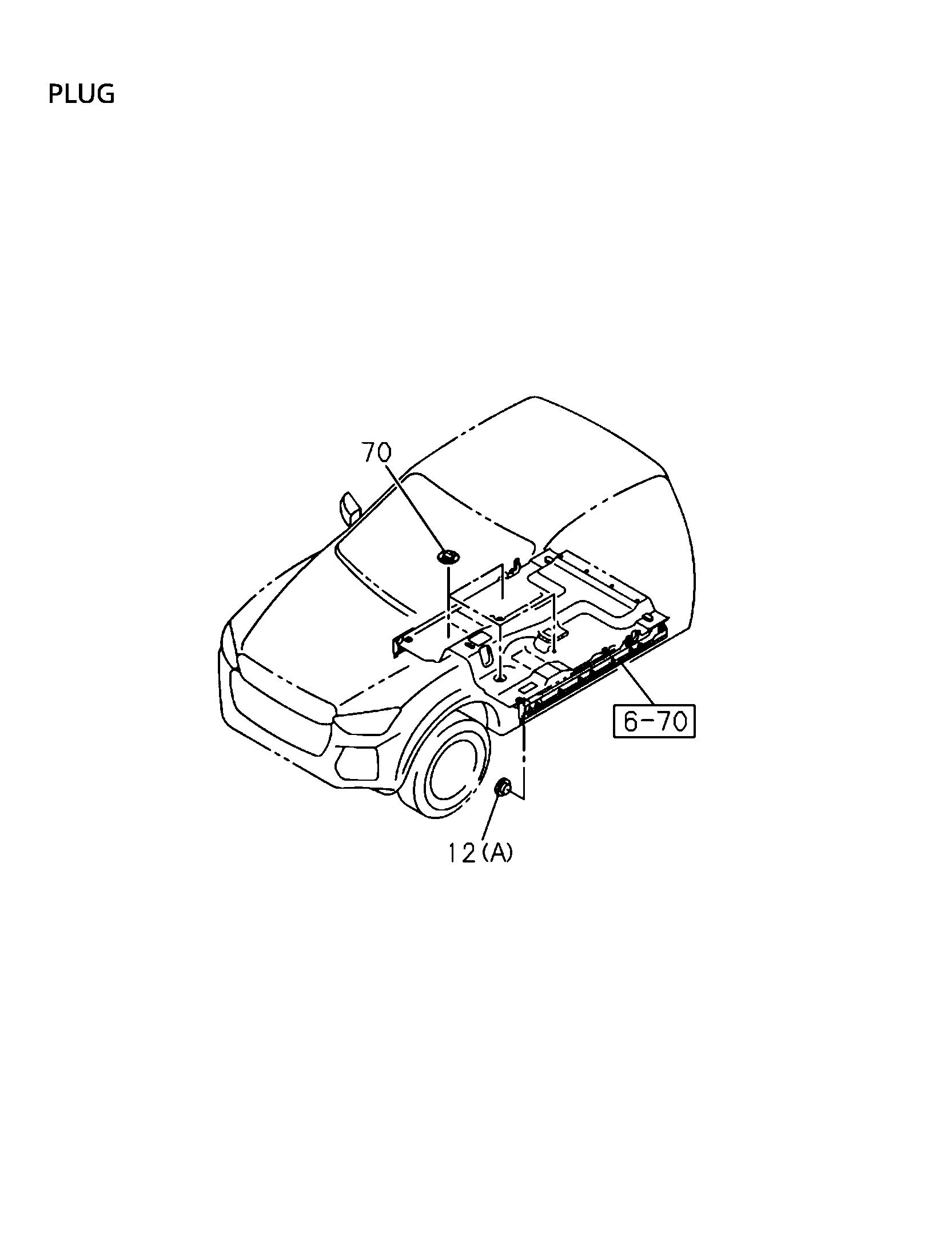

| 70 | I8-97324 563-0 | PLUG; METAL,FLOOR | 6 | 2110- | ABCDE F | |||
| 12 | I8-98391 640-0 | GROMMET; DRAIN HOLE.ROCKER RR | 4 | 2110- | A BC D E F | (B) OD=39 | ||
| 12 | I8-97320 908-0 | GROMMET; DRAIN HOLE.ROCKER RR | 6 | 2110- | B E | (A) OD=35 |
