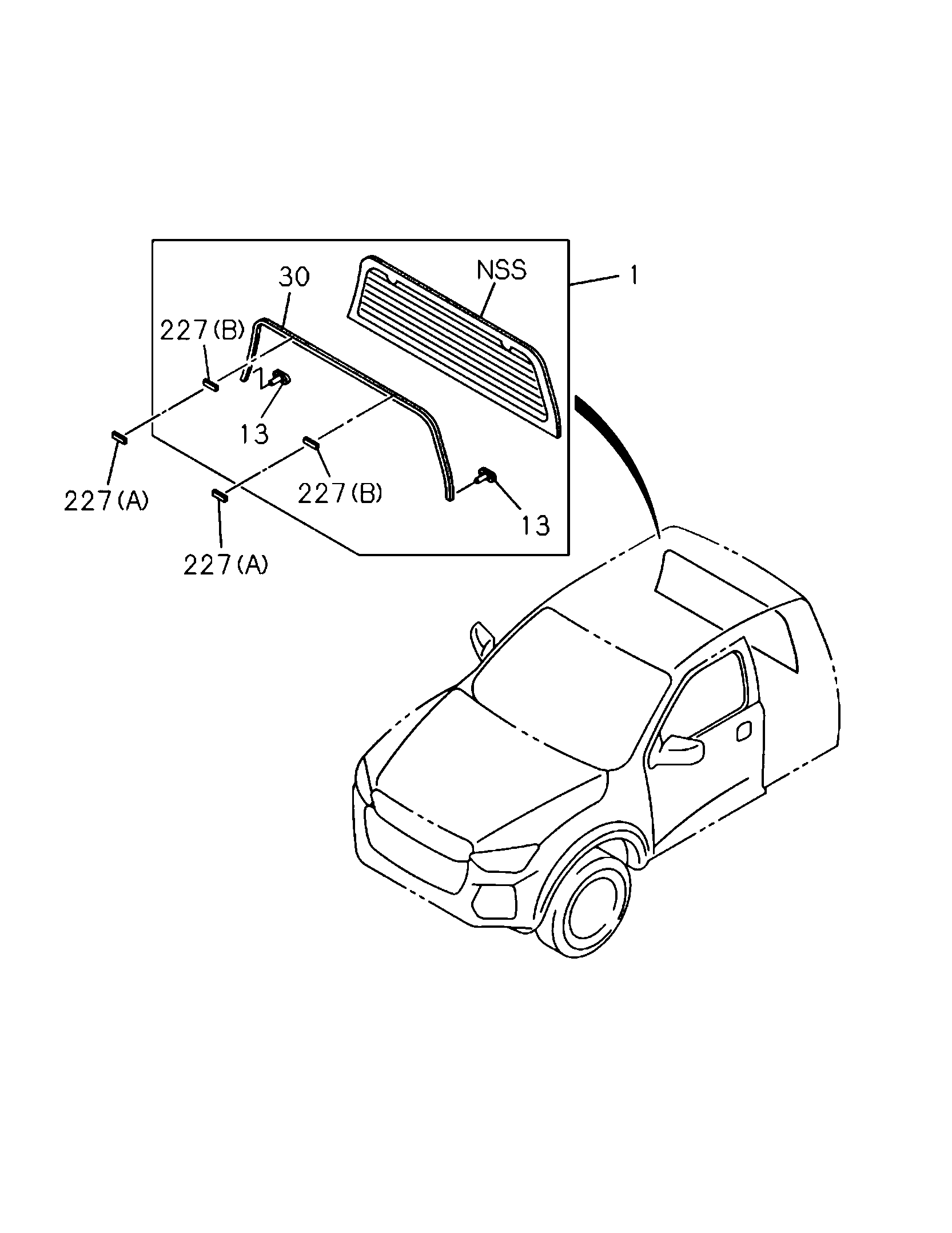

6-82 | 6-82 - BACK GLASS AND WEATHERSTRIP
DMAX
D-MAX 2022
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 227 | I8-98285 699-0 | RETAINER; RR WINDOW | 2 | 2110- | ABCDE F | (B) 20X8 | ||
| 1 | I8-98334 423-0 | GLASS; BACKLIGHT | 1 | 2110- | C F | EXC. REAR DEFOGGER<C49> | ||
| 227 | I8-98187 720-0 | RETAINER; RR WINDOW | 2 | 2110- | ABCDE F | (A) 30X8 | ||
| 1 | I8-98392 826-0 | GLASS; BACKLIGHT | 1 | 2110- | B E | |||
| 13 | I8-98481 321-0 | SUPPORT; BACKLIGHT GLASS | 2 | 2110- | A BC D E F | |||
| 1 | I8-98334 424-0 | GLASS; BACKLIGHT | 1 | 2110- | C F | REAR DEFOGGER<C49> | ||
| 1 | I8-98392 826-0 | GLASS; BACKLIGHT | 1 | 2110- | D | EXC. REAR DEFOGGER<C49> | ||
| 30 | I8-98481 323-0 | SEAL; BACKLIGHT GLASS | 1 | 2110- | ABCDE F |
