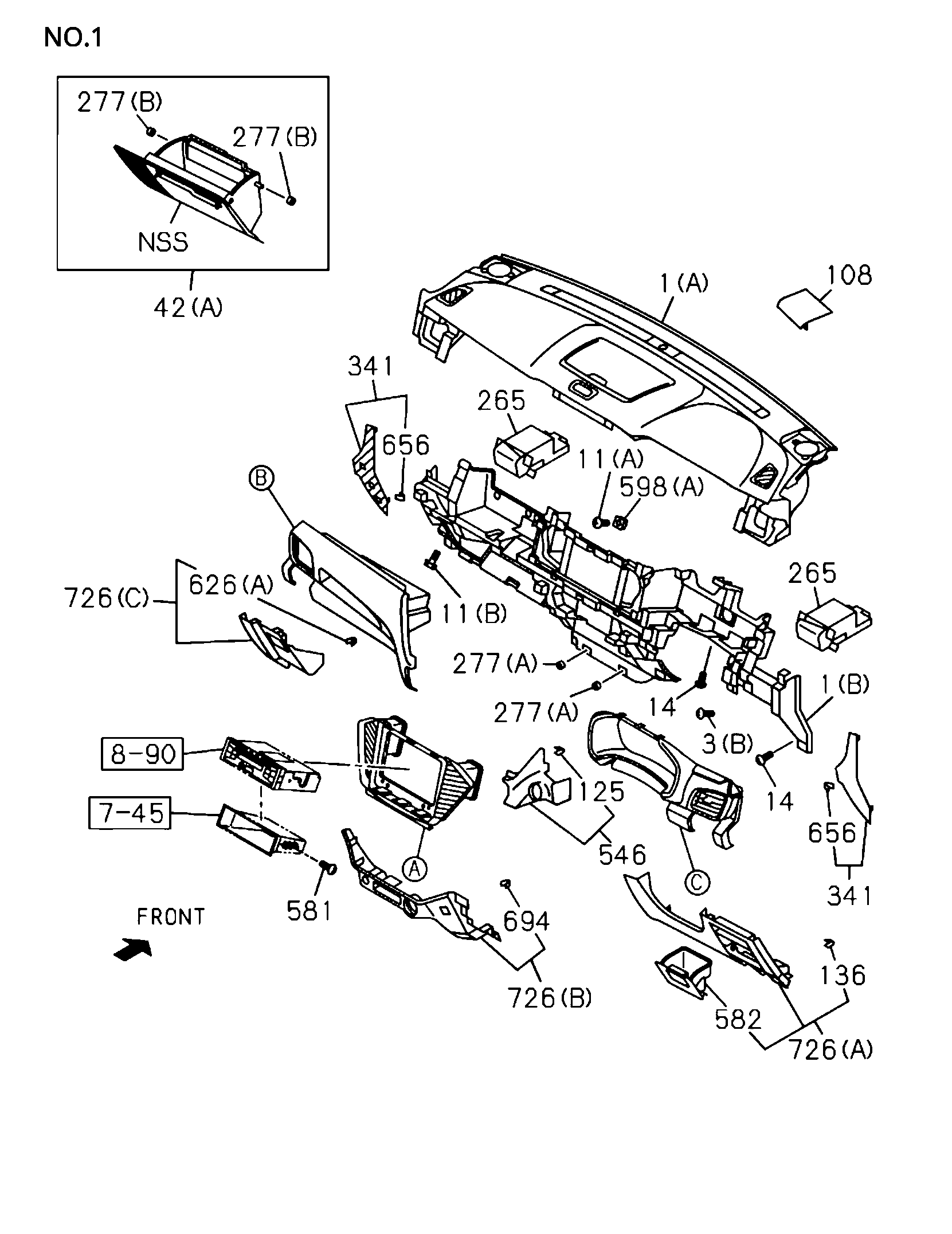

| 42 |
I8-97905 013-1 |
|
BOX; GLOVE.INST PNL |
1 |
2110- |
|
CD F |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD),GRADE ROYAL(RBE) (B) BLACK |
| 0 |
I8-98164 685-0 |
|
rnniitiET. c |
15 |
2111- |
|
A CDE F |
REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) (A) |
| 265 |
I8-97908 514-0 |
|
HOLDER; CUP |
1 |
2110-2110 |
L |
A BC D E F |
EXC. PROVISIONAL PACKAGE PREVIOUS PARTS<C1H> BLACK |
| 0 |
I8-98164 685-0 |
|
rnniitiET. c |
15 |
2111- |
|
B |
(A) |
| 277 |
I8-97553 227-0 |
|
RUBBER; STOPPER GLOVE LID |
2 |
2110-2110 |
|
ABCDE F |
(A) |

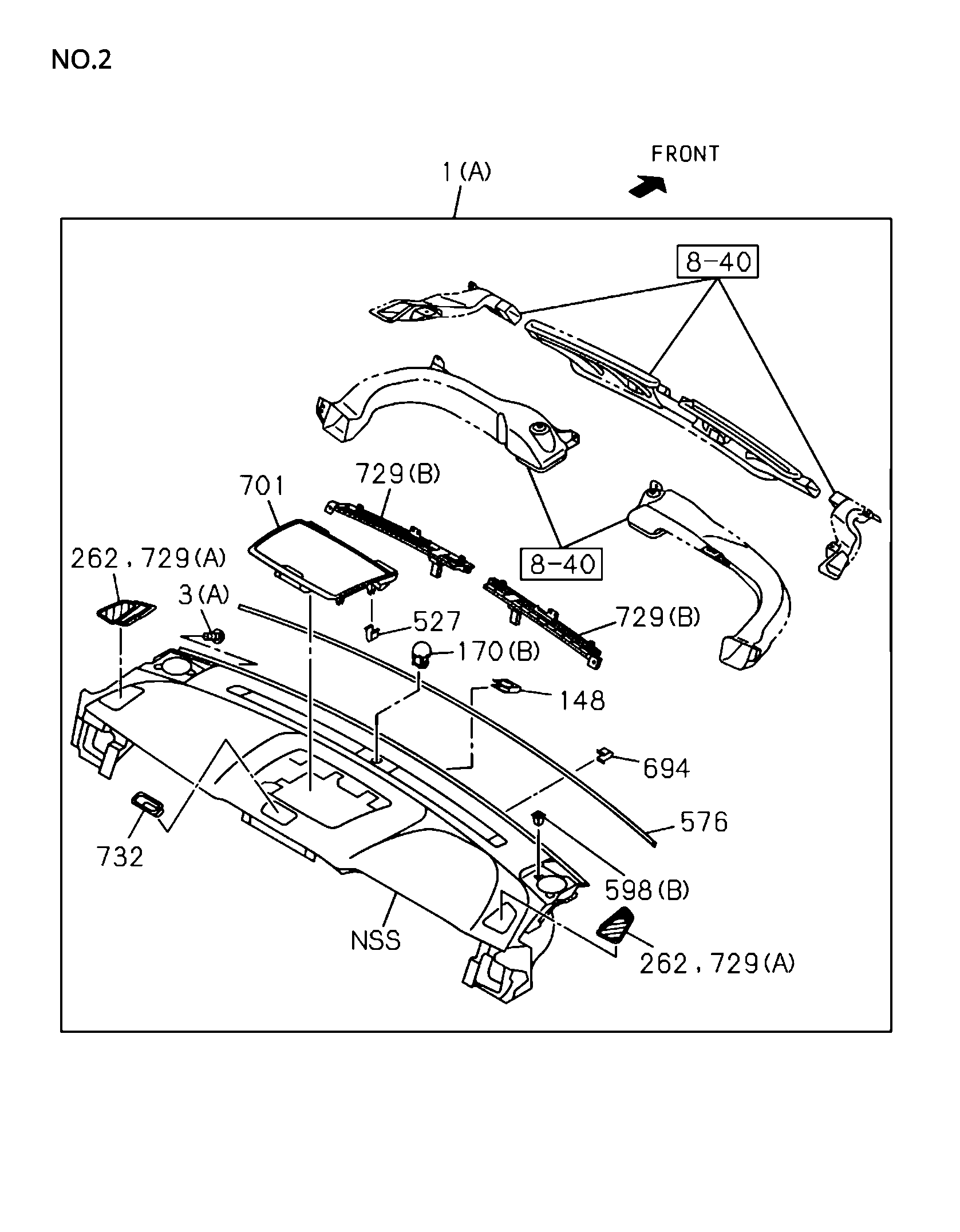

| 701 |
I8-97905 139-0 |
|
TRAY; INST |
1 |
2110- |
|
CD F |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD) BLACK |

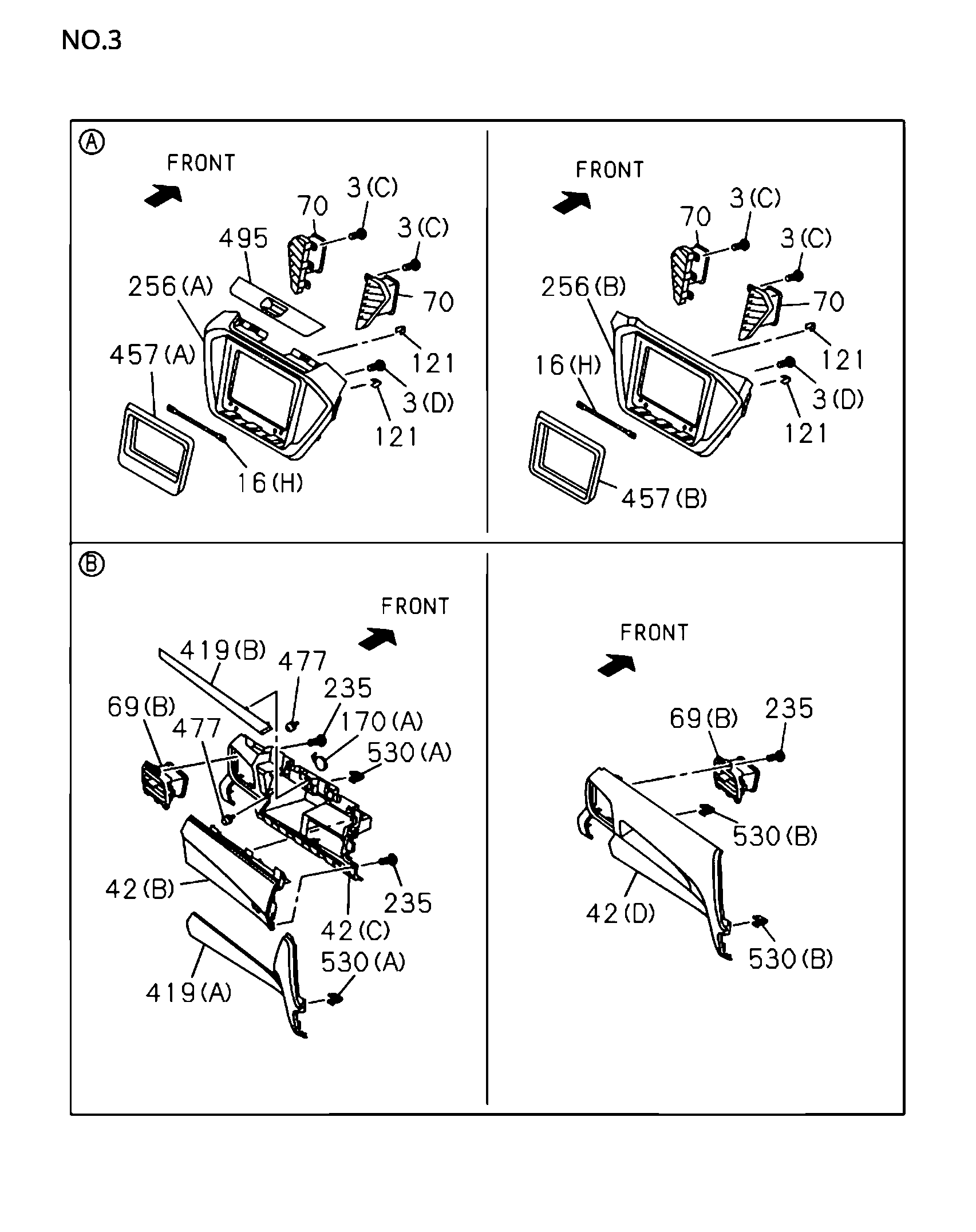

| 256 |
I8-97905 019-0 |
|
BEZEL ASM; CENTER |
1 |
2110- |
|
CD F |
GRADE CUSTOM(RBD) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) (B) BLACK |
| 457 |
I8-97905 025-0 |
|
PLATE; INST PANEL |
1 |
2110- |
|
CD F |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD),GRADE ROYAL(RBE) RADIO DELETE(ULS) (B) BLACK |
| 70 |
I8-97905 024-0 |
|
GRILLE; CENTER,AIR OUTLET |
1 |
2110- |
L |
AB E |
BLACK |
| 3 |
I8-97553 417-0 |
|
SCREW; BINDER HD |
6 |
2110- |
|
CD F |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD),GRADE ROYAL(RBE) (C) |
| 262 |
I8-97905 147-0 |
|
GRILLE; DEFROSTER |
1 |
2110- |
R |
B C D E F |
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) BLACK |
| 457 |
I8-97905 170-0 |
|
PLATE; INST PANEL |
1 |
2110- |
|
BCDE F |
GRADE BASIC(RBA),GRADE DELUXE(RBB) RADIO DELETE(UL5) (A) BLACK |
| 11 |
I0-28450 825-0 |
|
BOLT; INST PNL |
6 |
2110- |
|
A B C D E |
(B) M8X25 FLANGE |
| 11 |
I8-97947 104-1 |
|
BOLT; INST PNL |
8 |
2110- |
|
A B C D E |
(E) M8X22.5W/PL WASHER |
| 235 |
I8-97553 417-0 |
|
SCREW; GRIL |
18 |
2110- |
|
CD F |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD),GRADE ROYAL(RBE) |
| 582 |
I8-97477 997-0 |
|
LID; FUSE & RELAY |
1 |
2110- |
|
A B C D E |
BLACK |
| 656 |
I8-98164 677-0 |
|
CLIP; TRIM |
6 |
2110- |
|
A BC D E F |
|
| 265 |
I8-97908 513-1 |
|
HOLDER; CUP |
1 |
2111- |
R |
A |
REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. PROVISIONAL PACKAGE PREVIOUS PARTS<C1H> BLACK |
| 726 |
I8-97472 044-3 |
|
PANEL; INST LW |
1 |
2110- |
|
D E F |
FLOOR CONSOLE W/LID & RR CUP HOLDER<D07>,FLOOR CONSOLE W/LID<D55> (B) BLACK |
| 3 |
I8-98246 739-0 |
|
SCREW; BINDER HD |
19 |
2110- |
|
CD F |
GRADE BASIC(RBA),GRADE DELUXE(RBB) (A) M5X16 |
| 1 |
I8-97478 061-3 |
|
PANEL; INST |
1 |
2110- |
|
C E F |
GRADE BASIC(RBA),GRADE DELUXE(RBB) AIR BAG DRIVER 8< PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE 8t ROOF(AYO),AIR BAG DRIVER8.DRIVER KNEE8iPASS8iSIDE8iROOF(8TX),A/BAG DR8cDR KNEE8tPASS&SIDE/FAR SIDE/ROOF(8TY) COOLER WO/HEATER(C65) EXC. SAFETY PACKAGE FRT<8SW>,SAFETY PACKAGE FRT 8. RR<8SY> (A) BLACK |
| 3 |
I8-98246 739-0 |
|
SCREW; BINDER HD |
27 |
2110- |
|
CD F |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A) M5X16 |
| 694 |
I8-98164 677-0 |
|
CLIP; INST PNL |
6 |
2110- |
|
AB E |
|
| 341 |
I8-97471 684-3 |
|
LID; FUSE BOX |
1 |
2110- |
L |
ABCDE F |
BLACK |
| 170 |
I8-97905 138-0 |
|
COVER; HOLE |
1 |
2110- |
|
BCDE F |
GRADE BASIC(RBA),GRADE DELUXE(RBB) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B) BLACK |
| 235 |
I8-98246 739-0 |
|
SCREW; GRIL |
8 |
2110- |
|
CD F |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD),GRADE ROYAL(RBE) M5X16 |
| 170 |
I8-97905 138-0 |
|
COVER; HOLE |
1 |
2110- |
|
CD F |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60), COOLER WO/H EATER(C65) (B) BLACK |

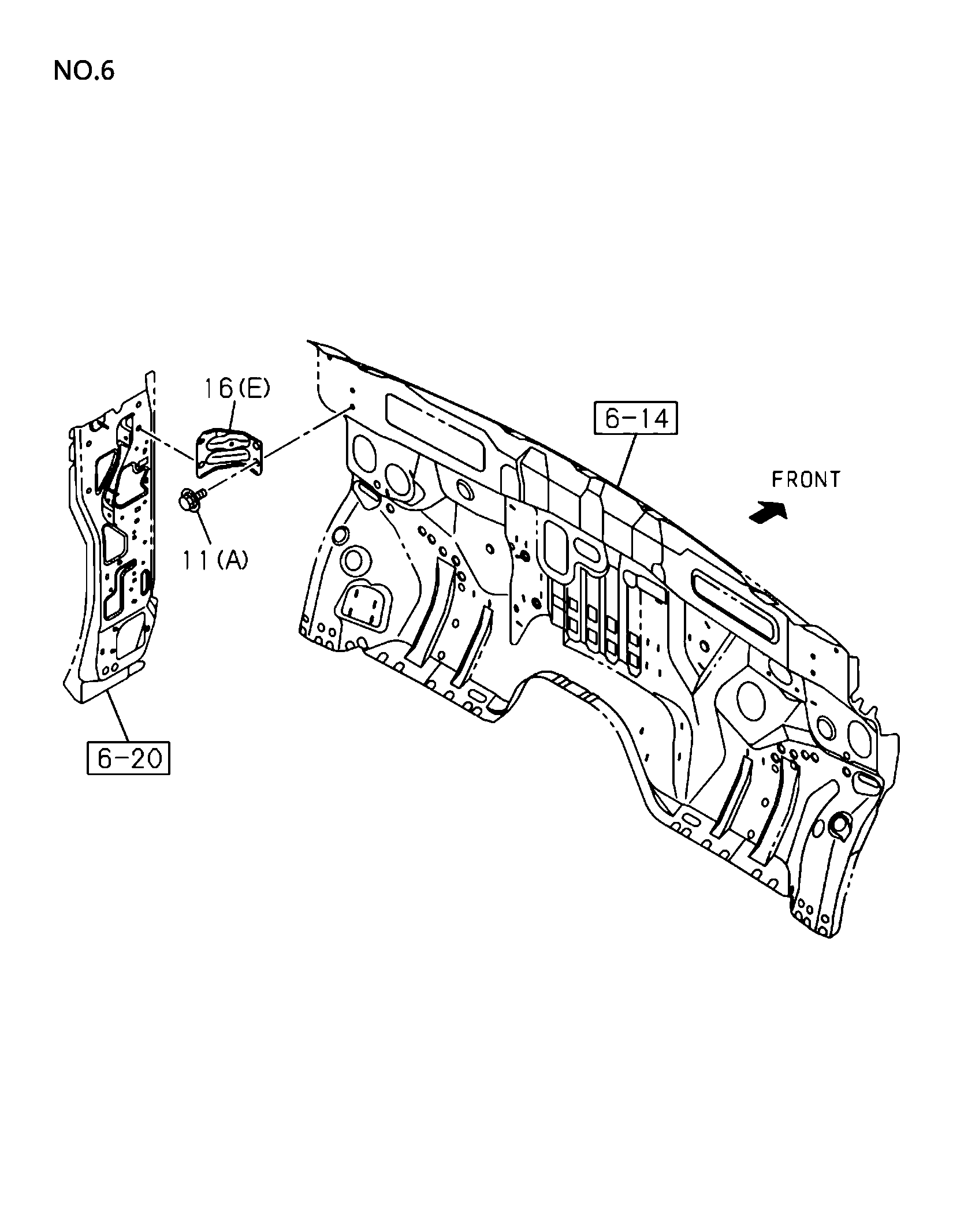

| 16 |
I8-98398 508-0 |
|
BRACKET; INST PNL |
1 |
2110- |
|
BCDE F |
RZ4E-TC ENG(RDZ) EUROO SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) (B) |
| 626 |
I8-97472 347-0 |
|
RETAINER |
1 |
2110- |
|
A |
(B) BLACK |
| 14 |
I8-98167 220-0 |
|
SCREW; INST PNL |
1 |
2110- |
|
A BC D E F |
M5X16 |

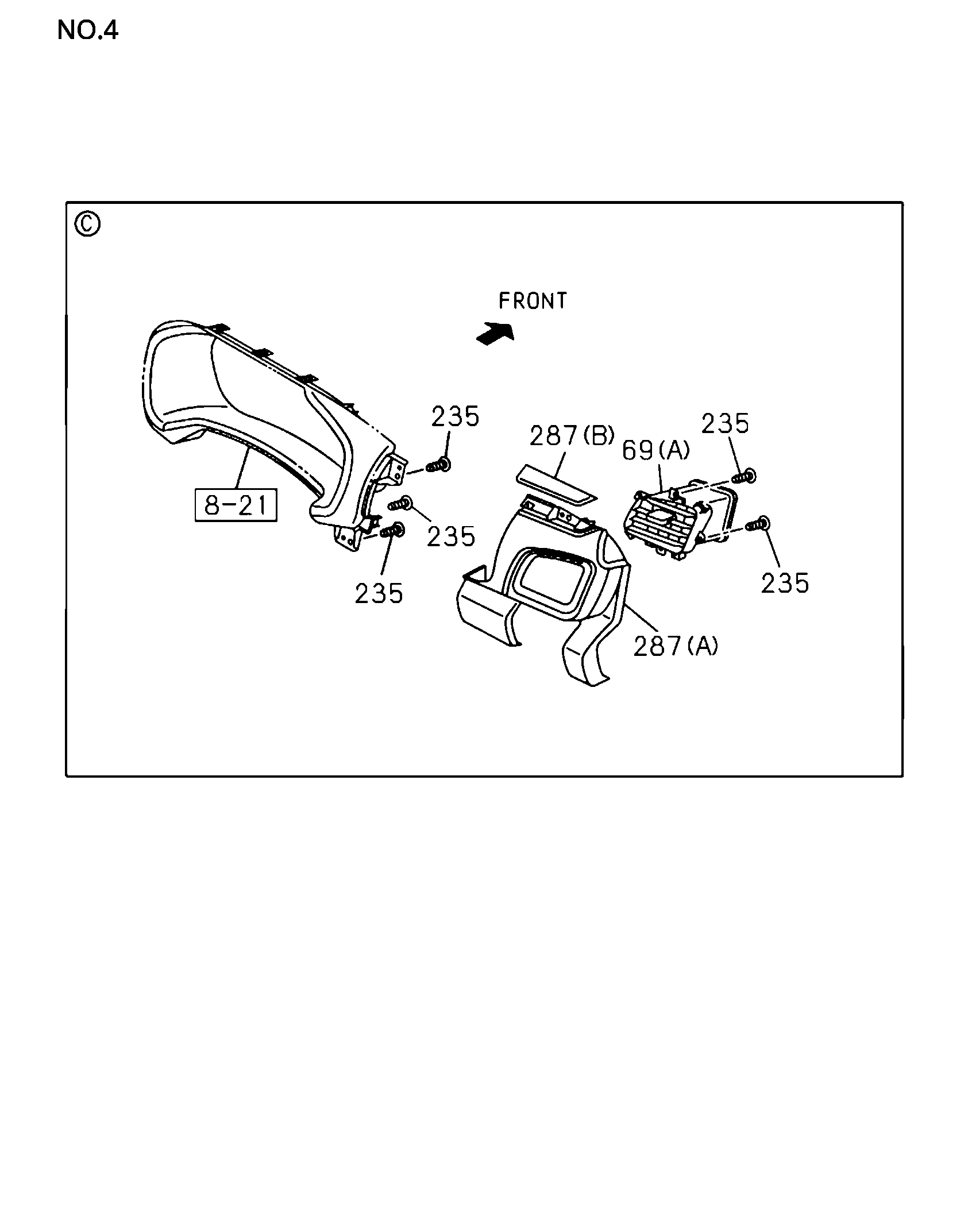

| 287 |
I8-97905 207-1 |
|
PANEL; CLUSTER SIDE |
1 |
2110- |
|
ABCDE F |
GRADE BASIC(RBA),GRADE DELUXE(RBB) (A) |
| 148 |
I8-98038 450-0 |
|
NUT; INST Pfi |
4 |
2110- |
|
BC D E F |
GRADE BASIC(RBA),GRADE DELUXE(RBB) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AYO),AIR BAG DRIVER&DRIVER KNEE&PASS&SIDE&ROOF(8TX),A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) |
| 42 |
I8-97905 463-1 |
|
BOX; GLOVE.INST PNL |
1 |
2110- |
|
CD F |
GRADE LUXURY(RBC) AM/FM,CLOCK,BLUE TOOTH.CD PLAYER(UGQ),RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL),AM/FM,DVD,NAVI W/DISPLAY,SMART PHONE(8RW),AM/FM,MEMOLY NAVI W/DISPLAY,SMART PHONE(8TG), SCREEN 9" WO/DVD(8TK) (C) SILVER |
| 70 |
I8-97905 021-0 |
|
GRILLE; CENTER,AIR OUTLET |
1 |
2110- |
R |
CD F |
GRADE CUSTOM(RBD),GRADE ROYAL(RBE) BLACK |
| 726 |
I8-97471 679-2 |
|
PANEL; INST LW |
1 |
2110- |
|
A BC D E F |
(C) BLACK |
| 419 |
I8-97905 012-0 |
|
PANEL; SHELF,GLOVE BOX |
1 |
2110- |
|
CD F |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD),GRADE ROYAL(RBE) (A) BLACK |
| 136 |
I8-98164 677-0 |
|
CLIP; INST C< |
6 |
2110- |
|
BCDE F |
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AYO) |
| 148 |
I8-98038 450-0 |
|
NUT; INST Pfi |
4 |
2110- |
|
A |
|
| 42 |
I8-97471 680-2 |
|
BOX; GLOVE.INST PNL |
1 |
2110- |
|
A |
(A) BLACK |
| 108 |
I8-97471 685-1 |
|
GRILLE; INST PNL |
1 |
2110- |
R |
A B C D E |
BLACK |

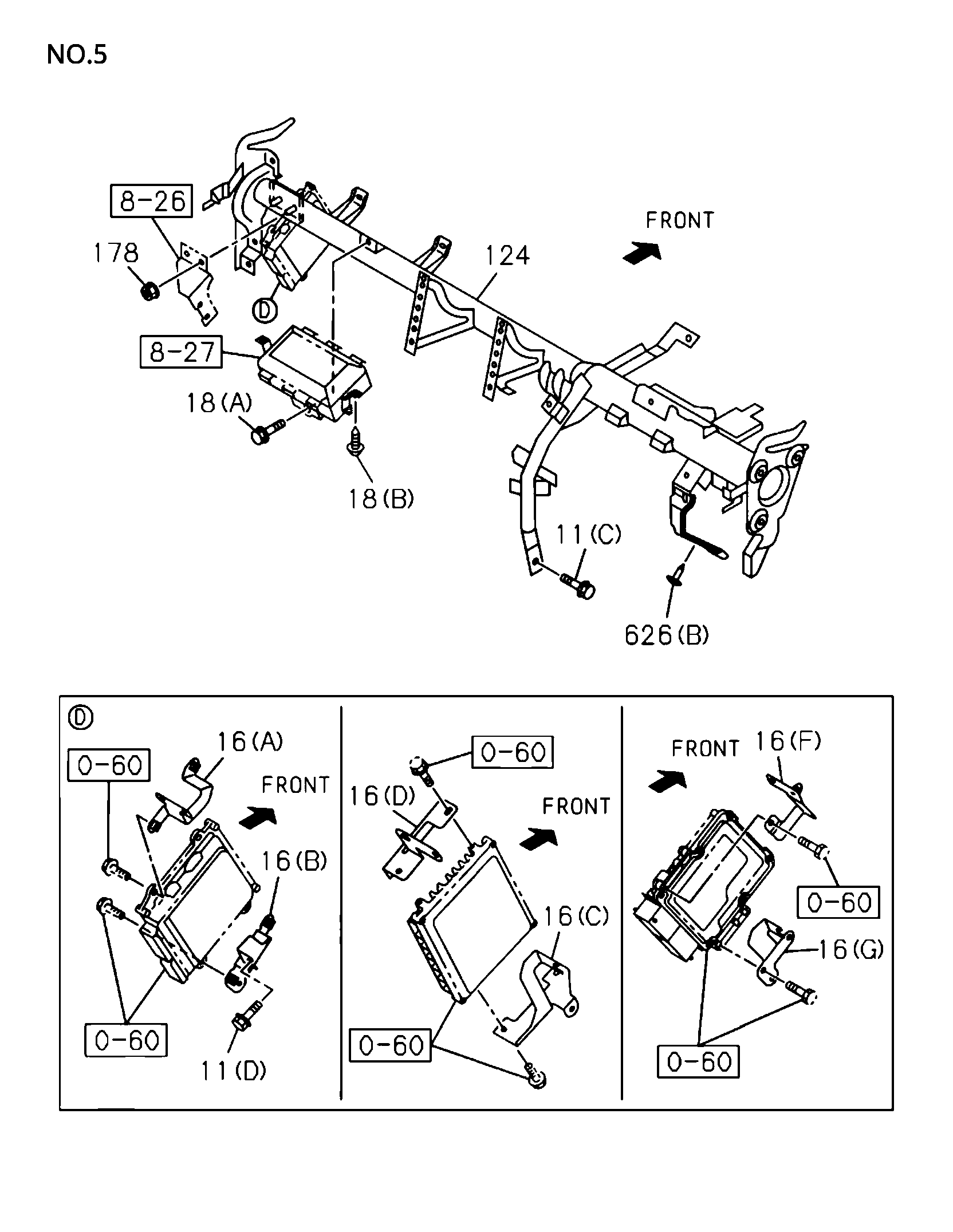

| 124 |
I8-98398 489-4 |
|
REINFORCEMENT; INST PNL.UPR |
1 |
2110- |
|
B C D E F |
AM/FM,CLOCK,BLUE TOOTH.CD PLAYER(UGQ),RADIO DELETE(UL5) AIR BAG DRIVER8iDRIVER KNEE&PASS8iSIDE&ROOF(8TX),A/BAG DR&DR KNEE8iPASS8tSIDE/FAR SIDE/ROOF(8TY) |
| 581 |
I8-98167 449-0 |
|
SCREW |
2 |
2110- |
|
B C D E F |
RADIO DELETE(UL5) M5X16 TAPPING |
| 530 |
I8-98164 677-0 |
|
CLIP; GLOVE BOX |
11 |
2110- |
|
AB E |
(B) |
| 3 |
I8-98246 739-0 |
|
SCREW; BINDER HD |
8 |
2110-2110 |
|
A BC D E F |
(B) M5X16 |
| 530 |
I8-98336 064-0 |
|
CLIP; GLOVE BOX |
10 |
2110- |
|
CD F |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD),GRADE ROYAL(RBE) (A) |
| 18 |
I8-94358 694-0 |
|
BOLT; BRKT |
2 |
2110- |
|
BCDE F |
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AYO),AIR BAG DRIVER&DRIVER KNEE8(PASS8tSIDE8tROOF(8TX),A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) (B) M5X16 |
| 70 |
I8-97905 024-0 |
|
GRILLE; CENTER,AIR OUTLET |
1 |
2110- |
L |
CD F |
GRADE BASIC(RBA),GRADE DELUXE(RBB),GRADE LUXURY(RBC) BLACK |
| 626 |
I8-98164 677-0 |
|
RETAINER |
4 |
2110- |
|
ABCDE F |
(A) |
| 11 |
I8-98057 964-0 |
|
BOLT; INST PNL |
1 |
2110- |
|
A BC D E F |
(C) M8X30 W/LK&PL WASHER |
| 265 |
I8-97908 514-1 |
|
HOLDER; CUP |
1 |
2111- |
L |
A |
REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. PROVISIONAL PACKAGE PREVIOUS PARTS<C1H> BLACK |
| 341 |
I8-97471 683-3 |
|
LID; FUSE BOX |
1 |
2110- |
R |
A BC D E F |
BLACK |
| 42 |
I8-97905 011-1 |
|
BOX; GLOVE.INST PNL |
1 |
2110- |
|
CD F |
GRADE CUSTOM(RBD) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ),RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL),AM/FM,DVD,NAVI W/DISPLAY,SMART PHONE(8RW),AM/FM,MEMOLY NAVI W/DISPLAY,SMART PHONE(8TG), SCREEN 9" WO/DVD(8TK) (C) BLACK |
| 495 |
I8-97905 169-1 |
|
BEZEL; SW |
1 |
2110- |
|
AB E |
BLACK |
| 729 |
I8-97905 145-0 |
|
COVER; GRILLE |
1 |
2110- |
R |
C E F |
COOLER WO/HEATER(C65) (B) BLACK |
| 0 |
I8-98164 685-0 |
|
rnniitiET. c |
6 |
2110- |
|
BCDE F |
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B) |
| 256 |
I8-97905 168-0 |
|
BEZEL ASM; CENTER |
1 |
2110- |
|
B E |
RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) (A) BLACK |
| 701 |
I8-97905 139-0 |
|
TRAY; INST |
1 |
2110- |
|
F |
GRADE ROYAL(RBE) INTERIOR COLOR UPR PALE BLACK.BROWN LWR BLACK(163) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) BLACK |
| 69 |
I8-97905 017-0 |
|
GRILLE; SIDE,AIR OUTLET |
1 |
2110- |
L |
A B E |
(B) BLACK |
| 18 |
I0-28650 840-0 |
|
BOLT; BRKT |
1 |
2110- |
|
BCDE F |
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AYO),AIR BAG DRIVER&DRIVER KNEE8iPASS8iSIDE8iROOF(8TX),A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) (A) M8X40 FLANGE |
| 726 |
I8-97471 678-4 |
|
PANEL; INST LW |
1 |
2110- |
|
BC D E F |
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AYO) (A) BLACK |
| 277 |
I8-97553 227-0 |
|
RUBBER; STOPPER GLOVE LID |
2 |
2111- |
|
A CDE F |
REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) (A) |
| 148 |
I8-98038 450-0 |
|
NUT; INST Pfi |
2 |
2110- |
|
BCDE F |
GRADE BASIC(RBA),GRADE DELUXE(RBB) AIR BAG DRIVER & PASSENGER DELETE(AK6) |
| 124 |
I8-98164 677-0 |
|
REINFORCEMENT; INST PNL.UPR |
3 |
2110- |
|
A BC D E F |
|
| 265 |
I8-97908 513-1 |
|
HOLDER; CUP |
1 |
2111- |
R |
B |
EXC. AUSTRALIA EQUIPMENT(B13) BLACK |
| 256 |
I8-97905 465-0 |
|
BEZEL ASM; CENTER |
1 |
2110- |
|
CD F |
GRADE LUXURY(RBC) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) (B) BLACK |
| 3 |
I8-98246 739-0 |
|
SCREW; BINDER HD |
19 |
2110- |
|
AB E |
(A) M5X16 |
| 0 |
I8-98164 685-0 |
|
rnniitiET. c |
16 |
2110-2110 |
|
A BC D E F |
(A) |
| 178 |
I0-91180 106-0 |
|
NUT; INST Pfi |
2 |
2110- |
|
ABCDE F |
M6 FLANGE |
| 726 |
I8-97471 677-3 |
|
PANEL; INST LW |
1 |
2110- |
|
BC D E F |
AIR BAG DRIVE R&D RIVER KNEE&PASS&SIDE&ROOF(8TX), A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) (A) BLACK |
| 3 |
I8-98246 739-0 |
|
SCREW; BINDER HD |
27 |
2110- |
|
F |
GRADE ROYAL(RBE) (A) M5X16 |
| 265 |
I8-97908 514-1 |
|
HOLDER; CUP |
1 |
2111- |
L |
B |
AUSTRALIA EQUIPMENT(B13) EXC. PROVISIONAL PACKAGE PREVIOUS PARTS<C1H> BLACK |
| 69 |
I8-97905 016-0 |
|
GRILLE; SIDE,AIR OUTLET |
1 |
2110- |
L |
CD F |
GRADE CUSTOM(RBD),GRADE ROYAL(RBE) (B) SILVER |
| 265 |
I8-97908 514-1 |
|
HOLDER; CUP |
1 |
2111- |
L |
B |
EXC. AUSTRALIA EQUIPMENT(B13) BLACK |
| 11 |
I8-98167 449-0 |
|
BOLT; INST PNL |
4 |
2110- |
|
ABCDE F |
(A) SCREW M5X16 TAPPING |
| 256 |
I8-97905 168-0 |
|
BEZEL ASM; CENTER |
1 |
2110- |
|
CD F |
GRADE BASIC(RBA),GRADE DELUXE(RBB) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) (A) BLACK |
| 1 |
I8-97478 060-9 |
|
PANEL; INST |
1 |
2110- |
|
C F |
GRADE LUXURY(RBC) COOLER WO/H EATER(C65) EXC. SAFETY PACKAGE FRT<8SW>,SAFETY PACKAGE FRT & RR<8SY> (A) BLACK |
| 694 |
I8-98164 677-0 |
|
CLIP; INST PNL |
6 |
2110- |
|
CD F |
GRADE BASIC(RBA),GRADE DELUXE(RBB) |
| 14 |
I8-98167 449-0 |
|
SCREW; INST PNL |
14 |
2110- |
|
ABCDE F |
M5X16 TAPPING |
| 495 |
I8-97905 169-1 |
|
BEZEL; SW |
1 |
2110- |
|
CD F |
GRADE BASIC(RBA),GRADE DELUXE(RBB) BLACK |
| 42 |
I8-97471 681-2 |
|
BOX; GLOVE.INST PNL |
1 |
2110- |
|
BCDE F |
EXC. LOCK GLOVE BOX<A99> (A) BLACK |
| 527 |
I8-98336 064-0 |
|
CLIP; INST CLUSTER |
4 |
2110- |
|
CD F |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD),GRADE ROYAL(RBE) |
| 265 |
I8-97908 513-1 |
|
HOLDER; CUP |
1 |
2111- |
R |
B |
AUSTRALIA EQUIPMENT(B13) EXC. PROVISIONAL PACKAGE PREVIOUS PARTS<C1H> BLACK |
| 694 |
I8-98164 677-0 |
|
CLIP; INST PNL |
6 |
2110- |
|
ABCDE |
|
| 18 |
I8-94358 694-0 |
|
BOLT; BRKT |
2 |
2110- |
|
A |
(B) M5X16 |
| 576 |
I8-97553 498-0 |
|
CUSHION |
1 |
2110- |
|
A B C D E |
|
| 0 |
I8-98164 685-0 |
|
rnniitiET. c |
4 |
2110- |
|
C E F |
COOLER WO/H EATER(C65) |
| 729 |
I8-97905 146-0 |
|
COVER; GRILLE |
1 |
2110- |
L |
C E F |
COOLER WO/HEATER(C65) (B) BLACK |
| 277 |
I8-97553 901-0 |
|
RUBBER; STOPPER GLOVE LID |
2 |
2110- |
|
A BC D E F |
(B) |
| 69 |
I8-97905 003-0 |
|
GRILLE; SIDE,AIR OUTLET |
1 |
2110- |
R |
A B C D E |
GRADE BASIC(RBA),GRADE DELUXE(RBB),GRADE LUXURY(RBC) (A) BLACK |
| 3 |
I8-97553 417-0 |
|
SCREW; BINDER HD |
8 |
2110- |
|
CD F |
GRADE BASIC(RBA),GRADE DELUXE(RBB) (C) |
| 3 |
I8-98246 739-0 |
|
SCREW; BINDER HD |
4 |
2110- |
|
B C D E F |
RADIO DELETE(UL5) (D) M5X16 |
| 3 |
I8-98246 739-0 |
|
SCREW; BINDER HD |
8 |
2111- |
|
B |
(B) M5X16 |
| 546 |
I8-97464 418-2 |
|
PANEL; INST,SUB |
1 |
2110- |
|
AB E |
BLACK |
| 124 |
I8-98337 943-4 |
|
REINFORCEMENT; INST PNL.UPR |
1 |
2110- |
|
B C D E F |
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AYO) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ),RADIO DELETE(UL5) |
| 277 |
I8-97553 227-0 |
|
RUBBER; STOPPER GLOVE LID |
2 |
2111- |
|
B |
(A) |
| 262 |
I8-97905 148-0 |
|
GRILLE; DEFROSTER |
1 |
2110- |
L |
A |
BLACK |
| 70 |
I8-97905 023-0 |
|
GRILLE; CENTER,AIR OUTLET |
1 |
2110- |
R |
CD F |
GRADE BASIC(RBA),GRADE DELUXE(RBB),GRADE LUXURY(RBC) BLACK |
| 287 |
I8-97905 001-1 |
|
PANEL; CLUSTER SIDE |
1 |
2110- |
|
CD F |
GRADE LUXURY(RBC) (A) SILVER |
| 265 |
I8-97908 513-0 |
|
HOLDER; CUP |
1 |
2110-2110 |
R |
ABCDE F |
EXC. PROVISIONAL PACKAGE PREVIOUS PARTS<C1H> BLACK |
| 70 |
I8-97905 022-0 |
|
GRILLE; CENTER,AIR OUTLET |
1 |
2110- |
L |
CD F |
GRADE CUSTOM(RBD),GRADE ROYAL(RBE) BLACK |
| 546 |
I8-97472 041-2 |
|
PANEL; INST,SUB |
1 |
2110- |
|
CD F |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD),GRADE ROYAL(RBE) PASSIVE ENTRY AND START SYSTEM<AP3>,PASSIVE ENTRY & START SYSTEM W/REMOTE ENG<8SR> BLACK |
| 18 |
I0-28650 840-0 |
|
BOLT; BRKT |
1 |
2110- |
|
A |
(A) M8X40 FLANGE |
| 626 |
I8-97472 347-0 |
|
RETAINER |
1 |
2110- |
|
BC D E F |
AIR BAG DRIVER8(DRIVER KNEE&PASS&SIDE&ROOF(8TX),A/BAG DR8tDR KNEE8tPASS8tSIDE/FAR SIDE/ROOF(8TY) (B) BLACK |
| 419 |
I8-97905 014-0 |
|
PANEL; SHELF,GLOVE BOX |
1 |
2110- |
|
CD F |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD) (B) DARK SILVER |
| 701 |
I8-97905 139-0 |
|
TRAY; INST |
1 |
2110- |
|
F |
GRADE ROYAL(RBE) INTERIOR COLOR BLACK(101) BLACK |
| 3 |
I8-98246 739-0 |
|
SCREW; BINDER HD |
6 |
2110- |
|
B D F |
INST PANEL FOR DIN E SIZE AUDIO(7QL) (D) M5X16 |
| 121 |
I8-98336 064-0 |
|
CLIP; RADIO.INST PNL |
9 |
2110- |
|
A B C D E |
|
| 265 |
I8-97908 513-1 |
|
HOLDER; CUP |
1 |
2111- |
R |
C D E F |
AUSTRALIA EQUIPMENT(B13) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. PROVISIONAL PACKAGE PREVIOUS PARTS<C1H> BLACK |
| 726 |
I8-97471 677-3 |
|
PANEL; INST LW |
1 |
2110- |
|
A |
(A) BLACK |
| 732 |
I8-97905 137-0 |
|
BEZEL |
1 |
2110- |
|
CD F |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD),GRADE ROYAL(RBE) BLACK |
| 42 |
I8-97905 167-1 |
|
BOX; GLOVE.INST PNL |
1 |
2110- |
|
CD F |
GRADE BASIC(RBA),GRADE DELUXE(RBB) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ),RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL),AM/FM,DVD,NAVI W/DISPLAY,SMART PHONE(8RW),AM/FM,MEMOLY NAVI W/DISPLAY.SMART PHONE(8TG), SCREEN 9" WO/DVD(8TK) (D) BLACK |
| 729 |
I8-97905 144-0 |
|
COVER; GRILLE |
1 |
2110- |
L |
C E F |
COOLER WO/HEATER(C65) (A) BLACK |
| 1 |
I8-97477 993-1 |
|
PANEL; INST |
1 |
2110-2110 |
|
ABCDE F |
EXC. PROVISIONAL PACKAGE PREVIOUS PARTS<C1H> (B) BLACK |
| 235 |
I8-97553 417-0 |
|
SCREW; GRIL |
6 |
2110- |
|
ABCDE F |
GRADE BASIC(RBA),GRADE DELUXE(RBB) |
| 108 |
I8-97471 686-1 |
|
GRILLE; INST PNL |
1 |
2110- |
L |
A BC D E F |
BLACK |
| 262 |
I8-97905 147-0 |
|
GRILLE; DEFROSTER |
1 |
2110- |
R |
A |
BLACK |
| 287 |
I8-97905 006-1 |
|
PANEL; CLUSTER SIDE |
1 |
2110- |
|
F |
GRADE ROYAL(RBE) EXC. SALES PACKAGE SPORTY X-SERIES HIGH RIDE<XK0> (A) SILVER |
| 1 |
I8-97477 993-1 |
|
PANEL; INST |
1 |
2111- |
|
A C D E F |
REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) (B) BLACK |
| 265 |
I8-97908 513-1 |
|
HOLDER; CUP |
1 |
2111- |
R |
C D E F |
REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. AUSTRALIA EQUIPMENT(B13) BLACK |
| 16 |
I8-97509 764-0 |
|
BRACKET; INST PNL |
1 |
2110- |
|
BCDE F |
RZ4E-TC ENG(RDZ) EUROO SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) (A) |
| 477 |
I8-97553 912-0 |
|
RUBBER; CUSHION.COMPARTMENT PANEL |
2 |
2110- |
|
CD F |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD),GRADE ROYAL(RBE) |
| 170 |
I8-97905 138-0 |
|
COVER; HOLE |
1 |
2110- |
|
C E F |
GRADE BASIC(RBA),GRADE DELUXE(RBB) COOLER WO/H EATER(C65) EXC. SAFETY PACKAGE FRT<8SW>,SAFETY PACKAGE FRT & RR<8SY> (B) BLACK |
| 16 |
I8-98386 338-0 |
|
BRACKET; INST PNL |
1 |
2110- |
L |
A BC D E F |
(E) |
| 265 |
I8-97908 514-1 |
|
HOLDER; CUP |
1 |
2111- |
L |
CDE F |
REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. AUSTRALIA EQUIPMENT(B13) BLACK |
| 14 |
I8-98167 449-0 |
|
SCREW; INST PNL |
2 |
2110- |
|
CD F |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD),GRADE ROYAL(RBE) M5X16 TAPPING |
| 42 |
I8-97905 167-1 |
|
BOX; GLOVE.INST PNL |
1 |
2110- |
|
AB E |
(D) BLACK |
| 1 |
I8-97477 993-1 |
|
PANEL; INST |
1 |
2111- |
|
B |
(B) BLACK |
| 265 |
I8-97908 514-1 |
|
HOLDER; CUP |
1 |
2111- |
L |
CDE F |
AUSTRALIA EQUIPMENT(B13) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. PROVISIONAL PACKAGE PREVIOUS PARTS<C1H> BLACK |
| 16 |
I8-98386 340-0 |
|
BRACKET; INST PNL |
1 |
2110- |
R |
ABCDE F |
(E) |
| 170 |
I8-97905 018-0 |
|
COVER; HOLE |
1 |
2110- |
|
CD F |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD),GRADE ROYAL(RBE) (A) BLACK |
| 70 |
I8-97905 023-0 |
|
GRILLE; CENTER,AIR OUTLET |
1 |
2110- |
R |
AB E |
BLACK |
| 729 |
I8-97905 143-0 |
|
COVER; GRILLE |
1 |
2110- |
R |
C E F |
COOLER WO/H EATER(C65) (A) BLACK |
| 262 |
I8-97905 148-0 |
|
GRILLE; DEFROSTER |
1 |
2110- |
L |
B C D E F |
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) BLACK |
| 136 |
I8-98164 677-0 |
|
CLIP; INST C< |
3 |
2110- |
|
BCDE F |
AIR BAG DRIVER&DRIVER KNEE&PASS&SIDE&ROOF(8TX),A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) |
| 69 |
I8-97905 017-0 |
|
GRILLE; SIDE,AIR OUTLET |
1 |
2110- |
L |
CD F |
GRADE BASIC(RBA),GRADE DELUXE(RBB),GRADE LUXURY(RBC) (B) BLACK |
| 546 |
I8-97464 418-2 |
|
PANEL; INST,SUB |
1 |
2110- |
|
CD F |
GRADE BASIC(RBA),GRADE DELUXE(RBB) BLACK |
| 287 |
I8-97905 006-1 |
|
PANEL; CLUSTER SIDE |
1 |
2110- |
|
CD F |
GRADE CUSTOM(RBD) (A) SILVER |
| 235 |
I8-97553 417-0 |
|
SCREW; GRIL |
4 |
2110- |
|
AB E |
|
| 530 |
I8-98164 677-0 |
|
CLIP; GLOVE BOX |
11 |
2110- |
|
CD F |
GRADE BASIC(RBA),GRADE DELUXE(RBB) AM/FM,CLOCK,BLUE TOOTH.CD PLAYER(UGQ),RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL),AM/FM,DVD,NAVI W/DISPLAY.SMART PHONE(8RW),AM/FM,MEMOLY NAVI W/DISPLAY,SMART PHONE(8TG), SCREEN 9" WO/DVD(8TK) (B) |
| 3 |
I8-97553 417-0 |
|
SCREW; BINDER HD |
8 |
2110- |
|
AB E |
(C) |
| 235 |
I8-97553 417-0 |
|
SCREW; GRIL |
4 |
2110- |
|
CD F |
GRADE BASIC(RBA),GRADE DELUXE(RBB) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ),RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL),AM/FM,DVD,NAVI W/DISPLAY,SMART PHONE(8RW),AM/FM,MEMOLY NAVI W/DISPLAY.SMART PHONE(8TG), <;rRFFN Q" wn/nvniRT^ |
| 0 |
I8-98164 685-0 |
|
rnniitiET. c |
6 |
2110- |
|
A |
(B) |
| 694 |
I8-98164 677-0 |
|
CLIP; INST PNL |
10 |
2110- |
|
CD F |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD),GRADE ROYAL(RBE) |
| 1 |
I8-97477 993-1 |
|
PANEL; INST |
1 |
2110-2110 |
|
ABCDE F |
PROVISIONAL PACKAGE PREVIOUS PARTS<C1 H> (B) BLACK |
| 726 |
I8-97464 417-4 |
|
PANEL; INST LW |
1 |
2110- |
|
BC D E F |
EXC. FLOOR CONSOLE W/LID & RR CUP HOLDER<D07>,FLOOR CONSOLE W/LID<D55> (B) BLACK |
| 546 |
I8-97472 042-2 |
|
PANEL; INST,SUB |
1 |
2110- |
|
CD F |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD),GRADE ROYAL(RBE) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,PASSIVE ENTRY & START SYSTEM W/REMOTE ENG<8SR> BLACK |
| 1 |
I8-97905 823-0 |
|
PANEL; INST |
1 |
2110- |
|
F |
GRADE ROYAL(RBE) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) AIR CONDITIONER AUTOMATIC CONT(C61) EXC. SALES PACKAGE SPORTY X-SERIES HIGH RIDE<XK0>,SAFETY PACKAGE FRT<8SW>,SAFETY PACKAGE FRT & RR<8SY> (A) BLACK |
| 287 |
I8-97905 002-0 |
|
PANEL; CLUSTER SIDE |
1 |
2110- |
|
CD F |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD) (B) DARK SILVER |
| 69 |
I8-97905 004-0 |
|
GRILLE; SIDE,AIR OUTLET |
1 |
2110- |
R |
CD F |
GRADE CUSTOM(RBD),GRADE ROYAL(RBE) (A) SILVER |
| 42 |
I8-97471 680-2 |
|
BOX; GLOVE.INST PNL |
1 |
2110- |
|
BCDE F |
LOCK GLOVE BOX<A99> (A) BLACK |
| 42 |
I8-97905 011-1 |
|
BOX; GLOVE.INST PNL |
1 |
2110- |
|
F |
GRADE ROYAL(RBE) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ),RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL),AM/FM,DVD,NAVI W/DISPLAY,SMART PHONE(8RW),AM/FM,MEMOLY NAVI W/DISPLAY,SMART PHONE(8TG), SCREEN 9" WO/DVD(8TK) EXC. SALES PACKAGE SPORTY X-SERIES HIGH RIDE<XK0> (C) BLACK |
| 3 |
I8-98246 739-0 |
|
SCREW; BINDER HD |
29 |
2110- |
|
C F |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD) COOLER WO/HEATER(C65) (A) M5X16 |
| 136 |
I8-98164 677-0 |
|
CLIP; INST C< |
3 |
2110- |
|
A |
|
| 1 |
I8-97905 823-0 |
|
PANEL; INST |
1 |
2110- |
|
CD F |
GRADE CUSTOM(RBD) AIR CONDITIONER AUTOMATIC CONT(C61) EXC. SAFETY PACKAGE FRT<8SW>,SAFETY PACKAGE FRT & RR<8SY> (A) BLACK |
| 3 |
I8-98246 739-0 |
|
SCREW; BINDER HD |
8 |
2111- |
|
A C D E F |
REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) (B) M5X16 |
| 581 |
I8-98167 449-0 |
|
SCREW |
2 |
2110- |
|
B C D E F |
RADIO DELETE(ULS) M5X16 TAPPING |
| 170 |
I8-97905 138-0 |
|
COVER; HOLE |
1 |
2110- |
|
A |
(B) BLACK |
| 11 |
I8-98136 167-0 |
|
BOLT; INST PNL |
1 |
2110- |
|
A BC D E F |
(D) M6X22W/PL WASHER |
