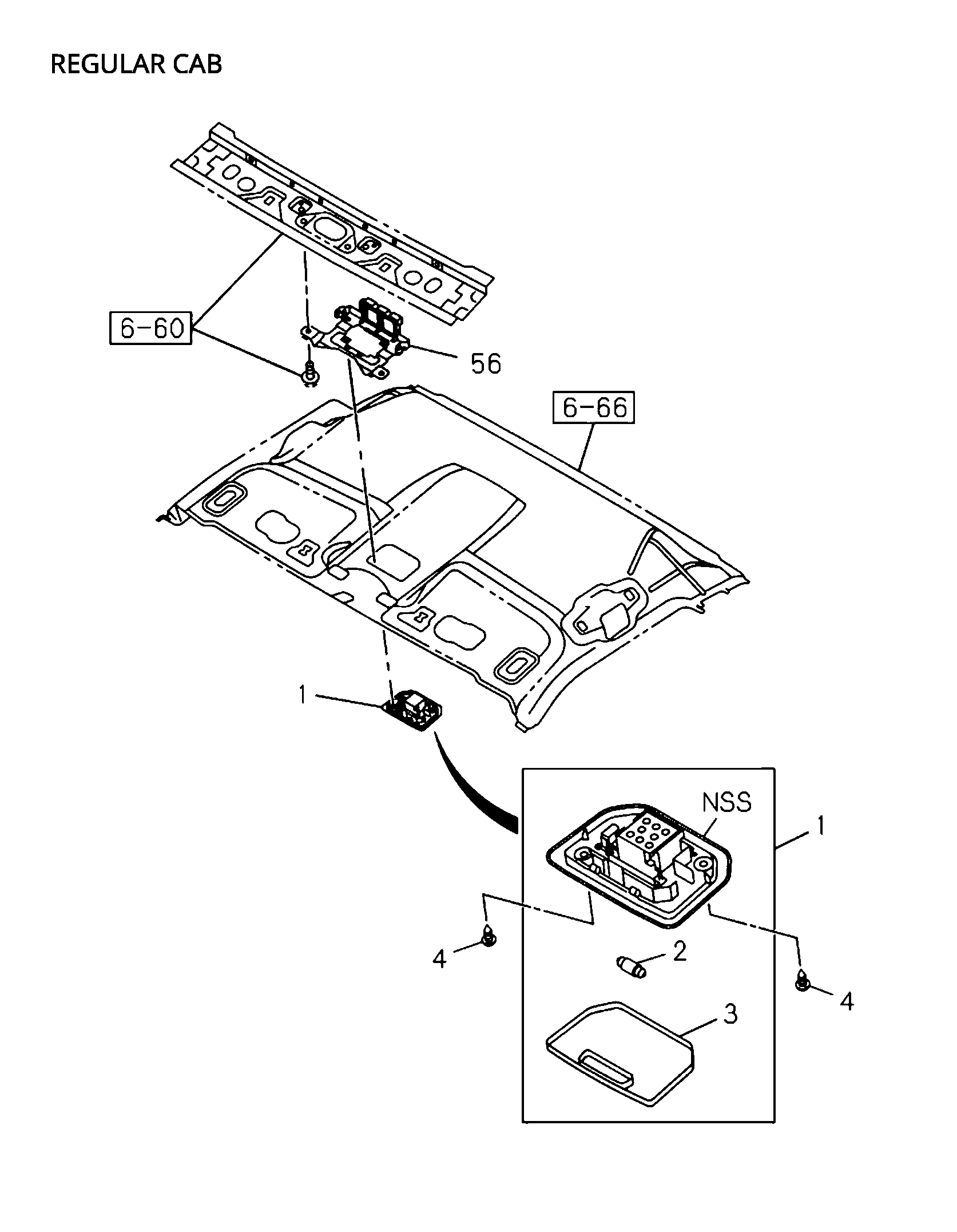

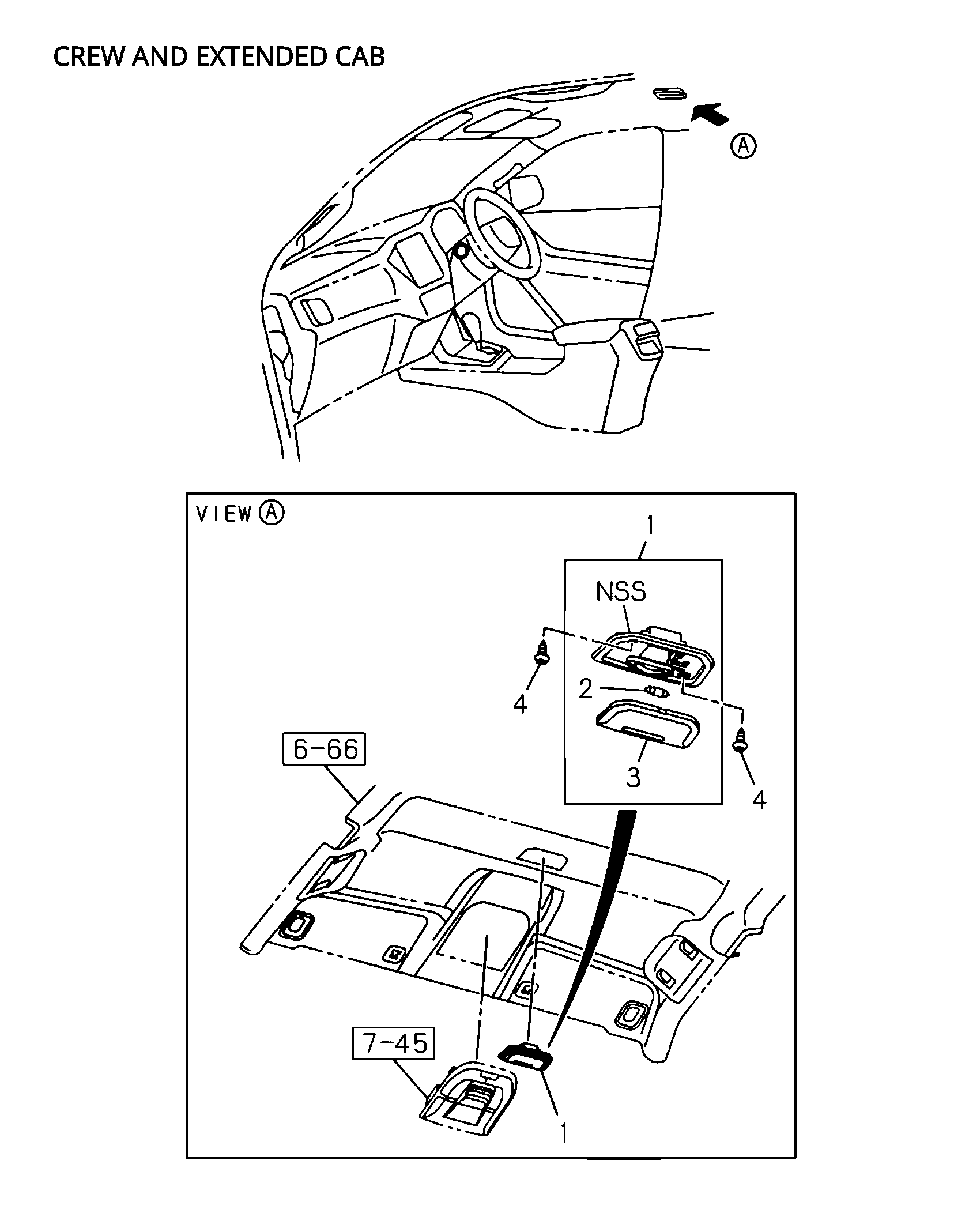

8-05 | 8-05 - INTERIOR LAMP
DMAX
D-MAX 2022
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 3 | I8-97510 314-0 | LENS; ROOM LAMP | 1 | 2110- | A CD F | |||
| 2 | I8-97128 771-0 | BULB; ROOM LAMP | 1 | 2110- | A C D F | 12V10W | ||
| 56 | I8-97489 789-1 | BRACKET; LAMP | 1 | 2110- | | B E | EXC. HEADER CONSOLE<DK6> | ||
| 4 | I0-71040 512-0 | SCREW; ROOM LAMP | 2 | 2110- | A C D F | M5X12 TAPPING | ||
| 3 | I8-97510 314-0 | LENS; ROOM LAMP | 1 | 2110- | B E | EXC. HEADER CONSOLE<DK6> | ||
| 1 | I8-97472 028-1 | LAMP ASM; ROOM | 1 | 2110- | B E | EXC. HEADER CONSOLE<DK6> LIGHT GRAY | ||
| 1 | I8-97472 028-1 | LAMP ASM; ROOM | 1 | 2110- | F | INTERIOR COLOR UPR PALE GRAY LWR BLACK(162) LIGHT GRAY | ||
| 2 | I8-97128 771-0 | BULB; ROOM LAMP | 1 | 2110- | B E | EXC. HEADER CONSOLE<DK6> 12V10W | ||
| 4 | I0-71040 512-0 | SCREW; ROOM LAMP | 2 | 2110- | B E | EXC. HEADER CONSOLE<DK6> M5X12 TAPPING | ||
| 1 | I8-97472 028-1 | LAMP ASM; ROOM | 1 | 2110- | A CD | LIGHT GRAY |
