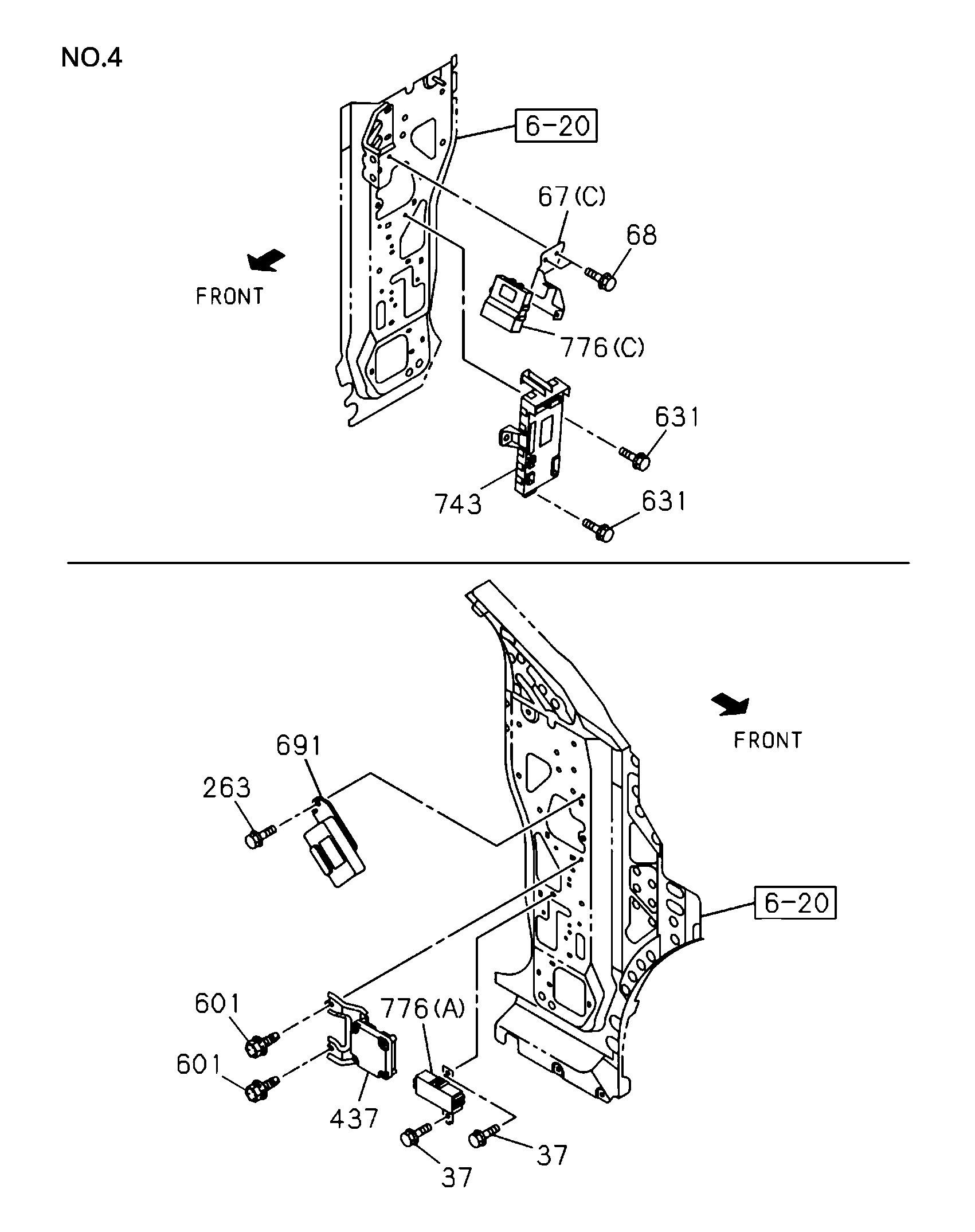

| 68 |
I0-28650 616-0 |
|
BOLT; BRKT |
2 |
2110- |
|
D E F |
REAR AXLE DIFF LOCK<8CL> M6X16 FLANGE |

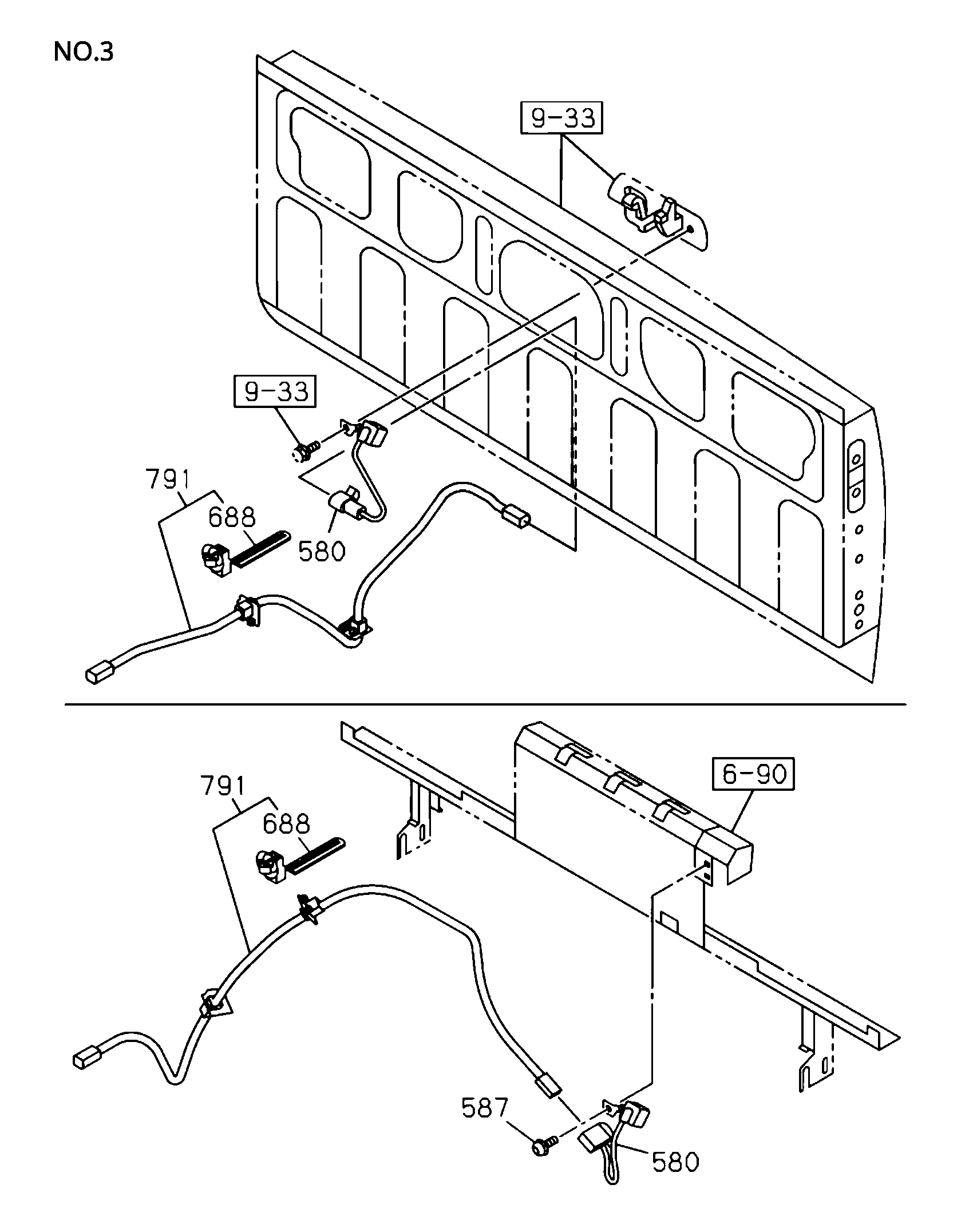

| 791 |
I8-97821 046-0 |
|
CABLE; SAFETY |
1 |
2110- |
|
CDE F |
REAR BODY DBL WALL CTR PULL(E63) REAR CAMERA AT TAIL GATE HANDLE<8PK> |
| 303 |
I8-98167 449-0 |
|
SCREW; CON1 |
2 |
2110- |
|
BC D E F |
REMOTE CONT DOOR LOCK<AP5> EXC. IMMOBILIZER SYSTEM<7KC> (B) M5X16 TAPPING |

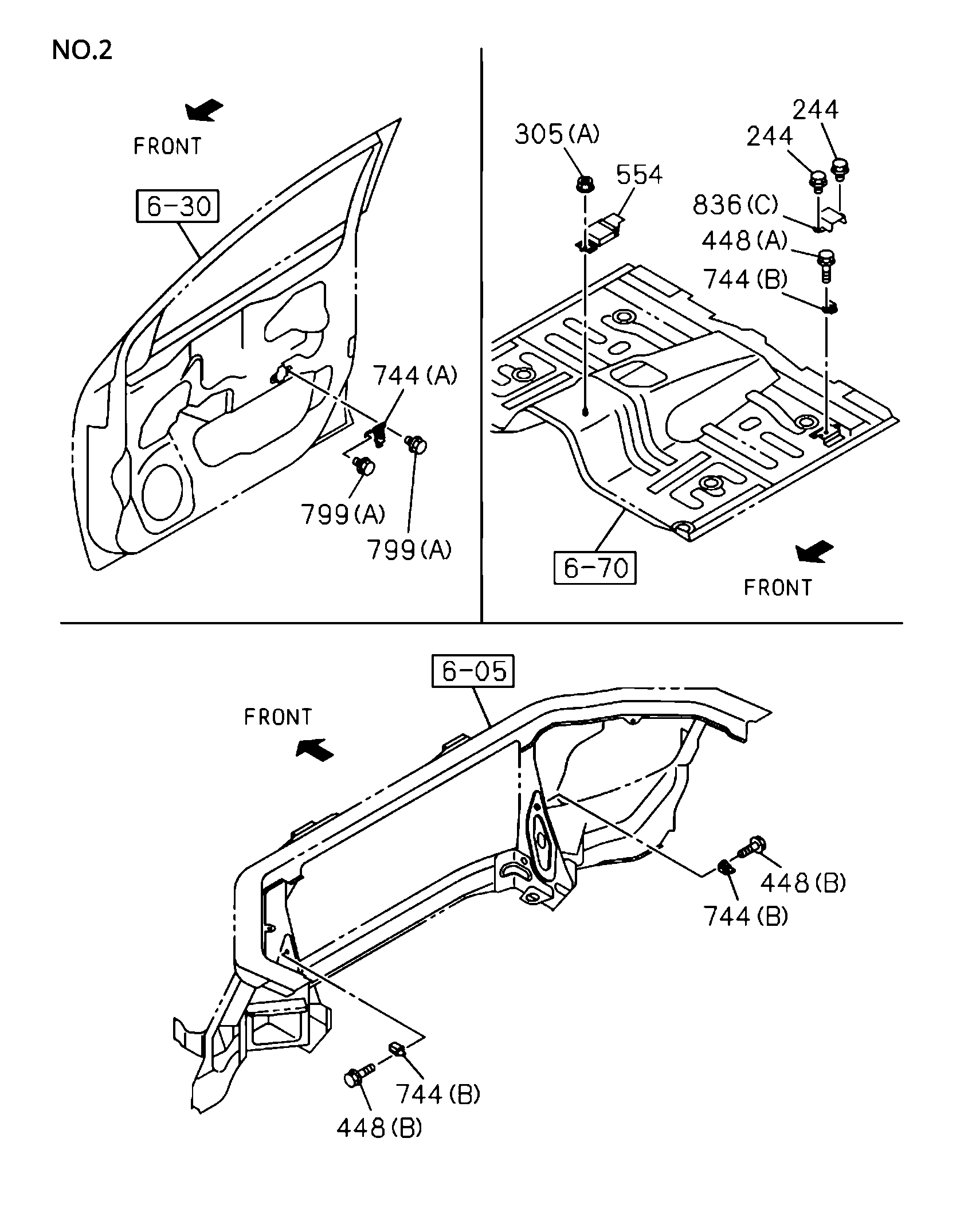

| 244 |
I8-98167 615-0 |
|
BOLT; COVER |
4 |
2110- |
|
F |
AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AYO),AIR BAG DRIVER&DRIVER KNEE&PASS&SIDE&RO0F(8TX),A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) EXC. ELR WITH PRE-TENSIONER<A71> M6X15 W/LK&PL WASHER |
| 743 |
I8-97797 242-0 |
|
CONTROL UNIT; BCM |
1 |
2111- |
|
BCDE F |
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>,DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>,REAR DEFOGGER<C49>,ELECTRONIC TRACTION CONTROL<NW9>,HEADLAMPS LED<TT7>,RR FOG LAMP<T79>,AUTO WIPER<8SN>,PASSIVE ENTRY 8< START SYSTEM W/REMOTE ENG<8SR>, SAFETY PACKAGE FRT<8SW>,SAFETY PACKAGE RR<8SX>,SAFETY PACKAGE FRT & RR<8SY> |
| 448 |
I0-28650 625-0 |
|
BOLT; SENSOR |
2 |
2110- |
|
A |
(A) M6X25 FLANGE |

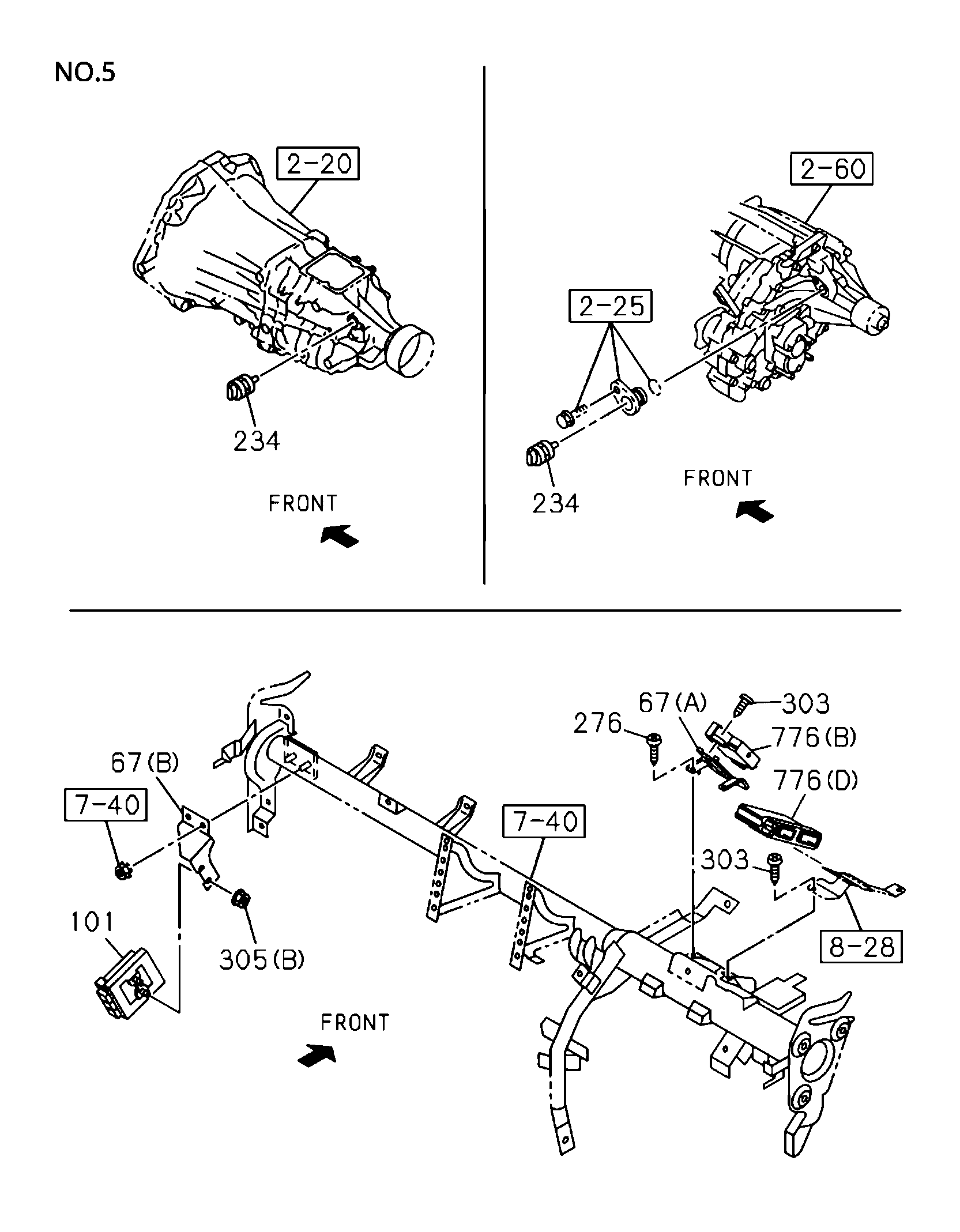

| 276 |
I8-98167 449-0 |
|
SCREW; BRKT |
2 |
2110- |
|
A |
M5X16 TAPPING |
| 836 |
I8-98394 968-0 |
|
COVER; SOCKET |
2 |
2110- |
|
E |
A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) (C) |
| 305 |
I0-91180 206-0 |
|
NUT; CONT UNIT |
1 |
2110- |
|
CD F |
HEADLAMP AUTO LEVELING<TR7> (A) M6 FLANGE |
| 621 |
I8-94358 694-0 |
|
SCREW |
2 |
2110- |
|
A |
M5X16 |
| 276 |
I8-98167 449-0 |
|
SCREW; BRKT |
2 |
2110- |
|
B D E |
SAFETY PACKAGE FRT & RR<8SY> M5X16 TAPPING |
| 836 |
I8-98394 968-0 |
|
COVER; SOCKET |
2 |
2110- |
|
D |
AIR BAG DRIVER & PASSENGER DELETE(AK6),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AYO),AIR BAG DRIVER&DRIVER KNEE&PASS&SIDE&ROOF(8TX),A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) (C) |
| 621 |
I8-94358 694-0 |
|
SCREW |
2 |
2110- |
|
B E |
AM/FM,DVD,NAVI W/DISPLAY,SMART PHONE(8RW) M5X16 |
| 743 |
I8-97797 250-0 |
|
CONTROL UNIT; BCM |
1 |
2111- |
|
BCDE F |
GRADE BASIC(RBA),GRADE DELUXE(RBB),GRADE LUXURY(RBC),GRADE CUSTOM(RBD) DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>,DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> ELECTRONIC TRACTION CONTROL<NW9> EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) |
| 836 |
I8-98394 968-0 |
|
COVER; SOCKET |
2 |
2110- |
|
A |
(C) |
| 836 |
I8-98394 968-0 |
|
COVER; SOCKET |
2 |
2110- |
|
C F |
ELR WITH PRE-TENSIONER<A71> (C) |
| 67 |
I8-98278 959-0 |
|
BRACKET; CO |
1 |
2110- |
|
ABCDE F |
A/T 6 SPEED-AISIN(Y6A) (B) |
| 744 |
I8-98347 516-1 |
|
SENSOR; AIR |
2 |
2110- |
|
A |
(B) |
| 67 |
I8-98398 134-0 |
|
BRACKET; CO |
1 |
2110- |
|
D E F |
REAR AXLE DIFF LOCK<8CL> (C) |
| 836 |
I8-98394 968-0 |
|
COVER; SOCKET |
2 |
2110- |
|
F |
AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AYO),AIR BAG DRIVER&DRIVER KNEE&PASS&SIDE&ROOF(8TX),A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) EXC. ELR WITH PRE-TENSIONER<A71> (C) |
| 448 |
I0-28650 625-0 |
|
BOLT; SENSOR |
2 |
2110- |
|
CD F |
AIR BAG DRIVER & PASSENGER 8< SIDE & ROOF(AYO),AIR BAG DRIVER8<DRIVER KNEE&PASS&SIDE&ROOF(8TX),A/BAG DR&DR KNEE8iPASS8iSIDE/FAR SIDE/ROOF(8TY) (A) M6X25 FLANGE |
| 776 |
I8-97828 613-0 |
|
CONTROL UNIT |
1 |
2110- |
|
CD F |
PASSIVE ENTRY AND START SYSTEM<AP3>,PASSIVE ENTRY 8< START SYSTEM W/REMOTE ENG<8SR> OUTSIDE HANDLE CHROME<E2()> IMMOBILIZER SYSTEM<7KC> (D) |
| 743 |
I8-97797 250-0 |
|
CONTROL UNIT; BCM |
1 |
2111- |
|
BCDE F |
HEADLAMPS LED<TT7> AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) EXC. ELECTRONIC TRACTION CONTROL<NW9> |
| 244 |
I8-98167 615-0 |
|
BOLT; COVER |
4 |
2110- |
|
B |
AIR BAG DRIVER8iDRIVER KNEE&PASS&SIDE&ROOF(8TX),A/BAG DR&DR KNEE8(PASS8iSIDE/FAR SIDE/ROOF(8TY) |
| 303 |
I0-74165 516-0 |
|
SCREW; CON1 |
1 |
2110- |
|
CD F |
HEATER FRT SEAT<KA1> (A) M5X16 TAPPING W/PL WASHER |
| 776 |
I8-97828 615-0 |
|
CONTROL UNIT |
1 |
2110- |
|
A |
(F) |
| 791 |
I8-97821 046-0 |
|
CABLE; SAFETY |
1 |
2110- |
|
B |
REAR BODY FLAT BED(E39),REAR BODY DBL WALL CTR PULL(E63) REAR CAMERA AT TAIL GATE HANDLE<8PK> |
| 799 |
I8-98167 615-0 |
|
SCREW; SENSOR |
4 |
2110- |
|
A |
(A) BOLT M6X15 W/LK8.PL WASHER |
| 743 |
I8-97797 250-0 |
|
CONTROL UNIT; BCM |
1 |
2111- |
|
BC D E F |
AUTO WIPER<8SN> EXC. ELECTRONIC TRACTION CONTROL<NW9>,HEADLAMPS LED<TT7> |
| 303 |
I8-98167 449-0 |
|
SCREW; CON1 |
2 |
2110- |
|
A |
(B) M5X16 TAPPING |
| 744 |
I8-98347 516-1 |
|
SENSOR; AIR |
2 |
2110- |
|
BCDE F |
AIR BAG DRIVER 8< PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE 8t ROOF(AYO),AIR BAG DRIVER8.DRIVER KNEE8iPASS8tSIDE8tROOF(8TX),A/BAG DR8tDR KNEE8tPASS8(SIDE/FAR SIDE/ROOF(8TY) (b) |
| 743 |
I8-97797 250-0 |
|
CONTROL UNIT; BCM |
1 |
2111- |
|
A |
|
| 244 |
I8-98167 615-0 |
|
BOLT; COVER |
4 |
2110-2110 |
|
ABCDE F |
M6X15 W/LK8.PL WASHER |
| 303 |
I8-98167 449-0 |
|
SCREW; CON1 |
2 |
2110- |
|
BCDE F |
IMMOBILIZER SYSTEM<7KC> (B) M5X16 TAPPING |
| 303 |
I8-98167 449-0 |
|
SCREW; CON1 |
2 |
2110- |
|
BC D E F |
SAFETY PACKAGE FRT<8SW>,SAFETY PACKAGE RR<8SX>,SAFETY PACKAGE FRT & RR<8SY> (B) M5X16 TAPPING |
| 744 |
I8-98347 516-1 |
|
SENSOR; AIR |
2 |
2110- |
|
A |
(b) |
| 305 |
I0-91180 106-0 |
|
NUT; CONT UNIT |
2 |
2110- |
|
ABCDE F |
A/T 6 SPEED-AISIN(Y6A) (B) M6 FLANGE |

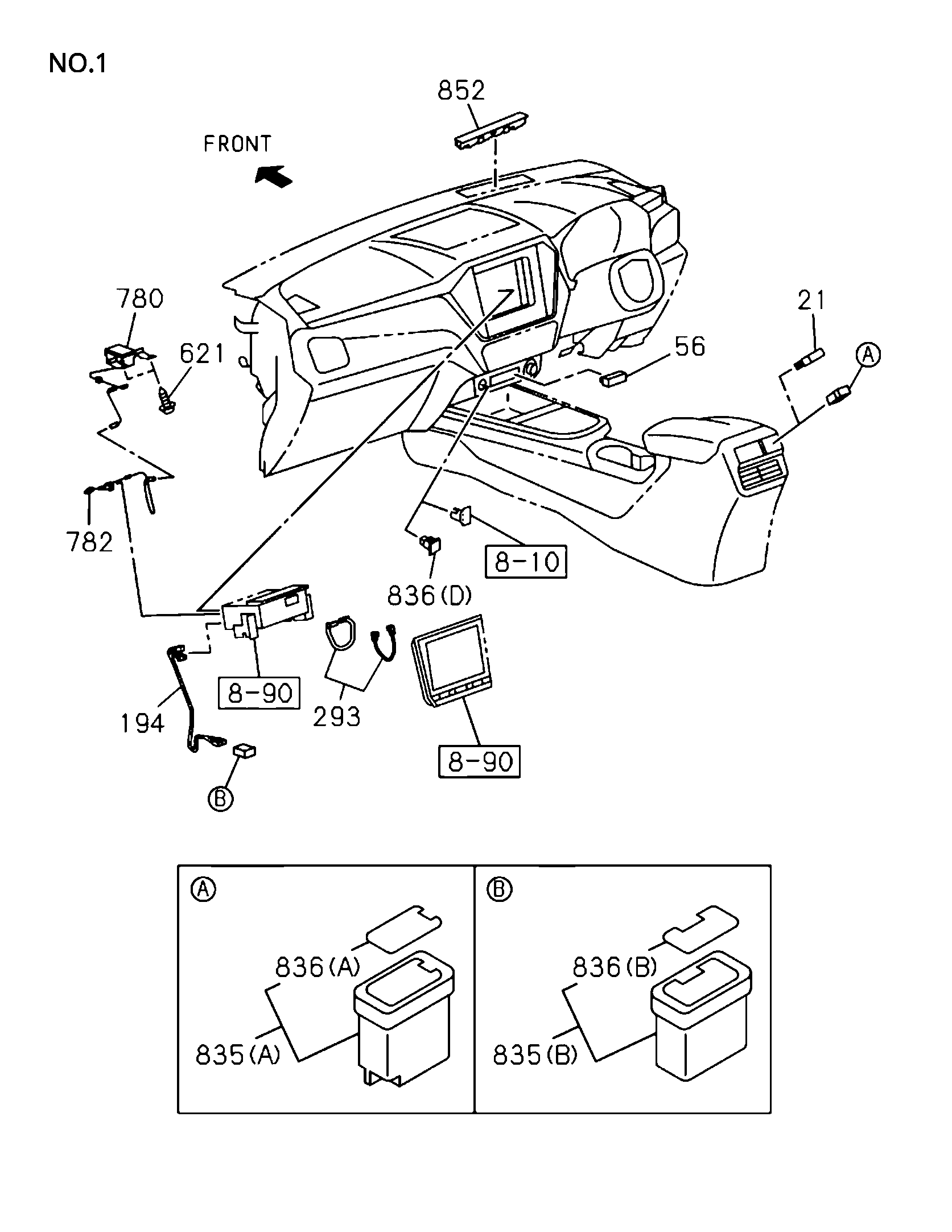

| 835 |
I8-97488 250-0 |
|
SOCKET; ACCESSORY |
1 |
2110- |
|
CD F |
FLOOR CONSOLE W/LID & RR CUP HOLDER<D07>,FLOOR CONSOLE W/LID<D55> ACCESSORY SOCKET FRT8.RR<8SZ> (A) USB |
| 744 |
I8-98347 516-1 |
|
SENSOR; AIR |
2 |
2110- |
|
A |
(b) |
| 448 |
I0-28650 625-0 |
|
BOLT; SENSOR |
2 |
2110- |
|
A |
(A) M6X25 FLANGE |
| 744 |
I8-97793 588-0 |
|
SENSOR; AIR |
2 |
2110- |
|
BCDE F |
AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AYO),AIR BAG DRIVER&DRIVER KNEE&PASS&SIDE&ROOF(8TX),A/BAG DR&DR KNEE8iPASS8(SIDE/FAR SIDE/ROOF(8TY) (A) |
| 743 |
I8-97797 250-0 |
|
CONTROL UNIT; BCM |
1 |
2111- |
|
BCDE F |
ELECTRONIC TRACTION CONTROL<NW9> EXC. DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>,PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31>,HEADLAMPS LED<TT7>,AUTO WIPER<8SN>,PASSIVE ENTRY & START SYSTEM W/REMOTE ENG<8SR> |
| 580 |
I8-98398 053-1 |
|
CAMERA; REAR |
1 |
2110- |
|
ABCDE F |
REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) DEAD r*AHACDA ATTATI i?ATC LJAMrtl L^ODI/v |
| 836 |
I8-97501 695-0 |
|
COVER; SOCKET |
1 |
2110- |
|
CD F |
FLOOR CONSOLE W/LID & RR CUP HOLDER<D07>,FLOOR CONSOLE W/LID<D55> ACCESSORY SOCKET FRT&RR<8SZ> (A) |

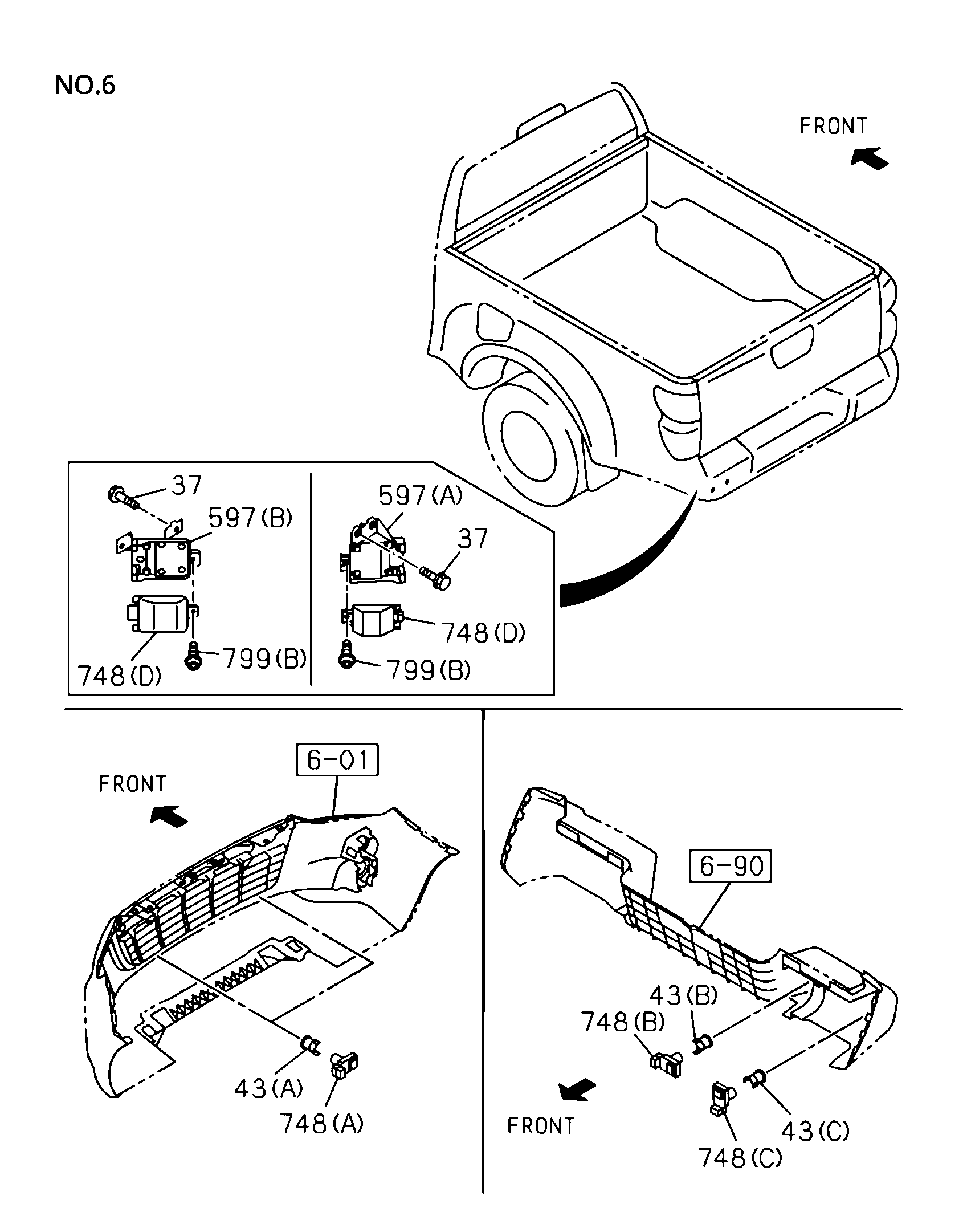

| 37 |
I0-28650 616-0 |
|
BOLT; BRKT F |
6 |
2110- |
|
ABCDE F |
REAR STEP BUMPER(VF6),REAR STEP BUMPER PAINTED(V43) SAFETY PACKAGE RR<8SX>,SAFETY PACKAGE FRT & RR<8SY> (B) M6X16 FLANGE |
| 691 |
I8-97826 817-0 |
|
CONTROLLER; TRANSFER |
1 |
2110- | |
|
D E F |
|
| 744 |
I8-97793 588-0 |
|
SENSOR; AIR |
2 |
2110- |
|
A |
(a) |
| 744 |
I8-98347 516-1 |
|
SENSOR; AIR |
2 |
2110- |
|
CD F |
AIR BAG DRIVER 8< PASSENGER 8< SIDE 8< ROOF(AYO),AIR BAG DRIVER8<DRIVER KNEE8<PASS8<SIDE&ROOF(8TX),A/BAG DR8.DR KNEE8iPASS8iSIDE/FAR SIDE/ROOF(8TY) (b) |
| 743 |
I8-97797 242-0 |
|
CONTROL UNIT; BCM |
1 |
2111- |
|
BC D E F |
RR FOG LAM P<T79> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>,REAR DEFOGGER<C49>,ELECTRONIC TRACTION CONTROL<NW9>,H EADLAM PS LED<TT7>,AUTO WIPER<8SN>,PASSIVE ENTRY & START SYSTEM W/REMOTE ENG<8SR>,SAFETY PACKAGE FRT<8SW>,SAFETY PACKAGE RR<8SX>,SAFETY PACKAGE FRT & RR<8SY> |
| 263 |
I0-28650 616-0 |
|
BOLT; CONT |
1 |
2110- |
|
D E F |
M6X16 FLANGE |
| 743 |
I8-97797 250-0 |
|
CONTROL UNIT; BCM |
1 |
2111- |
|
BC D E F |
GRADE BASIC(RBA),GRADE DELUXE(RBB),GRADE LUXURY(RBC),GRADE CUSTOM(RBD) HEADLAMPS LED<TT7> EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14), ELECTRONIC TRACTION CONTROL<NW9> |
| 448 |
I0-28650 625-0 |
|
BOLT; SENSOR |
2 |
2110- |
|
E |
A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) (A) M6X25 FLANGE |
| 448 |
I0-28650 620-0 |
|
BOLT; SENSOR |
2 |
2110- |
|
BCDE F |
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AYO),AIR BAG DRIVER8.DRIVER KNEE8(PASS8tSIDE8tROOF(8TX),A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) (B) M6X20 FLANGE |
| 836 |
I8-98394 968-0 |
|
COVER; SOCKET |
2 |
2110-2110 |
|
A BC D E F |
(C) |
| 836 |
I8-98394 968-0 |
|
COVER; SOCKET |
2 |
2110- |
|
B |
AIR BAG DRIVER8iDRIVER KNEE&PASS&SIDE8<ROOF(8TX),A/BAG DR&DR KNEE8(PASS8tSIDE/FAR SIDE/ROOF(8TY) (C) |
| 276 |
I8-98167 449-0 |
|
SCREW; BRKT |
2 |
2110- |
|
C F |
SAFETY PACKAGE FRT<8SW>,SAFETY PACKAGE RR<8SX>,SAFETY PACKAGE FRT & RR<8SY> M5X16 TAPPING |
| 244 |
I8-98167 615-0 |
|
BOLT; COVER |
4 |
2110- |
|
E |
A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) M6X15 W/LK&PL WASHER |
| 631 |
I0-28650 625-0 |
|
BOLT; CONT UNIT |
2 |
2110- | |
|
ABCDE F |
M6X25 FLANGE |
| 776 |
I8-97553 226-0 |
|
CONTROL UNIT |
1 |
2110- |
|
D E F |
REAR AXLE DIFF LOCK<8CL> (C) |
| 621 |
I8-94358 694-0 |
|
SCREW |
2 |
2110- |
|
CD F |
AM/FM,DVD,NAVI W/DISPLAY,SMART PHONE(8RW),AM/FM,MEMOLY NAVI W/DISPLAY,SMART PHONE(8TG),SCREEN 7" W/DVD(8TJ),SCREEN 9" WO/DVD(8TK),SCREEN 9" W/DVD(8TL) M5X16 |
| 4 |
I8-97551 786-0 |
|
rnniTom 11 n |
1 |
2110- |
|
D E F |
RZ4E-TC ENG(RDZ) A/T 6 SPEED-AISIN(Y6A) EUR04 S P ECIFICATIO N (NT4) EXC. IDLE STOP SYSTEM VAR2<8BM> |
| 244 |
I8-98167 615-0 |
|
BOLT; COVER |
4 |
2110- |
|
C |
AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AYO),A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) EXC. ELR WITH PRE-TENSIONER<A71> M6X15 W/LK&PL WASHER |
| 776 |
I8-97828 615-0 |
|
CONTROL UNIT |
1 |
2110- |
|
BCDE F |
REMOTE CONT DOOR LOCK<AP5> (F) |
| 244 |
I8-98167 615-0 |
|
BOLT; COVER |
4 |
2110- |
|
D |
AIR BAG DRIVER & PASSENGER DELETE(AK6),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AYO),AIR BAG DRIVER8.DRIVER KNEE&PASS8iSIDE&ROOF(8TX),A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) M6X15 W/LK&PL WASHER |
| 244 |
I8-98167 615-0 |
|
BOLT; COVER |
4 |
2110- |
|
A |
M6X15 W/LK8.PL WASHER |
| 743 |
I8-97797 242-0 |
|
CONTROL UNIT; BCM |
1 |
2111- |
|
BCDE F |
VARIABLE INTERMITTENT WIPER<CD4>,INTERMITTENTWIPER<C13> EXC. DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>,PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31>,REAR DEFOGGER<C49>,ELECTRONIC TRACTION CONTROL<NW9>,HEADLAMPS LED<TT7>,RR FOG LAMP<T79>,PASSIVE ENTRY 8. START SYSTEM W/REMOTE ENG<8SR>,SAFETY PACKAGE FRT<8SW>,SAFETY PACKAGE RR<8SX>,SAFETY PACKAGE FRT & RR<8SY> |
| 743 |
I8-97797 250-0 |
|
CONTROL UNIT; BCM |
1 |
2111- |
|
BC D E F |
GRADE BASIC(RBA),GRADE DELUXE(RBB),GRADE LUXURY(RBC) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>,DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> ELECTRONIC TRACTION CONTROL<NW9> |
| 743 |
I8-97797 250-0 |
|
CONTROL UNIT; BCM |
1 |
2111- |
|
BC D E F |
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>,DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>,PASSIVE ENTRY & START SYSTEM W/REMOTE ENG<8SR> EXC. ELECTRONIC TRACTION CONTROL<NW9>,HEADLAMPS LED<TT7>, AUTO WIPER<8SN> |
| 303 |
I8-98167 449-0 |
|
SCREW; CON1 |
2 |
2110- |
|
A |
(B) M5X16 TAPPING |
| 743 |
I8-97797 242-0 |
|
CONTROL UNIT; BCM |
1 |
2111- |
|
BCDE F |
REAR DEFOGGER<C49> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>,ELECTRONIC TRACTION CONTROL<NW9>,HEADLAMPS LED<TT7>,AUTO WIPER<8SN>,PASSIVE ENTRY & START SYSTEM W/REMOTE ENG<8SR>,SAFETY PACKAGE FRT<8SW>,SAFETY PACKAGE RR<8SX>,SAFETY PACKAGE FRT 8< RR<8SY> |
| 448 |
I0-28650 620-0 |
|
BOLT; SENSOR |
2 |
2110- |
|
A |
(B) M6X20 FLANGE |
| 448 |
I0-28650 625-0 |
|
BOLT; SENSOR |
2 |
2110- |
|
BCDE F |
AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AYO),AIR BAG DRIVER8(DRIVER KNEE&PASS&SIDE&ROOF(8TX),A/BAG DR&DR KNEE8(PASS8tSIDE/FAR SIDE/ROOF(8TY) (A) M6X25 FLANGE |
| 836 |
I8-98394 968-0 |
|
COVER; SOCKET |
2 |
2110- |
|
C |
AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AYO),A/BAG DR&DR KNEE8(PASS8iSIDE/FAR SIDE/ROOF(8TY) EXC. ELR WITH PRE-TENSIONER<A71> (C) |
| 799 |
I8-98167 615-0 |
|
SCREW; SENSOR |
4 |
2110- |
|
BCDE F |
AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AYO),AIR BAG DRIVER8(DRIVER KNEE8<PASS&SIDE&ROOF(8TX),A/BAG DR&DR KNEE8(PASS8tSIDE/FAR SIDE/ROOF(8TY) (A) BOLT M6X15 W/LK8.PL WASHER |
| 744 |
I8-98347 516-1 |
|
SENSOR; AIR |
2 |
2110- |
|
BCDE F |
AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AYO),AIR BAG DRIVER8(DRIVER KNEE8<PASS&SIDE81ROOF(8TX),A/BAG DR8.DR KNEE8iPASS8tSIDE/FAR SIDE/ROOF(8TY) (B) |
| 791 |
I8-97821 046-0 |
|
CABLE; SAFETY |
1 |
2110- |
|
A |
REAR BODY DBL WALL CTR PULL(E63) |
| 37 |
I0-28650 616-0 |
|
BOLT; BRKT F |
2 |
2110- |
|
CD F |
WARNING - DISTANCE, PARKING ASSIST,RR<8ST>,WARNING - DISTANCE, PARKING ASSIST,FRT 8. RR<8SU> (A) M6X16 FLANGE |
| 4 |
I8-97551 786-0 |
|
rnniTom 11 n |
1 |
2110- |
|
BC |
RZ4E-TC ENG(RDZ) A/T 6 SPEED-AISIN(Y6A) EUR04 SPECIFICATION(NT4) HIGH RIDE SUSPENSION(7YC) EXC. IDLE STOP SYSTEM VAR2<8BM> |
| 244 |
I8-98167 615-0 |
|
BOLT; COVER |
4 |
2110- |
|
C F |
ELR WITH PRE-TENSIONER<A71> M6X15 W/LK&PL WASHER |
