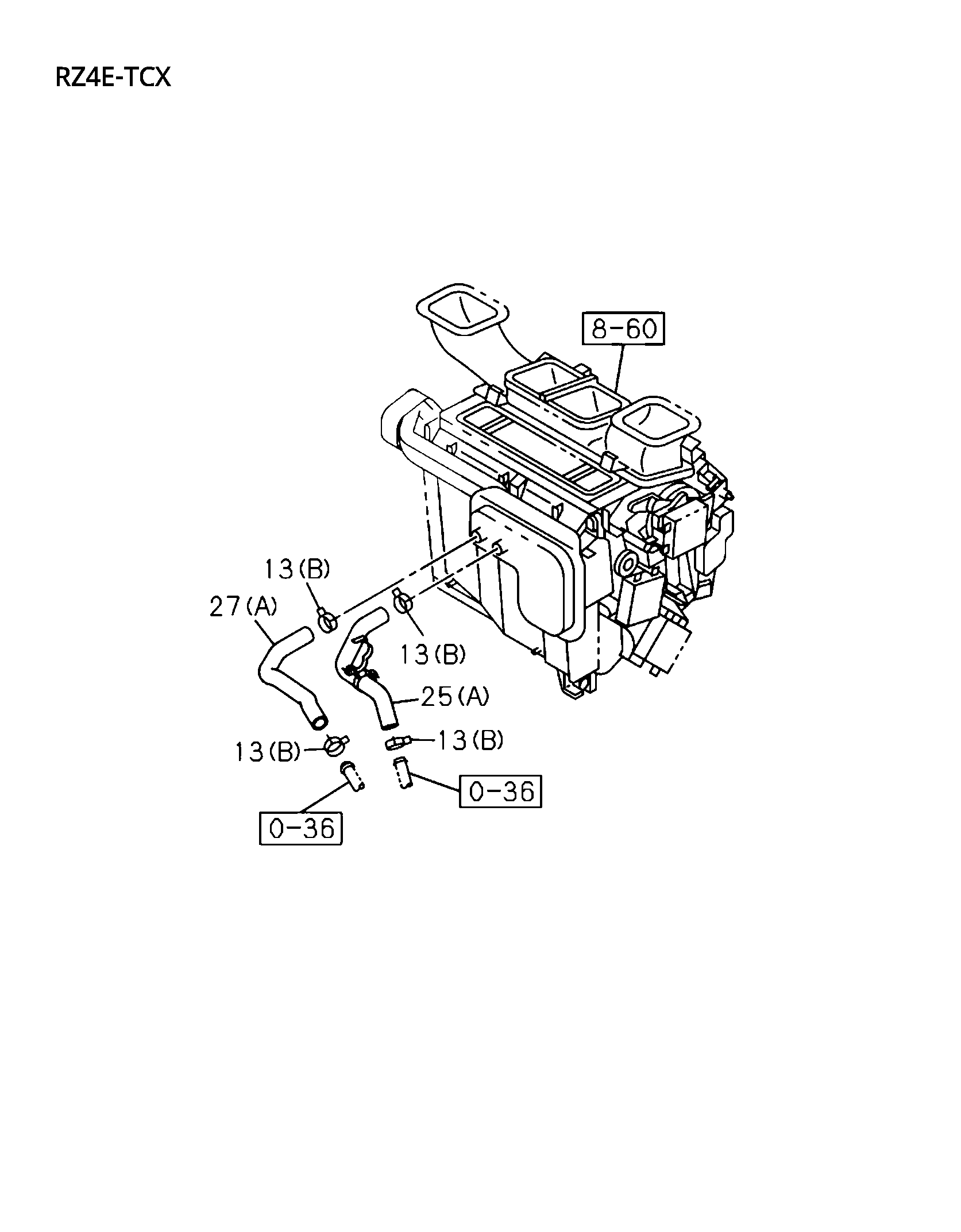

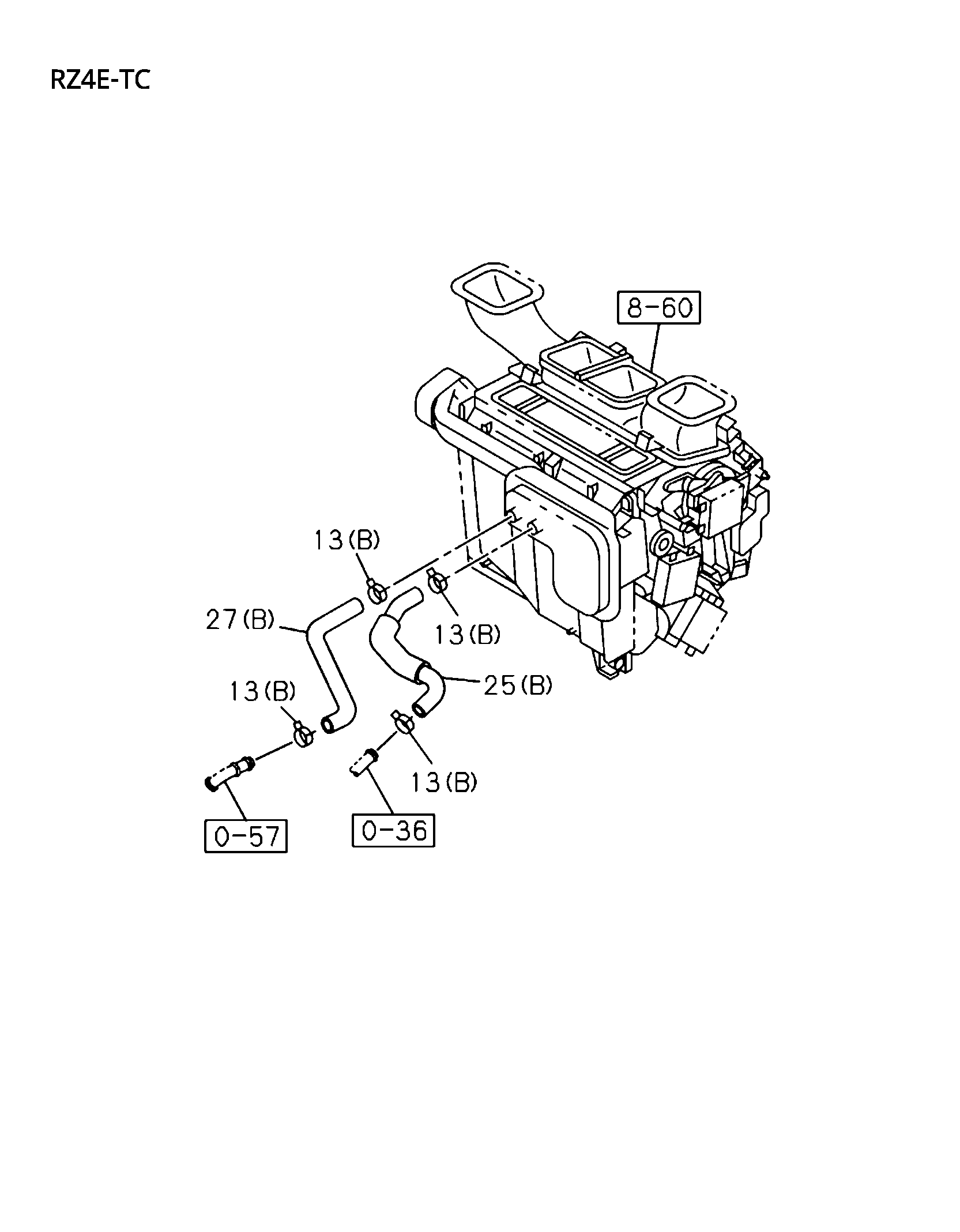

8-45 | 8-45 - HEATER PIPING
DMAX
D-MAX 2022
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 13 | I8-98133 607-0 | CLIP; HTR HOSE | 4 | 2110- | A | (B) ID=20.8 | ||
| 27 | I8-97491 372-0 | HOSE; WATER,HTR UNIT TO WATER PIPE | 1 | 2110- | BCDE F | RZ4E-TC ENG(RDZ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EUROO SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 S P ECIFICATIO N (NT4), EUR06DSPECIFICATIO N (8SJ) (B) | ||
| 73 | I8-97944 127-0 | CLIP; HTR HOSE | 2 | 2110- | BC D E F | 4JJ3 ENG(LNG) M/T MVL 6 SPEED 6S(Y6S) ID=20.8 | ||
| 48 | I0-28050 812-A | BOLT; CLIP FIX | 1 | 2110- | E F | 4JJ3 ENG(LNG) M/T MVL 6 SPEED 6S(Y6S) COOLER WO/H EATER(C65) M8X12 FLANGE | ||
| 95 | I0-28050 816-0 | BOLT; BYPASS PIPE | 4 | 2110- | D E F | 4JJ3 ENG(LNG) HEATER 8. DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) M8X16 FLANGE | ||
| 25 | I8-97491 375-1 | HOSE; WATERING TO HTR UNIT | 1 | 2110- | BCDE F | RZ4E-TC ENG(RDZ) A/T 6 SPEED-AI5IN(Y6A) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EUROO SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATI0N(NT4),EUR06D SPECIFICATION(8SJ) (B) | ||
| 95 | I0-28050 816-0 | BOLT; BYPASS PIPE | 1 | 2110- | BC D E F | 4JJ3 ENG(LNG) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EUR05 SPECIFICATION(NT5) M8X16 FLANGE | ||
| 73 | I8-97944 127-0 | CLIP; HTR HOSE | 2 | 2110- | A BC D | 4JJ3 ENG(LNG) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) ID=20.8 | ||
| 95 | I0-28050 816-0 | BOLT; BYPASS PIPE | 1 | 2110- | A | 4JJ3 ENG(LNG) A/T 6 SPEED-AI5IN(Y6A) M8X16 FLANGE | ||
| 73 | I8-97944 127-0 | CLIP; HTR HOSE | 2 | 2110- | E F | 4JJ3 ENG(LNG) ID=20.8 | ||
| 48 | I0-28050 840-0 | BOLT; CLIP FIX | 1 | 2110- | E F | 4JJ3 ENG(LNG) A/T 6 SPEED-AISIN(Y6A) COOLER WO/H EATER(C65) M8X40 FLANGE | ||
| 13 | I8-98133 607-0 | CLIP; HTR HOSE | 4 | 2110- | BC D E F | HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B) ID=20.8 | ||
| 119 | I0-28050 816-0 | BOLT; RR HTR | 1 | 2110- | ABCDE F | 4JJ3 ENG(LNG) M8X16 FLANGE |
