8-65 | 8-65 - CONTROL LEVER; HEATER AND AIR CON
DMAX
D-MAX 2022
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

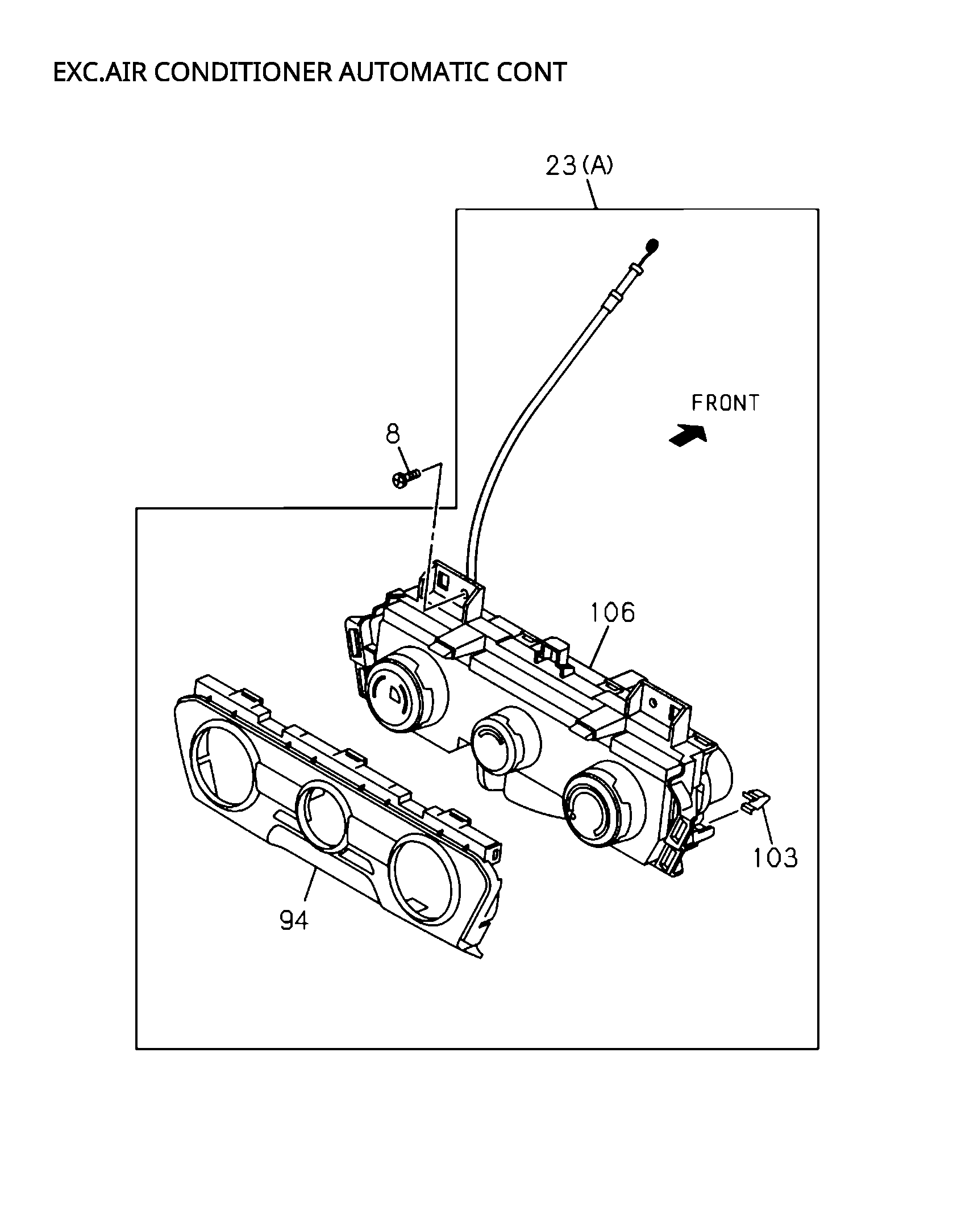

| 94 | I8-97554 437-0 | PANEL; BEZEL | 1 | 2110- | A | |||
| 23 | I8-97491 417-2 | BEZEL; CONT LEVER | 1 | 2110- | C F | GRADE BASIC(RBA),GRADE DELUXE(RBB),GRADE LUXURY(RBC) REAR DEFOGGER<C49> COOLER WO/H EATER(C65) EXC. IDLE STOP SYSTEM VAR2<8BM> (A) | ||
| 106 | I8-97554 395-0 | CONTROL SUB ASM; HTR & A/C | 1 | 2110- | C F | GRADE BASIC(RBA),GRADE DELUXE(RBB),GRADE LUXURY(RBC) REAR DEFOGGER<C49> COOLER WO/H EATER(C65) EXC. IDLE STOP SYSTEM VAR2<8BM> | ||
| 106 | I8-97554 396-0 | CONTROL SUB ASM; HTR & A/C | 1 | 2110- | C E F | GRADE BASIC(RBA),GRADE DELUXE(RBB),GRADE LUXURY(RBC) COOLER WO/H EATER(C65) EXC. REAR DEFOGGER<C49>,IDLE STOP SYSTEM VAR2<8BM> | ||
| 103 | I8-97554 439-0 | CLIP | 2 | 2110- | BC D E F | HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) | ||
| 23 | I8-97491 418-2 | BEZEL; CONT LEVER | 1 | 2110- | C E F | GRADE BASIC(RBA),GRADE DELUXE(RBB),GRADE LUXURY(RBC) COOLER WO/H EATER(C65) EXC. REAR DEFOGGER<C49>,IDLE STOP SYSTEM VAR2<8BM> (A) | ||

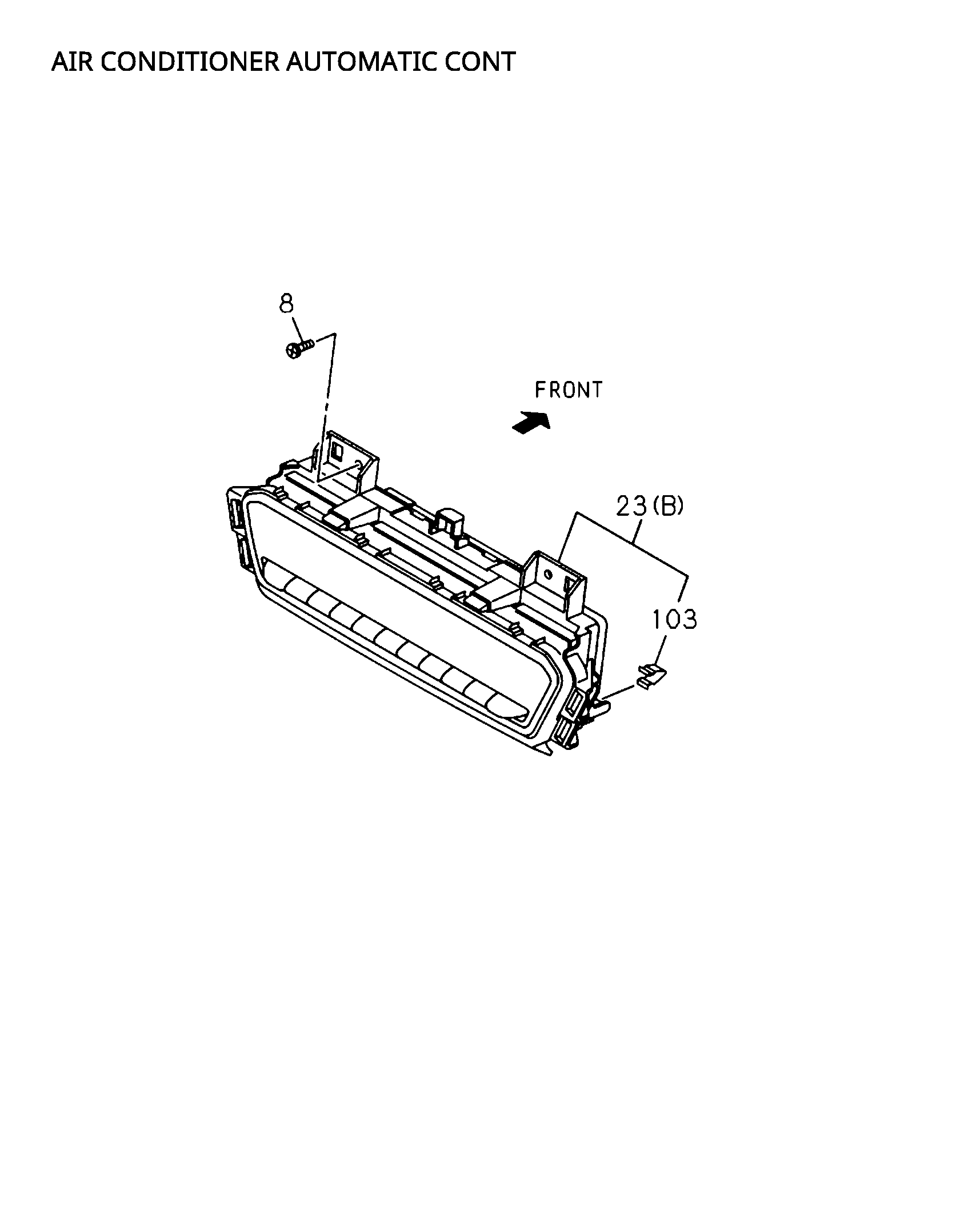

| 23 | I8-97491 425-2 | BEZEL; CONT LEVER | 1 | 2110- | CD F | AIR CONDITIONER AUTOMATIC CONT(C61) (B) | ||
| 8 | I8-98167 449-0 | SCREW; CONT LVR TO INST PNL | 2 | 2110- | A BC D E F | M5X16 TAPPING | ||
| 103 | I8-97508 564-0 | CLIP | 2 | 2110- | CD F | AIR CONDITIONER AUTOMATIC CONT(C61) | ||
| 103 | I8-97554 439-0 | CLIP | 2 | 2110- | A | |||
| 94 | I8-97554 437-0 | PANEL; BEZEL | 1 | 2110- | BCDE F | HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) |
