Isuzu | Part Center System

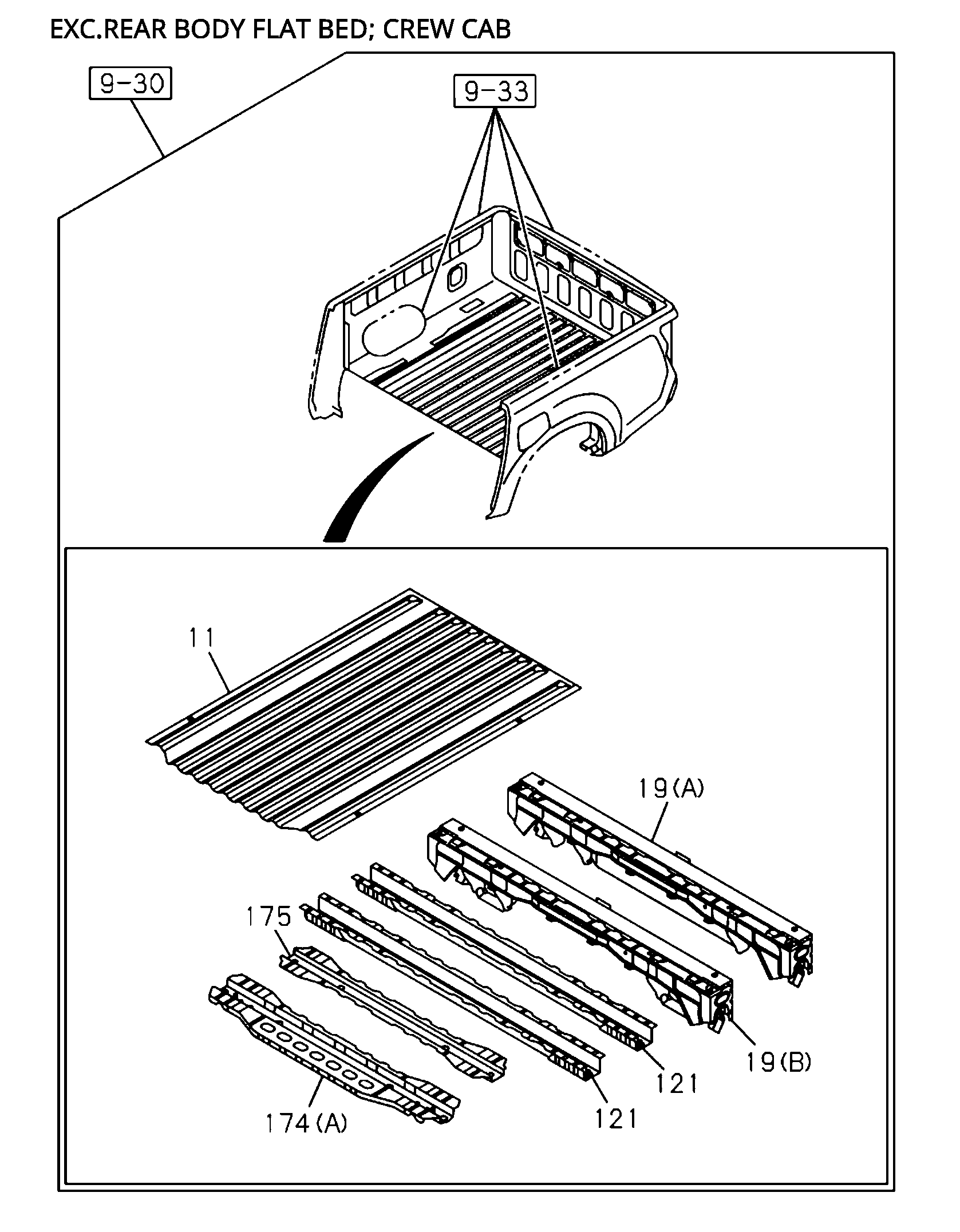

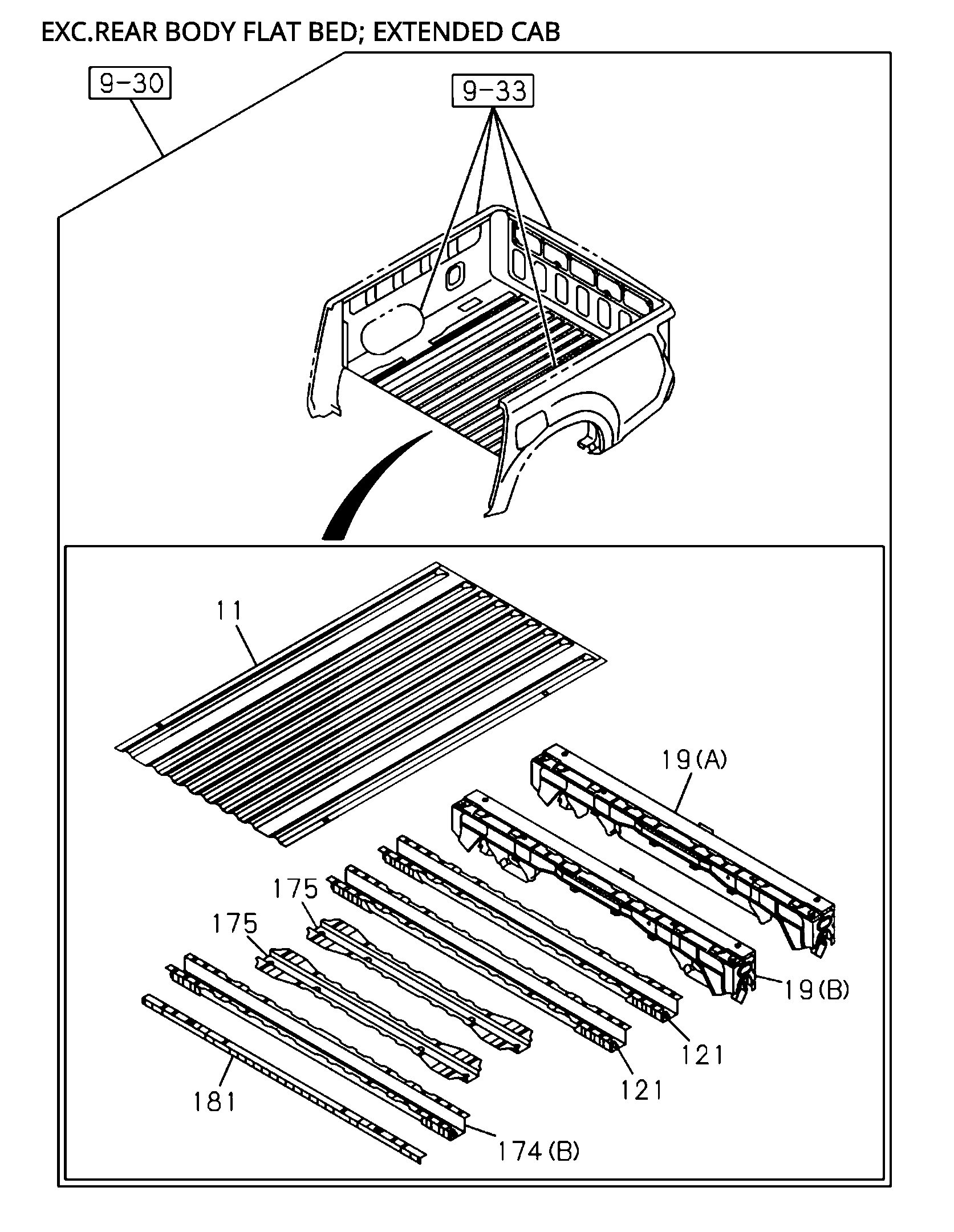

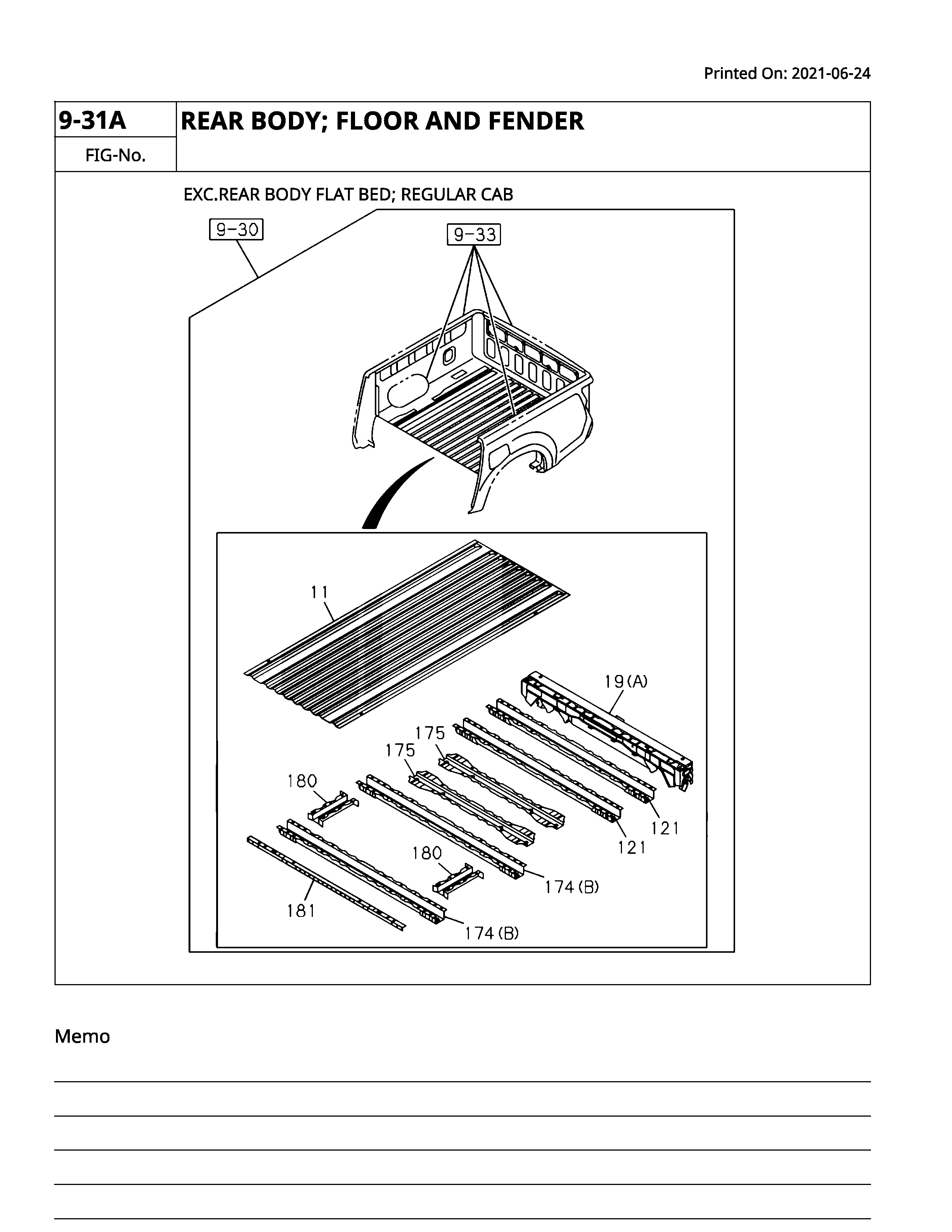

9-31 | 9-31 - REAR BODY; FLOOR AND FENDER

DMAX

D-MAX 2022

Key	PART NO	DESCRIPTION	QTY	APP DATE	MODEL	REMARKS

117	I8-98050 437-0	BOLT; SILL	2	2110-	C	REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (C) M8X22
174	I8-98386 379-0	SILL; RR BOD	1	2110-	C	REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (A)
11	I8-98399 076-0	PANEL; FLOOR BOARD,RR BODY	1	2110-	B E	REAR BODY DBL WALL CTR PULL(E63)
121	I8-98386 383-1	BOLSTER; RR	2	2110-	C	REAR BODY DBL WALL CTR PULL(E63) REAR STEP BUMPER(VF6),REAR STEP BUMPER PAINTED(V43) HIGH RIDE SUSPENSION(7YC)
117	I8-98050 437-0	BOLT; SILL	2	2110-	B E	REAR BODY DBL WALL CTR PULL(E63) (C) M8X22
180	I8-98399 083-0	REINFORCED	2	2110-	B E	REAR BODY DBL WALL CTR PULL(E63)
174	I8-98386 379-0	SILL; RR BOD	1	2110-	C	REAR BODY DBL WALL CTR PULL(E63) REAR STEP BUMPER(VF6),REAR STEP BUMPER PAINTED(V43) HIGH RIDE SUSPENSION(7YC) (A)
175	I8-98386 378-1	SILL; RR BOD	1	2110-	F	REAR BODY DBL WALL CTR PULL(E63) REAR STEP BUMPER(VF6),REAR STEP BUMPER PAINTED(V43)
117	I8-98294 857-0	BOLT; SILL	6	2110-	A D	REAR BODY DBL WALL CTR PULL(E63) (B) M8X20
19	I8-98386 387-4	BOLSTER; RR END,RR BODY	1	2110-	A D F	REAR BODY DBL WALL CTR PULL(E63) REAR STEP BUMPER(VF6),REAR STEP BUMPER PAINTED(V43) (B)
121	I8-98386 383-1	BOLSTER; RR	2	2110-	B E	REAR BODY DBL WALL CTR PULL(E63)
19	I8-98399 087-5	BOLSTER; RR END,RR BODY	1	2110-	B E	REAR BODY DBL WALL CTR PULL(E63) (A)
19	I8-98386 387-4	BOLSTER; RR END,RR BODY	1	2110-	C	REAR BODY DBL WALL CTR PULL(E63) REAR STEP BUMPER(VF6),REAR STEP BUMPER PAINTED(V43) HIGH RIDE SUSPENSION(7YC) (B)
174	I8-98399 079-1	SILL; RR BOD	1	2110-	A D	REAR BODY DBL WALL CTR PULL(E63) REAR STEP BUMPER(VF6),REAR STEP BUMPER PAINTED(V43) (B)
11	I8-98386 377-0	PANEL; FLOOR BOARD,RR BODY	1	2110-	F	REAR BODY DBL WALL CTR PULL(E63) REAR STEP BUMPER(VF6),REAR STEP BUMPER PAINTED(V43)
117	I8-98290 484-0	BOLT; SILL	10	2110-	A BC D E F	REAR BODY DBL WALL CTR PULL(E63) (A) M8X16.5 HEXALOBULAR SOCKET
11	I8-98386 377-0	PANEL; FLOOR BOARD,RR BODY	1	2110-	C	REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC)
116	I8-98104 017-1	SUPPORT; RR BODY.SILL	1	2110-	C	REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ>
175	I8-98386 378-1	SILL; RR BOD	1	2110-	C	REAR BODY DBL WALL CTR PULL(E63) REAR STEP BUMPER(VF6),REAR STEP BUMPER PAINTED(V43) HIGH RIDE SUSPENSION(7YC)
117	I8-98294 857-0	BOLT; SILL	2	2110-	C F	REAR BODY DBL WALL CTR PULL(E63) (B) M8X20
117	I8-98294 857-0	BOLT; SILL	10	2110-	ABCDE F	REAR BODY DBL WALL CTR PULL(E63) (B) M8X20
11	I8-98386 377-0	PANEL; FLOOR BOARD,RR BODY	1	2110-	C	REAR BODY DBL WALL CTR PULL(E63) REAR STEP BUMPER(VF6),REAR STEP BUMPER PAINTED(V43) HIGH RIDE SUSPENSION(7YC)
174	I8-98399 079-1	SILL; RR BOD	2	2110-	B E	REAR BODY DBL WALL CTR PULL(E63) (B)
175	I8-98386 378-1	SILL; RR BOD	2	2110-	B E	REAR BODY DBL WALL CTR PULL(E63)
121	I8-98386 383-1	BOLSTER; RR	2	2110-	A D F	REAR BODY DBL WALL CTR PULL(E63) REAR STEP BUMPER(VF6),REAR STEP BUMPER PAINTED(V43)
175	I8-98386 378-1	SILL; RR BOD	1	2110-	C	REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC)
8	I8-97301 188-0	HOLDER; FLAP RUBBER	2	2110-	D	REAR BODY DBL WALL CTR PULL(E63) SIDE STEP<6TC> (B)
121	I8-98386 383-1	BOLSTER; RR	2	2110-	C	REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC)
19	I8-98399 087-5	BOLSTER; RR END,RR BODY	1	2110-	C	REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (A)
116	I8-98104 017-1	SUPPORT; RR BODY.SILL	1	2110-	B E	REAR BODY DBL WALL CTR PULL(E63)
181	I8-98399 096-0	EXTENSION;	1	2110-	B E	REAR BODY DBL WALL CTR PULL(E63)
174	I8-98386 379-0	SILL; RR BOD	1	2110-	F	REAR BODY DBL WALL CTR PULL(E63) REAR STEP BUMPER(VF6),REAR STEP BUMPER PAINTED(V43) (A)
117	I8-98294 857-0	BOLT; SILL	10	2110-	B E	REAR BODY DBL WALL CTR PULL(E63) (B) M8X20
181	I8-98399 096-0	EXTENSION;	1	2110-	A D	REAR BODY DBL WALL CTR PULL(E63) REAR STEP BUMPER(VF6),REAR STEP BUMPER PAINTED(V43)
175	I8-98386 378-1	SILL; RR BOD	2	2110-	A D	REAR BODY DBL WALL CTR PULL(E63) REAR STEP BUMPER(VF6),REAR STEP BUMPER PAINTED(V43)
