| 45 |
I8-94221 150-0 |
|
RIVET; DUST SHIELD COVER,RR BODY |
12 |
2110- |
|
A D F |
REAR BODY DBL WALL CTR PULL(E63) |
| 7 |
I8-98290 484-0 |
|
BOLT; GUARD FRAME STOPPER,RR BODY |
4 |
2110- |
|
CD F |
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>,OUTER ROPE HOOKS<7MZ> (A) M8X16.5 HEXALOBULAR SOCKET |
| 7 |
I8-98294 857-0 |
|
BOLT; GUARD FRAME STOPPER,RR BODY |
2 |
2110- |
|
A D F |
REAR BODY DBL WALL CTR PULL(E63) (C) M8X20 |
| 37 |
I0-28050 612-0 |
|
BOLT; GUARD FRAME |
5 |
2110- |
|
B E |
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> OUTER ROPE HOOKS<7MZ> M6X12 FLANGE |
| 45 |
I8-94221 150-0 |
|
RIVET; DUST SHIELD COVER,RR BODY |
14 |
2110- |
|
B E |
REAR BODY DBL WALL CTR PULL(E63) |
| 34 |
I8-98386 400-0 |
|
PANEL; FRT,RR BODY |
1 |
2110- |
|
C |
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. OUTER ROPE HOOKS<7MZ> (A) |
| 5 |
I8-98056 308-0 |
|
WASHER; PL.GUARD FRAME STOPPER |
2 |
2110- |
|
BC D E F |
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> |
| 68 |
I8-98180 183-0 |
|
EXTENSION; |
2 |
2110- |
|
C |
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. OUTER ROPE HOOKS<7MZ> |
| 7 |
I8-98290 484-0 |
|
BOLT; GUARD FRAME STOPPER,RR BODY |
2 |
2110- |
|
CD F |
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. OUTER ROPE HOOKS<7MZ> (A) M8X16.5 HEXALOBULAR SOCKET |
| 45 |
I8-94221 150-0 |
|
RIVET; DUST SHIELD COVER,RR BODY |
12 |
2110- |
|
C |
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) |
| 37 |
I0-28050 612-0 |
|
BOLT; GUARD FRAME |
5 |
2110- |
|
CD F |
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> M6X12 FLANGE |
| 7 |
I8-98290 484-0 |
|
BOLT; GUARD FRAME STOPPER,RR BODY |
4 |
2110- |
|
A |
REAR BODY DBL WALL CTR PULL(E63) (A) M8X16.5 HEXALOBULAR SOCKET |
| 74 |
I8-97537 162-0 |
|
REINFORCEMENT |
1 |
2110- |
|
C |
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>,OUTER ROPE HOOKS<7MZ> |
| 7 |
I8-98152 995-2 |
|
BOLT; GUARD FRAME STOPPER,RR BODY |
6 |
2110- |
|
CD F |
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (A) M8X20.5 HEXALOBULAR SOCKET |
| 61 |
I8-98386 401-0 |
|
BAR ASM |
1 |
2110- |
|
C |
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. OUTER ROPE HOOKS<7MZ> |
| 10 |
I8-98056 127-0 |
|
NUT; GUARD FRAME STOPPER |
2 |
2110- |
|
BCDE F |
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (A) M6 |
| 74 |
I8-97537 162-0 |
|
REINFORCEMENT |
1 |
2110- |
|
F |
REAR BODY DBL WALL CTR PULL(E63) |
| 3 |
I8-97352 624-1 |
|
STOPPER; GUARD FRAME,RR BODY |
2 |
2110- |
|
BC D E F |
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> |
| 74 |
I8-97537 162-0 |
|
REINFORCEMENT |
1 |
2110- |
|
C |
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> |
| 7 |
I8-98056 129-0 |
|
BOLT; GUARD FRAME STOPPER,RR BODY |
2 |
2110- |
|
BCDE F |
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (B) M6X45 |
| 73 |
I8-97559 200-0 |
|
PROTECTOR; TAPE |
2 |
2110- I |
|
AB DE |
REAR BODY DBL WALL CTR PULL(E63) |
| 43 |
I0-28650 825-0 |
|
BOLT; GUARD FRAME,RR BODY |
7 |
2110- |
|
B |

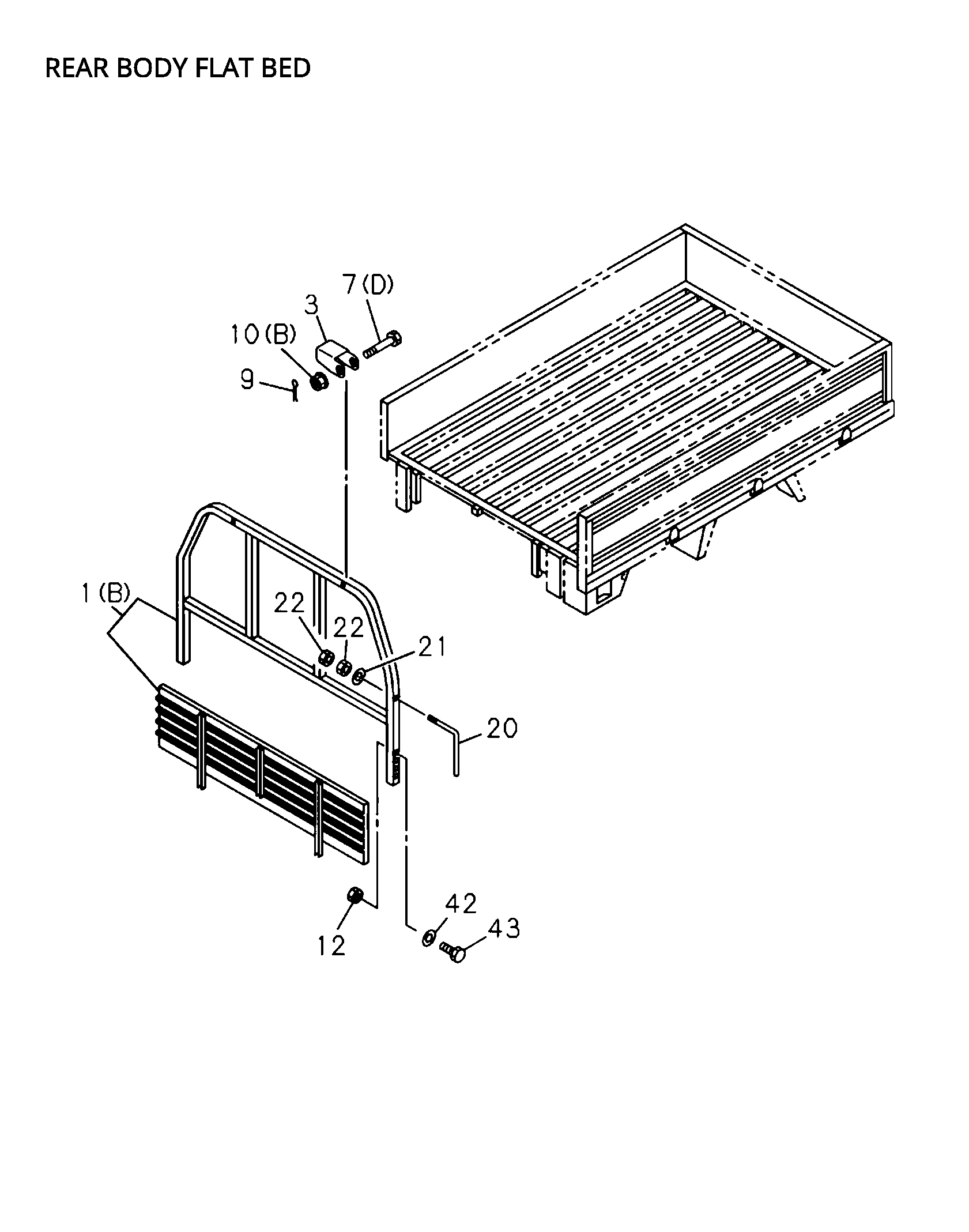

REAR BODY FLAT BED(E39) M8X25 FLANGE |
| 7 |
I8-98294 857-0 |
|
BOLT; GUARD FRAME STOPPER,RR BODY |
2 |
2110- |
|
C |
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (C) M8X20 |
| 45 |
I8-94221 150-0 |
|
RIVET; DUST SHIELD COVER,RR BODY |
14 |
2110- |
|
C |
REAR BODY DBL WALL CTR PULL(E63) |
| 22 |
I0-91111 512-0 |
|
NUT; FRT HANDLE |
4 |
2110- |
|
B |
REAR BODY FLAT BED(E39) M12 |
| 34 |
I8-98386 400-0 |
|
PANEL; FRT,RR BODY |
1 |
2110- |
|
F |
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (A) |
| 1 |
I8-98386 420-1 |
|
FRAME; GUARD,RR BODY |
1 |
2110- |
|
B E |
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> OUTER ROPE HOOKS<7MZ> (A) |
| 61 |
I8-98386 419-1 |
|
BAR ASM |
1 |
2110- |
|
BC E |
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> OUTER ROPE HOOKS<7MZ> |
| 34 |
I8-98391 604-1 |
|
PANEL; FRT,RR BODY |
1 |
2110- |
|
B E |
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> OUTER ROPE HOOKS<7MZ> (C) |
| 1 |
I8-98386 406-1 |
|
FRAME; GUARD,RR BODY |
1 |
2110- |
|
CD F |
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. OUTER ROPE HOOKS<7MZ> (A) |
| 29 |
I8-97918 416-0 |
|
COVER; GUARD FRAME |
2 |
2110- |
|
ABCDE F |
REAR BODY DBL WALL CTR PULL(E63) |
| 61 |
I8-98386 401-0 |
|
BAR ASM |
1 |
2110- |
|
D F |
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> |
| 68 |
I8-98180 183-0 |
|
EXTENSION; |
2 |
2110- |
|
F |
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> |
| 7 |
I8-98152 995-2 |
|
BOLT; GUARD FRAME STOPPER,RR BODY |
6 |
2110- |
|
B E |
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> OUTER ROPE HOOKS<7MZ> (A) M8X20.5 HEXALOBULAR SOCKET |
