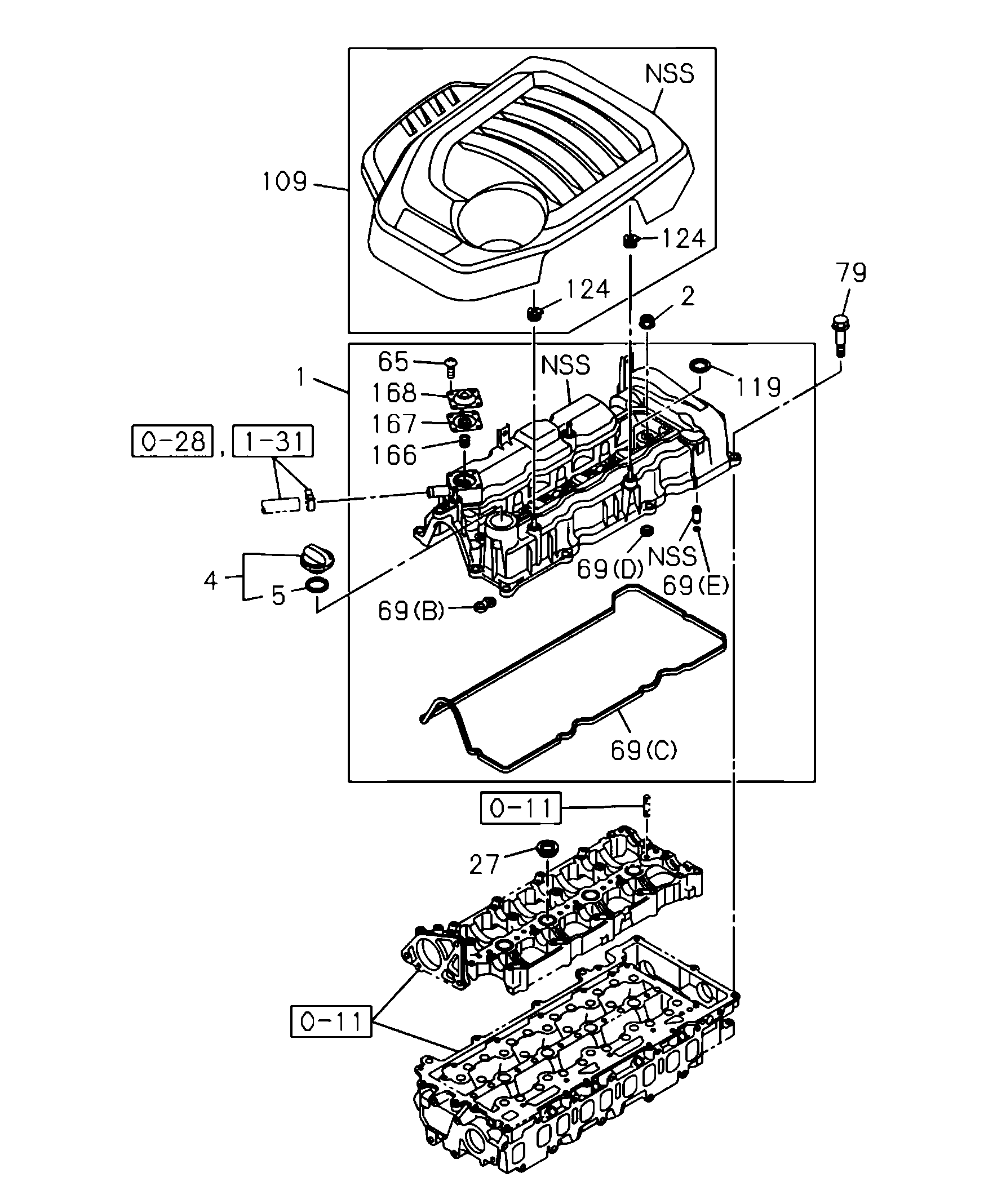

0-10 | CYLINDER HEAD COVER
DMAX
D-MAX 2024
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 180 | I8-98244 154-0 | DAMPENER, CYL HEAD | 1 | 2311- | C | |||
| 168 | I8-98234 092-0 | COVER, VENTILATOR | 1 | 2311- | ABC | (D-MAX 2024) | ||
| 119 | I8-98304 024-0 | COVER, SEAL,NOZZLE | 4 | 2311- | A B | (D-MAX 2024) | ||
| 4 | I8-98026 084-0 | CAP, OIL FILLER | 1 | 2311- | ABC | (D-MAX 2024) | ||
| 119 | I8-98228 371-0 | COVER, SEAL,NOZZLE | 4 | 2311- | C | |||
| 5 | I8-97918 298-0 | GASKET, OIL FILLER | 1 | 2311- | ABC | (D-MAX 2024) ID=32 OD=40 | ||
| 124 | I8-98269 869-0 | RUBBER, MTG,COVER | 4 | 2311- | ABC | ENG SIGHT SHIELD<8LQ> | ||
| 109 | I8-97529 881-0 | COVER, ENG | 1 | 2311- | A | ENG SIGHT SHIELD<8LQ> | ||
| 109 | I8-97510 808-0 | COVER, ENG | 1 | 2311- | C | ENG SIGHT SHIELD<8LQ> | ||
| 26 | I0-28050 820-0 | BOLT, BRKT,FLEX HOSE,P/S | 1 | 2311- | C | (D-MAX 2024) (B) M8X20 FLANGE | ||
| 69 | I8-98304 025-0 | GASKET, HD TO COVER | 1 | 2311- | A B | (D-MAX 2024) (C) | ||
| 156 | I8-97679 832-1 | BRACKET, ENGINE COVER | 1 | 2311- | B | (D-MAX 2024) EUR04 SPECIFICATI0N(NT4),EUR05 SPECIFICATION(NT5) | ||
| 166 | I8-97088 445-0 | SPRING, DIAPH,VENTILATOR | 1 | 2311- | ABC | (D-MAX 2024) | ||
| 1 | I8-98350 871-0 | COVER, CYL HD | 1 | 2311- | A B | (D-MAX 2024) | ||
| 69 | I8-98336 417-0 | GASKET, HD TO COVER | 4 | 2311- | AB | (D-MAX 2024) (B) | ||
| 146 | I0-91180 108-0 | NUT, FLEX HOSE,CLU CONT | 2 | 2311- | B | (D-MAX 2024) EUR04 SPECIFICATI0N(NT4),EUR05 SPECIFICATION(NT5) M8 FLANGE | ||
| 26 | I8-98228 370-0 | BOLT, CYL HD COVER | 15 | 2311- | C | (D-MAX 2024) (A) M6X25.7 FLANGE | ||
| 69 | I8-98336 418-0 | GASKET, HD TO COVER | 1 | 2311- | A B | (D-MAX 2024) (D) | ||
| 109 | I8-98328 041-1 | COVER, ENG | 1 | 2311- | B | EUR04 SPECIFICATI0N(NT4),EUR05 SPECIFICATION(NT5) ENG SIGHT SHIELD<8LQ> | ||
| 69 | I8-98228 369-0 | GASKET, HD TO COVER | 1 | 2311- | C | (A) | ||
| 79 | I8-98228 370-0 | BOLT, CYL HD COVER | 12 | 2311- | A B | (D-MAX 2024) M6X25.7 FLANGE | ||
| 1 | I8-98480 975-0 | COVER, CYL HD | 1 | 2311- | C | |||
| 2 | I0-91180 106-0 | NUT:CONICAL | 1 | 2311- | AB | (D-MAX 2024) M6 FLANGE | ||
| 109 | I8-97796 785-0 | COVER, ENG | 1 | 2311- | B | EUROO SPECIFICATI0N(K75),EUR02 SPECIFICATION(NT2) ENG SIGHT SHIELD<8LQ> | ||
| 167 | I8-98226 101-1 | DIAPHRAGM, VENTILATOR | 1 | 2311- | ABC | (D-MAX 2024) | ||
| 69 | I8-98336 419-0 | GASKET, HD TO COVER | 1 | 2311- | AB | (D-MAX 2024) (E) | ||
| 27 | I8-97662 434-0 | GASKET, HD COVER | 4 | 2311- | A B | (D-MAX 2024) | ||
| 65 | I8-98209 387-0 | SCREW, ADAPTER | 4 | 2311- | ABC | (D-MAX 2024) M4X10 |
