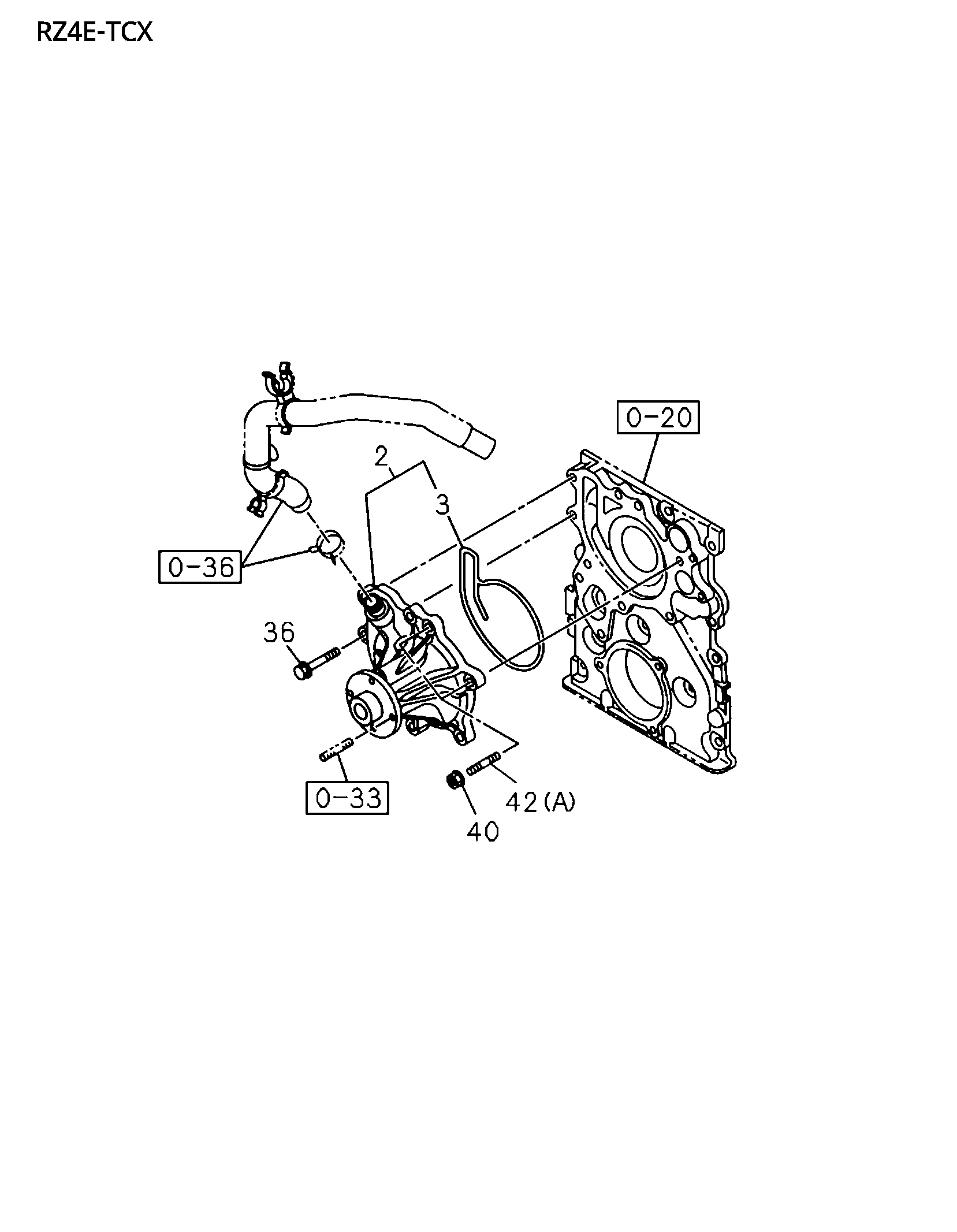

0-30 | WATER PUMP AND CORROSION RESISTOR
DMAX
D-MAX 2024
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 3 | I8-97312 156-0 | GASKET, PUMP TO C/BL | 1 | 2311- | C | |||
| 99 | I8-98233 994-0 | GASKET, WATER PIPE | 1 | 2311- | C | (B) | ||
| 36 | I0-28050 850-0 | BOLT, OIL FILLER | 4 | 2311- | C | (D-MAX 2024) M8X50 FLANGE | ||
| 63 | I0-28050 880-0 | BOLT, WATER PUMP | 1 | 2311- | C | (B) M8X80 FLANGE | ||
| 42 | I0-41010 825-0 | STUD, EXH MANIF | 2 | 2311- | AB | (D-MAX 2024) (A) M8X25 L=37 | ||
| 2 | I8-97876 945-0 | PUMP ASM, WATER | 1 | 2311- | A | |||
| 40 | I0-91180 208-0 | NUT, FLEX HOSE,CLU CONT | 2 | 2311- | ABC | (D-MAX 2024) M8 FLANGE | ||
| 3 | I8-97876 947-0 | GASKET, PUMP TO C/BL | 1 | 2311- | A B | (D-MAX 2024) | ||
| 42 | I8-97262 717-1 | BOLT, CARRIER | 1 | 2311- | B | EUROO SPECIFICATI0N(K75),EUR02 SPECIFICATION(NT2) (B) M 8X20, M 8X45 L=73 | ||
| 97 | I8-97555 136-0 | PIPE, WATER | 1 | 2311- | C | EUR02 SPECIFICATION(NT2) | ||
| 36 | I0-28050 850-0 | BOLT, OIL FILLER | 6 | 2311- | B | (D-MAX 2024) EUR04 SPECIFICATI0N(NT4),EUR05 SPECIFICATION(NT5) M8X50 FLANGE | ||
| 2 | I8-97876 944-0 | PUMP ASM, WATER | 1 | 2311- | B | (D-MAX 2024) | ||
| 63 | I0-28050 816-0 | BOLT, BRKT,FLEX HOSE,P/S | 1 | 2311- | C | (D-MAX 2024) (A) M8X16 FLANGE | ||
| 42 | I0-49140 822-0 | STUD, DIFF CARRIER | 2 | 2311- | C | (C) M8X22 L=40 | ||
| 155 | I0-91180 208-0 | NUT, FLEX HOSE,CLU CONT | 2 | 2311- | C | (D-MAX 2024) M8 FLANGE | ||
| 36 | I0-28050 850-0 | BOLT, OIL FILLER | 5 | 2311- | B | (D-MAX 2024) EUROO SPECIFICATIONS),EUR02 SPECIFICATION(NT2) M8X50 FLANGE | ||
| 63 | I0-28050 816-0 | BOLT, BRKT,FLEX HOSE,P/S | 2 | 2311- | C | (D-MAX 2024) (A) M8X16 FLANGE | ||
| 2 | I8-97312 147-4 | PUMP ASM, WATER | 1 | 2311- | C | |||
| 22 | I0-95690 226-0 | GASKET, BYPASS PIPE | 1 | 2311- | C | ID=26.2 | ||
| 97 | I8-98480 910-0 | PIPE, WATER | 1 | 2311- | C | EUR04 SPECIFICATI0N(NT4),EUR05 SPECIFICATION(NT5) | ||
| 36 | I0-28050 850-0 | BOLT, OIL FILLER | 6 | 2311- | A | (D-MAX 2024) M8X50 FLANGE | ||
| 99 | I0-95690 338-0 | GASKET, SUCTION PIPE TO BLOCK | 1 | 2311- | C | (A) |
