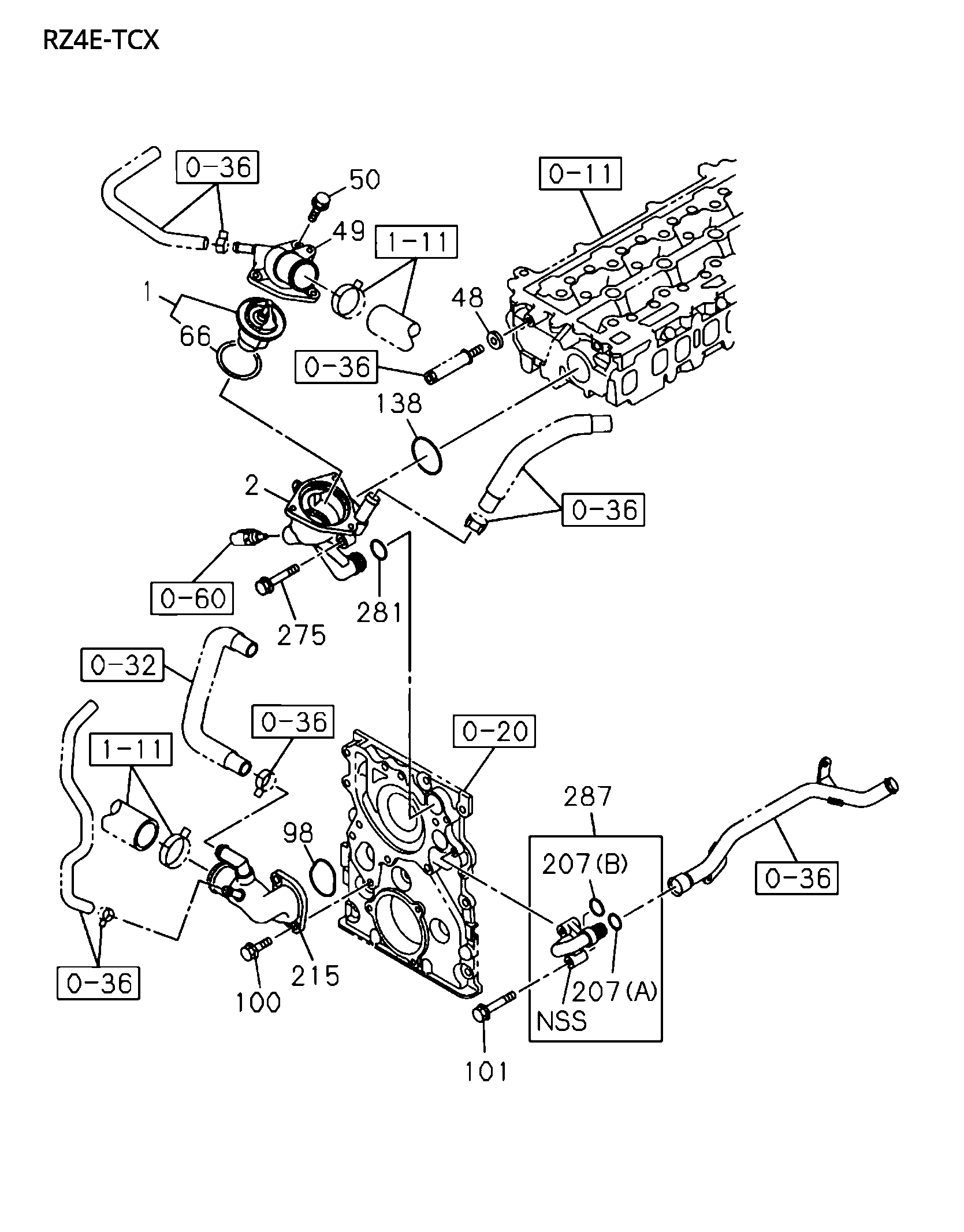

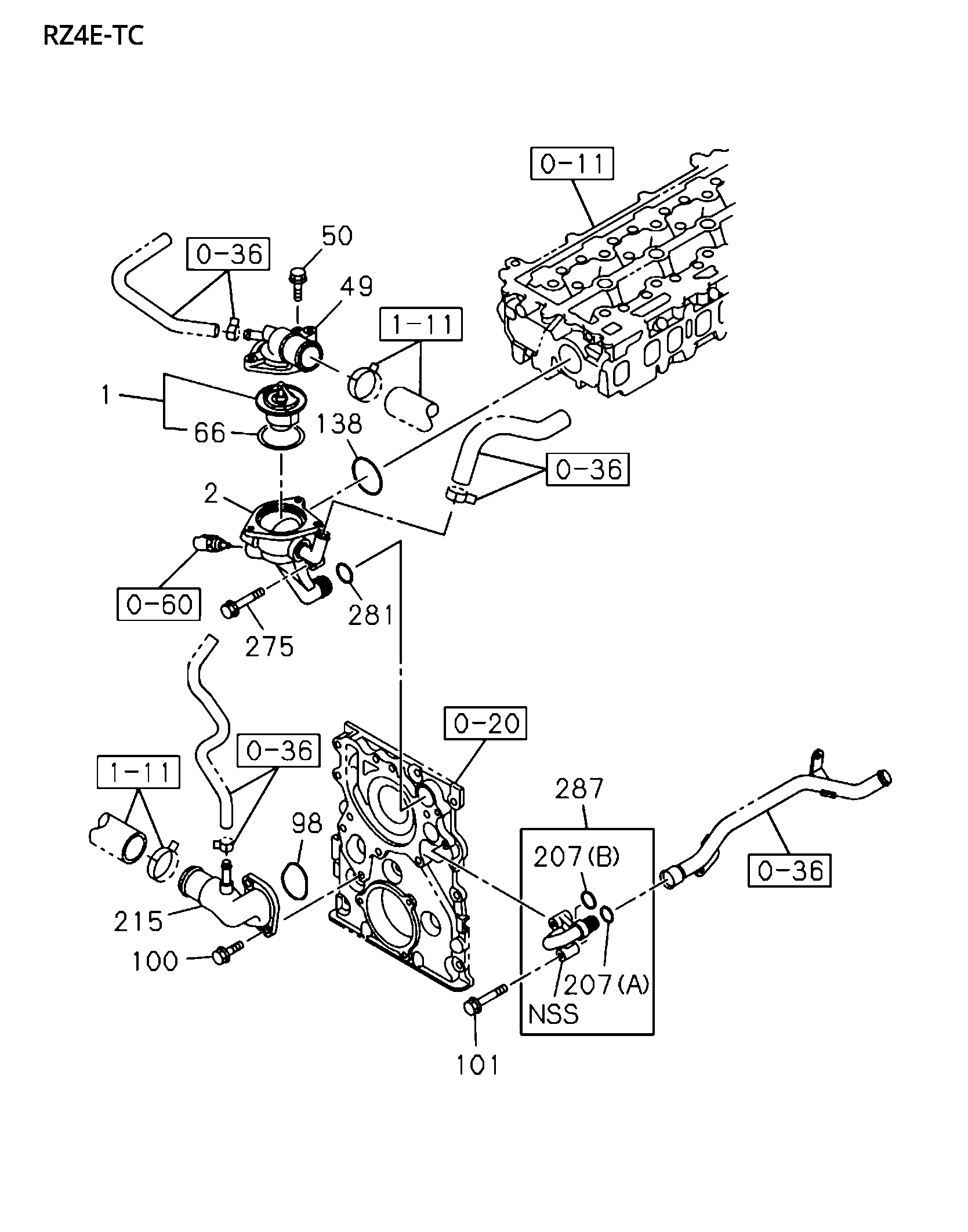

0-31 | THERMOSTAT AND HOUSING
DMAX
D-MAX 2024
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 275 | I0-28050 830-0 | BOLT, GEAR CASE COVER | 2 | 2311- | A B | (D-MAX 2024) M8X30 FLANGE | ||
| 98 | I8-98292 489-1 | GASKET, WATER PIPE | 1 | 2311- | A B | (D-MAX 2024) | ||
| 215 | I8-97533 485-0 | PIPE, WATER,INL | 1 | 2311- | A | |||
| 50 | I0-28050 620-0 | BOLT, BRKT C | 3 | 2311- | A B | (D-MAX 2024) M6X20 FLANGE | ||
| 49 | I8-97554 007-0 | PIPE, WATER OUTLET | 1 | 2311- | A | |||
| 207 | I9-09561 220-0 | GASKET, BUSHING | 1 | 2311- | AB | (D-MAX 2024) (A) | ||
| 1 | I8-98227 722-0 | THERMOSTAT | 1 | 2311- | A B | (D-MAX 2024) 82 CELSIUS | ||
| 215 | I8-98247 212-3 | PIPE, WATER,INL | 1 | 2311- | B | (D-MAX 2024) | ||
| 1 | I8-98017 027-2 | THERMOSTAT | 1 | 2311- | C | 85 CELSIUS | ||
| 281 | I9-09568 222-0 | GASKET | 1 | 2311- | ABD=22 | (D-MAX 2024) | ||
| 207 | I9-09562 217-0 | GASKET, CONNECTOR | 1 | 2311- | A B | (D-MAX 2024) (B) | ||
| 50 | I0-28050 880-0 | BOLT, WATER PUMP | 2 | 2311- | C | M8X80 FLANGE | ||
| 49 | I8-98373 699-0 | PIPE, WATER OUTLET | 1 | 2311- | B | (D-MAX 2024) | ||
| 99 | I8-97679 741-0 | BRACKET, WATER PIPE | 1 | 2311- | B | (D-MAX 2024) EUR04 SPECIFICATI0N(NT4),EUR05 SPECIFICATION(NTS) | ||
| 101 | I0-28050 635-0 | BOLT, PIPE CLIP,VENTILATOR | 2 | 2311- | AB | (D-MAX 2024) M6X35 FLANGE | ||
| 138 | I8-98292 489-1 | GASKET, WATER PIPE | 1 | 2311- | AB | (D-MAX 2024) | ||
| 100 | I0-28050 820-0 | BOLT, BRKT,FLEX HOSE,P/S | 2 | 2311- | A B | (D-MAX 2024) M8X20 FLANGE | ||
| 2 | I8-97553 363-0 | HOUSING, THERMOSTAT | 1 | 2311- | A | |||
| 49 | I8-97355 456-7 | PIPE, WATER OUTLET | 1 | 2311- | C | |||
| 48 | I8-94174 537-0 | WASHER, PL,ADAPTER | 1 | 2311- | A | ID=8 OD=18 T=3 | ||
| 66 | I8-98114 587-0 | GASKET, THERMOSTAT HSG | 1 | 2311- | ABC | (D-MAX 2024) | ||
| 287 | I8-98291 663-2 | ADAPTER | 1 | 2311- | A B | (D-MAX 2024) | ||
| 2 | I8-98373 700-1 | HOUSING, THERMOSTAT | 1 | 2311- | B | (D-MAX 2024) | ||
| 105 | I0-28050 816-0 | BOLT, BRKT,FLEX HOSE,P/S | 1 | 2311- | B | (D-MAX 2024) EUR04 SPECIFICATI0N(NT4),EUR05 SPECIFICATION(NT5) |
