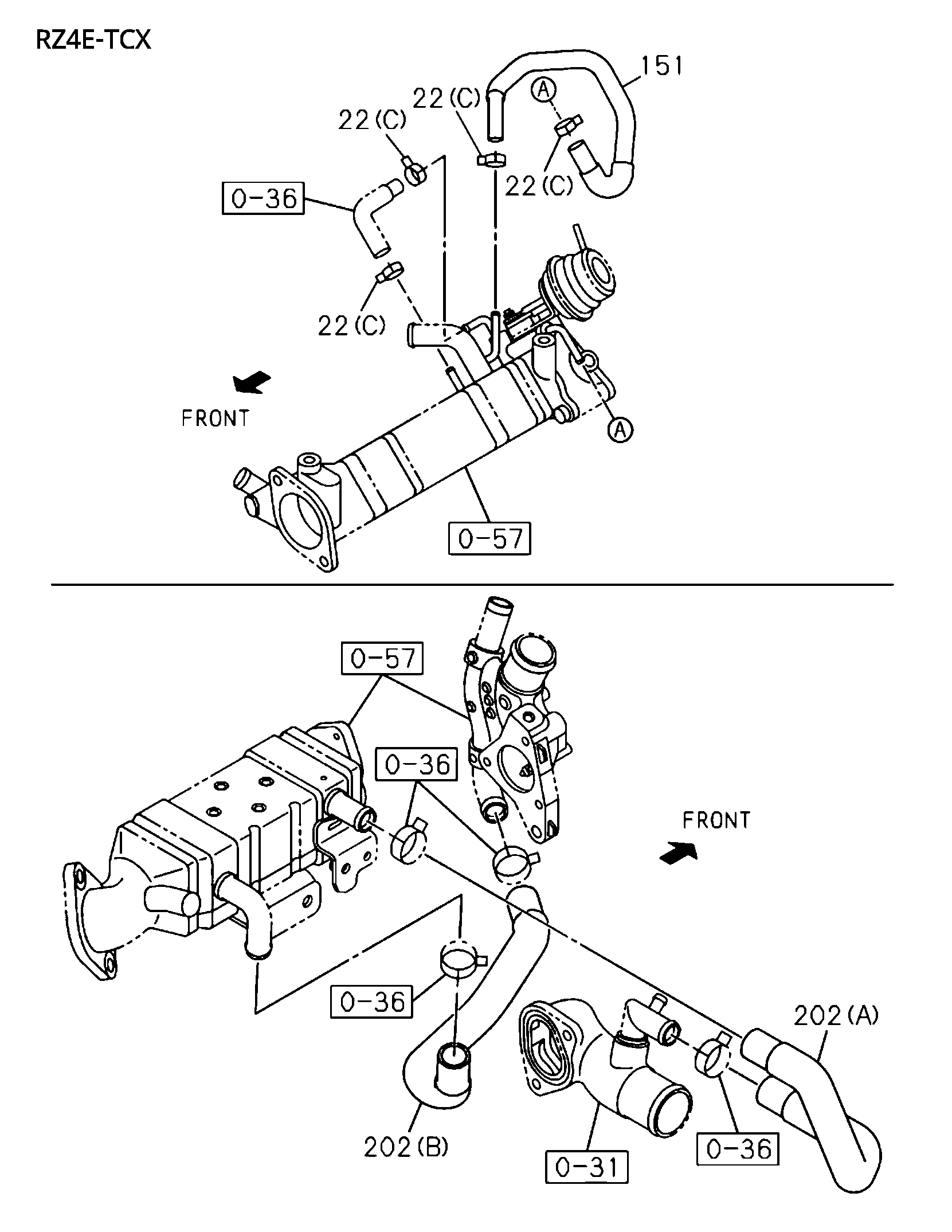

0-32 | WATER PIPING, ENGINE
DMAX
D-MAX 2024
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 151 | I8-98179 012-1 | HOSE, WATER,RAD OUTLET | 1 | 2311- | C | EUROS SPECIFICATION(NT5) | ||
| 69 | I0-91180 206-0 | NUT, PULLEY | 1 | 2311- | C | (D-MAX 2024) M6 FLANGE | ||
| 151 | I8-97533 788-1 | HOSE, WATER OUTLET | 1 | 2311- | A | |||
| 202 | I8-97533 790-0 | HOSE, RUBBER,EGR COOLER | 1 | 2311- | A | (A) | ||
| 151 | I8-97679 747-0 | HOSE, WATER OUTLET | 1 | 2311- | B | EUROS SPECIFICATION(NTS) | ||
| 212 | I9-04110 875-0 | STUD, EXH MANIF | 2 | 2311- | C | (B) M8X75 L=87 | ||
| 155 | I8-97548 438-0 | PIPE ASM, WATER | 1 | 2311- | c | M/T MVL 6 SPEED 6S(Y6S) EUROS SPECIFICATION(NT5) | ||
| 22 | I8-97944 125-0 | CLIP, WATER HOSE | 2 | 2311- | C | EUROS SPECIFICATION(NT5) | ||
| 22 | I8-97329 627-0 | CLIP, HOSE | 4 | 2311- | B | EUROS SPECIFICATION(NT5) (C) D=13 | ||
| 166 | I8-97498 120-0 | BRACKET, CLIP | 1 | 2311- | B | A/T 6 SPEED AISIN(Y6A) EUROO SPECIFICATI0N(K75),EUR02 SPECIFICATION(NT2) | ||
| 202 | I8-97533 791-0 | HOSE, RUBBER,EGR COOLER | 1 | 2311- | A | (B) | ||
| 97 | I0-28050 616-0 | BOLT | 1 | 2311- | C | (D-MAX 2024) M6X16 FLANGE | ||
| 22 | I8-97329 627-0 | CLIP, HOSE | 4 | 2311- | A | (C) D=13 | ||
| 155 | I8-98480 903-1 | PIPE ASM, WATER | 1 | 2311- | C | A/T 6 SPEED AISIN(Y6A) | ||
| 155 | I8-98480 903-1 | PIPE ASM, WATER | 1 | 2311- | C | M/T MVL 6 SPEED 6S(Y6S) EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) | ||
| 138 | I8-98487 360-0 | PIPE, WATER | 1 | 2311- | B | EUROO SPECIFICATIONS),EUR02 SPECIFICATION(NT2) | ||
| 212 | I0-41010 612-0 | BOLT, CLIP TO HD COVER | 1 | 2311- | C | (A) M 6X12 L=21 | ||
| 24 | I8-98228 424-1 | BRACKET, WATER PIPE | 1 | 2311- | C | |||
| 22 | I8-98051 892-0 | CLAMP, HOSE | 2 | 2311- | C | (D-MAX 2024) EUROS SPECIFICATION(NT5) (B) D=11.5 | ||
| 33 | I0-28050 825-0 | BOLT, BRKT,FLEX HOSE,P/S | 2 | 2311- | B | (D-MAX 2024) A/T 6 SPEED AISIN(Y6A) EUROO SPECIFICATI0N(K75),EUR02 SPECIFICATION(NT2) M8X25 FLANGE | ||
| 198 | I0-28050 616-0 | BOLT | 2 | 2311- | B | (D-MAX 2024) EUROO SPECIFICATI0N(K75),EUR02 SPECIFICATION(NT2) M6X16 FLANGE |
