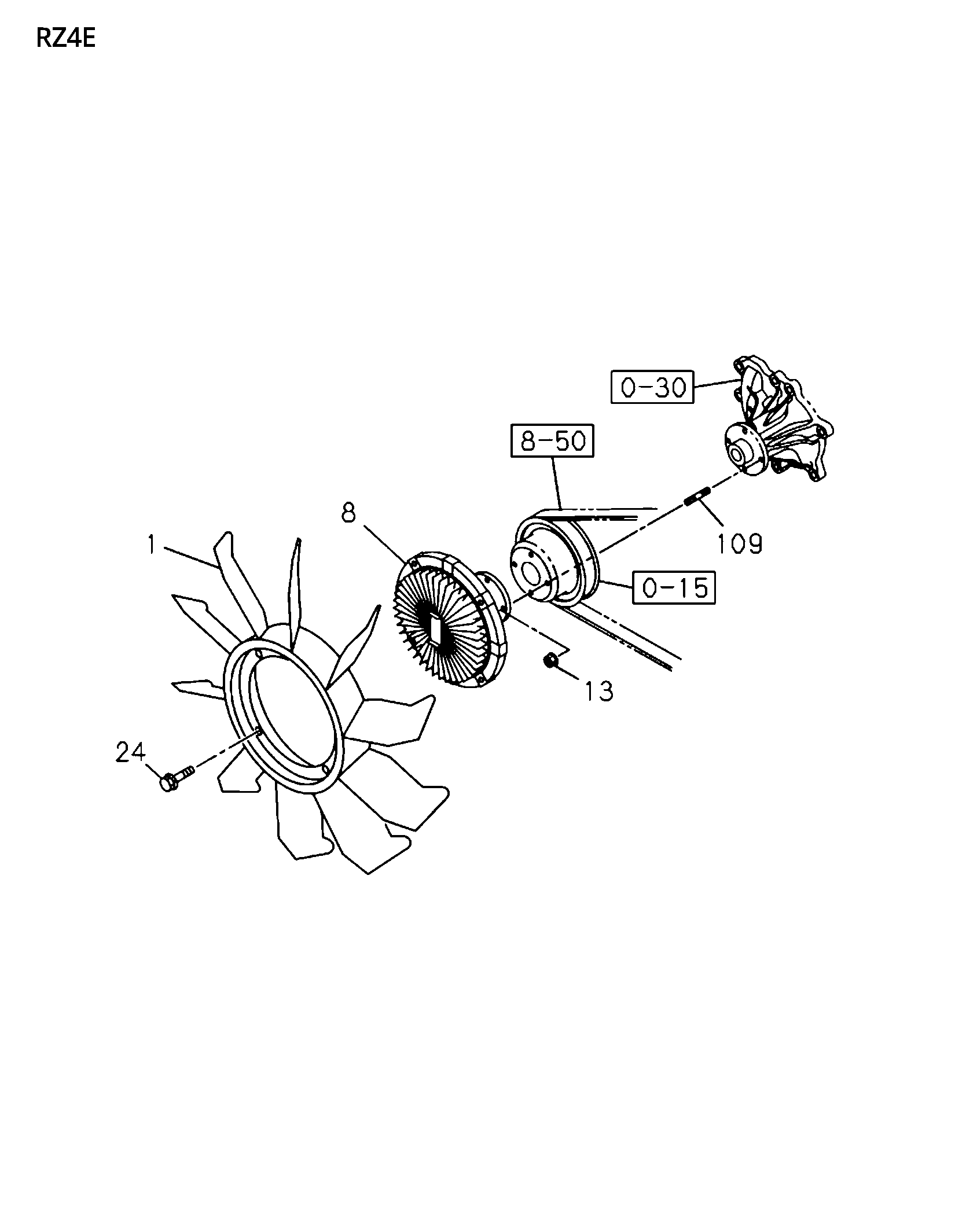

0-33 | FAN AND FAN BELT
DMAX
D-MAX 2024
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 36 | I8-98020 247-0 | BELT, COOLING FAN | 1 | 2311- | C | L=1086 MITSUBOSHI | ||
| 144 | I8-98276 119-1 | TENSIONER, DRIVE BELT | 1 | 2311- | C | |||
| 109 | I8-98256 636-0 | STUD, FAN CLU | 4 | 2311- | C | M 6X20 L=31 | ||
| 80 | I8-97495 805-0 | PLATE, ADJ | 1 | 2311- | C | |||
| 8 | I8-98119 213-1 | CLUTCH, COOLING FAN | 1 | 2311- | ABC | (D-MAX 2024) | ||
| 147 | I0-28651 020-0 | BOLT, STAY | 3 | 2311- | C | (D-MAX 2024) M10X20 FLANGE | ||
| 13 | I8-98049 362-0 | NUT, CHECK ARM | 4 | 2311- | ABC | (D-MAX 2024) M6 FLANGE | ||
| 1 | I8-98162 703-0 | FAN, COOLING | 1 | 2311- | ABC | (D-MAX 2024) | ||
| 24 | I0-28650 625-0 | BOLT, BRKT,FUEL FILTER | 4 | 2311- | ABC | (D-MAX 2024) M6X25 FLANGE | ||
| 109 | I8-98318 479-0 | STUD, FAN CLU | 4 | 2311- | A B | (D-MAX 2024) M 6X19 L=27 |
