0-41 | FUEL FILTER AND BRACKET
DMAX
D-MAX 2024
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

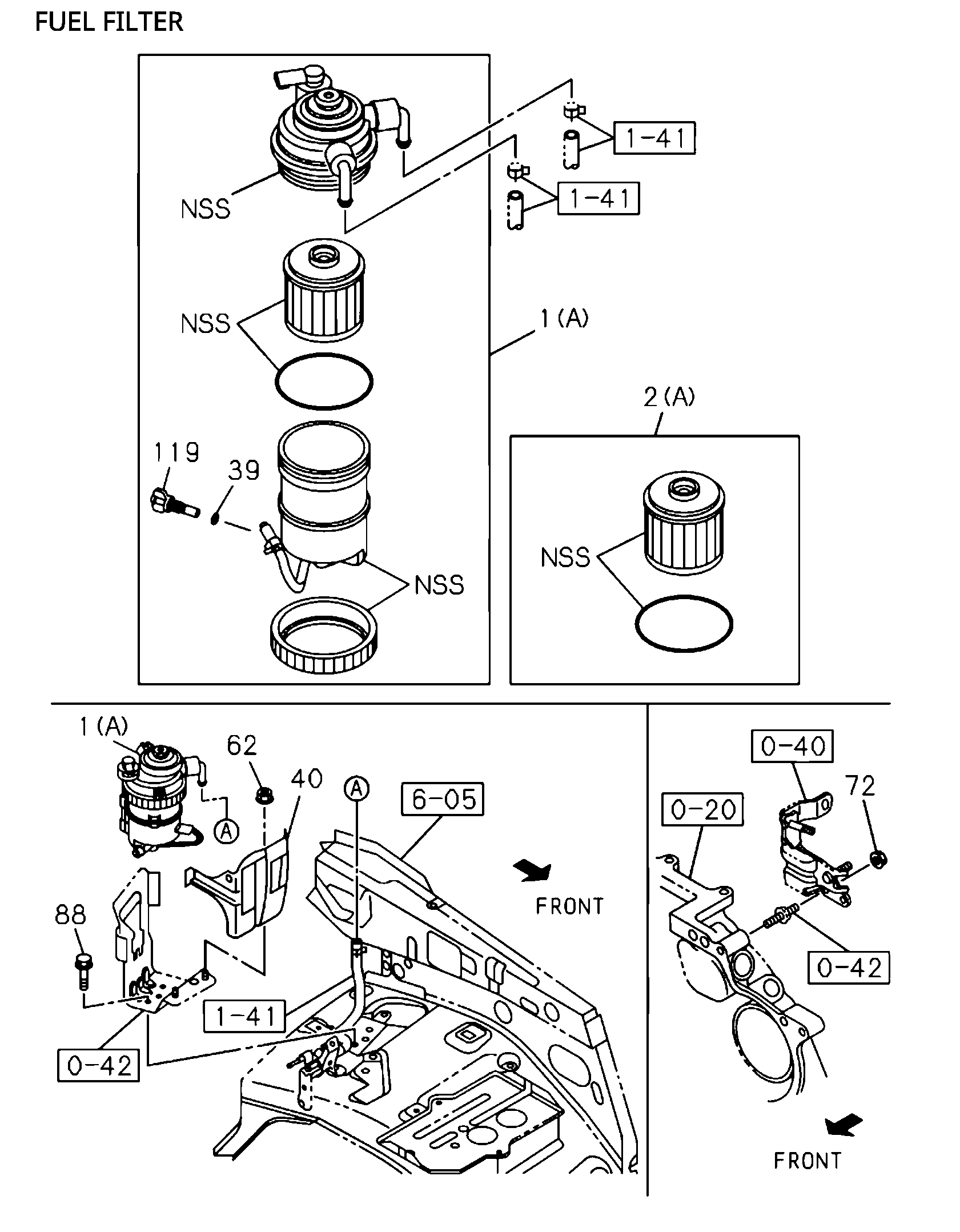

| 1 | I8-98239 983-0 | FILTER ASM, FUEL | 1 | 2311- | ABC | RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (A) | ||
| 47 | I8-98276 856-0 | BOLT, BRKT,FUEL FILTER | 2 | 2311- | ABC | PRE FUEL FILTER<KF0> M10X30 FLANGE | ||

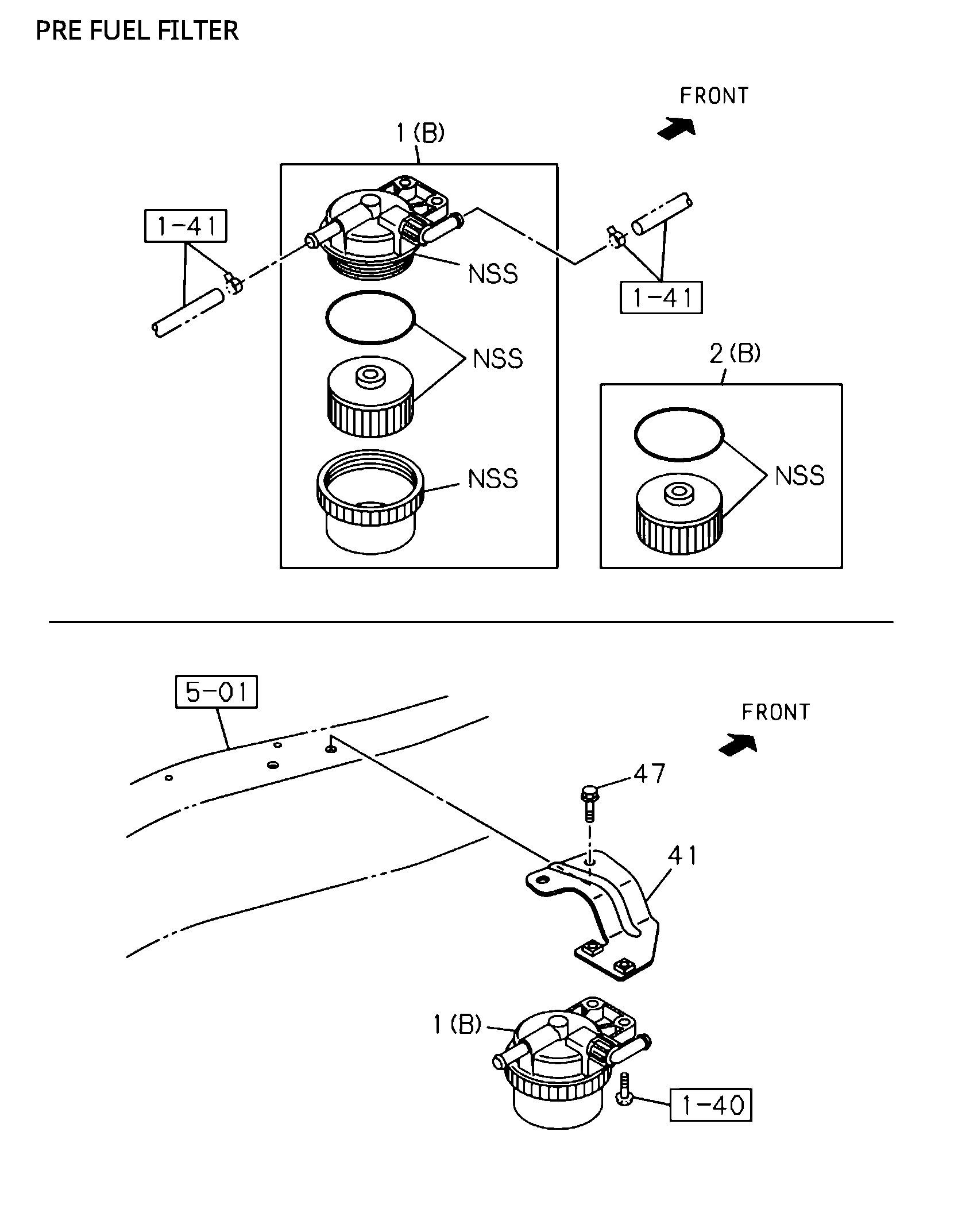

| 1 | I8-98182 445-0 | FILTER ASM, FUEL | 1 | 2311- | ABC | PRE FUEL FILTER<KF0> (B) | ||
| 2 | I8-98194 119-0 | ELEMENT KIT, FUEL FILTER | 1 | 2311- | ABC | PRE FUEL FILTER<KF0> (B) BLUE PLATE END | ||
| 39 | I8-98188 943-0 | GASKET, DRAIN PLUG | 1 | 2311- | ABC | (D-MAX 2024) | ||
| 40 | I8-98388 198-2 | BRACKET, FUEL FILTER | 1 | 2311- | ABC | (D-MAX 2024) | ||
| 72 | I0-91180 106-0 | NUT:CONICAL | 1 | 2311- | A | (D-MAX 2024) M6 FLANGE | ||
| 119 | I8-98188 941-0 | PLUG, DRAIN,FUEL FILTER | 1 | 2311- | ABC | (D-MAX 2024) | ||
| 72 | I0-91180 106-0 | NUT:CONICAL | 1 | 2311- | B | (D-MAX 2024) EUR04 SPECIFICATI0N(NT4),EUR05 SPECIFICATION(NT5) M6 FLANGE | ||
| 88 | I8-98076 109-0 | BOLT, STAY BRKT,MIRROR | 3 | 2311- | ABC | (D-MAX 2024) M8X16 FLANGE | ||
| 1 | I8-98067 761-3 | FILTER ASM, FUEL | 1 | 2311- | ABC | (D-MAX 2024) EXC. RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (A) | ||
| 2 | I8-98159 693-0 | ELEMENT KIT, FUEL FILTER | 1 | 2311- | ABC | (D-MAX 2024) (A) ORANGE PLATE END | ||
| 2 | I8-98159 693-A | ELEMENT KIT, FUEL FILTER | 1 | 2311- | ABC | (IADG) (D-MAX 2024) (A) ORANGE PLATE END | ||
| 41 | I8-98395 248-0 | BRACKET, FUEL FILTER | 1 | 2311- | ABC | PRE FUEL FILTER<KF0> | ||
| 62 | I0-91180 208-0 | NUT, FLEX HOSE,CLU CONT | 2 | 2311- | ABC | (D-MAX 2024) M8 FLANGE |
