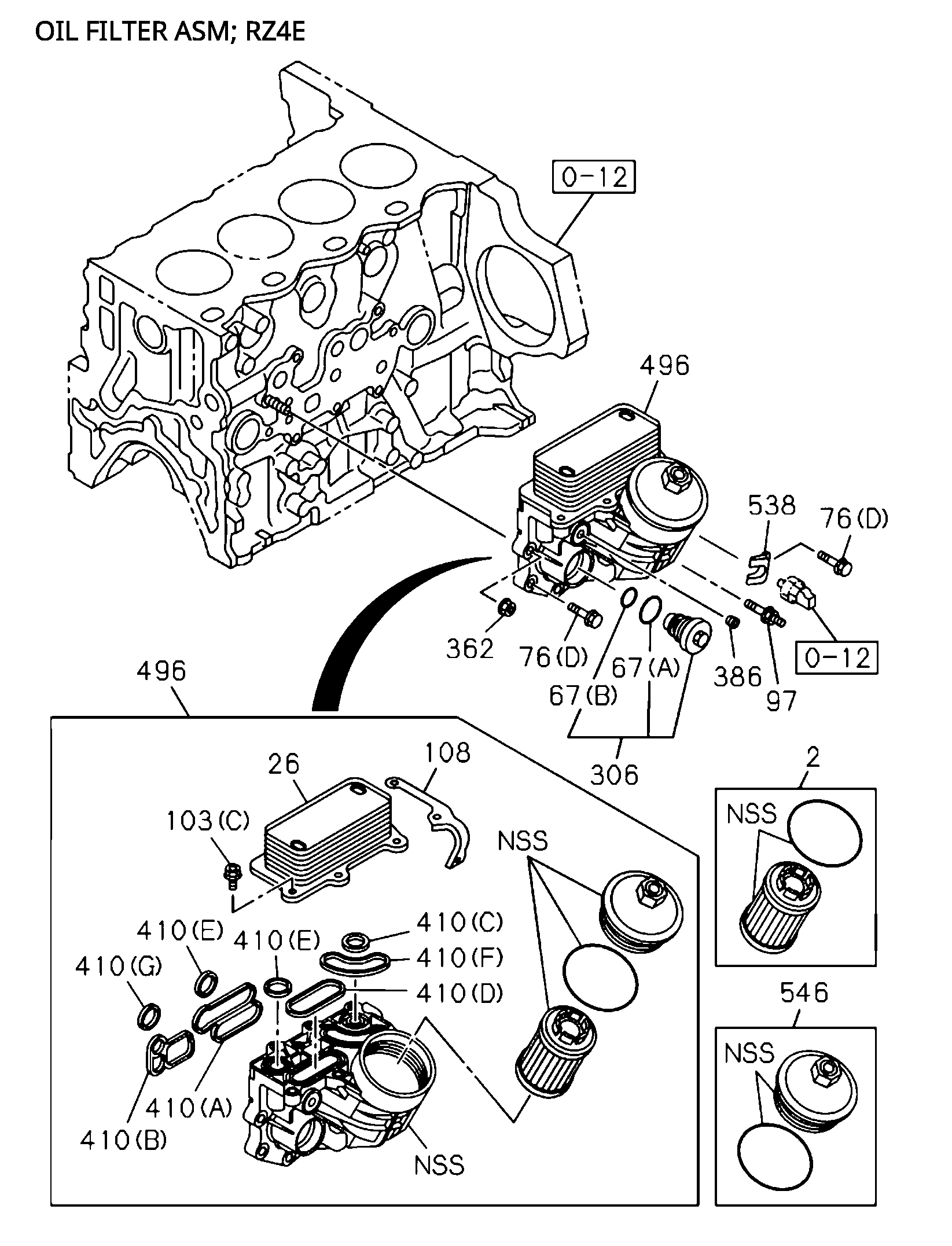

0-50 | OIL COOLER AND OIL FILTER
DMAX
D-MAX 2024
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 76 | I0-28050 825-0 | BOLT, BRKT,FLEX HOSE,P/S | 2 | 2311- | C | (D-MAX 2024) (B) M8X25 FLANGE | ||
| 2 | I8-98165 071-0 | ELEMENT, OIL FILTER | 1 | 2311- | C | |||
| 62 | I8-98317 616-0 | COOLER ASM, OIL | 1 | 2311- | C | EUR04 SPECIFICATI0N(NT4),EUR05 SPECIFICATION(NT5) | ||
| 67 | I9-09566 226-0 | GASKET, OIL COOLER TO C/BL | 1 | 2311- | AB | (D-MAX 2024) (B) D=26.2 | ||
| 97 | I8-98028 225-0 | STUD, BREATHER | 1 | 2311- | A B | (D-MAX 2024) M8X12, M8X30 L=50 | ||
| 538 | I8-98312 152-0 | CLIP, FLEX | 1 | 2311- | A B | (D-MAX 2024) | ||
| 76 | I0-28050 800-0 | BOLT, COMMON CHAMBER | 1 | 2311- | C | (D-MAX 2024) (A) M8X100 FLANGE | ||
| 546 | I8-98312 728-0 | CAP, OIL FILTER | 1 | 2311- | A B | (D-MAX 2024) | ||
| 340 | I0-28650 840-0 | BOLT, CLAMP | 1 | 2311- | C | (D-MAX 2024) M8X40 FLANGE | ||
| 103 | I0-28050 820-0 | BOLT, BRKT,FLEX HOSE,P/S | 1 | 2311- | C | (D-MAX 2024) (A) M8X20 FLANGE | ||
| 362 | I0-91180 208-0 | NUT, FLEX HOSE,CLU CONT | 2 | 2311- | ABC | (D-MAX 2024) M8 FLANGE | ||
| 410 | I8-98312 766-0 | GASKET | 1 | 2311- | A B | (D-MAX 2024) (G) | ||
| 108 | I8-98332 979-1 | BRACKET, OIL COOLER | 1 | 2311- | A B | (D-MAX 2024) | ||
| 306 | I8-98307 472-0 | VALVE, OIL FILTER | 1 | 2311- | A B | (D-MAX 2024) | ||
| 103 | I8-98332 978-0 | BOLT, OIL COOLER | 6 | 2311- | A B | (D-MAX 2024) (C) M8X1.25 | ||
| 2 | I8-98270 524-0 | ELEMENT, OIL FILTER | 1 | 2311- | A B | (D-MAX 2024) | ||
| 2 | I6-98165 071-0 | ELEMENT, OIL FILTER | 1 | 2311- | C | (IADG) | ||
| 26 | I8-98347 601-0 | CORE ASM, OIL COOLER | 1 | 2311- | A B | (D-MAX 2024) | ||
| 103 | I0-28050 845-0 | BOLT, PIPE CLIP | 13 | 2311- | C | (D-MAX 2024) (B) M8X45 FLANGE | ||
| 410 | I8-98312 765-0 | GASKET | 1 | 2311- | A B | (D-MAX 2024) (F) | ||
| 267 | I0-91180 208-0 | NUT, FLEX HOSE,CLU CONT | 2 | 2311- | C | (D-MAX 2024) M8 FLANGE | ||
| 62 | I8-97551 902-0 | COOLER ASM, OIL | 1 | 2311- | C | EUR02 SPECIFICATION(NT2) | ||
| 67 | I1-09623 479-0 | GASKET, OIL PIPE | 1 | 2311- | AB | (D-MAX 2024) (A) D=31.2 | ||

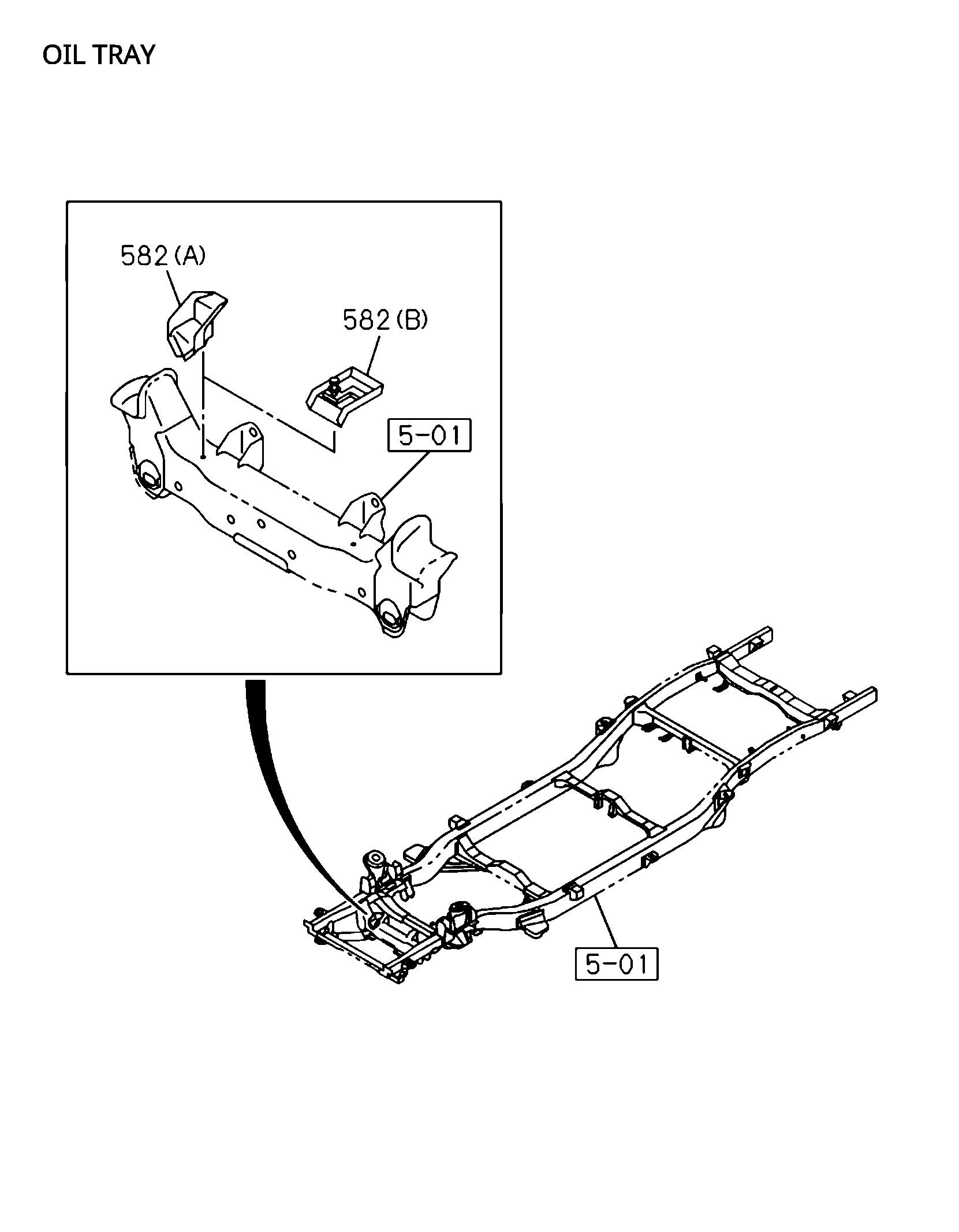

| 582 | I8-97539 204-0 | TRAY, OIL | 1 | 2311- | C | |||
| 496 | I8-97495 781-0 | FILTER ASM, OIL | 1 | 2311- | C | |||
| 496 | I8-98347 600-3 | FILTER ASM, OIL | 1 | 2311- | AB | (D-MAX 2024) | ||
| 105 | I0-41010 820-0 | STUD | 2 | 2311- | C | (D-MAX 2024) (A) M 8X20 L=32 | ||
| 76 | I0-28050 830-0 | BOLT, GEAR CASE COVER | 5 | 2311- | AB | (D-MAX 2024) (D) M8X30 FLANGE | ||
| 9 | I9-09566 226-0 | GASKET, OIL COOLER TO C/BL | 2 | 2311- | C | (D-MAX 2024) ID=26.2 | ||
| 410 | I8-98312 764-0 | GASKET | 2 | 2311- | AB | (D-MAX 2024) (E) | ||
| 8 | I8-94125 113-0 | GASKET, VALVE | 1 | 2311- | C | |||
| 410 | I8-98312 763-0 | GASKET | 1 | 2311- | A B | (D-MAX 2024) (D) | ||
| 274 | I8-98226 841-0 | GASKET, OIL FILTER | 1 | 2311- | C | |||
| 386 | I8-98322 217-0 | PLUG, OIL FILTER | 1 | 2311- | B | EUROO SPECIFICATI0N(K75),EUR02 SPECIFICATION(NT2) PT1/8 | ||
| 410 | I8-98312 760-0 | GASKET | 1 | 2311- | A B | (D-MAX 2024) (A) | ||
| 386 | I8-98322 217-0 | PLUG, OIL FILTER | 1 | 2311- | A | PT1/8 | ||
| 410 | I8-98312 762-0 | GASKET | 1 | 2311- | AB | (D-MAX 2024) (C) | ||
| 410 | I8-98312 761-0 | GASKET | 1 | 2311- | A B | (D-MAX 2024) (B) | ||
| 105 | I0-41010 825-0 | STUD, EXH MANIF | 2 | 2311- | C | (D-MAX 2024) (B) M8X25 L=37 | ||
| 76 | I0-28050 880-0 | BOLT, WATER PUMP | 2 | 2311- | C | (C) M8X80 FLANGE |
