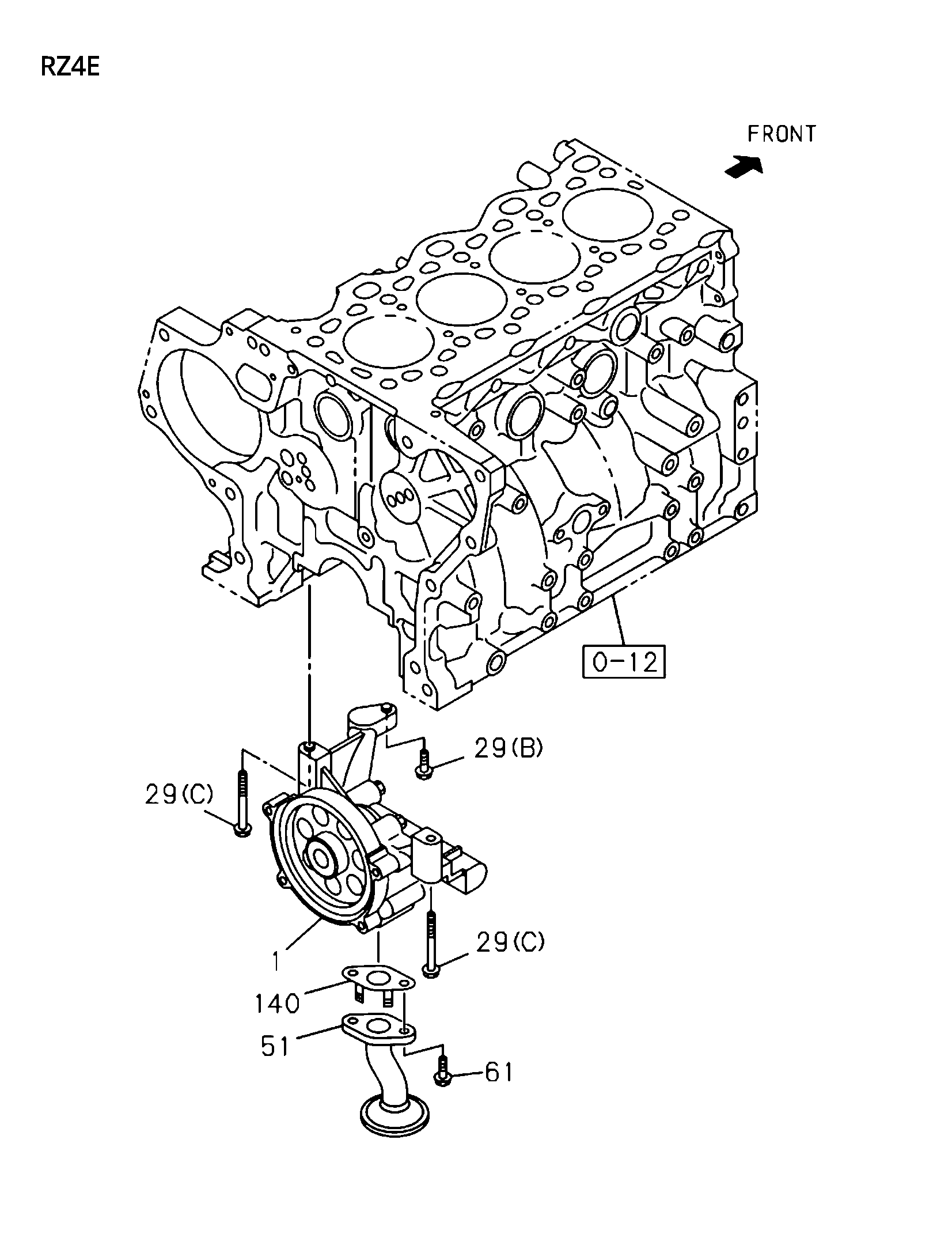

0-51 | OIL PUMP AND OIL STRAINER
DMAX
D-MAX 2024
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 140 | I8-98248 225-1 | GASKET, OIL STRAINER | 1 | 2311- | AB | (D-MAX 2024) | ||
| 51 | I8-97534 006-1 | STRAINER & PIPE ASM, OIL | 1 | 2311- | B | (D-MAX 2024) 4X4(TFS***) | ||
| 61 | I0-58330 820-0 | BOLT, ADAPTER | 2 | 2311- | AB | (D-MAX 2024) M8X20 HEX SOCKET | ||
| 139 | I8-98480 836-0 | PIPE, OIL STRAINER | 1 | 2311- | C | 4X4(TFS***) | ||
| 29 | I0-28050 830-0 | BOLT, GEAR CASE COVER | 4 | 2311- | C | (D-MAX 2024) (B) M8X30 FLANGE | ||
| 139 | I8-98127 247-0 | PIPE, OIL STRAINER | 1 | 2311- | C | 4X2(TFB***) | ||
| 29 | I0-28050 845-0 | BOLT, PIPE CLIP | 2 | 2311- | C | (D-MAX 2024) (A) M8X45 FLANGE | ||
| 1 | I8-97529 942-0 | PUMP ASM, OIL | 1 | 2311- | A B | (D-MAX 2024) | ||
| 1 | I8-98232 624-1 | PUMP ASM, OIL | 1 | 2311- | C | |||
| 51 | I8-97534 006-1 | STRAINER & PIPE ASM, OIL | 1 | 2311- | B | (D-MAX 2024) 4X2(TFB***) HIGH RIDE SUSPENSION(7YC) | ||
| 29 | I0-28050 860-0 | BOLT, HSG | 2 | 2311- | AB | (D-MAX 2024) (C) M8X60 FLANGE | ||
| 49 | I0-28050 816-0 | BOLT, BRKT,FLEX HOSE,P/S | 2 | 2311- | C | (D-MAX 2024) M8X16 FLANGE | ||
| 51 | I8-98247 414-1 | STRAINER & PIPE ASM, OIL | 1 | 2311- | B | 4X2(TFB***) EXC. HIGH RIDE SUSPENSION(7YC) | ||
| 29 | I0-28050 830-0 | BOLT, GEAR CASE COVER | 1 | 2311- | AB | (D-MAX 2024) (B) M8X30 FLANGE | ||
| 140 | I8-97356 150-0 | GASKET, OIL STRAINER | 1 | 2311- | C | |||
| 51 | I8-97534 006-1 | STRAINER & PIPE ASM, OIL | 1 | 2311- | A | (D-MAX 2024) |
