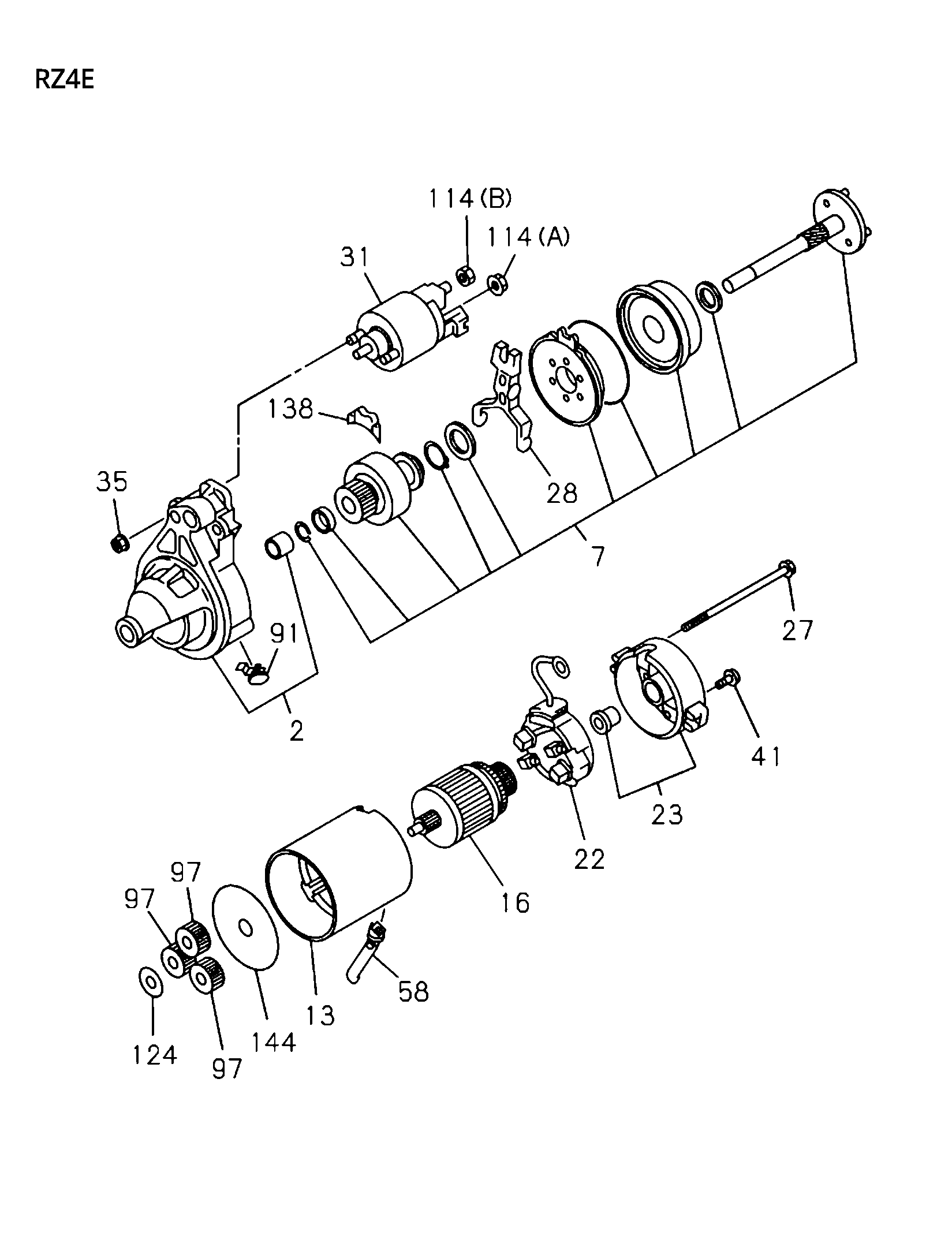

| 142 |
I8-98163 146-0 |
|
RING, SNAP,PINION |
1 |
|
|
A |
|
| 27 |
I8-98283 912-0 |
|
BOLT, THROUGH,STARTER |
2 |
|
|
A B C |
(D-MAX 2024) |
| 124 |
I8-98317 301-0 |
|
WASHER, STARTER |
1 |
|
|
C |
|
| 58 |
I8-97522 327-0 |
|
PIPE, DRAIN RR COVER STARTER |
1 |
|
|
A |
|
| 22 |
I8-98317 290-0 |
|
HOLDER, BRUSH STARTER |
1 |
|
|
A C |
|
| 7 |
I8-98283 908-0 |
|
CLUTCH ASM, PINION,STARTER |
1 |
|
|
B |
(D-MAX 2024) |
| 97 |
I8-98317 295-0 |
|
GEAR, STARTER |
3 |
|
|
A C |
|
| 23 |
I8-98283 907-0 |
|
COVER, RR COVER STARTER |
1 |
|
|
B |
(D-MAX 2024) |
| 23 |
I8-97522 318-0 |
|
COVER, RR COVER STARTER |
1 |
|
|
A |
|
| 28 |
I8-97522 314-0 |
|
PINION, CLU,STARTER |
1 |
|
|
A |
|
| 144 |
I8-98283 911-0 |
|
PLATE, STARTER |
1 |
|
|
B |
(D-MAX 2024) |
| 2 |
I8-98317 292-0 |
|
CASE, PINION,STARTER |
1 |
|
|
C |
|
| 13 |
I8-97522 311-0 |
|
YOKE, STARTER |
1 |
|
|
A |
|
| 23 |
I8-98317 293-0 |
|
COVER, RR COVER STARTER |
1 |
|
|
C |
|
| 2 |
I8-97522 316-0 |
|
CASE, PINION,STARTER |
1 |
|
|
A |
|
| 16 |
I8-97522 313-0 |
|
ARMATURE, STARTER |
1 |
|
|
A |
|
| 144 |
I8-98317 297-0 |
|
PLATE, STARTER |
1 |
|
|
C |
|
| 114 |
I8-94377 238-0 |
|
TERMINAL, LEAD WIRE STARTER |
1 |
|
|
ABC |
(D-MAX 2024) (B) |
| 7 |
I8-98317 294-0 |
|
CLUTCH ASM, PINION,STARTER |
1 |
|
|
C |
|
| 124 |
I8-94367 789-0 |
|
WASHER, THRUST,ARMATURE,STARTER |
1 |
|
|
B |
(D-MAX 2024) |
| 13 |
I8-98317 289-0 |
|
YOKE, STARTER |
1 |
|
|
C |
|
| 143 |
I8-98163 147-0 |
|
NUT, PINION |
1 |
|
|
A |
|
| 135 |
I8-98163 142-0 |
|
SPRING, STARTER |
1 |
|
|
A |
|
| 13 |
I8-98283 903-0 |
|
YOKE, STARTER |
1 |
|
|
B |
(D-MAX 2024) |
| 7 |
I8-97522 321-0 |
|
CLUTCH ASM, PINION,STARTER |
1 |
|
|
A |
|
| 58 |
I8-98283 914-0 |
|
PIPE, DRAIN RR COVER STARTER |
1 |
|
|
B C |
(D-MAX 2024) |
| 97 |
I8-98283 910-0 |
|
GEAR, STARTER |
3 |
|
|
B |
(D-MAX 2024) |
| 114 |
I8-94154 639-0 |
|
NUT, MAG SW,STARTER |
1 |
|
|
ABC |
(D-MAX 2024) (A) |
| 91 |
I8-98283 916-0 |
|
COVER, STARTER |
1 |
|
|
i B C |
(D-MAX 2024) |
| 124 |
I8-98317 301-0 |
|
WASHER, STARTER |
2 |
|
|
A |
|
| 16 |
I8-98283 905-0 |
|
ARMATURE, STARTER |
1 |
|
|
B |
(D-MAX 2024) |
| 22 |
I8-98283 904-0 |
|
HOLDER, BRUSH STARTER |
1 |
|
|
B |
(D-MAX 2024) |
| 16 |
I8-98317 291-0 |
|
ARMATURE, STARTER |
1 |
|
|
C |
|
| 138 |
I8-98283 913-0 |
|
SEAL, STARTER |
1 |
|
|
ABC |
(D-MAX 2024) |
| 2 |
I8-98283 906-0 |
|
CASE, PINION,STARTER |
1 |
|
|
B |
(D-MAX 2024) |
