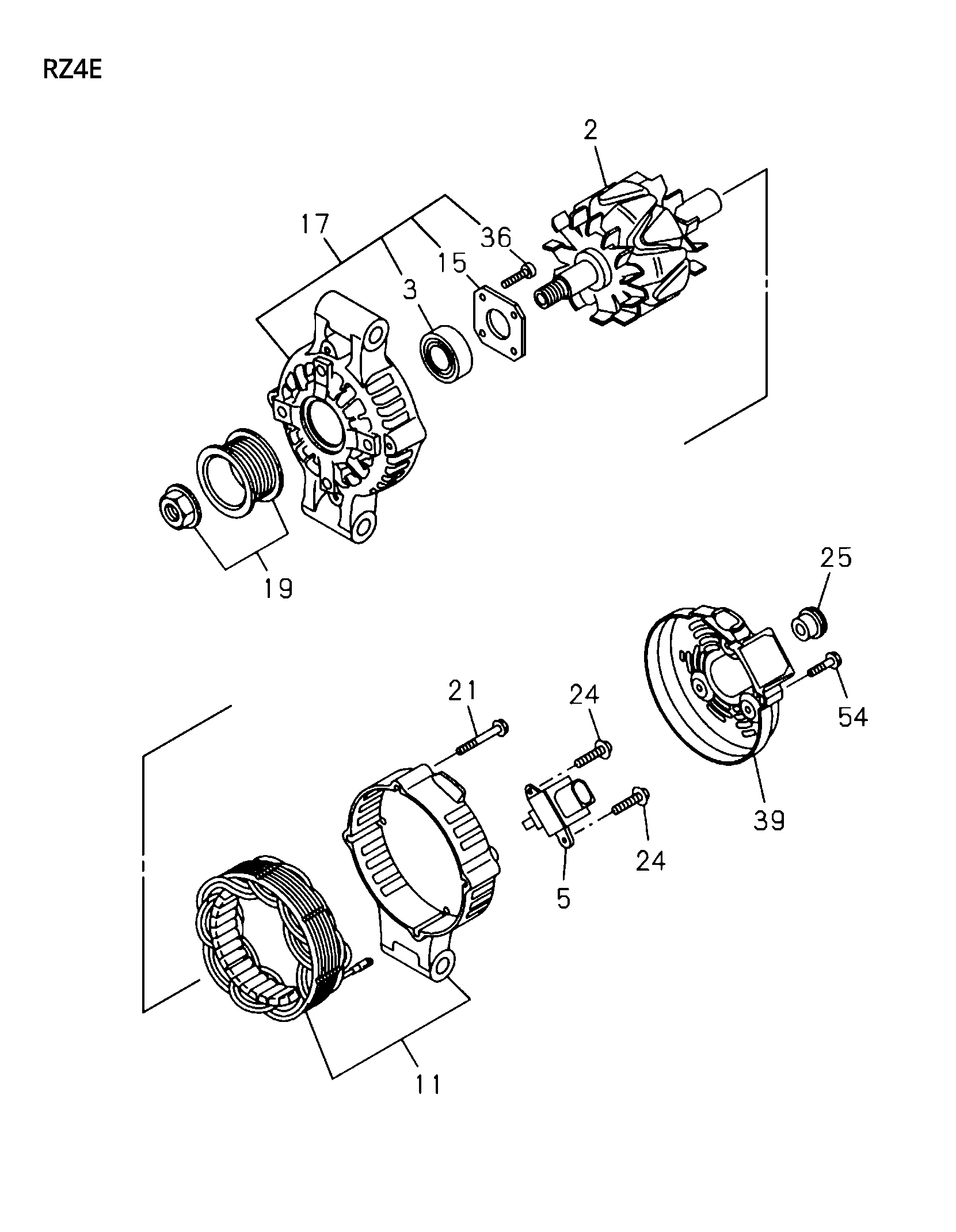

0-66 | GENERATOR
DMAX
D-MAX 2024
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 39 | I8-98249 246-0 | COVER, END,RR COVER,GEN | 1 | A | (D-MAX 2024) | |||
| 17 | I8-98393 108-0 | COVER ASM, FRT,GEN | 1 | B | ||||
| 39 | I8-98232 104-0 | COVER, END,RR COVER,GEN | 1 | C D | ||||
| 25 | I8-98285 771-0 | BUSHING, INSULATION TERMINAL | 1 | A B | (D-MAX 2024) | |||
| 36 | I8-97142 562-0 | SCREW, FRT COVER | 4 | ABCD | (D-MAX 2024) | |||
| 54 | I8-98231 359-0 | BOLT, RECTIFIER,GEN | 3 | B | ||||
| 3 | I8-98228 965-0 | BEARING, ROTOR,GEN | 1 | A CD | (D-MAX 2024) | |||
| 15 | I8-94406 982-0 | RETAINER, ROTOR,GEN | 1 | ABCD | (D-MAX 2024) | |||
| 21 | I8-97319 752-0 | BOLT, THROUGH,GEN | 4 | A CD | (D-MAX 2024) | |||
| 5 | I8-97378 926-0 | HOLDER, BRUSH,GEN | 1 | C D | ||||
| 5 | I8-98249 245-0 | HOLDER, BRUSH,GEN | 1 | A B | (D-MAX 2024) | |||
| 25 | I8-97542 783-0 | BUSHING, INSULATION TERMINAL | 1 | C D | ||||
| 3 | I8-98231 355-0 | BEARING, ROTOR,GEN | 1 | B | ||||
| 39 | I8-98292 464-0 | COVER, END,RR COVER,GEN | 1 | B | ||||
| 11 | I8-98232 110-0 | COVER, RR,GEN | 1 | D | ||||
| 19 | I8-98393 104-0 | PULLEY, GEN | 1 | A CD | (D-MAX 2024) | |||
| 21 | I8-98231 358-0 | BOLT, THROUGH,GEN | 4 | B | ||||
| 11 | I8-98232 103-0 | COVER, RR,GEN | 1 | C | ||||
| 19 | I8-98393 107-0 | PULLEY, GEN | 1 | B | ||||
| 11 | I8-98393 106-0 | COVER, RR,GEN | 1 | A | (D-MAX 2024) | |||
| 11 | I8-98393 109-0 | COVER, RR,GEN | 1 | B | ||||
| 17 | I8-98232 102-0 | COVER ASM, FRT,GEN | 1 | C D | ||||
| 24 | I8-97032 313-0 | SCREW, RECTIFIER,GEN | 3 | ABCD | (D-MAX 2024) | |||
| 54 | I8-98232 109-0 | BOLT, RECTIFIER,GEN | 3 | A CD | (D-MAX 2024) | |||
| 2 | I8-98231 360-0 | ROTOR, GEN | 1 | B | ||||
| 17 | I8-98393 105-0 | COVER ASM, FRT,GEN | 1 | A | (D-MAX 2024) | |||
| 2 | I8-97378 924-0 | ROTOR, GEN | 1 | A CD | (D-MAX 2024) |
