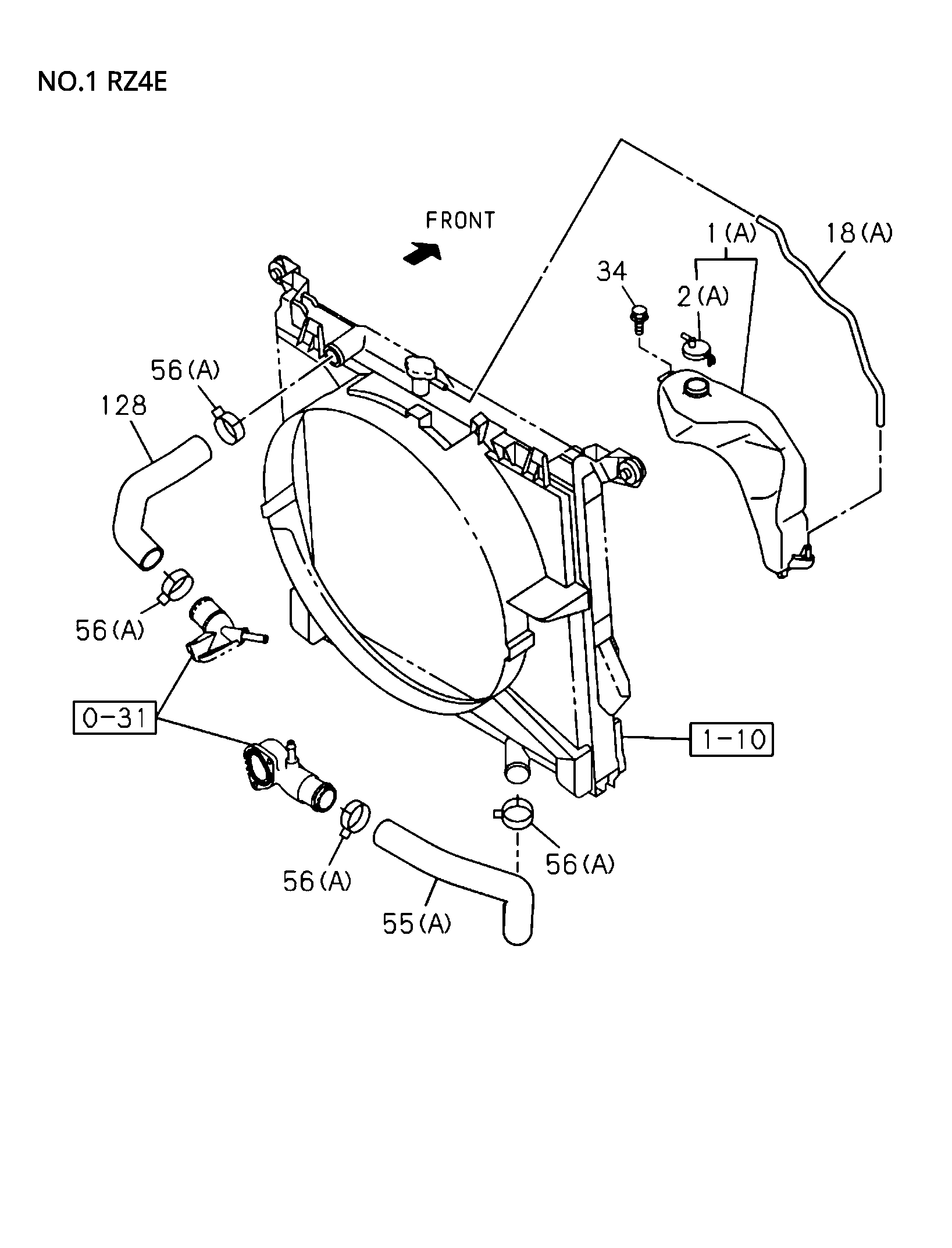

1-11 | RADIATOR HOSE AND SUB TANK
DMAX
D-MAX 2024
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 18 | I8-98486 549-0 | HOSE, RAD TO SURGE TANK | 1 | 2311- | A | (C) | ||
| 18 | I8-98396 411-0 | HOSE, RAD TO SURGE TANK | 1 | 2311- | A | (D) | ||
| 34 | I8-98056 282-0 | BOLT, HINGE | 2 | 2311- | ABC | (D-MAX 2024) M 6X20 W/WASHER | ||
| 202 | I8-97553 452-0 | HOSE, RESERVE TANK | 1 | 2311- | A | (B) | ||
| 144 | I8-97546 821-0 | PIPE, RUBBER HOSE | 1 | 2311- | A | |||
| 128 | I8-98396 413-0 | HOSE, WATER,RAD INL | 1 | 2311- | A B | (D-MAX 2024) | ||
| 2 | I8-97661 012-0 | CAP, SURGE TANK | 1 | 2311- | ABC | (D-MAX 2024) (A) | ||
| 55 | I8-98486 548-1 | HOSE, WATER,RAD OUTLET | 1 | 2311- | A | (D) | ||
| 55 | I8-97491 606-0 | HOSE, WATER,RAD OUTLET | 1 | 2311- | A | (B) | ||
| 55 | I8-98396 416-0 | HOSE, WATER,RAD OUTLET | 1 | 2311- | C | (F) | ||
| 13 | I1-09701 236-0 | CLIP, HARNESS | 1 | 2311- | A | ID=26 L=26 | ||
| 55 | I8-98486 550-0 | HOSE, WATER,RAD OUTLET | 1 | 2311- | A | (E) | ||
| 170 | I8-98486 544-1 | PUMP, WATER | 1 | 2311- | A | |||
| 56 | I1-09704 102-0 | CLIP, RUBBER HOSE | 2 | 2311- | A | (D)D=14 | ||
| 56 | I8-98486 545-0 | CLIP, WATER HOSE,RAD | 2 | 2311- | A | (B) | ||
| 56 | I8-97313 472-0 | CLIP, WATER HOSE,RAD | 4 | 2311- | ABC | (D-MAX 2024) (A) D=40.5 | ||
| 1 | I8-98486 627-1 | TANK, SURGE,RAD | 1 | 2311- | A | (B) | ||
| 202 | I8-97553 453-0 | HOSE, RESERVE TANK | 1 | 2311- | A | (C) | ||
| 78 | I8-98164 723-0 | BOLT, HEADLAMP | 1 | 2311- | A | M 6X23.5 W/LK&PL WASHER | ||
| 18 | I8-98396 410-1 | HOSE, RAD TO SURGE TANK | 1 | 2311- | B | (D-MAX 2024) (A) | ||
| 161 | I8-98486 546-0 | BRACKET, SURGE TANK | 1 | 2311- | A | |||
| 201 | I0-91180 108-0 | NUT, FLEX HOSE,CLU CONT | 2 | 2311- | A | (D-MAX 2024) M8 FLANGE | ||
| 56 | I8-97945 557-0 | CLIP, BREATHER HOSE | 8 | 2311- | A | (C) D=24.3 | ||
| 2 | I8-97652 478-0 | CAP, SURGE TANK | 1 | 2311- | A | (B) | ||
| 55 | I8-98396 415-0 | HOSE, WATER,RAD OUTLET | 1 | 2311- | AB | (D-MAX 2024) (A) | ||
| 33 | I0-28650 820-0 | BOLT | 3 | 2311- | A | (D-MAX 2024) M8X20 FLANGE | ||
| 202 | I8-97553 451-0 | HOSE, RESERVE TANK | 1 | 2311- | A | (A) | ||
| 128 | I8-98396 414-0 | HOSE, WATER,RAD INL | 1 | 2311- | C | |||
| 18 | I8-98489 716-0 | HOSE, RAD TO SURGE TANK | 1 | 2311- | C | (B) | ||
| 1 | I8-97660 850-0 | TANK, SURGE,RAD | 1 | 2311- | ABC | (D-MAX 2024) (A) | ||
| 55 | I8-98486 547-0 | HOSE, WATER,RAD OUTLET | 1 | 2311- | A | (C) |
