| 271 |
I8-97871 250-0 |
|
RUBBER, CUSHION,BRKT |
1 |
2311- |
|
BC |
(D-MAX 2024) |
| 550 |
I7-55232 528-0 |
|
BRACKET, DPD |
1 |
2402- |
|
A |
(C) SRP |

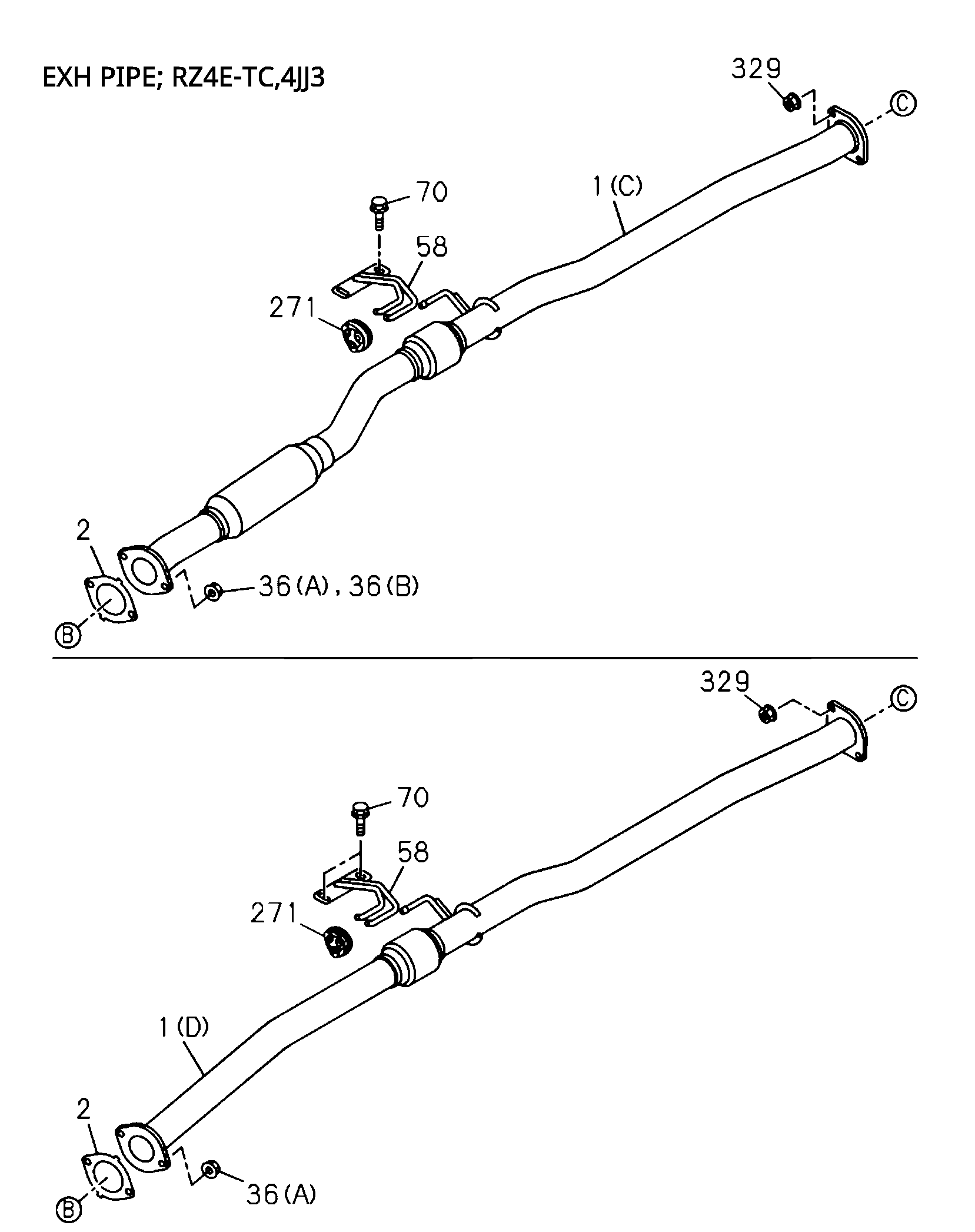

| 1 |
I8-98487 262-2 |
|
PIPE, EXH |
1 |
2311- |
|
B |
EUROO SPECIFICATI0N(K75),EUR02 SPECIFICATION(NT2) (B) |

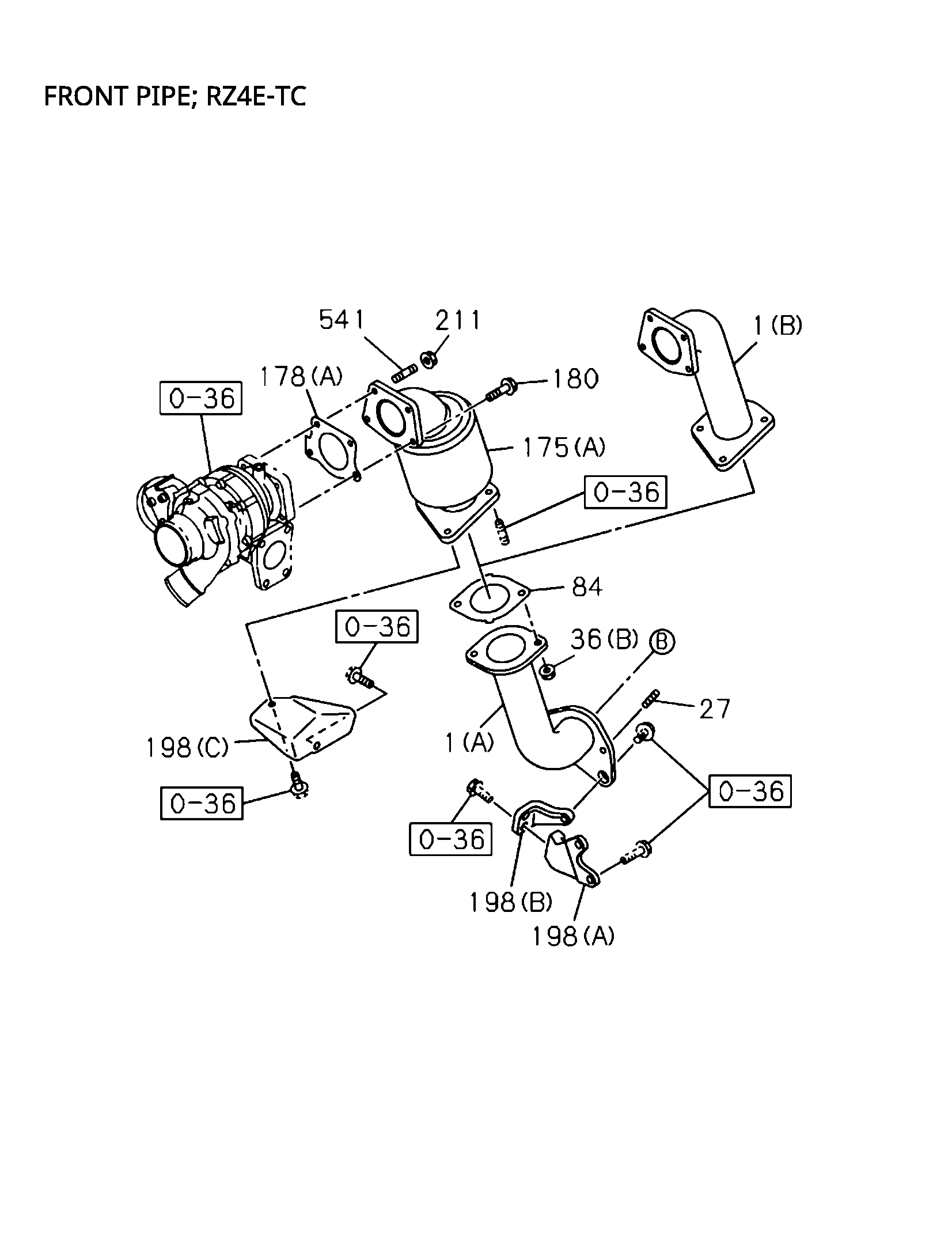

| 178 |
I8-98248 957-0 |
|
GASKET, CONV TO MANIF |
1 |
2311- |
|
B |
(D-MAX 2024) EUROO SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 S P ECI FICATIO N (NT4) (A) |
| 679 |
I8-97533 812-1 |
|
PIPE, EXH,PRESSURE |
1 |
2311- |
|
A |
(B) |
| 428 |
I8-98124 470-0 |
|
RUBBER, MTG,SILENCER |
1 |
2311- |
|
A |
PLANTMCT GATEWAY THAILAND<8PV> |
| 561 |
I8-97540 450-0 |
|
PIPE, DPD |
1 |
2311- |
|
A |
(A) |
| 180 |
I8-98032 158-0 |
|
BOLT, EXH MANIF |
2 |
2311- |
|
B |
(D-MAX 2024) EUROO SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 S P ECI FICATIO N (NT4) M10X30 FLANGE |
| 589 |
I8-97540 449-0 |
|
PROTECTOR, HEAT,DPD |
1 |
2311- |
|
A |
(B) |
| 566 |
I0-28050 616-0 |
|
BOLT |
1 |
2311- |
|
BC |
(D-MAX 2024) EUROS SPECIFICATION(NT5) (A) M6X16 FLANGE |
| 178 |
I8-98317 729-1 |
|
GASKET, TURBOCHAGER |
1 |
2311- |
|
C |
(B) |
| 271 |
I8-98124 470-0 |
|
RUBBER, MTG,SILENCER |
3 |
2311- |
|
A |
PLANTMCT GATEWAY THAILAND<8PV> |
| 596 |
I0-28151 020-0 |
|
BOLT, ADAPTER |
3 |
2311- |
|
A |
(D-MAX 2024) (A) M10X20 FLANGE |
| 336 |
I8-97554 553-0 |
|
INSULATOR, HOSE |
1 |
2311- |
|
C |
EUROS SPECIFICATION(NT5) |
| 558 |
I8-97877 004-0 |
|
FILTER ASM |
1 |
2311- |
|
A |
|
| 543 |
I8-98205 402-0 |
|
SENSOR, O2 |
1 |
2311- |
|
B |
EUR05 SPECIFICATION(NT5) (A) |
| 198 |
I8-98332 312-0 |
|
BRACKET, CONV MTG |
1 |
2311- |
|
AB |
(D-MAX 2024) (B) |
| 543 |
I8-98205 402-0 |
|
SENSOR, O2 |
2 |
2311- |
|
A |
(A) |
| 561 |
I8-97554 127-0 |
|
PIPE, DPD |
1 |
2311- |
|
C |
EUR05 SPECIFICATION(NT5) (C) |
| 563 |
I8-98331 384-0 |
|
SENSOR, TEMPERATURE,DPD |
1 |
2311- |
|
B |
EUROS SPECIFICATION(NTS) (B) |
| 550 |
I7-55232 528-0 |
|
BRACKET, DPD |
1 |
2402- |
|
B |
EUR05 SPECIFICATION(NT5) (C) SRP |
| 534 |
I8-98182 198-0 |
|
BOLT, HEAT PROTECTOR |
2 |
2311- |
|
C |
EUR05 SPECIFICATION(NT5) (C) |
| 556 |
I8-97535 939-1 |
|
DPD ASM |
1 |
2311- |
|
A |
(A) |
| 589 |
I8-97554 126-0 |
|
PROTECTOR, HEAT,DPD |
1 |
2311- |
|
C |
EUROS SPECIFICATION(NT5) (F) |

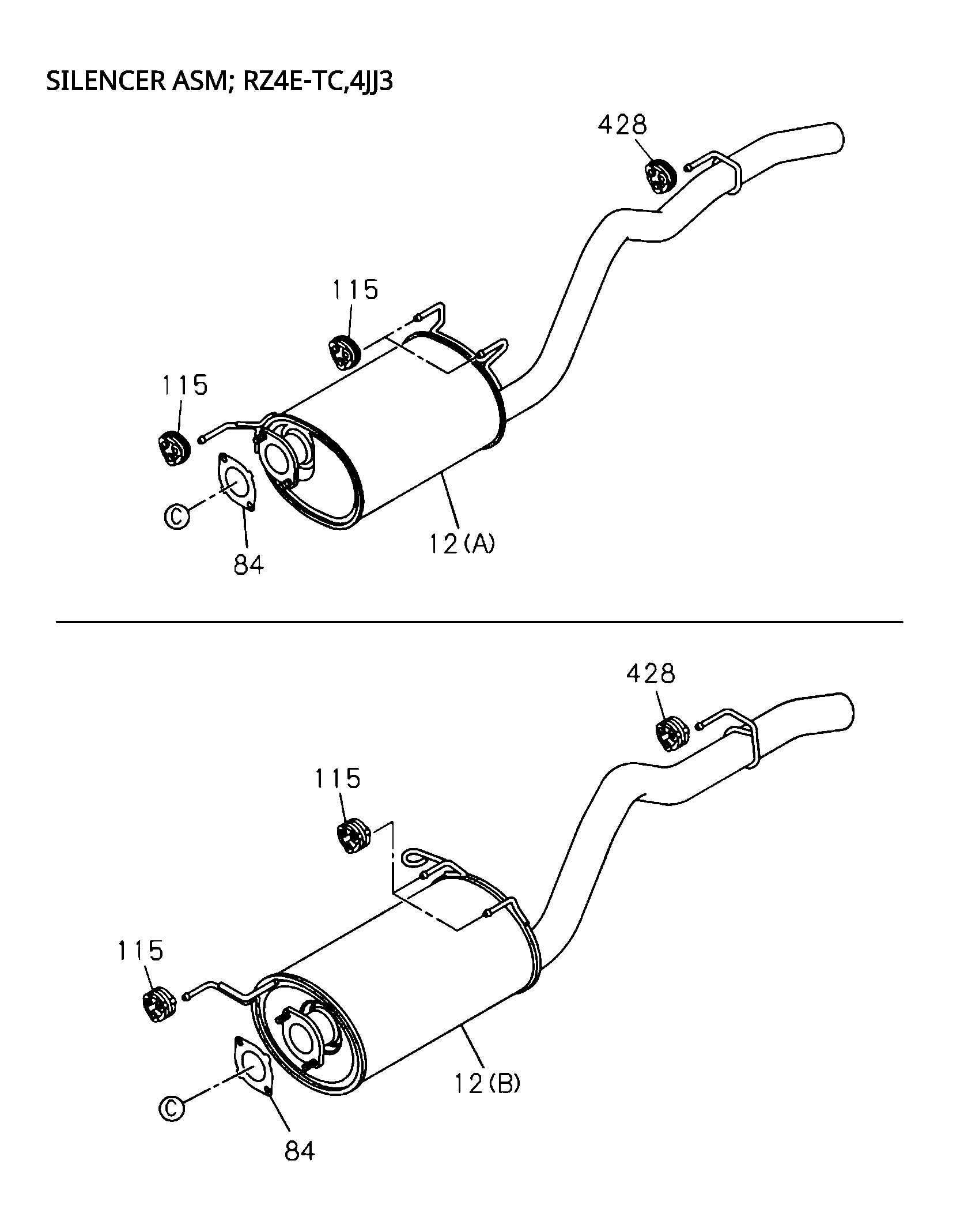

| 12 |
I8-97552 321-0 |
|
SILENCER ASM, EXH |
1 |
2311- |
|
C |
EUR05 SPECIFICATION(NT5) (B) |
| 198 |
I8-98196 696-1 |
|
BRACKET, CONV MTG |
1 |
2311- |
|
C |
(E) |
| 550 |
I8-97533 615-0 |
|
BRACKET, DPD |
1 |
2311- |
|
B |
EUROS SPECIFICATION(NT5) (A) |
| 534 |
I8-98182 197-0 |
|
BOLT, CLIP |
1 |
2311- |
|
A |
(A) |
| 12 |
I8-97265 764-0 |
|
SILENCER ASM, EXH |
1 |
2311- |
|
B |
EUROS SPECIFICATION(NT5) (A) |
| 198 |
I8-98330 702-1 |
|
BRACKET, DPD |
1 |
2311- |
|
c |
EUR05 SPECIFICATION(NT5) (K) |
| 211 |
I8-97309 942-0 |
|
NUT, TURBOCHARGER |
2 |
2311- |
|
B |
(D-MAX 2024) EUROO SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 S P ECIFICATIO N (NT4) M10 FLANGE |
| 12 |
I8-97848 968-0 |
|
SILENCER ASM, EXH |
1 |
2311- |
|
B |
(D-MAX 2024) EUR04 SPECIFICATION(NT4) (A) |
| 565 |
I8-97536 771-1 |
|
BRACKET, SENSOR,PRESSURE |
1 |
2311- |
|
C |
EUROS SPECIFICATION(NT5) |
| 550 |
I8-98332 313-0 |
|
BRACKET, DPD |
1 |
2311- |
|
A |
(C) PCS |
| 27 |
I0-44011 025-0 |
|
STUD, OIL FILTER |
2 |
2311- |
|
B |
(D-MAX 2024) EUROO SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 S P ECI FICATIO N (NT4) M10X25 L=40 |
| 550 |
I8-97533 617-0 |
|
BRACKET, DPD |
1 |
2311- |
|
B |
EUROS SPECIFICATION(NT5) (B) |
| 589 |
I8-97540 448-0 |
|
PROTECTOR, HEAT,DPD |
1 |
2311- |
|
A |
(A) |
| 12 |
I8-98365 683-2 |
|
SILENCER ASM, EXH |
1 |
2311- |
|
C |
EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) (B) |
| 566 |
I0-28050 625-0 |
|
BOLT, CLIP,HARNESS |
1 |
2311- |
|
A |
(D-MAX 2024) (B) M6X25 FLANGE |
| 2 |
I8-97263 052-0 |
|
GASKET, EXH PIPE |
1 |
2311- |
|
BC |
(D-MAX 2024) ID=65 |
| 198 |
I8-98248 139-3 |
|
BRACKET, CONV MTG |
1 |
2311- |
|
B |
(D-MAX 2024) EUROO SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 S P ECI FICATIO N (NT4) (C) |
| 36 |
I8-97096 192-1 |
|
NUT, HANGER |
2 |
2311- |
|
C |
(D-MAX 2024) EUR04 SPECIFICATI0N(NT4),EUR05 SPECIFICATION(NTS) (A) M10 FLANGE |
| 589 |
I8-98372 730-0 |
|
PROTECTOR, HEAT,DPD |
1 |
2311- |
|
A |
(D) |
| 568 |
I8-97309 942-0 |
|
NUT, TURBOCHARGER |
2 |
2311- |
|
A |
(D-MAX 2024) M10 FLANGE |
| 560 |
I8-98332 034-1 |
|
GASKET, DPD |
1 |
2311- |
|
A |
|
| 271 |
I8-97682 112-0 |
|
RUBBER, CUSHION,BRKT |
3 |
2311- |
|
A |
EXC. PLANTMCT GATEWAY THAI LAN D<8PV> |
| 413 |
I8-97554 131-0 |
|
BRACKET, EXH PIPE,CONN |
1 |
2311- |
|
C |
EUROS SPECIFICATION(NT5) |
| 561 |
I8-97554 128-0 |
|
PIPE, DPD |
1 |
2311- |
|
C |
EUR05 SPECIFICATION(NT5) (D) |
| 563 |
I8-98331 383-0 |
|
SENSOR, TEMPERATURE,DPD |
1 |
2311- |
|
B |
EUROS SPECIFICATION(NT5) (A) |
| 198 |
I8-98317 713-0 |
|
BRACKET, TURBOCHARGER |
1 |
2311- |
|
c |
EUROS SPECIFICATION(NT5) 0) |
| 212 |
I8-98372 727-0 |
|
BOLT, BRKT |
2 |
2311- |
|
C |
EUR05 SPECIFICATION(NT5) |
| 434 |
I0-28050 820-0 |
|
BOLT, BRKT,FLEX HOSE,P/S |
2 |
2311- |
|
C |
(D-MAX 2024) EUR05 SPECIFICATION(NT5) M8X20 FLANGE |
| 563 |
I8-98331 384-0 |
|
SENSOR, TEMPERATURE,DPD |
1 |
2311- |
|
A |
(B) |
| 198 |
I8-98480 936-0 |
|
BRACKET, CONV MTG |
1 |
2311- |
|
c |
EUR04 SPECIFICATION(NT4) (H) |
| 550 |
I8-97533 615-0 |
|
BRACKET, DPD |
1 |
2311- |
|
A |
(A) |
| 159 |
I8-98372 718-0 |
|
BOLT, HEAT PROTECTOR |
18 |
2311- |
|
A |
|
| 1 |
I8-98365 676-2 |
|
PIPE, EXH |
1 |
2311- |
|
C |
EUR02 SPECIFICATION(NT2) (C) |
| 547 |
I8-97381 636-0 |
|
CLIP, PIPE |
1 |
2311- |
|
B |
EUROS SPECIFICATION(NT5) (B) D=7 & 7 L=22 |
| 561 |
I8-97679 625-0 |
|
PIPE, DPD |
1 |
2311- |
|
B |
EUROS SPECIFICATION(NT5) (E) |
| 2 |
I8-97827 275-0 |
|
GASKET, PIPE TO MANIF |
1 |
2311- |
|
A |
|
| 1 |
I8-98365 672-0 |
|
PIPE, EXH |
1 |
2311- |
|
B |
EUROO SPECIFICATI0N(K75),EUR02 SPECIFICATION(NT2) (C) |
| 12 |
I8-98365 680-3 |
|
SILENCER ASM, EXH |
1 |
2311- |
|
B |
EUROO SPECIFICATIONS),EUR02 SPECIFICATION(NT2) (A) |
| 1 |
I8-98368 209-1 |
|
PIPE, EXH |
1 |
2311- |
|
A |
(E) |
| 198 |
I8-97536 770-0 |
|
BRACKET, CONV MTG |
1 |
2311- |
|
c |
EUR05 SPECIFICATION(NT5) (I) |
| 547 |
I8-98372 720-0 |
|
CLIP, PIPE |
2 |
2311- |
|
C |
EUR05 SPECIFICATION(NT5) (C) |
| 428 |
I8-97871 250-0 |
|
RUBBER, CUSHION,BRKT |
1 |
2311- |
|
BC |
(D-MAX 2024) |
| 679 |
I8-97533 811-0 |
|
PIPE, EXH,PRESSURE |
1 |
2311- |
|
A |
(A) |
| 568 |
I8-97309 942-0 |
|
NUT, TURBOCHARGER |
2 |
2311- |
|
B |
(D-MAX 2024) EUROS SPECIFICATION(NT5) M10 FLANGE |
| 596 |
I0-28151 020-0 |
|
BOLT, ADAPTER |
3 |
2311- |
|
B |
(D-MAX 2024) EUROS SPECIFICATION(NT5) (A) M10X20 FLANGE |
| 428 |
I8-97682 112-0 |
|
RUBBER, CUSHION,BRKT |
1 |
2311- |
|
A |
EXC. PLANTMCT GATEWAY THAI LAN D<8PV> |
| 423 |
I0-28650 616-0 |
|
SCREW, TANK TO BRKT |
1 |
2311- |
|
A |
(D-MAX 2024) (B) M6X16 FLANGE |
| 674 |
I8-97501 180-1 |
|
INSULATOR |
1 |
2311- |
|
C |
EUROS SPECIFICATION(NT5) |
| 198 |
I8-98330 701-0 |
|
BRACKET, DPD |
1 |
2311- |
|
c |
EUR04 SPECIFICATI0N(NT4),EUR05 SPECIFICATION(NT5) (G) |
| 589 |
I8-98372 716-0 |
|
PROTECTOR, HEAT,DPD |
1 |
2311- |
|
C |
EUROS SPECIFICATION(NT5) (G) |
| 567 |
I8-98032 158-0 |
|
BOLT, EXH MANIF |
2 |
2311- |
|
A |
(D-MAX 2024) M10X30 FLANGE |
| 596 |
I0-28151 050-0 |
|
BOLT, HSG |
6 |
2311- |
|
B |
EUROS SPECIFICATION(NT5) (B) M10X50 FLANGE |
| 547 |
I8-97381 635-0 |
|
CLIP, PIPE |
1 |
2311- |
|
B |
EUROS SPECIFICATION(NT5) (A) D=7 & 7 L=22 |
| 198 |
I8-97495 799-1 |
|
BRACKET, CONV MTG |
1 |
2311- |
|
C |
EUR04 SPECIFICATION(NT4) (D) |
| 567 |
I8-98032 158-0 |
|
BOLT, EXH MANIF |
2 |
2311- |
|
B |
(D-MAX 2024) EUROS SPECIFICATION(NT5) M10X30 FLANGE |
| 564 |
I8-98331 412-0 |
|
SENSOR, PRESSURE,DPD |
1 |
2311- |
|
BC |
EUROS SPECIFICATION(NT5) (A) DIFFERENTIAL PRESSURE |
| 550 |
I8-97533 617-0 |
|
BRACKET, DPD |
1 |
2311- |
|
A |
(B) |
| 564 |
I8-98331 412-0 |
|
SENSOR, PRESSURE,DPD |
1 |
2311- |
|
A |
(A) DIFFERENTIAL PRESSURE |
| 589 |
I8-97554 124-0 |
|
PROTECTOR, HEAT,DPD |
1 |
2311- |
|
C |
EUROS SPECIFICATION(NT5) (E) |
| 12 |
I8-98365 682-1 |
|
SILENCER ASM, EXH |
1 |
2311- |
|
A |
(C) |
| 589 |
I8-97537 443-0 |
|
PROTECTOR, HEAT,DPD |
1 |
2311- |
|
C |
EUROS SPECIFICATION(NT5) (H) |
| 58 |
I8-97368 450-0 |
|
BRACKET, EXH PIPE,RR |
1 |
2311- |
|
BC |
(D-MAX 2024) |
| 1 |
I8-98376 721-0 |
|
PIPE, EXH |
1 |
2311- |
|
B |
(D-MAX 2024) EUROO SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 S P ECIFICATIO N (NT4) (A) |
| 561 |
I8-97679 626-0 |
|
PIPE, DPD |
1 |
2311- |
|
B |
EUROS SPECIFICATION(NT5) (F) |
| 1 |
I8-97848 967-0 |
|
PIPE, EXH |
1 |
2311- |
|
B |
(D-MAX 2024) EUR04 SPECIFICATI0N(NT4),EUR05 SPECIFICATION(NTS) (D) |
| 560 |
I8-98332 034-1 |
|
GASKET, DPD |
1 |
2311- |
|
B |
EUROS SPECIFICATION(NT5) |
| 541 |
I8-97378 063-0 |
|
STUD, MANIF TO TURBOCHARGER |
2 |
2311- | |
|
AB |
(D-MAX 2024) M10X28.5 L=41.5 |
| 385 |
I8-98395 603-0 |
|
BRACKET, SILENCER MTG |
1 |
2311- |
|
A |
|
| 84 |
I8-97263 052-0 |
|
GASKET, EXH PIPE |
1 |
2311- |
|
B |
(D-MAX 2024) EUROO SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 S P ECIFICATIO N (NT4) D=65 |
| 543 |
I8-98489 432-0 |
|
SENSOR, O2 |
1 |
2311- |
|
C |
EUROS SPECIFICATION(NT5) (B) |
| 556 |
I8-97537 437-2 |
|
DPD ASM |
1 |
2311- |
|
C |
EUR05 SPECIFICATION(NT5) (B) |
| 115 |
I8-98124 470-0 |
|
RUBBER, MTG,SILENCER |
1 |
2311- |
|
A |
PLANTMCT GATEWAY THAILAND<8PV> |
| 159 |
I8-98372 718-0 |
|
BOLT, HEAT PROTECTOR |
14 |
2311- |
|
C |
EUROS SPECIFICATION(NT5) |
| 676 |
I8-97273 349-0 |
|
HOSE, DPD |
1 |
2311- |
|
B |
EUR05 SPECIFICATION(NT5) |
| 198 |
I8-98332 311-0 |
|
BRACKET, CONV MTG |
1 |
2311- |
|
A B |
(D-MAX 2024) (A) |
| 676 |
I8-97273 347-0 |
|
HOSE, DPD |
1 |
2311- |
|
C |
EUROS SPECIFICATION(NT5) |
| 84 |
I8-97263 052-0 |
|
GASKET, EXH PIPE |
1 |
2311- |
|
ABC |
(D-MAX 2024) ID=65 |
| 550 |
I8-98332 313-0 |
|
BRACKET, DPD |
1 |
2311- |
|
B |
EUROS SPECIFICATION(NT5) (C) PCS |
| 423 |
I0-28050 820-0 |
|
BOLT, BRKT,FLEX HOSE,P/S |
1 |
2311- |
|
A |
(D-MAX 2024) (A) M8X20 FLANGE |
| 547 |
I8-97381 636-0 |
|
CLIP, PIPE |
1 |
2311- |
|
A |
(B) D=7 & 7 L=22 |
| 564 |
I8-97535 885-0 |
|
SENSOR, PRESSURE,DPD |
1 |
2311- |
|
A |
(B) DIFFERENTIAL PRESSURE |
| 36 |
I0-91180 110-0 |
|
NUT, BRKT TO BUMPER |
2 |
2311- |
|
B |
(D-MAX 2024) EUROO SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 S P ECI FICATIO N (NT4) (B) M10 FLANGE |
| 556 |
I8-97679 623-0 |
|
DPD ASM |
1 |
2311- |
|
B |
EUR05 SPECIFICATION(NT5) (C) |
| 115 |
I8-97871 250-0 |
|
RUBBER, CUSHION,BRKT |
3 |
2311- |
|
BC |
(D-MAX 2024) |
| 175 |
I8-98480 412-2 |
|
CONVERTER, CATALYST |
1 |
2311- |
|
C |
A/T 6 SPEED AISIN(Y6A) EUR04 SPECIFICATION(NT4) (B) |
| 36 |
I0-91180 110-0 |
|
NUT, BRKT TO BUMPER |
2 |
2311- |
|
C |
(D-MAX 2024) EUR02 SPECIFICATION(NT2) (B) M10 FLANGE |
| 677 |
I8-97329 627-0 |
|
CLIP, HOSE |
10 |
2311- |
|
A |
ID=13 |
| 547 |
I8-97381 635-0 |
|
CLIP, PIPE |
1 |
2311- |
|
A |
(A) D=7 & 7 L=22 |
| 534 |
I0-28050 630-0 |
|
BOLT, PROTECTOR |
1 |
2311- |
|
B |
EUR05 SPECIFICATION(NT5) (B) M6X30 FLANGE |
| 596 |
I0-28151 050-0 |
|
BOLT, HSG |
5 |
2311- |
|
A |
(B) M10X50 FLANGE |
| 70 |
I8-97945 706-0 |
|
BOLT, PROTECTOR TO MEMBER |
2 |
2311- |
|
BC |
(D-MAX 2024) M10X28 W/LK&PL WASHER |
| 329 |
I0-91180 110-0 |
|
NUT, BRKT TO BUMPER |
2 |
2311- |
|
ABC |
(D-MAX 2024) M10 FLANGE |
| 175 |
I8-97533 142-1 |
|
CONVERTER, CATALYST |
1 |
2311- |
|
C |
M/T MVL 6 SPEED 6S(Y6S) EUR04 SPECIFICATION(NT4) (B) |
| 566 |
I0-28050 616-0 |
|
BOLT |
1 |
2311- |
|
A |
(D-MAX 2024) (A) M6X16 FLANGE |
| 172 |
I8-97945 706-0 |
|
BOLT, PROTECTOR TO MEMBER |
2 |
2311- |
|
A |
(D-MAX 2024) M10X28 W/LK8iPL WASHER |
| 561 |
I8-98372 733-0 |
|
PIPE, DPD |
1 |
2311- |
|
A |
(B) |
| 563 |
I8-98331 383-0 |
|
SENSOR, TEMPERATURE,DPD |
1 |
2311- |
|
A |
(A) |
| 198 |
I8-98203 739-0 |
|
BRACKET, CONV MTG |
1 |
2311- |
|
C |
(F) |
| 677 |
I8-97329 627-0 |
|
CLIP, HOSE |
4 |
2311- |
|
BC |
EUR05 SPECIFICATION(NT5)D=13 |
| 1 |
I8-98365 677-3 |
|
PIPE, EXH |
1 |
2311- |
|
C |
EUR04 SPECIFICATI0N(NT4),EUR05 SPECIFICATION(NT5) (D) |
| 676 |
I8-97273 348-0 |
|
HOSE, DPD |
1 |
2311- |
|
A |
|
| 36 |
I8-97096 192-1 |
|
NUT, HANGER |
2 |
2311- |
|
A B |
(D-MAX 2024) (A) M10 FLANGE |
| 115 |
I8-97682 112-0 |
|
RUBBER, CUSHION,BRKT |
1 |
2311- |
|
A |
EXC. PLANTMCT GATEWAY THAI LAN D<8PV> |
| 589 |
I8-98372 729-0 |
|
PROTECTOR, HEAT,DPD |
1 |
2311- |
|
A |
(C) |
| 175 |
I8-97844 939-0 |
|
CONVERTER, CATALYST |
1 |
2311- |
|
B |
(D-MAX 2024) EUR04 SPECIFICATION(NT4) (A) |
