| 2 |

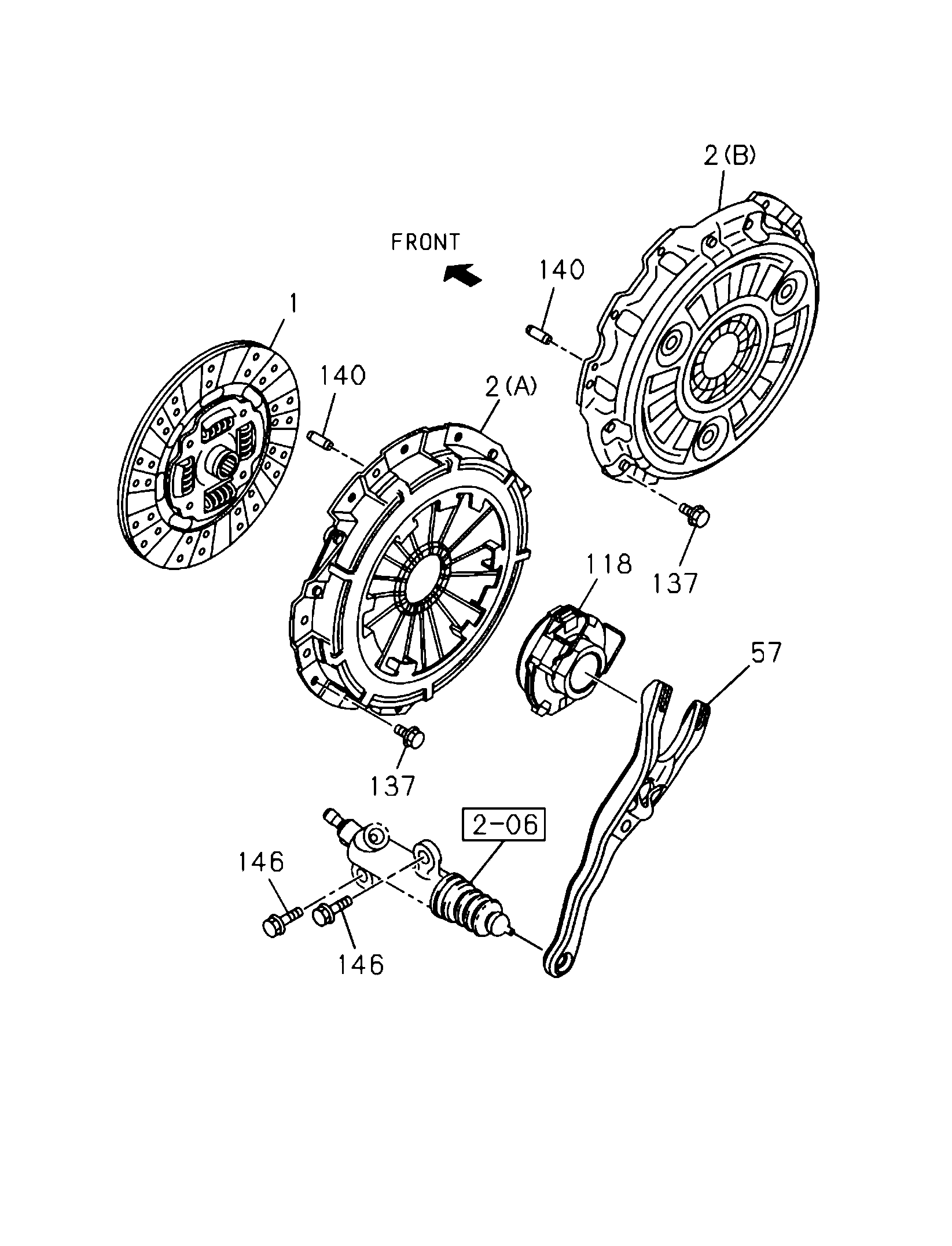

I8-97829 103-0 |
|
PLATE ASM, PRESSURE,CLU |
1 |
2311- |
|
A |
4JJ3 ENG(LNG) EUROS SPECIFICATION(NT5) (B) |
| 2 |
I8-98398 932-1 |
|
PLATE ASM, PRESSURE,CLU |
1 |
2311- |
|
B |
(D-MAX 2024) (A) |
| 146 |
I0-28651 025-0 |
|
BOLT, BRKT TO FRAME |
2 |
2311- |
|
A B |
(D-MAX 2024) M10X25 FLANGE |
| 1 |
I8-97543 590-0 |
|
DISC, CLUTCH |
1 |
2311- |
|
A |
(D-MAX 2024) RZ4E-TCX HI-POWER ENG(LNC) |
| 137 |
I0-28050 816-0 |
|
BOLT, BRKT,FLEX HOSE,P/S |
8 |
2311- |
|
B |
(D-MAX 2024) M8X16 FLANGE |
| 57 |
I8-98398 926-0 |
|
FORK, SHIFT,CLU |
1 |
2311- |
|
A |
4JJ3 ENG(LNG) |
| 2 |
I8-98398 932-1 |
|
PLATE ASM, PRESSURE,CLU |
1 |
2311- |
|
A |
(D-MAX 2024) RZ4E-TCX HI-POWER ENG(LNC) (A) |
| 2 |
I8-98398 934-0 |
|
PLATE ASM, PRESSURE,CLU |
1 |
2311- |
|
A |
4JJ3 ENG(LNG) EUROO SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 S P ECI FICATIO N (NT4) (B) |
| 140 |
I8-97945 592-0 |
|
PIN, STRAIGHT |
4 |
2311- |
|
B |
(D-MAX 2024) OD=6 L=27 |
| 1 |
I8-97543 590-0 |
|
DISC, CLUTCH |
1 |
2311- |
|
B |
(D-MAX 2024) |
| 137 |
I0-28050 816-0 |
|
BOLT, BRKT,FLEX HOSE,P/S |
8 |
2311- |
|
A |
(D-MAX 2024) RZ4E-TCX HI-POWER ENG(LNC) M8X16 FLANGE |
| 118 |
I8-98169 826-1 |
|
BEARING, CLU RELEASE |
1 |
2311- |
|
B |
(D-MAX 2024) NSKD=40.1 OD=78 |
| 137 |
I0-28050 816-0 |
|
BOLT, BRKT,FLEX HOSE,P/S |
9 |
2311- |
|
A |
(D-MAX 2024) 4JJ3 ENG(LNG) M8X16 FLANGE |
| 140 |
I8-97945 592-0 |
|
PIN, STRAIGHT |
3 |
2311- |
|
A |
(D-MAX 2024) 4JJ3 ENG(LNG) OD=6 L=27 |
| 57 |
I8-97946 622-1 |
|
FORK, SHIFT,CLU |
1 |
2311- |
|
A |
(D-MAX 2024) RZ4E-TCX HI-POWER ENG(LNC) |
| 118 |
I8-98169 826-1 |
|
BEARING, CLU RELEASE |
1 |
2311- |
|
A |
(D-MAX 2024) RZ4E-TCX HI-POWER ENG(LNC) NSKD=40.1 OD=78 |
| 57 |
I8-97946 622-1 |
|
FORK, SHIFT,CLU |
1 |
2311- |
|
B |
(D-MAX 2024) |
| 1 |
I8-98398 930-0 |
|
DISC, CLUTCH |
1 |
2311- |
|
A |
4JJ3 ENG(LNG) |
| 118 |
I8-98482 740-0 |
|
BEARING, CLU RELEASE |
1 |
2311- |
|
A |
4JJ3 ENG(LNG) NSKD=47.1 OD=78 |
| 140 |
I8-97945 592-0 |
|
PIN, STRAIGHT |
4 |
2311- |
|
A |
(D-MAX 2024) RZ4E-TCX HI-POWER ENG(LNC) OD=6 L=27 |
| 1 |
I8-97544 735-0 |
|
DISC, CLUTCH |
1 |
2311- |
|
A |
4JJ3 ENG(LNG) EUROO SPECIFICATIONS),EUR02 SPECIFICATI0N(NT2),EUR04 S P ECIFICATIO N (NT4) |
