| 134 |
I8-97651 864-0 |
|
GASKET |
1 |
2311- |
|
A |
4JJ3 ENG(LNG) EUROS SPECIFICATION(NT5) (B) |
| 18 |
I8-97655 795-0 |
|
DAMPER ASM, CLU OIL |
1 |
2311- |
|
A |
4JJ3 ENG(LNG) EUROS SPECIFICATION(NT5) (A) |
| 5 |
I8-97541 765-0 |
|
HOSE, FLEX,CLU PIPE |
1 |
2311- |
|
A |
(D-MAX 2024) RZ4E-TCX HI-POWER ENG(LNC) |
| 42 |
I8-98398 927-0 |
|
BRACKET, FLEX HOSE,CLU CONT |
1 |
2311- |
|
A |
(D-MAX 2024) RZ4E-TCX HI-POWER ENG(LNC) |
| 42 |
I8-98398 927-0 |
|
BRACKET, FLEX HOSE,CLU CONT |
1 |
2311- |
|
B |
(D-MAX 2024) |

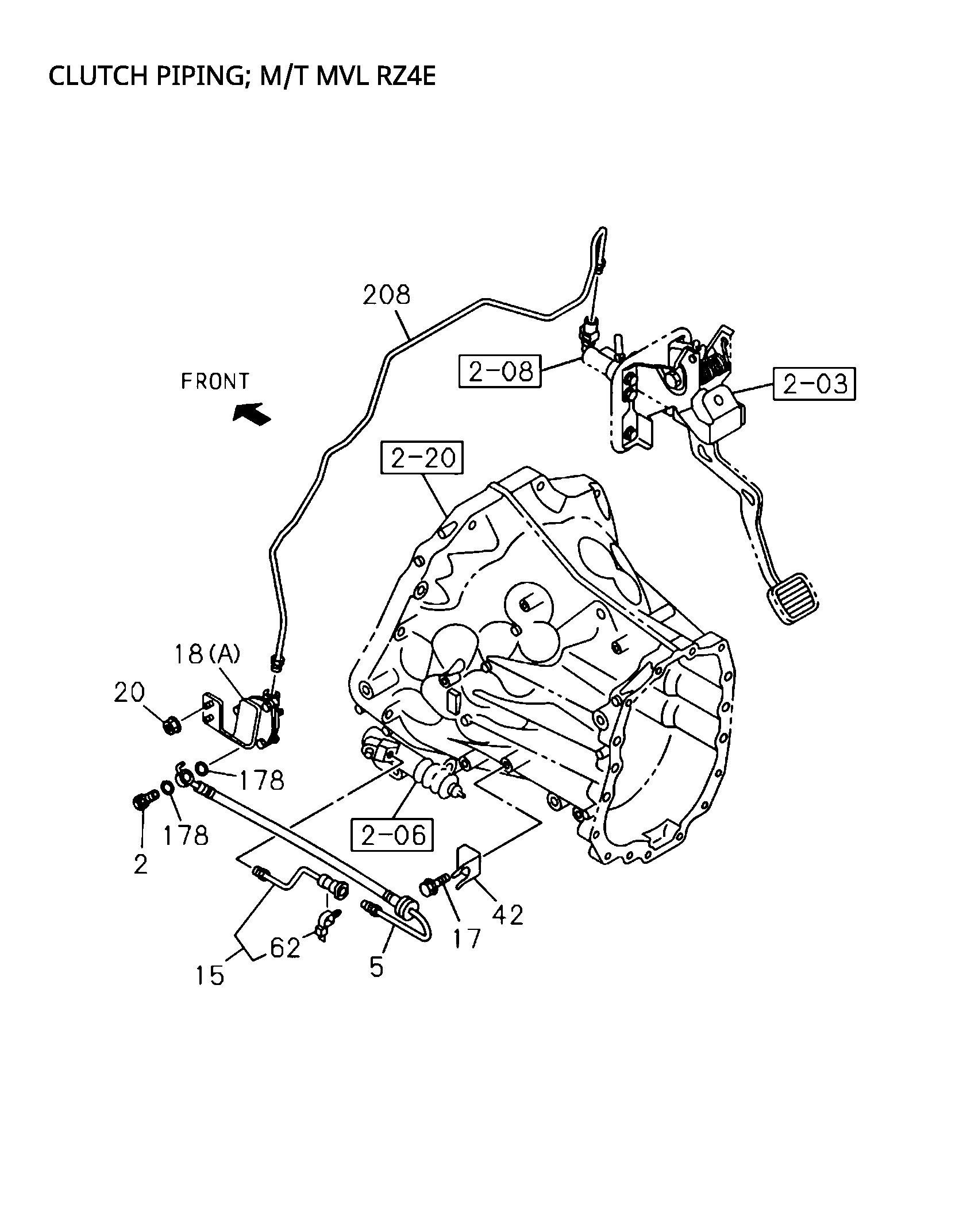

| 208 |
I8-98395 385-1 |
|
PIPE, OIL,M/CYL TO DAMPER CYL |
1 |
2311- |
|
B |
(D-MAX 2024) EUROO SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 S P ECIFICATIO N ( NT4) |
| 42 |
I8-98398 928-0 |
|
BRACKET, FLEX HOSE,CLU CONT |
1 |
2311- |
|
A |
4JJ3 ENG(LNG) |
| 80 |
I8-97947 824-0 |
|
CLIP, HOSE |
2 |
2311- |
|
AB |
(D-MAX 2024) ID=12 WO/PVC COATING |
| 5 |
I8-97541 766-0 |
|
HOSE, FLEX,CLU PIPE |
1 |
2311- |
|
A |
4JJ3 ENG(LNG) |
| 15 |
I8-97541 767-0 |
|
PIPE, CLU,FLEX HOSE |
1 |
2311- |
|
B |
(D-MAX 2024) |
| 20 |
I0-91180 106-0 |
|
NUT:CONICAL |
2 |
2311- |
|
A B |
(D-MAX 2024) M6 FLANGE |
| 15 |
I8-97541 768-0 |
|
PIPE, CLU,FLEX HOSE |
1 |
2311- |
|
A |
4JJ3 ENG(LNG) |
| 178 |
I9-09571 410-0 |
|
GASKET, LEVEL PLUG |
2 |
2311- |
|
A B |
(D-MAX 2024) ID=10.2 0D=16.0 |
| 18 |
I8-97655 710-0 |
|
DAMPER ASM, CLU OIL |
1 |
2311- |
|
A |
4JJ3 ENG(LNG) EUR05 SPECIFICATION(NT5) (C) |
| 18 |
I8-98398 919-0 |
|
DAMPER ASM, CLU OIL |
1 |
2311- |
|
AB |
(D-MAX 2024) RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) (A) |
| 134 |
I8-97553 110-0 |
|
GASKET |
1 |
2311- |
|
A |
(D-MAX 2024) 4JJ3 ENG(LNG) (A) |
| 208 |
I8-97649 442-0 |
|
PIPE, OIL,M/CYL TO DAMPER CYL |
1 |
2311- |
|
A |
RZ4E-TCX HI-POWER ENG(LNC) |
| 17 |
I0-28050 816-0 |
|
BOLT, BRKT,FLEX HOSE,P/S |
1 |
2311- |
|
A B |
(D-MAX 2024) M8X16 FLANGE |
| 62 |
I8-97553 111-0 |
|
CLIP, CLU PIPE |
1 |
2311- |
|
AB |
(D-MAX 2024) |
| 208 |
I8-97649 442-0 |
|
PIPE, OIL,M/CYL TO DAMPER CYL |
1 |
2311- |
|
B |
EUR05 SPECIFICATION(NT5) |
| 208 |
I8-97559 228-0 |
|
PIPE, OIL,M/CYL TO DAMPER CYL |
1 |
2311- |
|
A |
4JJ3 ENG(LNG) EUROS SPECIFICATION(NT5) |
| 18 |
I8-98398 939-0 |
|
DAMPER ASM, CLU OIL |
1 |
2311- |
|
A |
4JJ3 ENG(LNG) (B) |
| 5 |
I8-97541 765-0 |
|
HOSE, FLEX,CLU PIPE |
1 |
2311- |
|
B |
(D-MAX 2024) |

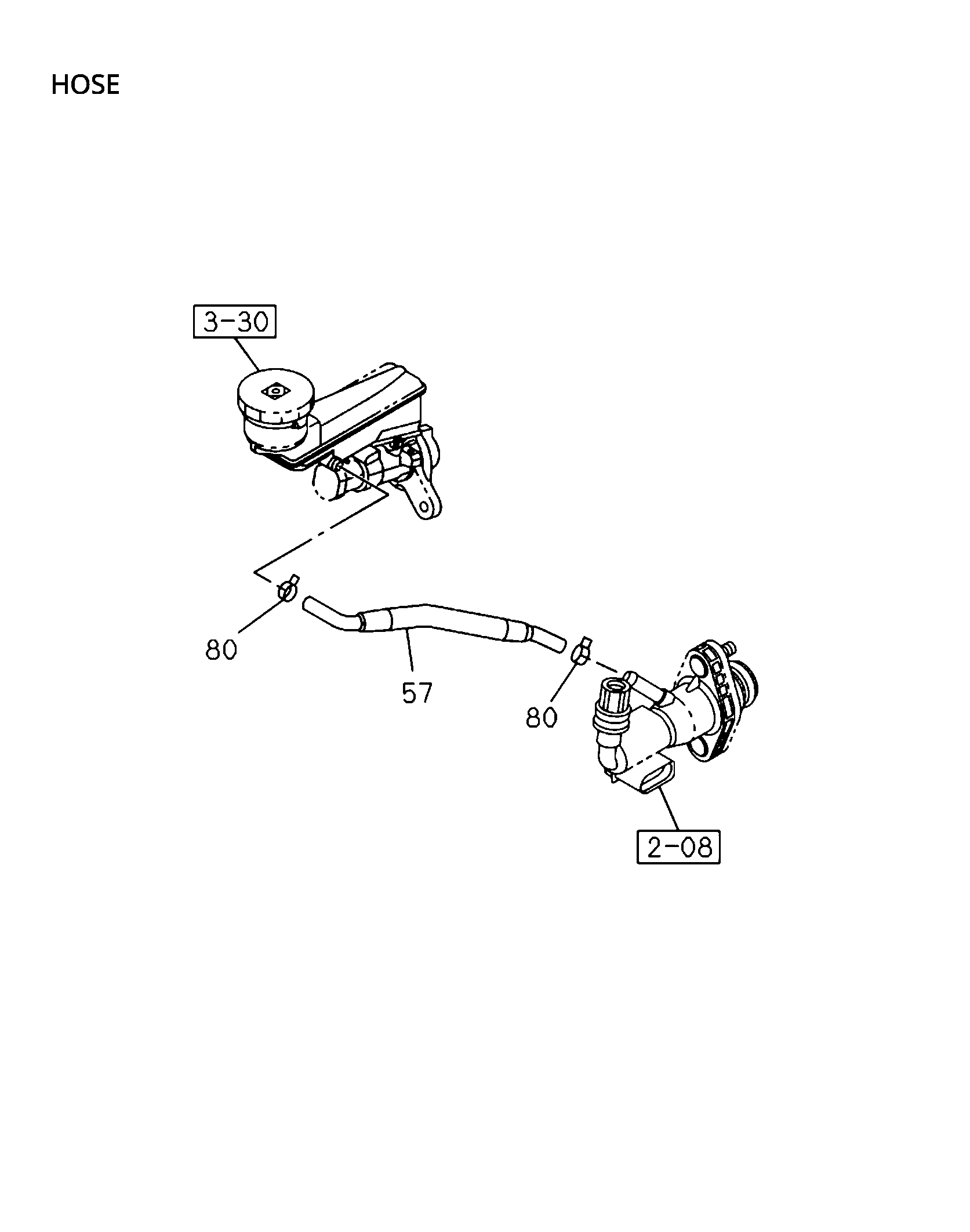

| 57 |
I8-98398 912-0 |
|
HOSE, CLU M/CYL TO OIL TANK |
1 |
2311- |
|
AB |
(D-MAX 2024) |
| 2 |
I8-97359 818-0 |
|
BOLT, EYE,FLEX HOSE,FRT BRK |
1 |
2311- |
|
A B |
(D-MAX 2024) M10X22 EYE-BOLT |
| 18 |
I8-98398 919-0 |
|
DAMPER ASM, CLU OIL |
1 |
2311- |
|
A |
(D-MAX 2024) 4JJ3 ENG(LNG) EUROO SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 S P ECIFICATIO N (NT4) (A) |
| 208 |
I8-98395 385-1 |
|
PIPE, OIL,M/CYL TO DAMPER CYL |
1 |
2311- |
|
A |
(D-MAX 2024) 4JJ3 ENG(LNG) EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) |
| 15 |
I8-97541 767-0 |
|
PIPE, CLU,FLEX HOSE |
1 |
2311- |
|
A |
(D-MAX 2024) RZ4E-TCX HI-POWER ENG(LNC) |
