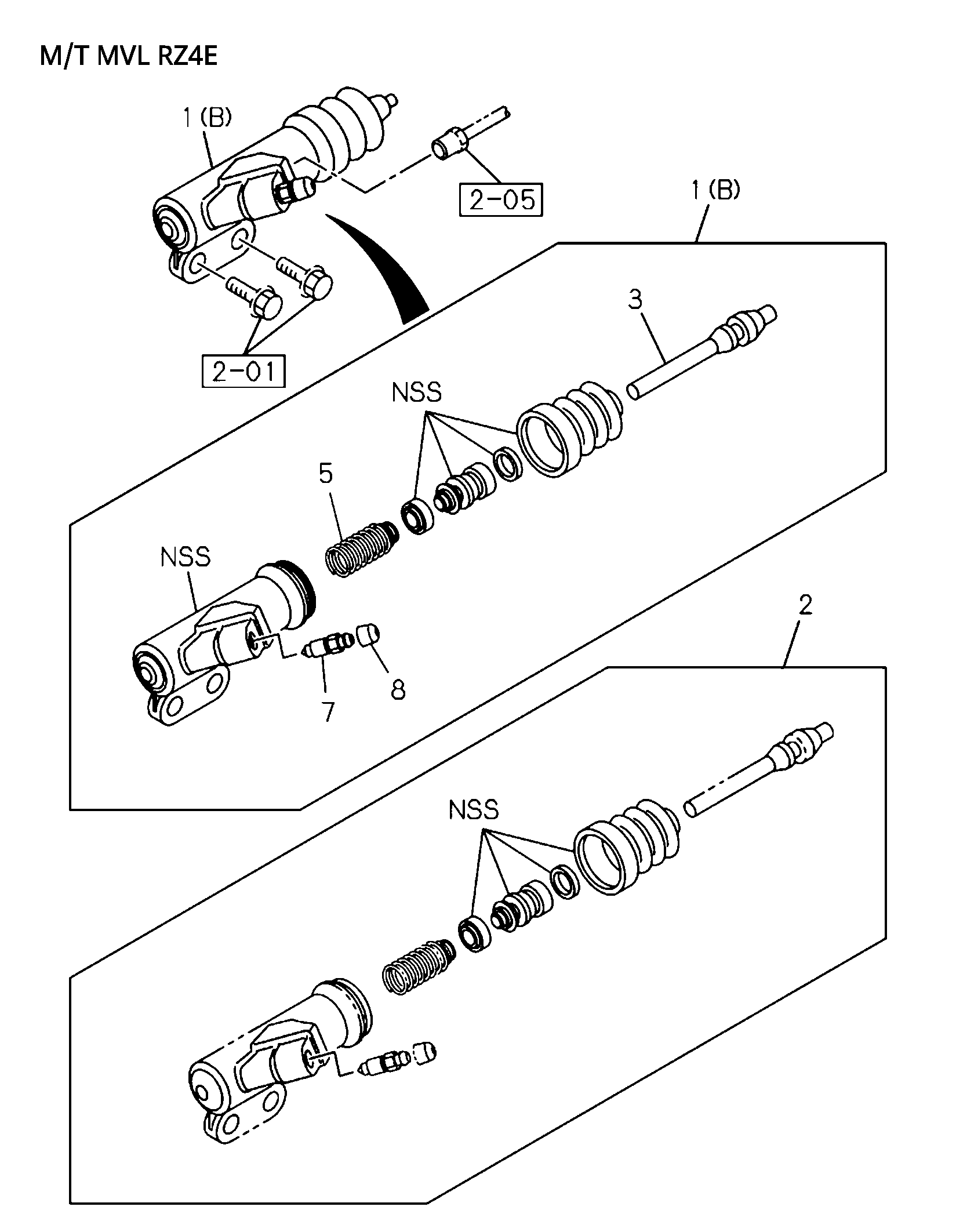

2-06 | CLUTCH SLAVE CYLINDER
DMAX
D-MAX 2024
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 1 | I8-97949 006-0 | CYLINDER, SLAVE,CLU | 1 | 2311- | B | (D-MAX 2024) (B) | ||
| 8 | I8-97940 638-0 | CAP, BLEEDER,SLAVE CYL | 1 | 2311- | A B | (D-MAX 2024) OD=10 | ||
| 3 | I8-98280 478-0 | ROD, PUSH,SLAVE CYL | 1 | 2311- | A | (D-MAX 2024) RZ4E-TCX HI-POWER ENG(LNC) | ||
| 3 | I8-98187 063-0 | ROD, PUSH,SLAVE CYL | 1 | 2311- | A | 4JJ3 ENG(LNG) | ||
| 3 | I8-98280 478-0 | ROD, PUSH,SLAVE CYL | 1 | 2311- | B | (D-MAX 2024) | ||
| 1 | I8-98482 035-0 | CYLINDER, SLAVE,CLU | 1 | 2311- | A | 4JJ3 ENG(LNG) (A) | ||
| 5 | I8-97942 801-0 | SPRING ASM, PISTON,SLAVE CYL | 1 | 2311- | AB | (D-MAX 2024) | ||
| 7 | I8-98020 477-0 | SCREW, BLEEDER,SLAVE CYL | 1 | 2311- | AB | (D-MAX 2024) M 8X10 | ||
| 1 | I8-97949 006-0 | CYLINDER, SLAVE,CLU | 1 | 2311- | A | (D-MAX 2024) RZ4E-TCX HI-POWER ENG(LNC) (B) | ||
| 2 | I5-87832 048-0 | REPAIR KIT, CLU SLAVE CYL | 1 | 2311- | A B | (D-MAX 2024) |
