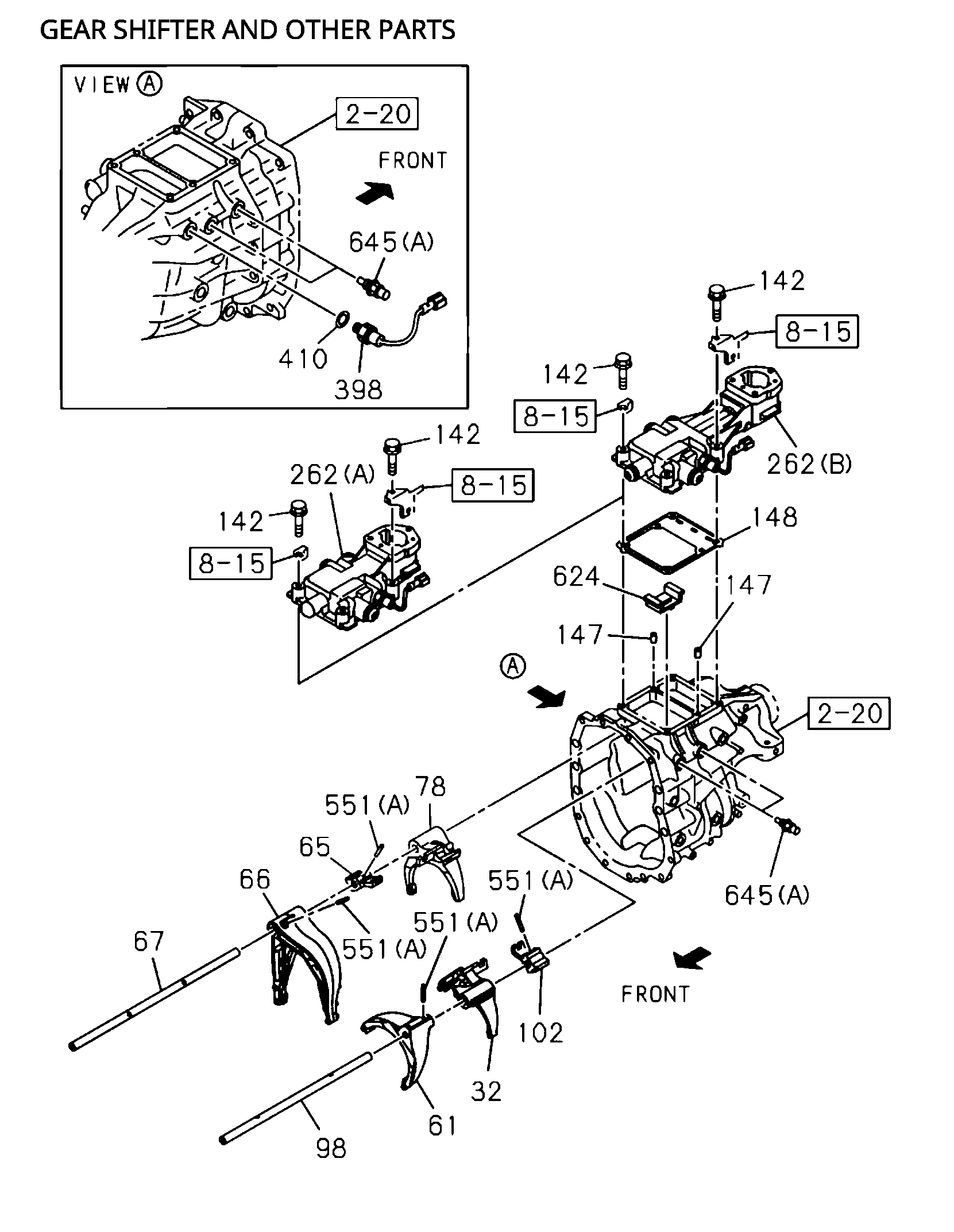

2-30 | GEAR SHIFTER AND QUADRANT BOX
DMAX
D-MAX 2024
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 645 | I8-98019 536-1 | DETENT, BALL | 4 | 2311- | AB | (D-MAX 2024) (A) | ||
| 67 | I8-98303 003-0 | ROD, SHIFT,5TH & 6TH | 1 | 2311- | A | (D-MAX 2024) | ||
| 78 | I8-97494 014-1 | ARM, SHIFT,1ST & 2ND | 1 | 2311- | B | MADE IN JAPAN TRANSMISSION<8QP> | ||
| 32 | I8-97494 015-1 | ARM, SHIFT,1ST & 2ND | 1 | 2311- | A | (D-MAX 2024) | ||
| 66 | I8-98275 456-1 | ARM, SHIFT,5TH & 6TH | 1 | 2311- | AB | (D-MAX 2024) | ||
| 67 | I8-98275 451-1 | ROD, SHIFT,5TH & 6TH | 1 | 2311- | B | MADE IN JAPAN TRANSMISSION<8QP> | ||

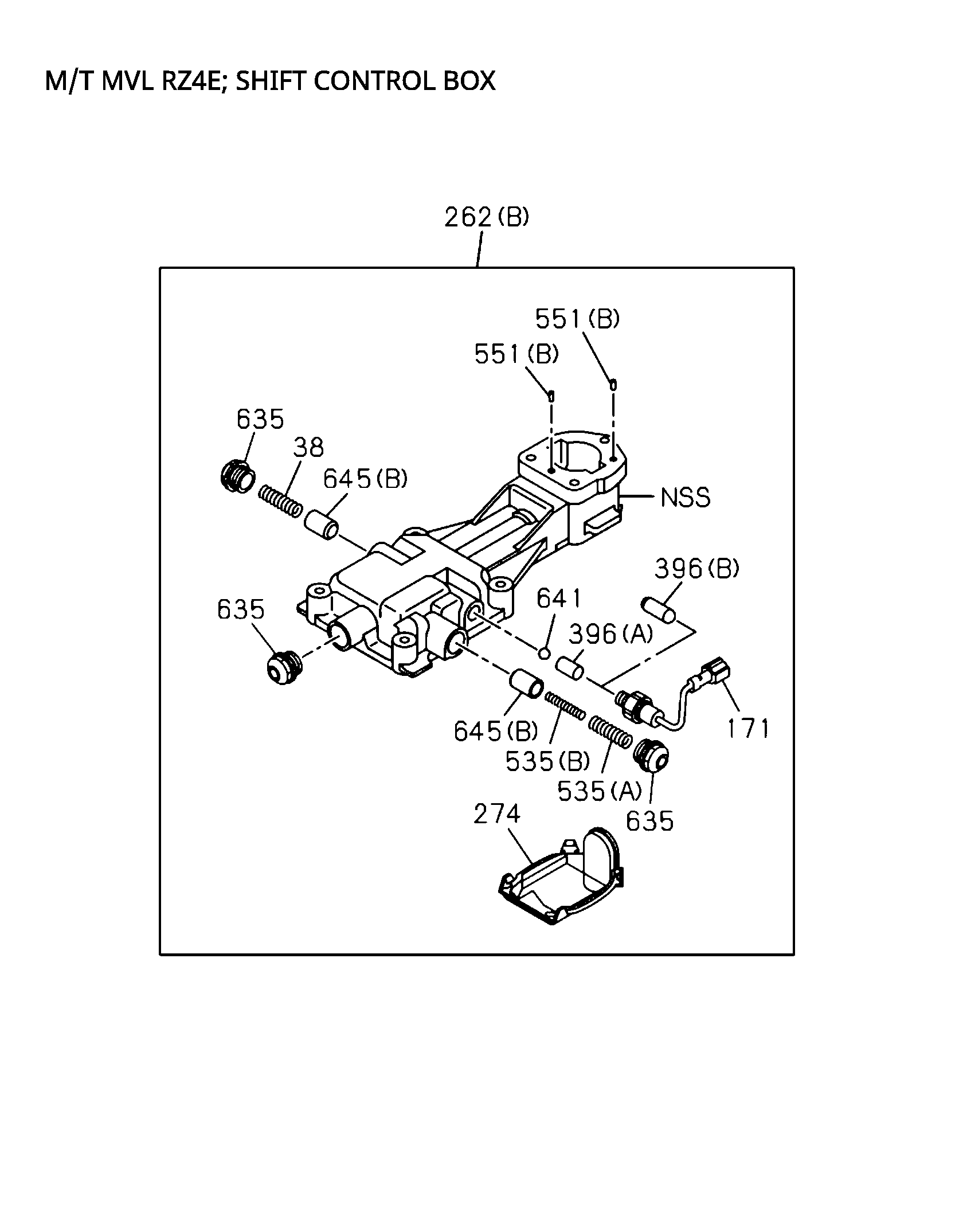

| 262 | I8-97660 736-0 | BOX ASM, SHIFT CONT | 1 | 2311- | A | 4JJ3 ENG(LNG) (A) | ||
| 98 | I8-98303 002-0 | ROD, SHIFT,TOP & 3RD | 1 | 2311- | B | (D-MAX 2024) EXC. MADE IN JAPAN TRANSMISSION<8QP> | ||
| 171 | I8-97499 567-0 | SWITCH, NEUTRAL | 1 | 2311- | A B | (D-MAX 2024) | ||
| 38 | I8-97507 673-0 | SPRING, DETENT | 1 | 2311- | A B | (D-MAX 2024) | ||
| 61 | I8-98275 455-0 | ARM, SHIFT,3RD & 4TH | 1 | 2311- | A B | (D-MAX 2024) | ||
| 551 | I8-97011 596-2 | PIN, SPR,SHIFT ARM | 4 | 2311- | A B | (D-MAX 2024) (A) L=32 | ||
| 147 | I9-08150 612-0 | PIN, STRAIGHT,OIL SEAL RET | 2 | 2311- | A B | (D-MAX 2024) OD=6 L=12 | ||
| 274 | I8-97507 545-0 | COVER, SHAFT,QUAD BOX | 1 | 2311- | A | 4JJ3 ENG(LNG) | ||
| 645 | I8-97499 106-0 | DETENT ASM | 2 | 2311- | AB | (D-MAX 2024) (B) | ||
| 78 | I8-97494 015-1 | ARM, SHIFT,1ST & 2ND | 1 | 2311- | B | (D-MAX 2024) EXC. MADE IN JAPAN TRANSMISSION<8QP> | ||
| 102 | I8-97494 016-1 | BLOCK ASM, SHIFT,5TH & 6TH | 1 | 2311- | AB | (D-MAX 2024) | ||
| 551 | I8-97507 700-0 | PIN, SPRING | 2 | 2311- | A B | (D-MAX 2024) (B) | ||
| 635 | I8-97507 671-0 | PLUG, DETENT | 3 | 2311- | A | (D-MAX 2024) RZ4E-TCX HI-POWER ENG(LNC) | ||
| 67 | I8-98303 003-0 | ROD, SHIFT,5TH & 6TH | 1 | 2311- | B | (D-MAX 2024) EXC. MADE IN JAPAN TRANSMISSION<8QP> | ||
| 148 | I8-97525 188-0 | GASKET, QUAD BOX | 1 | 2311- | A B | (D-MAX 2024) | ||
| 410 | I9-09571 414-0 | GASKET | 1 | 2311- | A B | (D-MAX 2024) ID=14.2 OD=20 | ||
| 274 | I8-97507 674-0 | COVER, SHAFT,QUAD BOX | 1 | 2311- | B | (D-MAX 2024) | ||
| 624 | I8-98275 459-0 | PLATE, INTER LOCK | 1 | 2311- | A B | (D-MAX 2024) | ||
| 274 | I8-97507 674-0 | COVER, SHAFT,QUAD BOX | 1 | 2311- | A | (D-MAX 2024) RZ4E-TCX HI-POWER ENG(LNC) | ||
| 535 | I8-97543 731-0 | SPRING, LEVER | 1 | 2311- | AB | (D-MAX 2024) (B) INNER | ||
| 78 | I8-97494 015-1 | ARM, SHIFT,1ST & 2ND | 1 | 2311- | A | (D-MAX 2024) | ||
| 635 | I8-97507 671-0 | PLUG, DETENT | 2 | 2311- | A | (D-MAX 2024) 4JJ3 ENG(LNG) | ||
| 262 | I8-97660 735-0 | BOX ASM, SHIFT CONT | 1 | 2311- | A | (D-MAX 2024) RZ4E-TCX HI-POWER ENG(LNC) (B) | ||
| 98 | I8-98275 450-1 | ROD, SHIFT,TOP & 3RD | 1 | 2311- | B | MADE IN JAPAN TRANSMISSION<8QP> | ||
| 535 | I8-97543 730-0 | SPRING, LEVER | 1 | 2311- | A B | (D-MAX 2024) (A) OUTER | ||
| 32 | I8-97494 014-1 | ARM, SHIFT,1ST & 2ND | 1 | 2311- | B | MADE IN JAPAN TRANSMISSION<8QP> | ||
| 65 | I8-97494 016-1 | BLOCK ASM, SHIFT,5TH & 6TH | 1 | 2311- | A B | (D-MAX 2024) | ||
| 396 | I8-97671 709-0 | PLUNGER, SHIFT ROD | 1 | 2311- | A B | (D-MAX 2024) | ||
| 32 | I8-97494 015-1 | ARM, SHIFT,1ST & 2ND | 1 | 2311- | B | (D-MAX 2024) EXC. MADE IN JAPAN TRANSMISSION<8QP> | ||
| 635 | I8-97507 671-0 | PLUG, DETENT | 3 | 2311- | B | (D-MAX 2024) | ||
| 142 | I8-98275 946-0 | BOLT, QUAD BOX | 4 | 2311- | AB | (D-MAX 2024) M8X45 FLANGE | ||
| 98 | I8-98303 002-0 | ROD, SHIFT,TOP & 3RD | 1 | 2311- | A | (D-MAX 2024) | ||
| 398 | I8-98180 974-0 | SWITCH, TRANSFER INDICATOR | 1 | 2311- | A B | (D-MAX 2024) | ||
| 262 | I8-97660 735-0 | BOX ASM, SHIFT CONT | 1 | 2311- | B | (D-MAX 2024) (B) |
