2-35 | MANUAL TRANSMISSION SHIFT CONTROL LEVER
DMAX
D-MAX 2024

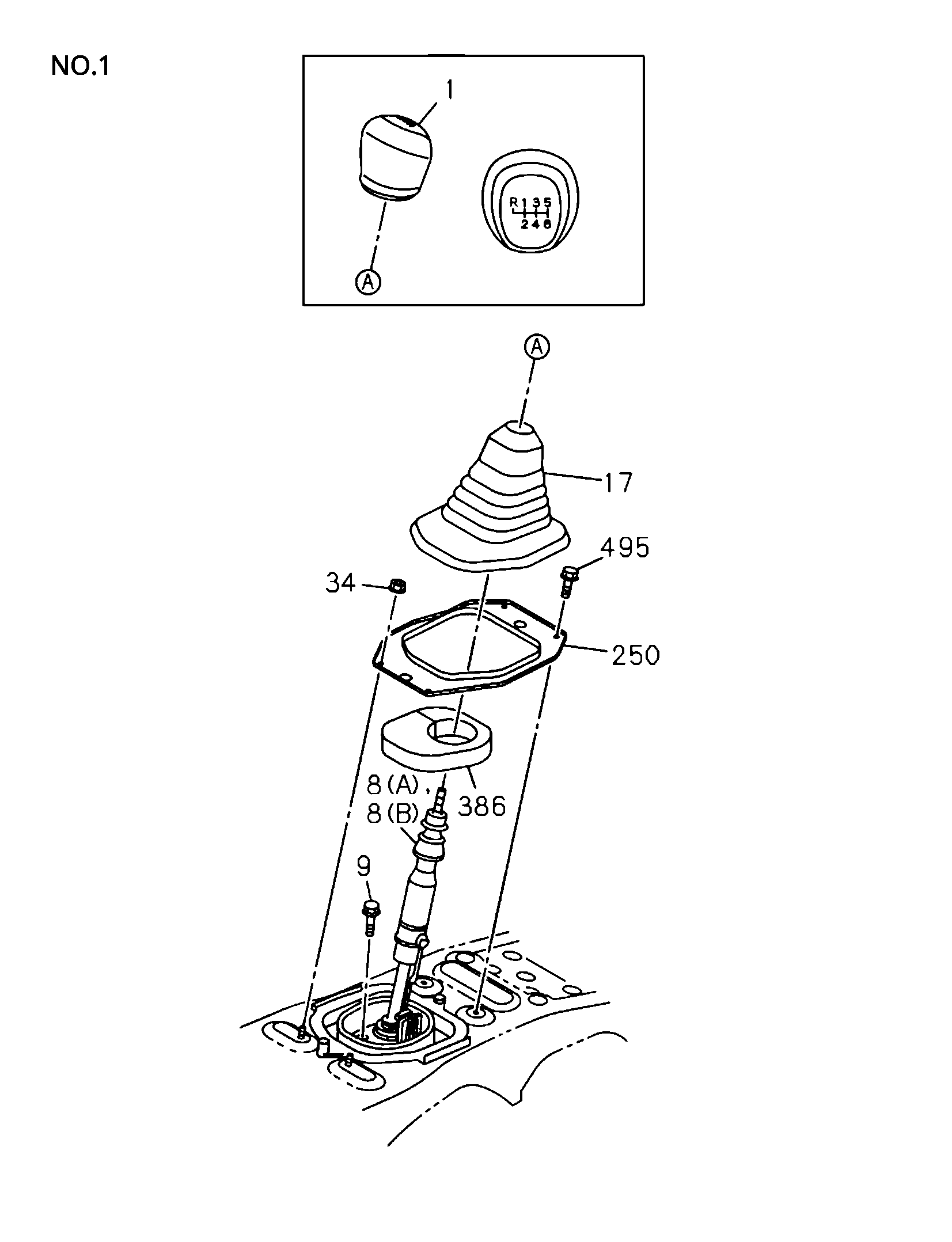

| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 17 | I8-98486 819-0 | GROMMET, TRANS SHIFT LEVER | 1 | 2311- | A B | (D-MAX 2024) FLOOR CONSOLE W/LID & SOFT PAD<D07> SHIFT KNOB LEATHER<VY7> | ||
| 1 | I8-97472 011-2 | KNOB, CHANGE LEVER | 1 | 2311- | A B | SHIFT KNOB LEATHER<VY7> BLACK | ||
| 34 | I8-98055 704-0 | NUT, BRKT | 2 | 2311- | AB | (D-MAX 2024) FLOOR CONSOLE W/LID & SOFT PAD<D07> SHIFT KNOB LEATHER<VY7> m6 FLANGE | ||
| 17 | I8-98486 819-0 | GROMMET, TRANS SHIFT LEVER | 1 | 2311- | A B | (D-MAX 2024) SHIFT KNOB URETHAN<KAE> EXC. FLOOR CONSOLE W/LID & SOFT PAD<D07> | ||

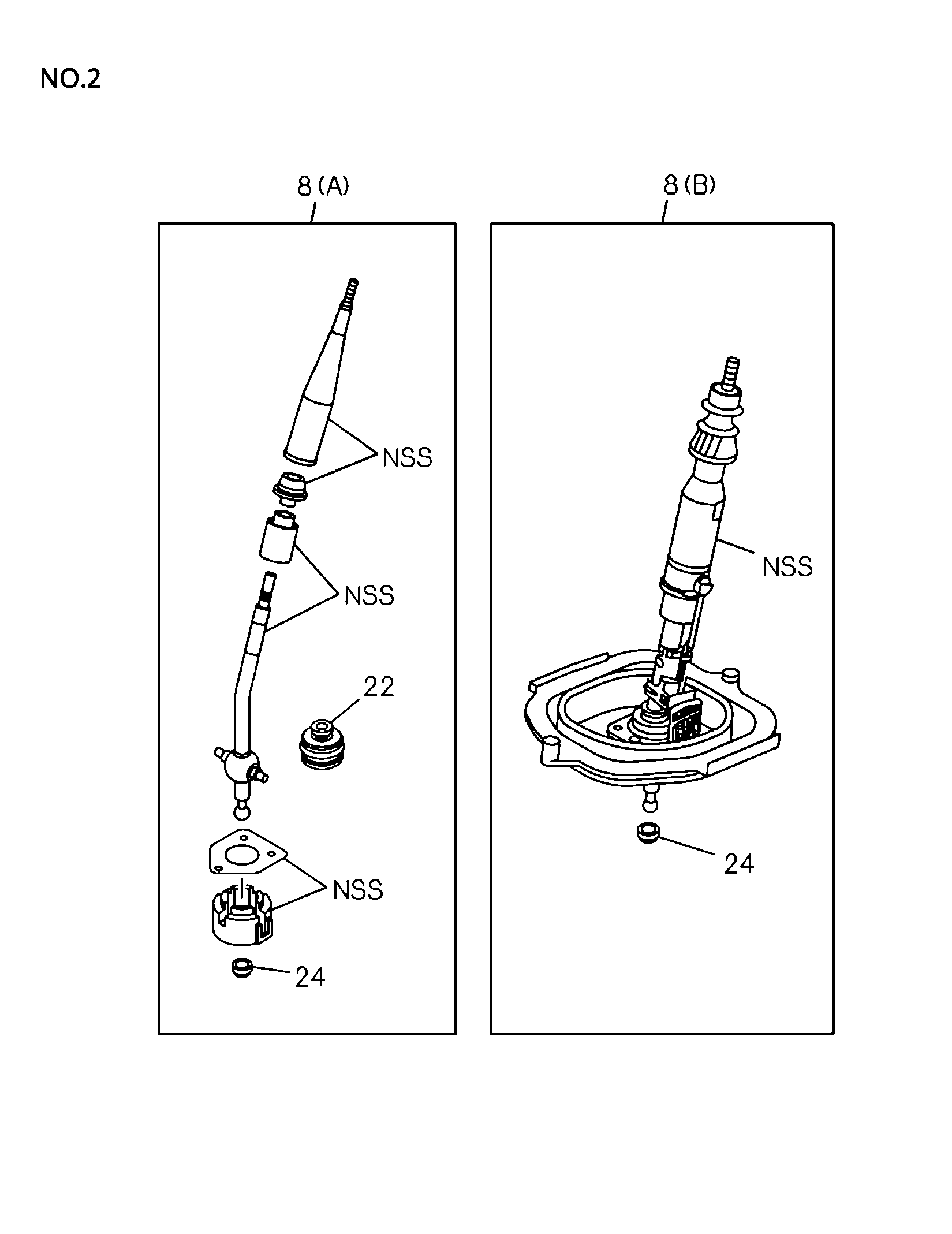

| 8 | I8-97671 493-2 | LEVER, CHANGE | 1 | 2311- | A B | FLOOR CONSOLE W/LID & SOFT PAD<D07> SHIFT KNOB LEATHER<VY7> | ||
| 8 | I8-97671 495-2 | LEVER, CHANGE | 1 | 2311- | ABC | (D-MAX 2024) SHIFT KNOB URETHAN<KAE> EXC. FLOOR CONSOLE W/LID<D55> | ||
| 9 | I8-97554 636-0 | BOLT, CHANGE LEVER | 3 | 2311- | AB | (D-MAX 2024) FLOOR CONSOLE W/LID & SOFT PAD<D07> SHIFT KNOB LEATHER<VY7> M8X25 FLANGE | ||
| 8 | I8-97671 494-2 | LEVER, CHANGE | 1 | 2311- | A B | (D-MAX 2024) SHIFT KNOB URETHAN<KAE> FLOOR CONSOLE W/LID<D55> | ||
| 386 | I8-98398 590-0 | SCREW, GROMMET | 2 | 2311- | A B | (D-MAX 2024) SHIFT KNOB URETHAN<KAE> EXC. FLOOR CONSOLE W/LID & SOFT PAD<D07> BOLT M6X13 FLANGE | ||
| 24 | I8-97943 618-0 | BUSHING, CHANGE LEVER | 1 | 2311- | ABC | (D-MAX 2024) | ||
| 386 | I8-97550 323-1 | INSULATION, CHANGE LEVER | 1 | 2311- | A B | (D-MAX 2024) SHIFT KNOB URETHAN<KAE> EXC. FLOOR CONSOLE W/LID & SOFT PAD<D07> | ||
| 34 | I8-98055 704-0 | NUT, BRKT | 2 | 2311- | A B | (D-MAX 2024) SHIFT KNOB URETHAN<KAE> EXC. FLOOR CONSOLE W/LID & SOFT PAD<D07> m6 FLANGE | ||
| 386 | I8-98398 590-0 | SCREW, GROMMET | 2 | 2311- | A B | (D-MAX 2024) FLOOR CONSOLE W/LID & SOFT PAD<D07> SHIFT KNOB LEATHER<VY7> BOLT M6X13 FLANGE | ||
| 386 | I8-97550 323-1 | INSULATION, CHANGE LEVER | 1 | 2311- | A B | (D-MAX 2024) FLOOR CONSOLE W/LID & SOFT PAD<D07> SHIFT KNOB LEATHER<VY7> | ||
| 250 | I8-98486 820-0 | RETAINER, CHANGE LEVER | 1 | 2311- | A B | (D-MAX 2024) SHIFT KNOB URETHAN<KAE> EXC. FLOOR CONSOLE W/LID & SOFT PAD<D07> | ||
| 9 | I8-97554 636-0 | BOLT, CHANGE LEVER | 3 | 2311- | A B | (D-MAX 2024) SHIFT KNOB URETHAN<KAE> EXC. FLOOR CONSOLE W/LID & SOFT PAD<D07> M8X25 FLANGE | ||
| 250 | I8-98486 820-0 | RETAINER, CHANGE LEVER | 1 | 2311- | A B | (D-MAX 2024) FLOOR CONSOLE W/LID & SOFT PAD<D07> SHIFT KNOB LEATHER<VY7> | ||
| 1 | I8-97472 010-2 | KNOB, CHANGE LEVER | 1 | 2311- | A B | (D-MAX 2024) SHIFT KNOB URETHAN<KAE> BLACK |
