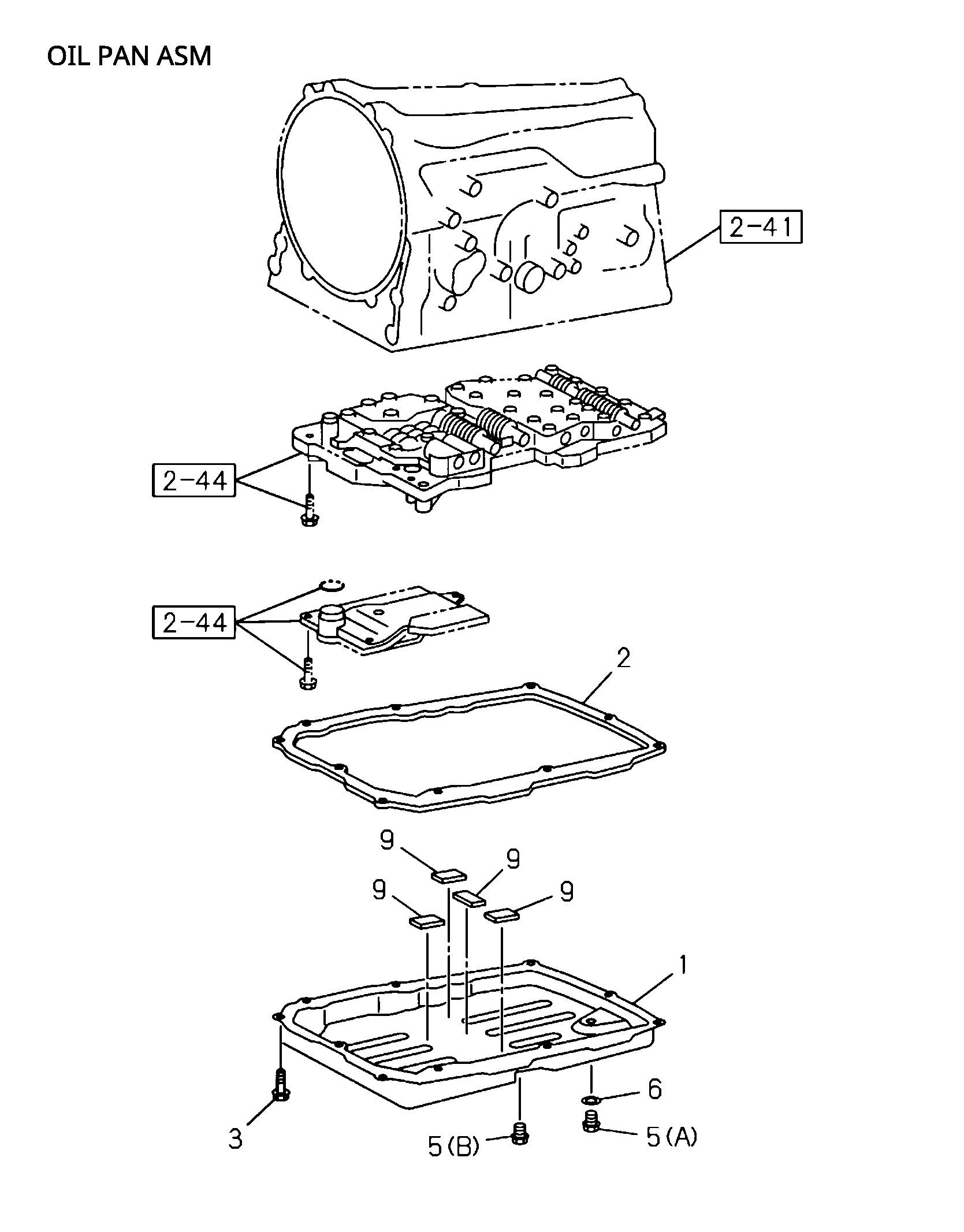

2-42 | AUTO TRANS OIL PAN AND OIL CONTROL
DMAX
D-MAX 2024
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

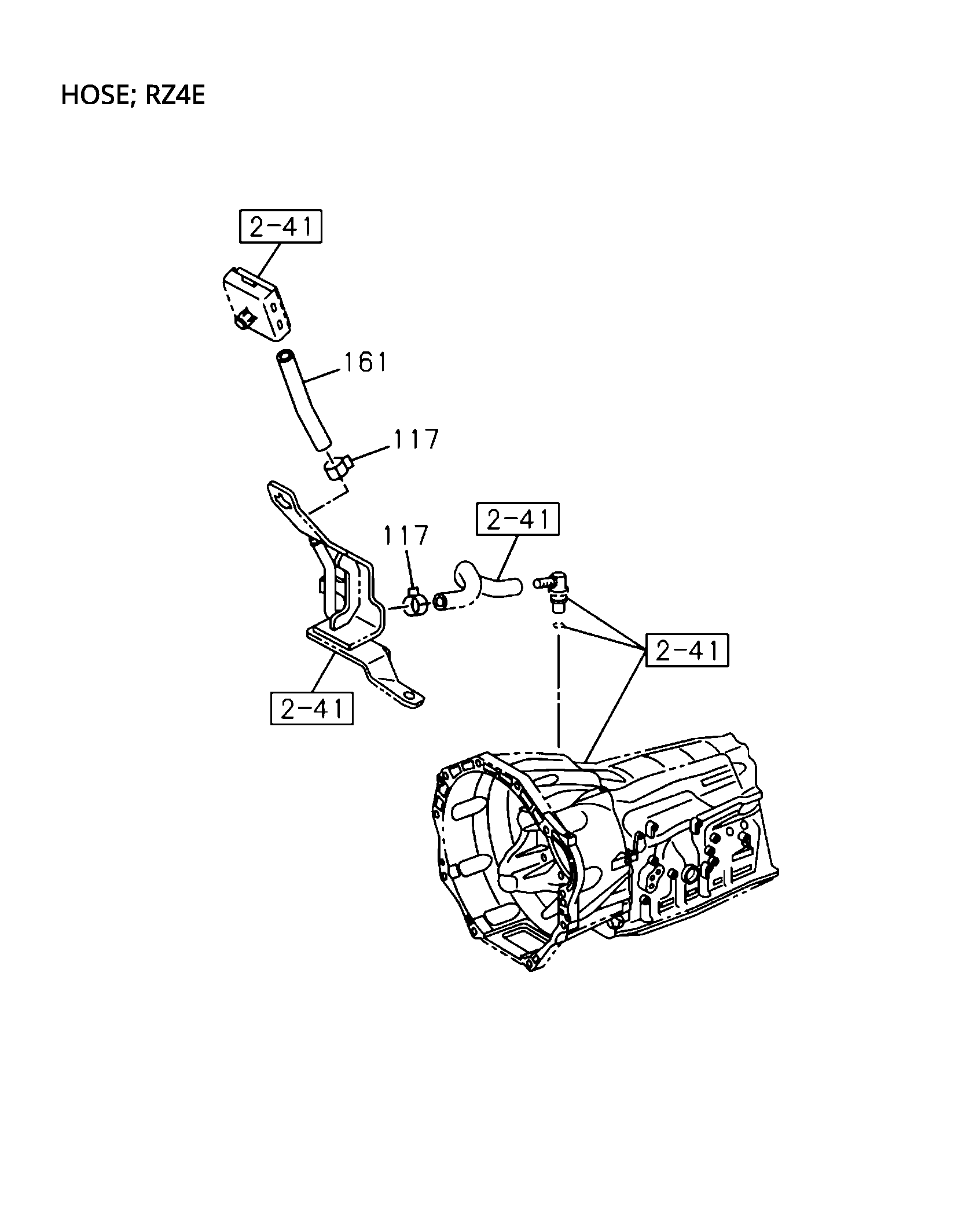

| 161 | I0-02857 300-0 | HOSE, FAST IDLE TO COMMON CHAMBER,OUTLET | 1 | 2311- | C | (D-MAX 2024) L=90 SERVICED BY L=3000 | ||
| 2 | I8-97828 469-0 | GASKET, OIL PAN,A/T | 1 | 2311- | C | EXC. MADE IN JAPAN TRANSMISSION<8QP> | ||
| 1 | I8-97828 468-0 | PAN ASM, OIL,A/T | 1 | 2311- | C | EXC. MADE IN JAPAN TRANSMISSION<8QP> | ||
| 9 | I5-34138 004-0 | MAGNET, OIL PAN | 4 | 2311- I | C | (D-MAX 2024) | ||
| 1 | I8-98342 028-0 | PAN ASM, OIL,A/T | 1 | 2311- | C | (D-MAX 2024) MADE IN JAPAN TRANSMISSION<8QP> | ||
| 6 | I5-34132 002-0 | GASKET, OIL PAN TO PLUG | 2 | 2311- I | C | (D-MAX 2024) ID=12 | ||
| 3 | I8-98342 007-0 | BOLT, OIL PAN TO CASE | 10 | 2311- I | C | (D-MAX 2024) | ||
| 117 | I8-97947 824-0 | CLIP, HOSE | 2 | 2311- I | C | (D-MAX 2024) ID=12 WO/PVC COATING | ||
| 5 | I8-97367 573-0 | PLUG, OIL PAN | 1 | 2311- | C | (D-MAX 2024) (A) M10X9 | ||
| 5 | I8-98189 752-0 | PLUG, OIL PAN | 1 | 2311- | C | (D-MAX 2024) (B) M10X9 | ||
| 2 | I8-98341 914-0 | GASKET, OIL PAN,A/T | 1 | 2311- | C | (D-MAX 2024) MADE IN JAPAN TRANSMISSION<8QP> |
