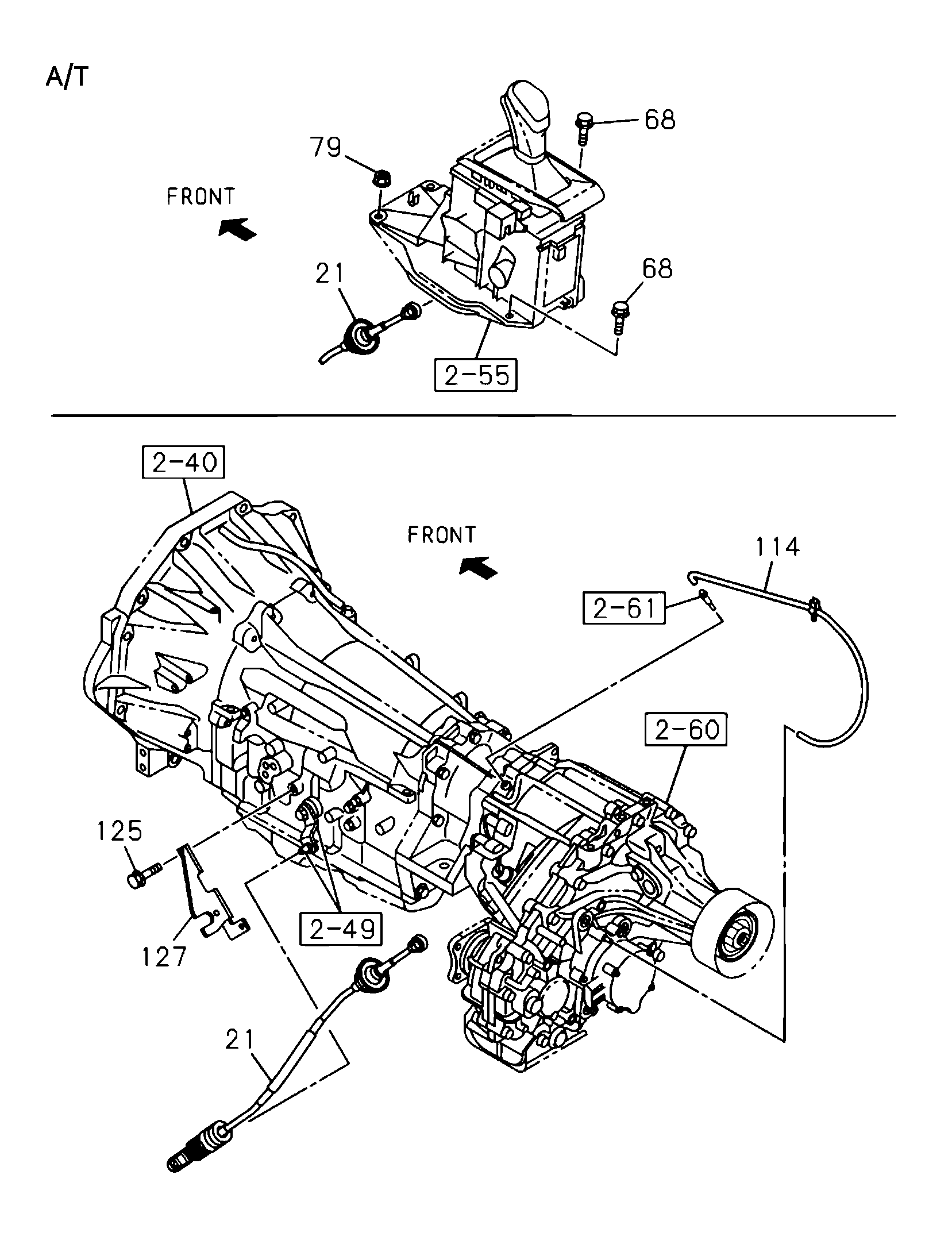

2-56 | AUTO TRANS CONTROL LINK
DMAX
D-MAX 2024
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 21 | I8-98375 532-3 | CABLE, A/T | 1 | 2311- | C | 4JJ3 ENG(LNG) | ||
| 125 | I0-28650 620-0 | BOLT, BALANCE SPRING | 2 | 2311- | C | (D-MAX 2024) M6X20 FLANGE | ||
| 68 | I0-28650 620-0 | BOLT, BALANCE SPRING | 2 | 2311- | C | (D-MAX 2024) M6X20 FLANGE | ||

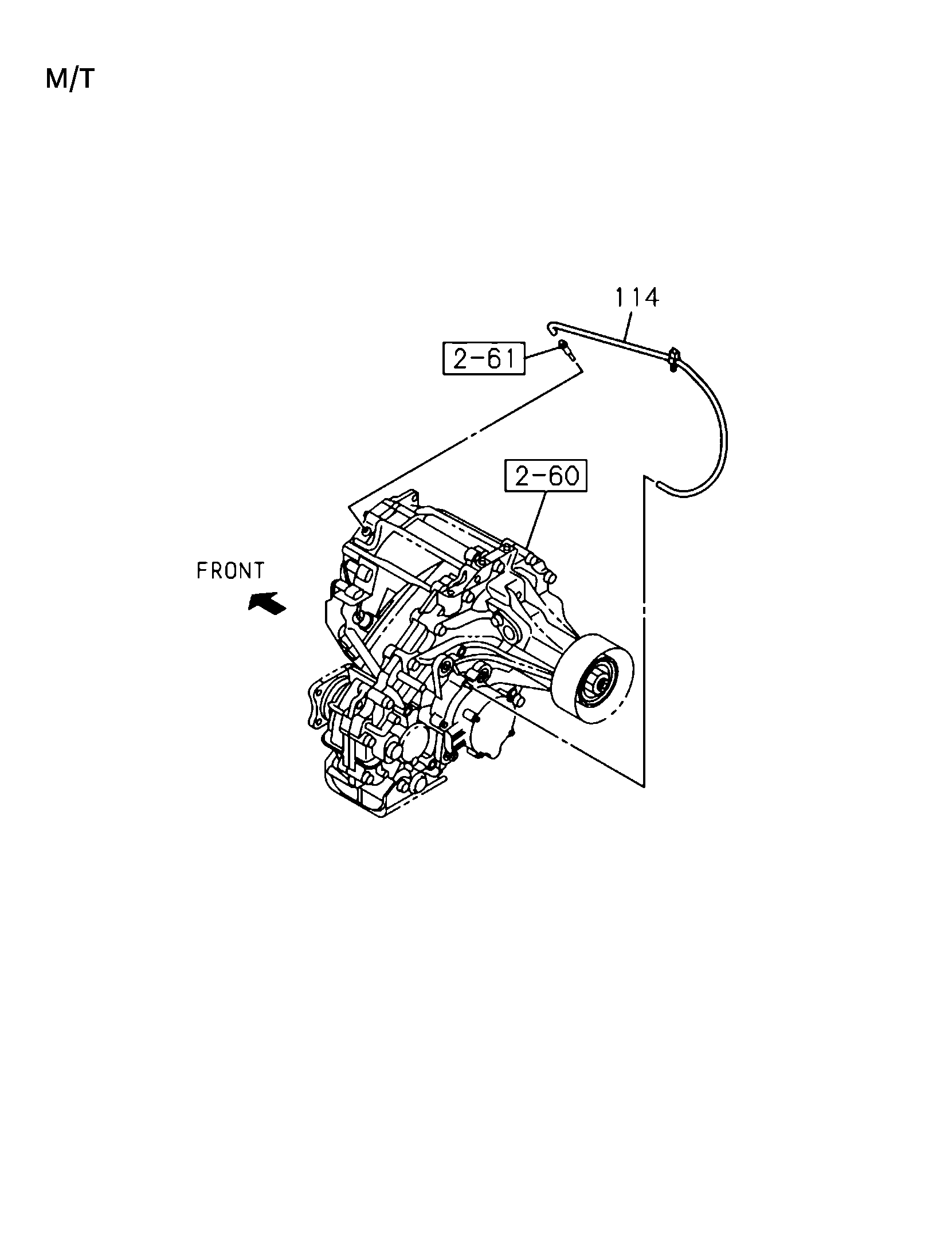

| 114 | I8-98183 634-0 | HOSE, BREATHER | 1 | 2311- | ABC | (D-MAX 2024) 4X4(TFS***) L=527 | ||
| 79 | I8-98055 704-0 | NUT, BRKT | 2 | 2311- | C | (D-MAX 2024) M6 FLANGE | ||
| 21 | I8-98375 321-3 | CABLE, A/T | 1 | 2311- | C | (D-MAX 2024) RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) | ||
| 127 | I8-98375 322-1 | BRACKET, A/T CONT CABLE | 1 | 2311- | C | (D-MAX 2024) |
