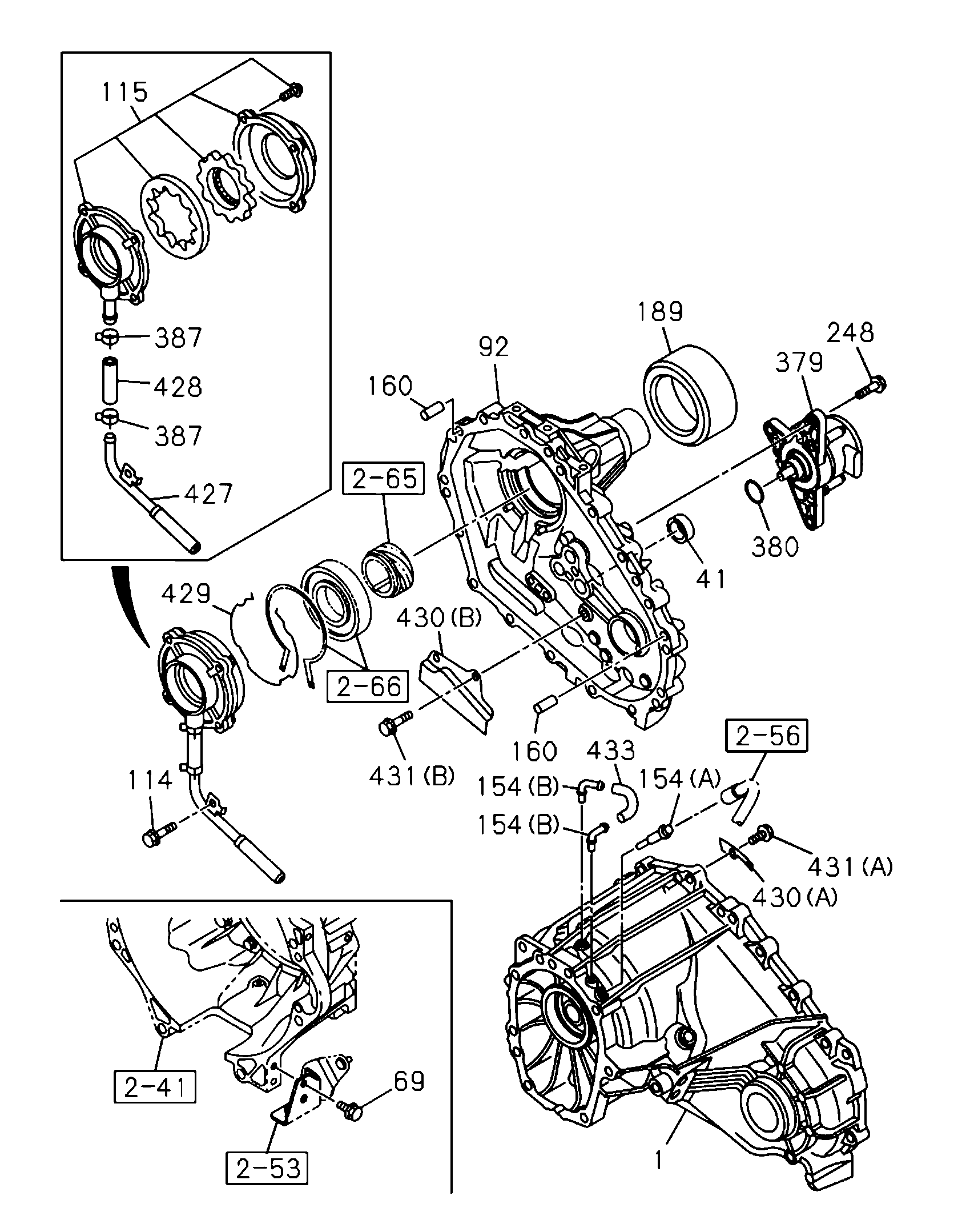

Key	PART NO	DESCRIPTION	QTY	APP DATE	MODEL	REMARKS

160	I8-97135 423-0	PIN, KNOCK,TRANSFER CASE	2	2311-	D E F	(D-MAX 2024) OD=10 L=20
379	I8-97244 446-0	ACTUATOR, TRANSFER,2-4 SHIFT	1	2311-	D E F	(D-MAX 2024)
387	I8-97329 628-0	CLIP, HOSE,BYPASS	2	2311-	D E F	ID=16
430	I8-97239 130-0	PLATE, BAFFLE	1	2311-	D E F	(D-MAX 2024) (A)
114	I0-28650 820-0	BOLT	1	2311-	D E F	(D-MAX 2024) M8X20 FLANGE
92	I8-97497 447-0	COVER, RR,TRANSFER	1	2311-	D E F	(D-MAX 2024)
428	I8-98064 220-0	HOSE, OIL PUMP	1	2311-	D E F	(D-MAX 2024) L=50
1	I7-55228 369-0	CASE, TRANSFER	1	2402-	D E F	(D-MAX 2024)
154	I8-97358 318-0	PIPE, BREATHER	2	2311-	D E F	(D-MAX 2024) (B)
380	I8-97318 475-0	GASKET, ACTUATOR	1	2311-	D E F	(D-MAX 2024) ID=29.7 OD=36.7
41	I8-97238 998-0	SEAL, OIL,SHIFT ROD	1	2311-	D E F	(D-MAX 2024)
115	I8-97267 129-1	PUMP ASM, OIL,TRANSFER	1	2311-	D E F	(D-MAX 2024)
154	I8-97358 319-0	PIPE, BREATHER	1	2311-	D E F	(D-MAX 2024) (A)
69	I0-28051 020-0	BOLT, ENG FOOT	2	2311-	ABCDE F	(D-MAX 2024) A/T 6 SPEED AISIN(Y6A) M10X20 FLANGE
1	I8-97497 446-1	CASE, TRANSFER	1	2311-2401	D E F
248	I0-28650 830-0	BOLT, BRKT	3	2311-	D E F	(D-MAX 2024) M8X30 FLANGE
429	I8-97240 666-0	RING, SNAP,OIL PUMP	1	2311-	D E F	(D-MAX 2024)
431	I0-28650 616-0	SCREW, TANK TO BRKT	1	2311-	D E F	(D-MAX 2024) (A) M6X16 FLANGE
430	I8-98063 360-0	PLATE, BAFFLE	1	2311-	D E F	(D-MAX 2024) (B)
433	I8-97236 080-0	HOSE, AIR,TRANSFER	1	2311-	D E F	(D-MAX 2024)
431	I0-28650 820-0	BOLT	2	2311-	D E F	(D-MAX 2024) (B) M8X20 FLANGE
189	I8-97483 602-0	COVER, DUST,OIL SEAL	1	2311-	D E F	(D-MAX 2024)
427	I8-98063 358-0	SCREEN, OIL PUMPT	1	2311-	D E F	(D-MAX 2024)
