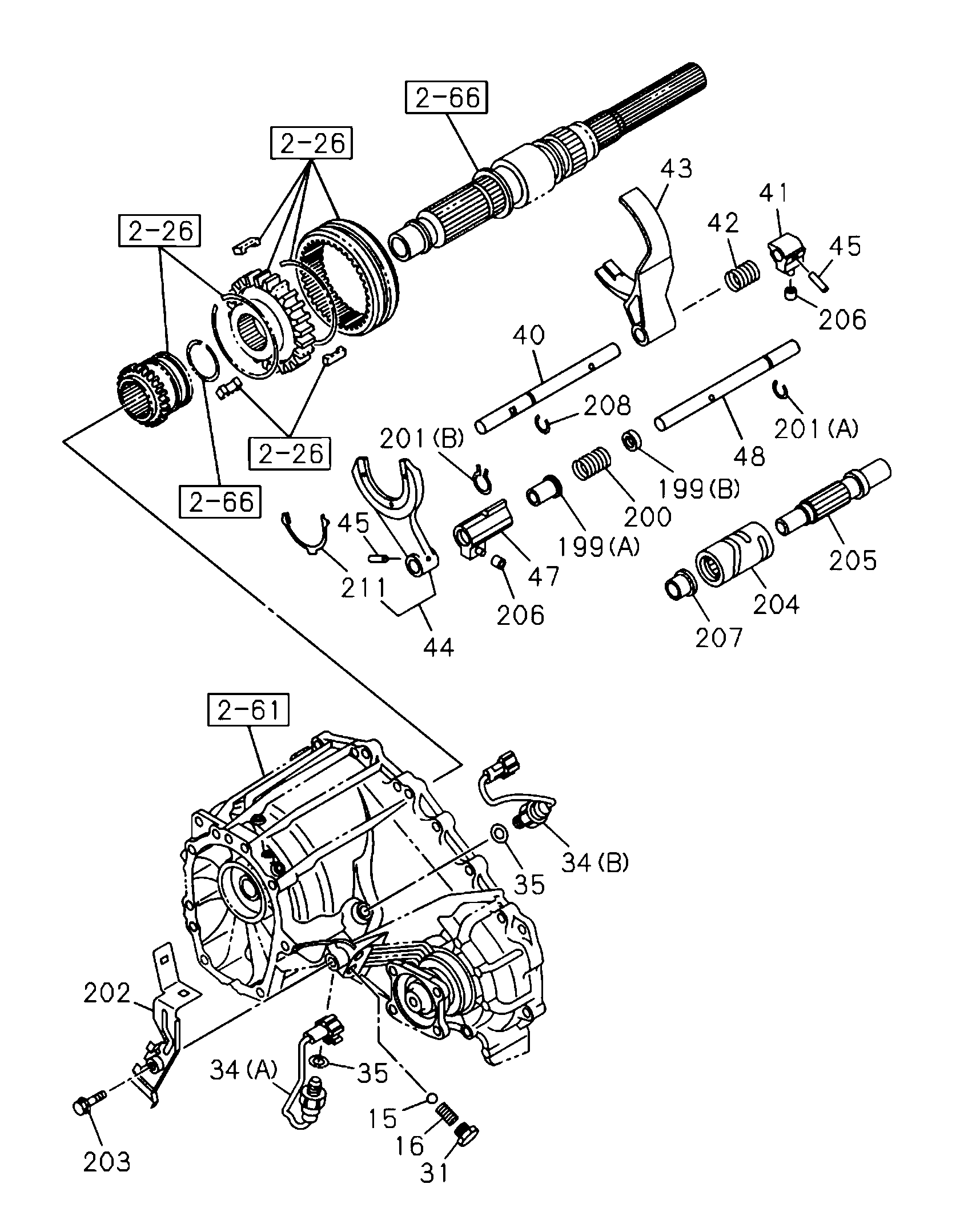

2-62 | TRANSFER SIDE CASE AND SHIFT LEVER
DMAX
D-MAX 2024
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 45 | I8-94171 541-0 | PIN, SPR,SHIFT ARM | 2 | 2311- | D E F | (D-MAX 2024) D=4.2 L=25 | ||
| 48 | I8-97234 230-0 | ROD, SHIFT,HIGH-LOW,TRANSFER | 1 | 2311- | D E F | (D-MAX 2024) | ||
| 208 | I8-94460 357-0 | RING, SNAP,SHIFT ROD | 1 | 2311- | D E F | (D-MAX 2024) ID=12 | ||
| 43 | I8-97234 231-0 | ARM, SHIFT,4X2-4X4,TRANSFER | 1 | 2311- | D E F | (D-MAX 2024) | ||
| 203 | I0-28650 825-0 | BOLT, BATTERY CABLE | 1 | 2311- | D E F | (D-MAX 2024) M8X25 FLANGE | ||
| 207 | I8-98158 124-0 | BUSH, CONTROL SHAFT | 1 | 2311- | D E F | (D-MAX 2024) | ||
| 34 | I8-98181 233-0 | SWITCH, TRANSFER INDICATOR | 1 | 2311- | D E F | (D-MAX 2024) (B) PUSH OFF | ||
| 200 | I8-97239 011-0 | SPRING, SHIFT HIGH-LOW | 1 | 2311- | D E F | (D-MAX 2024) | ||
| 34 | I8-98181 234-0 | SWITCH, TRANSFER INDICATOR | 1 | 2311- | D E F | (D-MAX 2024) (A) PUSH ON | ||
| 31 | I8-97873 324-0 | PLUG, DETENT BALL,TRANSFER | 2 | 2311- | D E F | (D-MAX 2024) M12X9 | ||
| 199 | I8-97234 663-1 | COLLAR, TRANSFER CONTROL | 1 | 2311- | D E F | (D-MAX 2024) (B) | ||
| 205 | I8-98063 364-1 | SHAFT, SHIFT DRUM | 1 | 2311- | D E F | (D-MAX 2024) | ||
| 201 | I8-97305 011-1 | RING, SNAP,SHIFT | 1 | 2311- | D E F | (D-MAX 2024) (B) ID=23 | ||
| 16 | I8-97145 374-0 | SPRING, DETENT,SHIFT ROD,TRANSFER | 2 | 2311- | D E F | (D-MAX 2024) L=23.4 | ||
| 15 | I8-94435 335-0 | BALL, DETENT,GEAR SHIFT | 2 | 2311- | D E F | (D-MAX 2024) | ||
| 204 | I8-98158 123-0 | DRUM, SHIFT | 1 | 2311- | D E F | (D-MAX 2024) | ||
| 47 | I7-55206 895-0 | BLOCK, SHIFT,LOW-HIGH,TRANSFER | 1 | 2311- | D E F | (D-MAX 2024) | ||
| 40 | I8-97234 229-0 | ROD, SHIFT,4X2-4X4,TRANSFER | 1 | 2311- | D E F | (D-MAX 2024) | ||
| 199 | I7-55208 326-0 | COLLAR, TRANSFER CONTROL | 1 | 2311- | D E F | (D-MAX 2024) (A) | ||
| 211 | I8-97553 222-0 | PAD, SHIFT FORK | 2 | 2311- | D E F | (D-MAX 2024) | ||
| 201 | I8-94460 357-0 | RING, SNAP,SHIFT ROD | 1 | 2311- | D E F | (D-MAX 2024) (A) ID=12 | ||
| 41 | I8-97234 233-1 | BLOCK, SHIFT,4X2-4X4,TRANSFER | 1 | 2311- | D E F | (D-MAX 2024) | ||
| 42 | I8-97239 010-1 | SPRING, GEAR LOCK RELEASE,TRANSFER | 1 | 2311- | D E F | (D-MAX 2024) | ||
| 44 | I8-97553 219-0 | ARM, SHIFT,HIGH-LOW,TRANSFER | 1 | 2311- | D E F | (D-MAX 2024) | ||
| 35 | I9-09571 414-0 | GASKET | 2 | 2311- | D E F | (D-MAX 2024) ID=14.2 OD=20 | ||
| 202 | I8-98118 922-1 | BRACKET, SWITCH | 1 | 2311- | D E F | (D-MAX 2024) | ||
| 206 | I8-97234 499-0 | ROLLER, GUIDE,SHIFT | 2 | 2311- | D E F | (D-MAX 2024) |
