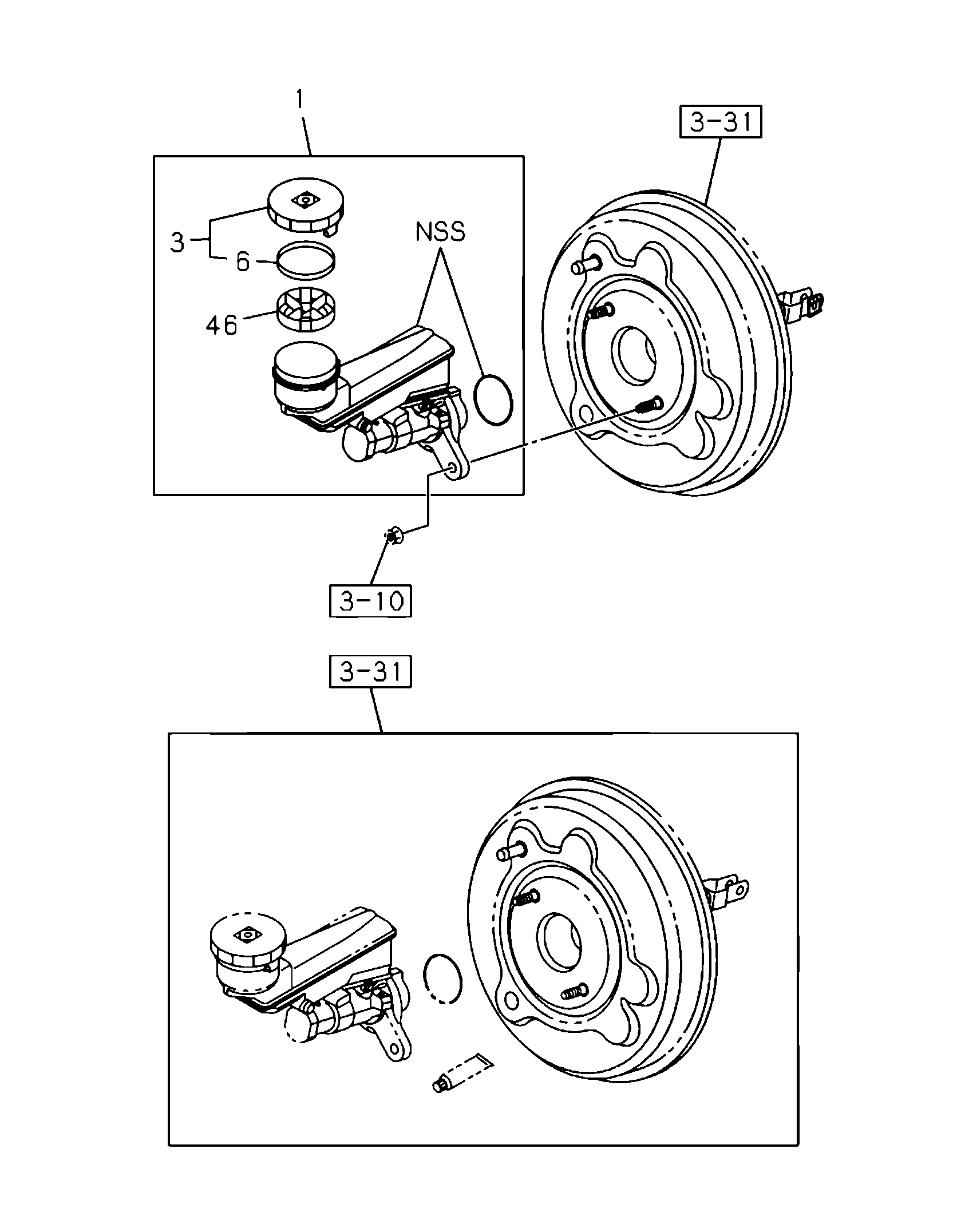

3-30 | BRAKE MASTER CYLINDER
DMAX
D-MAX 2024
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 1 | I8-97504 347-0 | CYLINDER ASM, BRK MASTER | 1 | 2311- | BC D E F | (D-MAX 2024) A/T 6 SPEED AISIN(Y6A) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9>,ELECTRONIC TRACTION CONTROL W/OFF-ROAD MODE<8YP> | ||
| 46 | I8-98047 702-0 | FILTER, OIL TANK,M/CYL | 1 | 2311- | ABCDE F | (D-MAX 2024) | ||
| 6 | I8-98047 706-0 | DIAPHRAGM, BRK M/CYL | 1 | 2311- | ABCDE F | (D-MAX 2024) | ||
| 1 | I8-97504 346-0 | CYLINDER ASM, BRK MASTER | 1 | 2311- | BCDE F | (D-MAX 2024) M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9>,ELECTRONIC TRACTION CONTROL W/OFF-ROAD MODE<8YP> | ||
| 3 | I8-98047 704-0 | CAP, OIL TANK | 1 | 2311- | ABCDE F | (D-MAX 2024) | ||
| 1 | I8-97504 349-0 | CYLINDER ASM, BRK MASTER | 1 | 2311- | BC D E F | A/T 6 SPEED AISIN(Y6A) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9>,IDLE STOP SYSTEM<8BM>, ELECTRONIC TRACTION CONTROL W/OFF-ROAD MODE<8YP> | ||
| 1 | I8-97504 348-0 | CYLINDER ASM, BRK MASTER | 1 | 2311- | BC D E F | (D-MAX 2024) M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S) EXC. ELECTRONIC TRACTION CONTROL<NW9>,IDLE STOP SYSTEM<8BM>, ELECTRONIC TRACTION CONTROL W/OFF-ROAD MODE<8YP> | ||
| 1 | I8-97504 347-0 | CYLINDER ASM, BRK MASTER | 1 | 2311- | A | (D-MAX 2024) |
