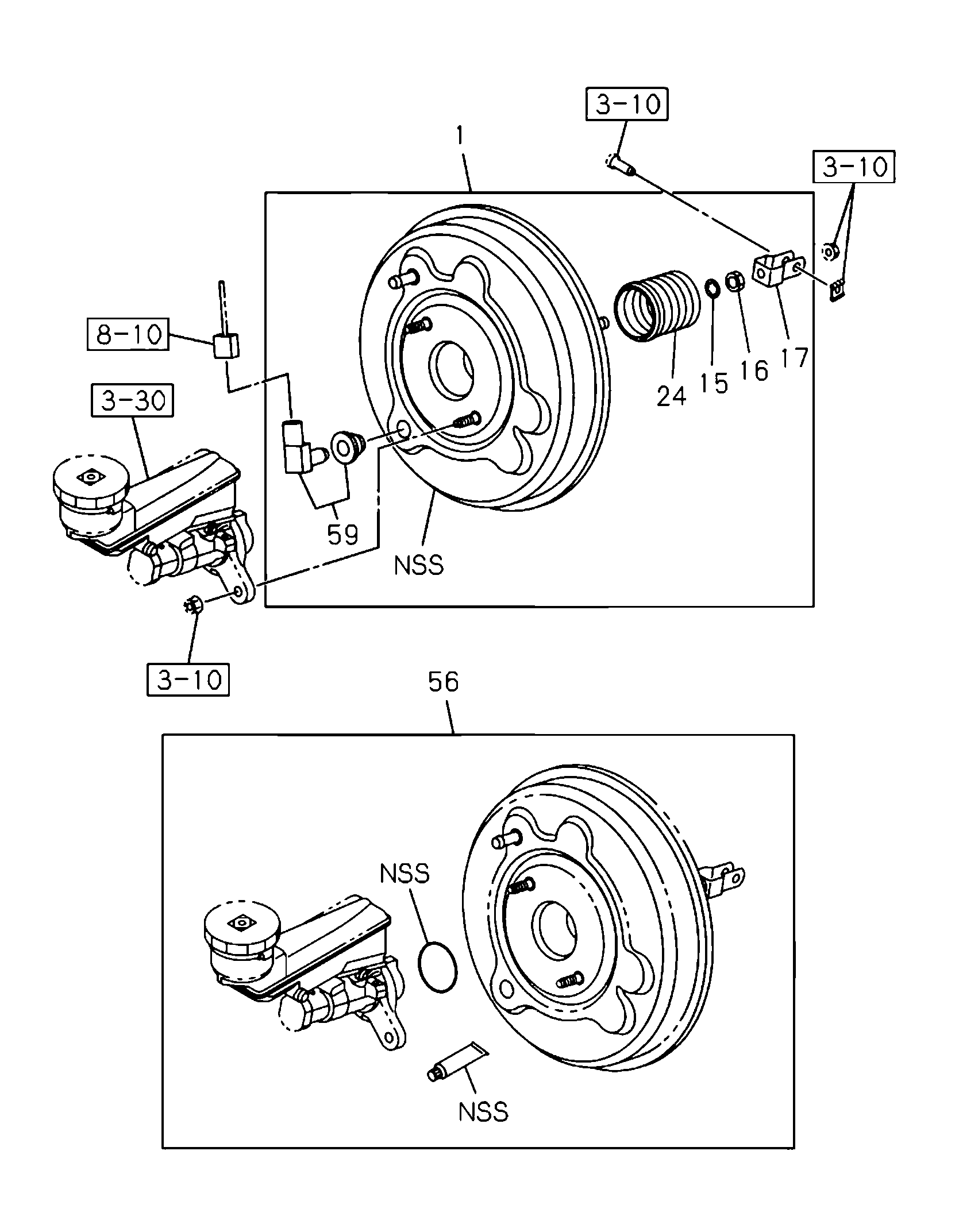

3-31 | BRAKE MASTER VAC AND BRAKE BOOSTER
DMAX
D-MAX 2024
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 17 | I8-98048 039-0 | CLEVIS, YOKE,M/VAC | 1 | 2311- | A BC D E F | (D-MAX 2024) | ||
| 1 | I8-97504 358-2 | MASTER VAC ASM, BRK | 1 | 2311- | ACE | (D-MAX 2024) | ||
| 1 | I8-97504 358-2 | MASTER VAC ASM, BRK | 1 | 2311- | B D F | (D-MAX 2024) EXC. IDLE STOP SYSTEM<8BM> | ||
| 15 | I8-98048 040-0 | RETAINER, GUARD,M/VAC | 1 | 2311- | ABCDE F | (D-MAX 2024) | ||
| 24 | I8-98185 212-0 | GUARD, VLV BODY,M/VAC | 1 | 2311- | ABCDE F | (D-MAX 2024) | ||
| 16 | I8-98048 038-0 | NUT, VLV ROD,M/VAC | 1 | 2311- | A BC D E F | (D-MAX 2024) | ||
| 56 | I8-98185 211-0 | GASKET KIT, M/CYL TO SERVO UNIT | 1 | 2311- | ABCDE F | (D-MAX 2024) W/GREASE | ||
| 1 | I8-97504 357-2 | MASTER VAC ASM, BRK | 1 | 2311- | B D F | IDLE STOP SYSTEM<8BM> | ||
| 59 | I8-97525 442-0 | SENSOR KIT, VACUUM | 1 | 2311- | B D F | IDLE STOP SYSTEM<8BM> |
