| 19 |
I8-98484 281-1 |
|
PIPE, BRK,M/CYL TO UNION |
1 |
2311- |
|
BC |
(D-MAX 2024) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (C) |
| 72 |
I0-28650 616-0 |
|
SCREW, TANK TO BRKT |
3 |
2311- |
|
A |
(D-MAX 2024) M6X16 FLANGE |

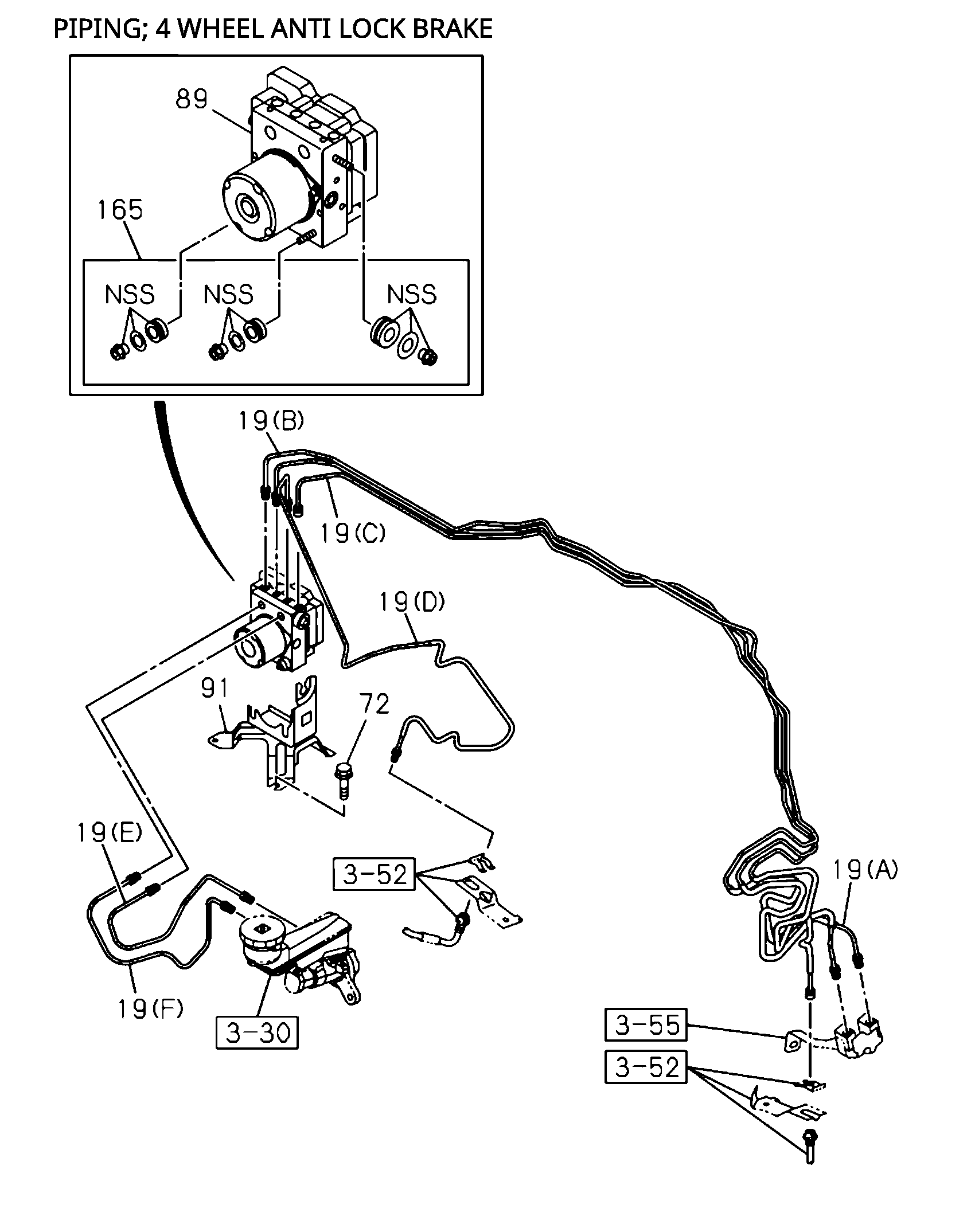

| 89 |
I8-98395 078-1 |
|
HYDRAULIC UNIT, ANTI LOCK BRK |
1 |
2311- |
|
F |
(D-MAX 2024) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),GENERAL EXPORT EQUIPMENT(TAA) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9>,ELECTRONIC TRACTION CONTROL W/OFF-ROAD MODE<8YP> |
| 184 |
I0-28050 612-0 |
|
BOLT, STAY,PRESSURE REG |
2 |
2311- |
|
BC |
(D-MAX 2024) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (B) M6X12 FLANGE |
| 89 |
I7-55181 502-0 |
|
HYDRAULIC UNIT, ANTI LOCK BRK |
1 |
2311- |
|
B |
(D-MAX 2024) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),GENERAL EXPORT EQUIPMENT(TAA) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> EXC. SAFETY PACKAGE FRT & RR<8SY> |
| 19 |
I8-98484 281-1 |
|
PIPE, BRK,M/CYL TO UNION |
1 |
2311- |
|
A |
(D-MAX 2024) (C) |
| 165 |
I8-97536 877-0 |
|
RUBBER KIT, HYDRAULIC UNIT |
1 |
2311- |
|
BCDE F |
(D-MAX 2024) 4 WHEEL ANTI LOCK BRAKE<JE5> |
| 19 |
I8-98395 354-0 |
|
PIPE, BRK |
1 |
2311- |
|
B C D E F |
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 0) |
| 89 |
I7-55181 506-0 |
|
HYDRAULIC UNIT, ANTI LOCK BRK |
1 |
2311- |
|
C |
MALAYSIA EQUIPMENT(B10),AUSTRALIA EQUIPMENT(B13),GENERAL EXPORT EQUIPMENT(TAA) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> SAFETY PACKAGE FRT<8SW>,SAFETY PACKAGE FRT & RR<8SY> |
| 19 |
I8-98484 278-0 |
|
PIPE, BRK |
1 |
2311- |
|
BC D E F |
(D-MAX 2024) 4 WHEEL ANTI LOCK BRAKE<JE5> (D) |
| 184 |
I0-28650 616-0 |
|
SCREW, TANK TO BRKT |
2 |
2311- |
|
BCDE F |
(D-MAX 2024) 4 WHEEL ANTI LOCK BRAKE<JE5> (a) M6X16 FLANGE |

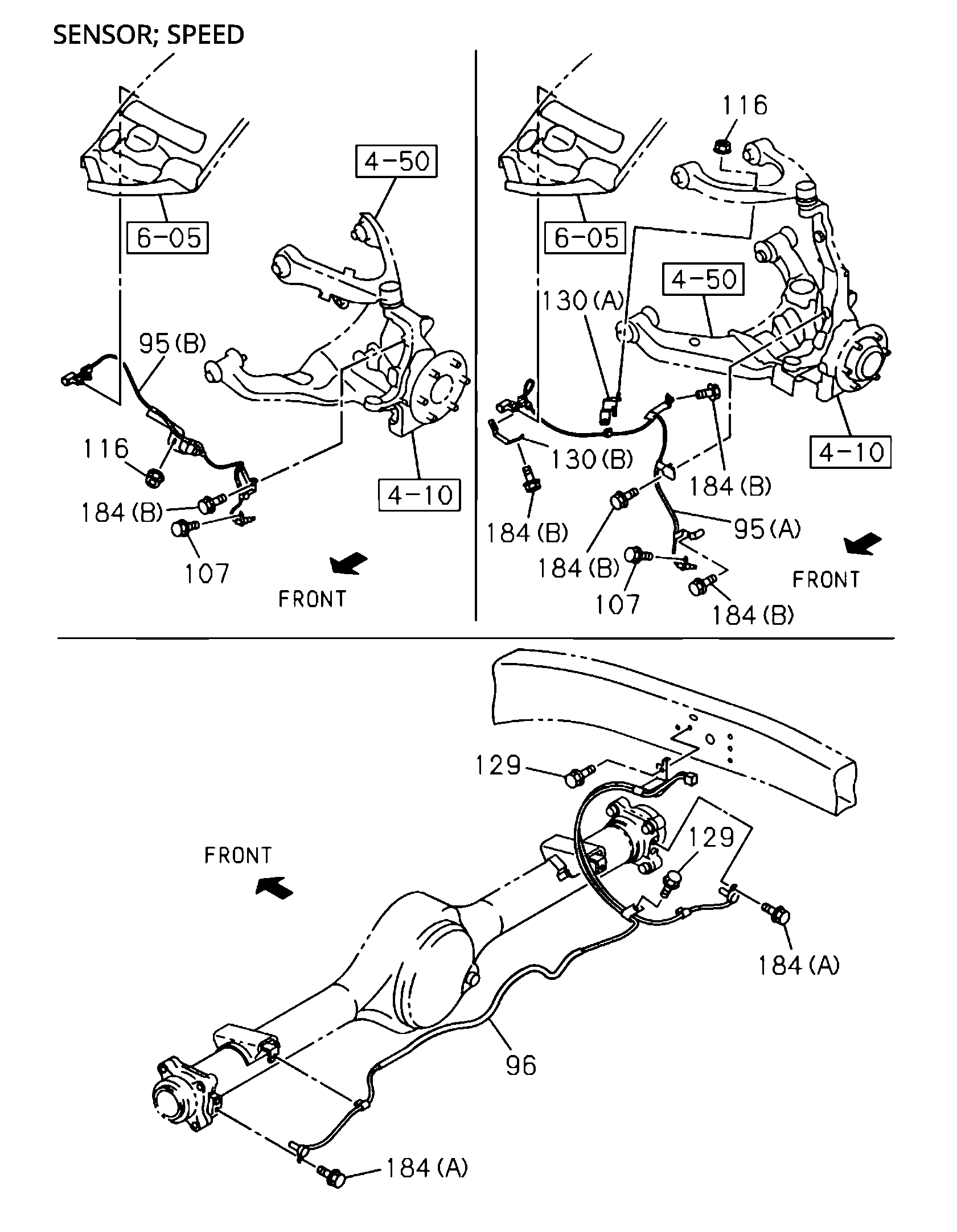

| 96 |
I8-98371 215-0 |
|
SENSOR, SPD,RR WHEEL |
1 |
2311- |
|
D E F |
(D-MAX 2024) 4 WHEEL ANTI LOCK BRAKE<JE5> |
| 19 |
I8-98484 280-1 |
|
PIPE, BRK,M/CYL TO UNION |
1 |
2311- |
|
D E F |
(D-MAX 2024) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9>,ELECTRONIC TRACTION CONTROL W/OFF-ROAD MODE<8YP> (B) |
| 26 |
I8-97518 073-0 |
|
BRACKET, PROPORTIONING VLV |
1 |
2311- |
|
BC |
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> |
| 130 |
I8-97517 085-0 |
|
BRACKET, SPEED SENSOR |
1 |
2311- |
|
BC |
(D-MAX 2024) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (B) |
| 19 |
I8-98395 377-1 |
|
PIPE, BRK,M/CYL TO UNION |
1 |
2311- |
|
A |
(D-MAX 2024) (F) |

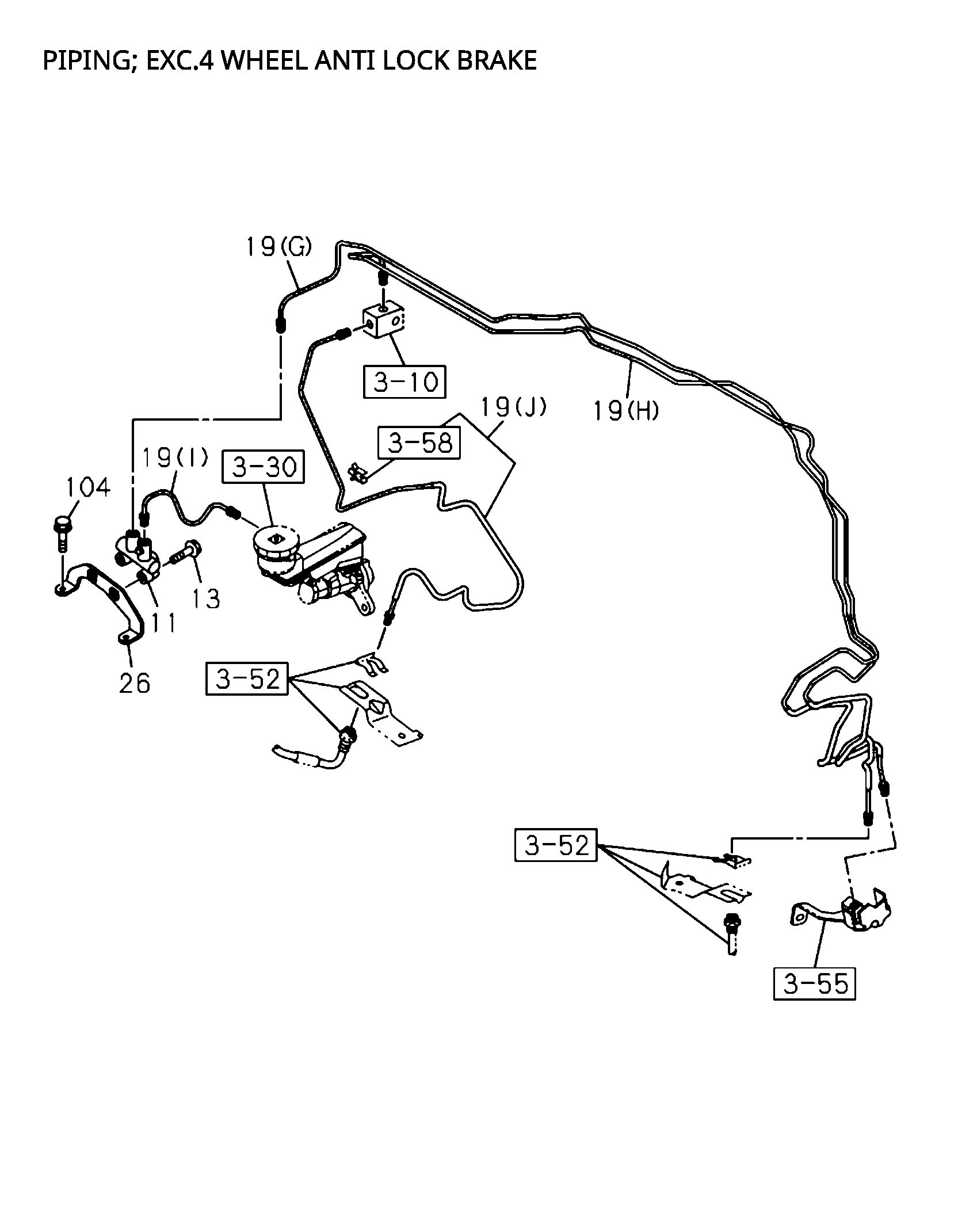

| 19 |
I8-97552 649-0 |
|
PIPE, BRK,M/CYL TO UNION |
1 |
2311- |
|
B C D E F |
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (g) |
| 89 |
I7-55181 506-0 |
|
HYDRAULIC UNIT, ANTI LOCK BRK |
1 |
2311- |
|
d |
AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),GENERAL EXPORT EQUIPMENT(TAA) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9>,ELECTRONIC TRACTION CONTROL W/OFF-ROAD MODE<8YP> SAFETY PACKAGE FRT 8< RR<8SY> |
| 95 |
I7-55190 188-0 |
|
SENSOR, SPD,FRT WHEEL |
1 |
2311- |
|
BC |
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (B) |
| 89 |
I7-55181 506-0 |
|
HYDRAULIC UNIT, ANTI LOCK BRK |
1 |
2311- |
|
E |
INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),AUSTRALIA EQUIPMENT(B13),GENERAL EXPORT EQUIPMENT(TAA) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9>,ELECTRONIC TRACTION CONTROL W/OFF-ROAD MODE<8YP> SAFETY PACKAGE FRT & RR<8SY> |
| 129 |
I0-28650 616-0 |
|
SCREW, TANK TO BRKT |
2 |
2311- |
|
BCDE F |
(D-MAX 2024) 4 WHEEL ANTI LOCK BRAKE<JE5> M6X16 FLANGE |
| 19 |
I8-98395 376-1 |
|
PIPE, BRK,M/CYL TO UNION |
1 |
2311- |
|
BC |
(D-MAX 2024) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (F) |
| 184 |
I0-28050 612-0 |
|
BOLT, STAY,PRESSURE REG |
8 |
2311- |
|
BC |
(D-MAX 2024) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (B) M6X12 FLANGE |
| 95 |
I8-98371 293-1 |
|
SENSOR, SPD,FRT WHEEL |
1 |
2311- |
|
BC |
(D-MAX 2024) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (A) |
| 116 |
I0-91180 106-0 |
|
NUT:CONICAL |
2 |
2311- |
|
A |
(D-MAX 2024) M6 FLANGE |
| 130 |
I8-97517 086-0 |
|
BRACKET, SPEED SENSOR |
1 |
2311- |
|
BC |
(D-MAX 2024) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (B) |
| 91 |
I8-98395 130-0 |
|
BRACKET, HYDRAULIC UNIT |
1 |
2311- |
|
BCDE F |
(D-MAX 2024) 4 WHEEL ANTI LOCK BRAKE<JE5> |
| 19 |
I8-98395 374-1 |
|
PIPE, BRK,M/CYL TO UNION |
1 |
2311- |
|
BC |
(D-MAX 2024) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (E) |
| 19 |
I8-98484 281-1 |
|
PIPE, BRK,M/CYL TO UNION |
1 |
2311- |
|
D E F |
(D-MAX 2024) ELECTRONIC TRACTION CONTROL<NW9>,ELECTRONIC TRACTION CONTROL W/OFF-ROAD MODE<8YP> (C) |
| 96 |
I8-98371 215-0 |
|
SENSOR, SPD,RR WHEEL |
1 |
2311- |
|
BC |
(D-MAX 2024) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 19 |
I8-98395 377-1 |
|
PIPE, BRK,M/CYL TO UNION |
1 |
2311- |
|
D E F |
(D-MAX 2024) ELECTRONIC TRACTION CONTROL<NW9>,ELECTRONIC TRACTION CONTROL W/OFF-ROAD MODE<8YP> (F) |
| 19 |
I8-98484 279-1 |
|
PIPE, BRK,M/CYL TO UNION |
1 |
2311- |
|
BC |
(D-MAX 2024) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (A) |
| 95 |
I7-55190 189-0 |
|
SENSOR, SPD,FRT WHEEL |
1 |
2311- |
|
BC |
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (B) |
| 19 |
I8-98484 280-1 |
|
PIPE, BRK,M/CYL TO UNION |
1 |
2311- |
|
D E F |
(D-MAX 2024) ELECTRONIC TRACTION CONTROL<NW9>,ELECTRONIC TRACTION CONTROL W/OFF-ROAD MODE<8YP> (B) |
| 96 |
I8-98371 215-0 |
|
SENSOR, SPD,RR WHEEL |
1 |
2311- |
|
A |
(D-MAX 2024) |
| 116 |
I0-91180 106-0 |
|
NUT:CONICAL |
2 |
2311- |
|
BCDE F |
(D-MAX 2024) 4 WHEEL ANTI LOCK BRAKE<JE5> M6 FLANGE |
| 95 |
I8-98371 294-1 |
|
SENSOR, SPD,FRT WHEEL |
1 |
2311- |
|
BC |
(D-MAX 2024) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (A) |
| 13 |
I0-29260 845-0 |
|
BOLT, SELECT LEVER |
2 |
2311- |
|
BC |
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> M8X45 FLANGE |
| 13 |
I0-29260 845-0 |
|
BOLT, SELECT LEVER |
2 |
2311- |
|
D E F |
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9>,ELECTRONIC TRACTION CONTROL W/OFF-ROAD MODE<8YP> M8X45 FLANGE |
| 19 |
I8-98395 375-1 |
|
PIPE, BRK,M/CYL TO UNION |
1 |
2311- |
|
A |
(D-MAX 2024) (E) |
| 89 |
I8-98395 077-1 |
|
HYDRAULIC UNIT, ANTI LOCK BRK |
1 |
2311- |
|
C |
MALAYSIA EQUIPMENT(B10),AUSTRALIA EQUIPMENT(B13),GENERAL EXPORT EQ UIP M E NT(TAA) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> |
| 89 |
I7-55181 502-0 |
|
HYDRAULIC UNIT, ANTI LOCK BRK |
1 |
2311- |
|
F |
(D-MAX 2024) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),GENERAL EXPORT EQUIPMENT(TAA) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9>,ELECTRONIC TRACTION CONTROL W/OFF-ROAD MODE<8YP> EXC. SAFETY PACKAGE FRT<8SW>,SAFETY PACKAGE FRT & RR<8SY> |
| 19 |
I8-98484 281-1 |
|
PIPE, BRK,M/CYL TO UNION |
1 |
2311- |
|
BC |
(D-MAX 2024) ELECTRONIC TRACTION CONTROL<NW9> (C) |
| 89 |
I7-55181 506-0 |
|
HYDRAULIC UNIT, ANTI LOCK BRK |
1 |
2311- |
|
B |
AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),GENERAL EXPORT EQUIPMENT(TAA) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> SAFETY PACKAGE FRT & RR<8SY> |
| 91 |
I8-98395 130-0 |
|
BRACKET, HYDRAULIC UNIT |
1 |
2311- | |
|
A |
(D-MAX 2024) |
| 104 |
I0-28650 616-0 |
|
SCREW, TANK TO BRKT |
2 |
2311- |
|
D E F |
(D-MAX 2024) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9>,ELECTRONIC TRACTION CONTROL W/OFF-ROAD MODE<8YP> M6X16 FLANGE |
| 19 |
I8-98395 375-1 |
|
PIPE, BRK,M/CYL TO UNION |
1 |
2311- |
|
D E F |
(D-MAX 2024) ELECTRONIC TRACTION CONTROL<NW9>,ELECTRONIC TRACTION CONTROL W/OFF-ROAD MODE<8YP> (E) |
| 19 |
I8-98484 279-1 |
|
PIPE, BRK,M/CYL TO UNION |
1 |
2311- |
|
D E F |
(D-MAX 2024) ELECTRONIC TRACTION CONTROL<NW9>,ELECTRONIC TRACTION CONTROL W/OFF-ROAD MODE<8YP> (A) |
| 130 |
I8-97517 083-0 |
|
BRACKET, SPEED SENSOR |
1 |
2311- |
|
A |
(D-MAX 2024) (A) |
| 19 |
I8-98395 376-1 |
|
PIPE, BRK,M/CYL TO UNION |
1 |
2311- |
|
D E F |
(D-MAX 2024) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9>,ELECTRONIC TRACTION CONTROL W/OFF-ROAD MODE<8YP> (F) |
| 11 |
I8-97333 079-0 |
|
VALVE, BRK CONT |
1 |
2311- |
|
D E F |
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9>,ELECTRONIC TRACTION CONTROL W/OFF-ROAD MODE<8YP> |
| 184 |
I0-28050 612-0 |
|
BOLT, STAY,PRESSURE REG |
8 |
2311- |
|
A |
(D-MAX 2024) (B) M6X12 FLANGE |
| 130 |
I8-97517 084-0 |
|
BRACKET, SPEED SENSOR |
1 |
2311- |
|
A |
(D-MAX 2024) (a) |
| 19 |
I8-98395 377-1 |
|
PIPE, BRK,M/CYL TO UNION |
1 |
2311- |
|
BC |
(D-MAX 2024) ELECTRONIC TRACTION CONTROL<NW9> (F) |
| 130 |
I8-97517 086-0 |
|
BRACKET, SPEED SENSOR |
1 |
2311- |
|
D E F |
(D-MAX 2024) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) |
| 129 |
I0-28650 616-0 |
|
SCREW, TANK TO BRKT |
2 |
2311- |
|
A |
(D-MAX 2024) M6X16 FLANGE |
| 184 |
I0-28050 612-0 |
|
BOLT, STAY,PRESSURE REG |
8 |
2311- |
|
D E F |
(D-MAX 2024) 4 WHEEL ANTI LOCK BRAKE<JE5> (b) M6X12 FLANGE |
| 130 |
I8-97517 083-0 |
|
BRACKET, SPEED SENSOR |
1 |
2311- |
|
BC |
(D-MAX 2024) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (A) |
| 95 |
I8-98371 294-1 |
|
SENSOR, SPD,FRT WHEEL |
1 |
2311- |
|
A |
(D-MAX 2024) (A) |
| 19 |
I8-98395 375-1 |
|
PIPE, BRK,M/CYL TO UNION |
1 |
2311- |
|
BC |
(D-MAX 2024) ELECTRONIC TRACTION CONTROL<NW9> (E) |
| 130 |
I8-97517 083-0 |
|
BRACKET, SPEED SENSOR |
1 |
2311- |
|
D E F |
(D-MAX 2024) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) |
| 19 |
I8-98395 359-0 |
|
PIPE, BRK,M/CYL TO UNION |
1 |
2311- |
|
B C D E F |
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (i) |
| 19 |
I8-98484 281-1 |
|
PIPE, BRK,M/CYL TO UNION |
1 |
2311- |
|
D E F |
(D-MAX 2024) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9>,ELECTRONIC TRACTION CONTROL W/OFF-ROAD MODE<8YP> (C) |
| 130 |
I8-97517 084-0 |
|
BRACKET, SPEED SENSOR |
1 |
2311- |
|
D E F |
(D-MAX 2024) 4 WHEEL ANTI LOCK BRAKE<JE5> |
| 11 |
I8-97333 079-0 |
|
VALVE, BRK CONT |
1 |
2311- |
|
BC |
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> |
| 19 |
I8-98484 278-0 |
|
PIPE, BRK |
1 |
2311- |
|
A |
(D-MAX 2024) (D) |
| 130 |
I8-97517 084-0 |
|
BRACKET, SPEED SENSOR |
1 |
2311- |
|
BC |
(D-MAX 2024) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (A) |
| 107 |
I0-28050 612-0 |
|
BOLT, STAY,PRESSURE REG |
2 |
2311- |
|
BCDE F |
(D-MAX 2024) 4 WHEEL ANTI LOCK BRAKE<JE5> M6X12 FLANGE |
| 95 |
I8-98371 293-1 |
|
SENSOR, SPD,FRT WHEEL |
1 |
2311- |
|
A |
(D-MAX 2024) (A) |
| 19 |
I8-98395 374-1 |
|
PIPE, BRK,M/CYL TO UNION |
1 |
2311- |
|
D E F |
(D-MAX 2024) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9>,ELECTRONIC TRACTION CONTROL W/OFF-ROAD MODE<8YP> (E) |
| 104 |
I0-28650 616-0 |
|
SCREW, TANK TO BRKT |
2 |
2311- |
|
BC |
(D-MAX 2024) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> M6X16 FLANGE |
| 89 |
I7-55181 506-0 |
|
HYDRAULIC UNIT, ANTI LOCK BRK |
1 |
2311- |
|
F |
INDONESIA EQUIPMENT(BOO),MALAYSIA EQUIPMENT(B10),AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),GENERAL EXPORT EQUIPMENT(TAA) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9>,ELECTRONIC TRACTION CONTROL W/OFF-ROAD MODE<8YP> SAFETY PACKAGE FRT<8SW>,SAFETY PACKAGE FRT & RR<8SY> |
| 165 |
I8-97536 877-0 |
|
RUBBER KIT, HYDRAULIC UNIT |
1 |
2311- |
|
A |
(D-MAX 2024) |
| 107 |
I0-28050 612-0 |
|
BOLT, STAY,PRESSURE REG |
2 |
2311- |
|
A |
(D-MAX 2024) M6X12 FLANGE |
| 89 |
I7-55181 502-0 |
|
HYDRAULIC UNIT, ANTI LOCK BRK |
1 |
2311- |
|
E |
(D-MAX 2024) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),AUSTRALIA EQUIPMENT(B13),GENERAL EXPORT EQUIPMENT(TAA) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9>,ELECTRONIC TRACTION CONTROL W/OFF-ROAD MODE<8YP> EXC. SAFETY PACKAGE FRT & RR<8SY> |
| 89 |
I7-55181 502-0 |
|
HYDRAULIC UNIT, ANTI LOCK BRK |
1 |
2311- |
|
C |
(D-MAX 2024) MALAYSIA EQUIPMENT(B10),AUSTRALIA EQUIPMENT(B13),GENERAL EXPORT EQUIPMENT(TAA) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> EXC. SAFETY PACKAGE FRT<8SW>,SAFETY PACKAGE FRT & RR<8SY> |
| 19 |
I8-98484 280-1 |
|
PIPE, BRK,M/CYL TO UNION |
1 |
2311- |
|
BC |
(D-MAX 2024) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (B) |
| 19 |
I8-98484 280-1 |
|
PIPE, BRK,M/CYL TO UNION |
1 |
2311- |
|
A |
(D-MAX 2024) (B) |
| 19 |
I8-98484 279-1 |
|
PIPE, BRK,M/CYL TO UNION |
1 |
2311- |
|
A |
(D-MAX 2024) (A) |
| 19 |
I8-98484 280-1 |
|
PIPE, BRK,M/CYL TO UNION |
1 |
2311- |
|
BC |
(D-MAX 2024) ELECTRONIC TRACTION CONTROL<NW9> (B) |
| 89 |
I8-98395 078-1 |
|
HYDRAULIC UNIT, ANTI LOCK BRK |
1 |
2311- |
|
D |
(D-MAX 2024) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),GENERAL EXPORT EQUIPMENT(TAA) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9>,ELECTRONIC TRACTION CONTROL W/OFF-ROAD MODE<8YP> |
| 184 |
I0-28650 616-0 |
|
SCREW, TANK TO BRKT |
2 |
2311- |
|
A |
(D-MAX 2024) (A) M6X16 FLANGE |
| 19 |
I8-97552 650-0 |
|
PIPE, BRK,M/CYL TO UNION |
1 |
2311- |
|
B C D E F |
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (h) |
| 19 |
I8-98484 279-1 |
|
PIPE, BRK,M/CYL TO UNION |
1 |
2311- |
|
D E F |
(D-MAX 2024) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9>,ELECTRONIC TRACTION CONTROL W/OFF-ROAD MODE<8YP> (A) |
| 89 |
I8-98395 077-1 |
|
HYDRAULIC UNIT, ANTI LOCK BRK |
1 |
2311- |
|
B |
AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),GENERAL EXPORT EQUIPMENT(TAA) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> |
| 95 |
I8-98371 294-1 |
|
SENSOR, SPD,FRT WHEEL |
1 |
2311- |
|
D E F |
(D-MAX 2024) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) |
| 89 |
I7-55181 502-0 |
|
HYDRAULIC UNIT, ANTI LOCK BRK |
1 |
2311- |
|
D |
(D-MAX 2024) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),GENERAL EXPORT EQUIPMENT(TAA) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9>,ELECTRONIC TRACTION CONTROL W/OFF-ROAD MODE<8YP> EXC. SAFETY PACKAGE FRT & RR<8SY> |
| 89 |
I7-55181 506-0 |
|
HYDRAULIC UNIT, ANTI LOCK BRK |
1 |
2311- |
|
A |
|
| 26 |
I8-97518 073-0 |
|
BRACKET, PROPORTIONING VLV |
1 |
2311- |
|
D E F |
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9>,ELECTRONIC TRACTION CONTROL W/OFF-ROAD MODE<8YP> |
| 95 |
I8-98371 293-1 |
|
SENSOR, SPD,FRT WHEEL |
1 |
2311- |
|
D E F |
(D-MAX 2024) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) |
| 19 |
I8-98484 279-1 |
|
PIPE, BRK,M/CYL TO UNION |
1 |
2311- |
|
BC |
(D-MAX 2024) ELECTRONIC TRACTION CONTROL<NW9> (A) |
| 89 |
I8-98395 078-1 |
|
HYDRAULIC UNIT, ANTI LOCK BRK |
1 |
2311- |
|
E |
(D-MAX 2024) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B1 (?.AUSTRALIA EQUIPMENT(B13),GENERAL EXPORT EQUIPMENT(TAA) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9>,ELECTRONIC TRACTION CONTROL W/OFF-ROAD MODE<8YP> |
| 96 |
I8-98371 216-0 |
|
SENSOR, SPD,RR WHEEL |
1 |
2311- |
|
BC |
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) |
| 130 |
I8-97517 086-0 |
|
BRACKET, SPEED SENSOR |
1 |
2311- |
|
A |
(D-MAX 2024) (b) |
| 130 |
I8-97517 085-0 |
|
BRACKET, SPEED SENSOR |
1 |
2311- |
|
A |
(D-MAX 2024) (B) |
| 130 |
I8-97517 085-0 |
|
BRACKET, SPEED SENSOR |
1 |
2311- |
|
D E F |
(D-MAX 2024) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) |
| 72 |
I0-28650 616-0 |
|
SCREW, TANK TO BRKT |
3 |
2311- |
|
B C D E F |
(D-MAX 2024) 4 WHEEL ANTI LOCK BRAKE<JE5> M6X16 FLANGE |
