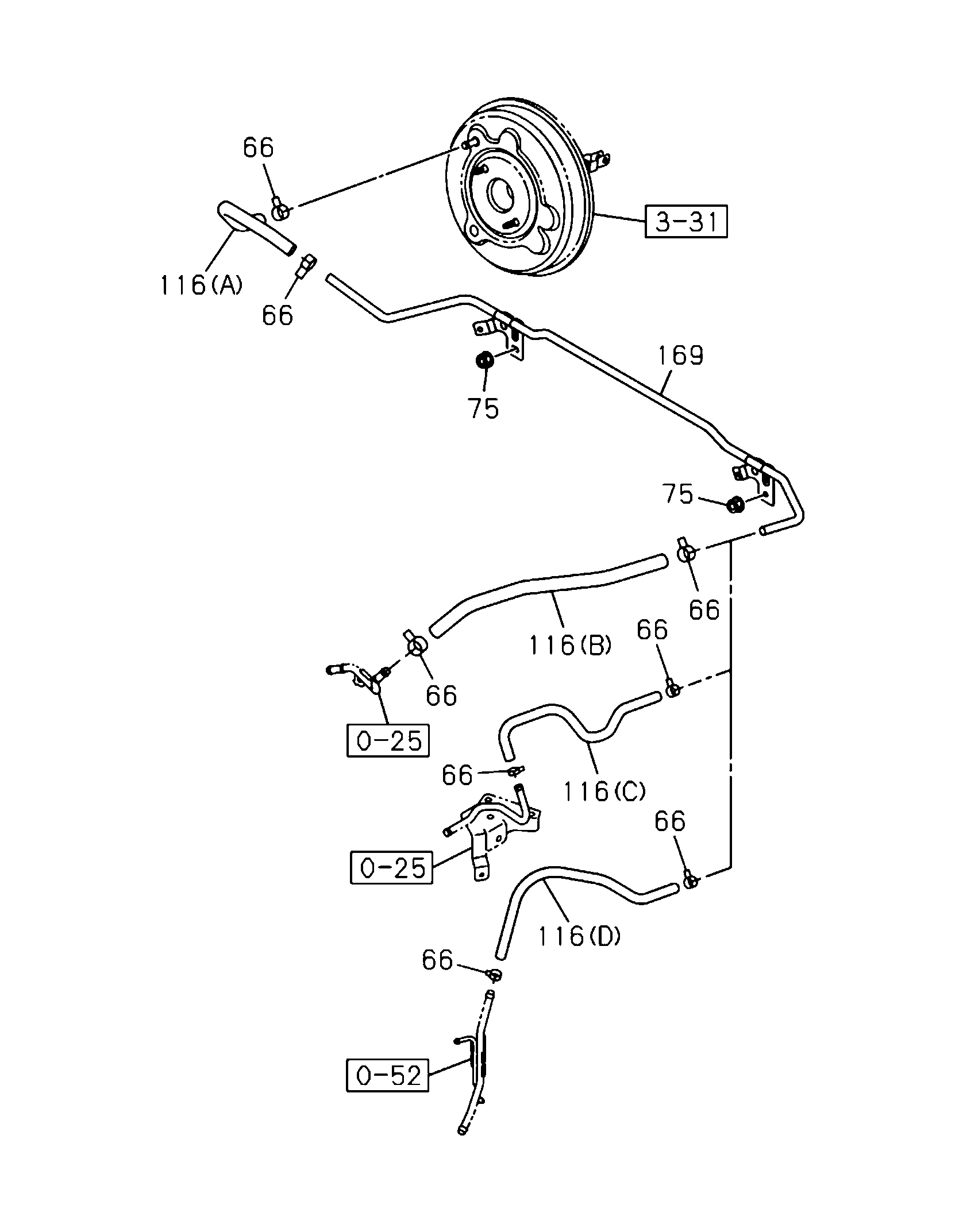

3-60 | BRAKE PIPING, VACUUM
DMAX
D-MAX 2024
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 116 | I8-98395 383-0 | HOSE, VAC,M/VAC | 1 | 2311- | L | B D F | RZ4E-TCX HI-POWER ENG(LNC) (C) | |
| 116 | I8-98395 380-0 | HOSE, VAC,M/VAC | A BC | R | 1 | (A) | (D-MAX 2024) | |
| 66 | I8-98036 539-0 | CLIP, VAC HOSE,M/VAC | ABCD | 4 | ID=16 | (D-MAX 2024) | ||
| 116 | I8-98395 381-1 | HOSE, VAC,M/VAC | 1 | 2311- | L | ABCDE F | 4JJ3 ENG(LNG) (D) | |
| 75 | I0-91180 106-0 | NUT:CONICAL | 2 | 2311- | A BC D E F | (D-MAX 2024) M6 FLANGE | ||
| 116 | I8-98310 196-0 | HOSE, VAC,M/VAC | 1 | 2311- | L | BCDE F | RZ4E-TC ENG(RDZ) EUR05 SPECIFICATION(NT5) (E) | |
| 169 | I8-98395 384-0 | PIPE, VAC,BOOSTER SIDE | A BC | 1 | (D-MAX 2024) | |||
| 116 | I8-98274 256-1 | HOSE, VAC,M/VAC | 1 | 2311- | L | BCDE F | (D-MAX 2024) RZ4E-TC ENG(RDZ) EUROO SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 S P ECIFICATIO N ( NT4) (B) |
