| 90 |
I8-97246 901-0 |
|
WASHER, LK,YOKE TO RR AXLE |
8 |
2311- |
|
D E F |
(D-MAX 2024) (B) ID=10.1 |
| 20 |
I8-97947 656-0 |
|
BEARING ASM, CTR,PROP SHAFT |
1 |
2311- |
|
BC |
EXC. HIGH RIDE SUSPENSION(7YC) NTN |
| 20 |
I8-97947 655-0 |
|
BEARING ASM, CTR,PROP SHAFT |
1 |
2311- |
|
BC |
EXC. HIGH RIDE SUSPENSION(7YC) NSK |
| 59 |
I8-97947 557-0 |
|
NUT, RET TO SUPPORT |
1 |
2311- |
|
ABC |
|

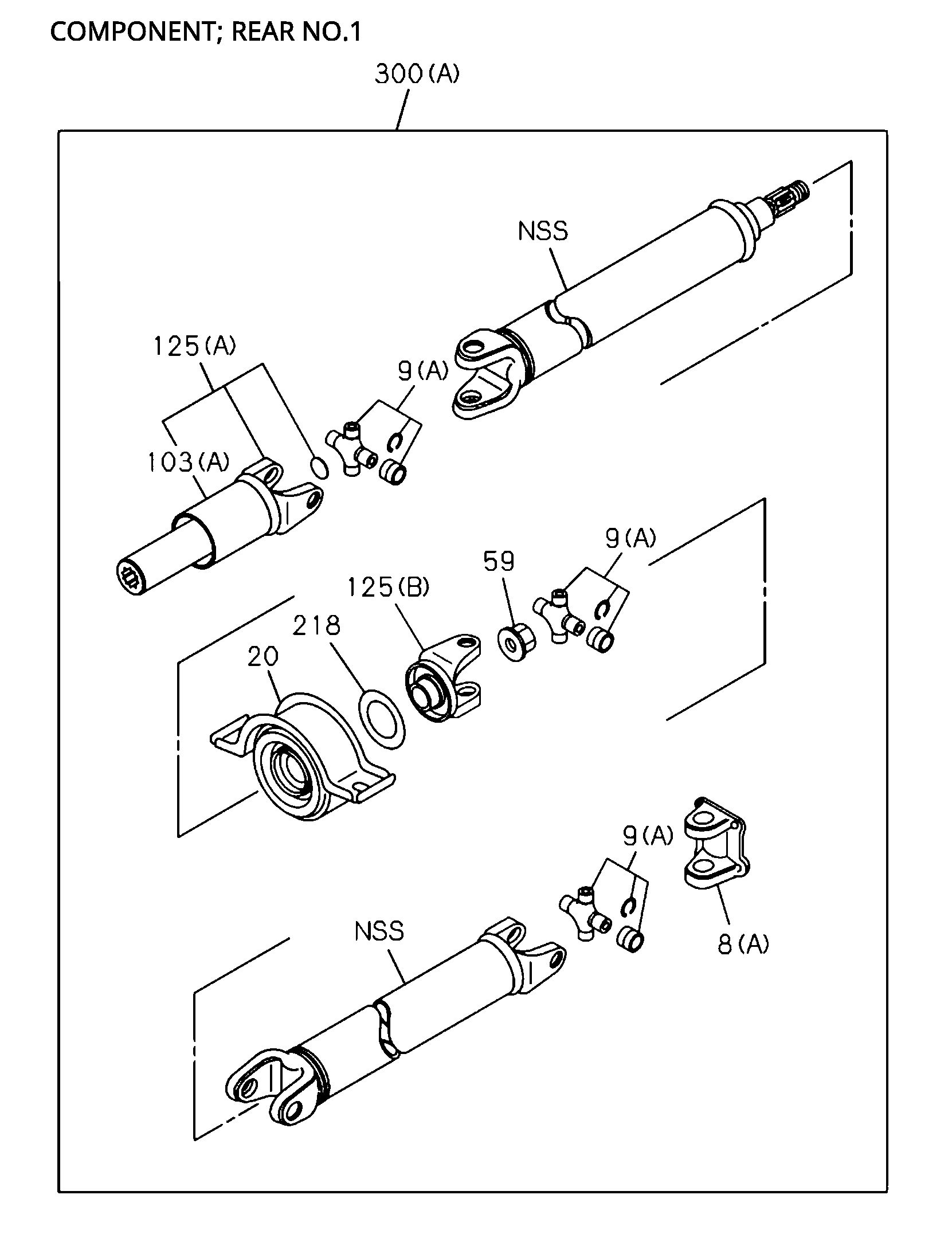

| 300 |
I8-97656 173-0 |
|
SHAFT ASM, PROP,RR |
1 |
2311- |
|
BC |
RZ4E-TC ENG(RDZ) A/T 6 SPEED AISIN(Y6A) EXC. HIGH RIDE SUSPENSION(7YC) (A) L=1893.5 |
| 103 |
I8-97947 639-0 |
|
BOOT, PROP SHAFT |
1 |
2311- |
|
BC |
A/T 6 SPEED AISIN(Y6A) (A) |

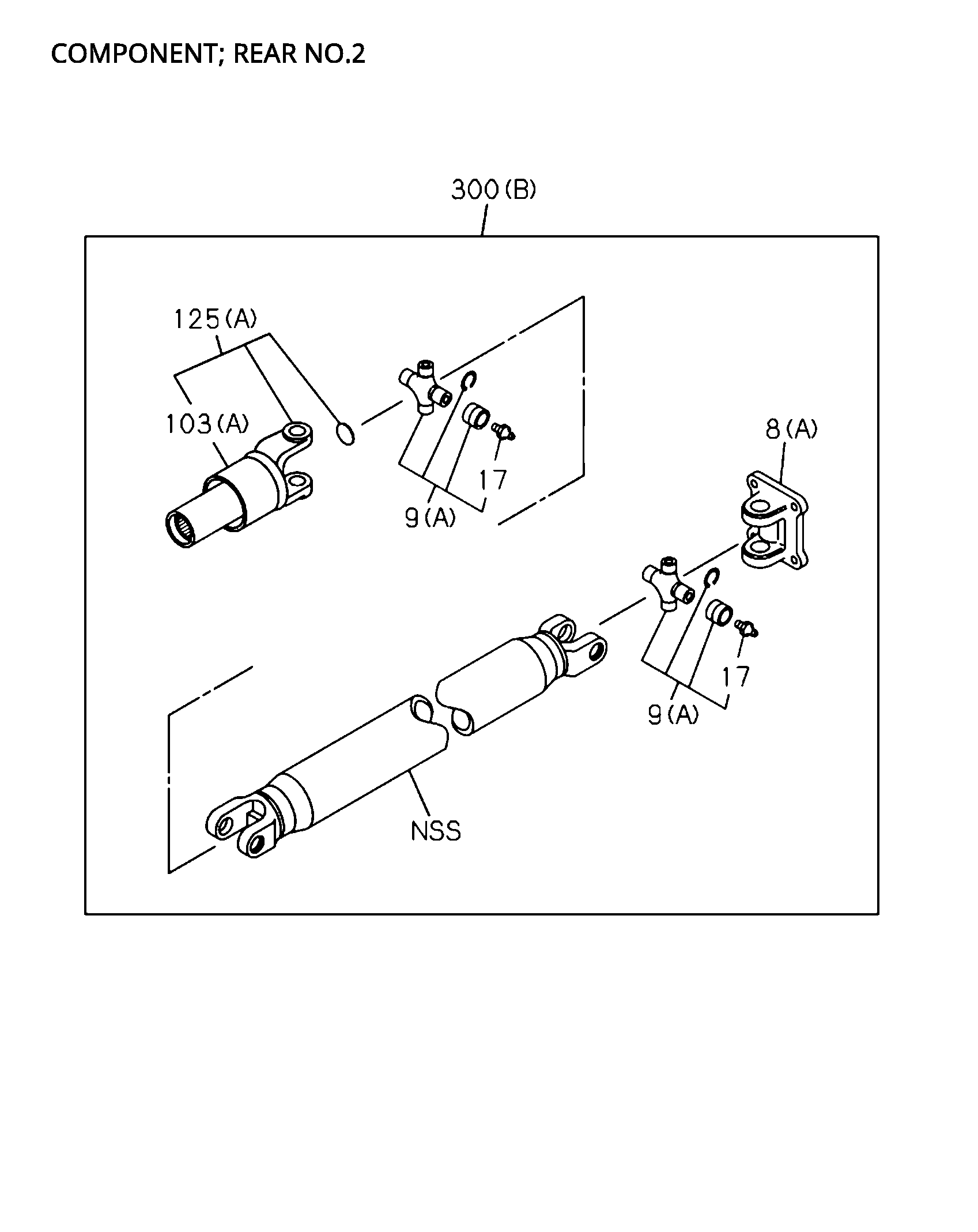

| 300 |
I8-97689 092-1 |
|
SHAFT ASM, PROP,RR |
1 |
2311- |
|
D E F |
4JJ3 ENG(LNG) A/T 6 SPEED AISIN(Y6A) (B) L=1495 |
| 300 |
I8-97533 753-1 |
|
SHAFT ASM, PROP,RR |
1 |
2311- |
|
D F |
(D-MAX 2024) RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) A/T 6 SPEED AISIN(Y6A) (B) L=1541 |
| 300 |
I8-98395 095-0 |
|
SHAFT ASM, PROP,RR |
1 |
2311- |
|
BC |
RZ4E-TC ENG(RDZ) M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S) EXC. HIGH RIDE SUSPENSION(7YC) (A) L=1960.5 |
| 125 |
I8-97493 754-0 |
|
YOKE ASM, SPLINED,PROP SHAFT |
1 |
2311- |
|
E |
(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S) (C) |
| 300 |
I8-97821 082-0 |
|
SHAFT ASM, PROP,RR |
1 |
2311- |
|
B |
RZ4E-TCX HI-POWER ENG(LNC) A/T 6 SPEED AISIN(Y6A) HIGH RIDE SUSPENSION(7YC) (A) L=1899 |
| 125 |
I8-97493 737-0 |
|
YOKE ASM, SPLINED,PROP SHAFT |
1 |
2311- |
|
C |
4JJ3 ENG(LNG) M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S) (A) |
| 9 |
I8-97947 582-0 |
|
JOURNAL ASM, PROP SHAFT |
2 |
2311- |
|
D E F |
(D-MAX 2024) (B) |
| 125 |
I8-97541 995-0 |
|
YOKE ASM, SPLINED,PROP SHAFT |
1 |
2311- |
|
D F |
(D-MAX 2024) A/T 6 SPEED AISIN(Y6A) (C) |
| 300 |
I8-97821 083-0 |
|
SHAFT ASM, PROP,RR |
1 |
2311- |
|
A |
4JJ3 ENG(LNG) A/T 6 SPEED AISIN(Y6A) (A) L=1852 |
| 300 |
I8-97821 078-0 |
|
SHAFT ASM, PROP,RR |
1 |
2311- |
|
BC |
RZ4E-TC ENG(RDZ) M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S) HIGH RIDE SUSPENSION(7YC) (A) L=1960 |
| 9 |
I6-97947 582-0 |
|
JOURNAL ASM, PROP SHAFT |
2 |
2311- |
|
D E F |
(IADG) |
| 20 |
I8-97821 102-0 |
|
BEARING ASM, CTR,PROP SHAFT |
1 |
2311- |
|
BC |
HIGH RIDE SUSPENSION(7YC) |
| 8 |
I8-97493 716-0 |
|
YOKE, FLANGE,PROP SHAFT |
1 |
2311- |
|
ABCDE F |
(D-MAX 2024) (A) |
| 103 |
I8-97947 639-0 |
|
BOOT, PROP SHAFT |
1 |
2311- |
|
A |
(A) |
| 125 |
I8-97493 754-0 |
|
YOKE ASM, SPLINED,PROP SHAFT |
1 |
2311- |
|
D F |
(D-MAX 2024) M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S) (C) |
| 103 |
I8-97943 053-0 |
|
BOOT, PROP SHAFT |
1 |
2311- |
|
D E F |
(D-MAX 2024) (B) |
| 300 |
I8-97533 757-1 |
|
SHAFT ASM, PROP,RR |
1 |
2311- |
|
E |
(D-MAX 2024) RZ4E-TC ENG(RDZ) M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S) (B) L=1577 |

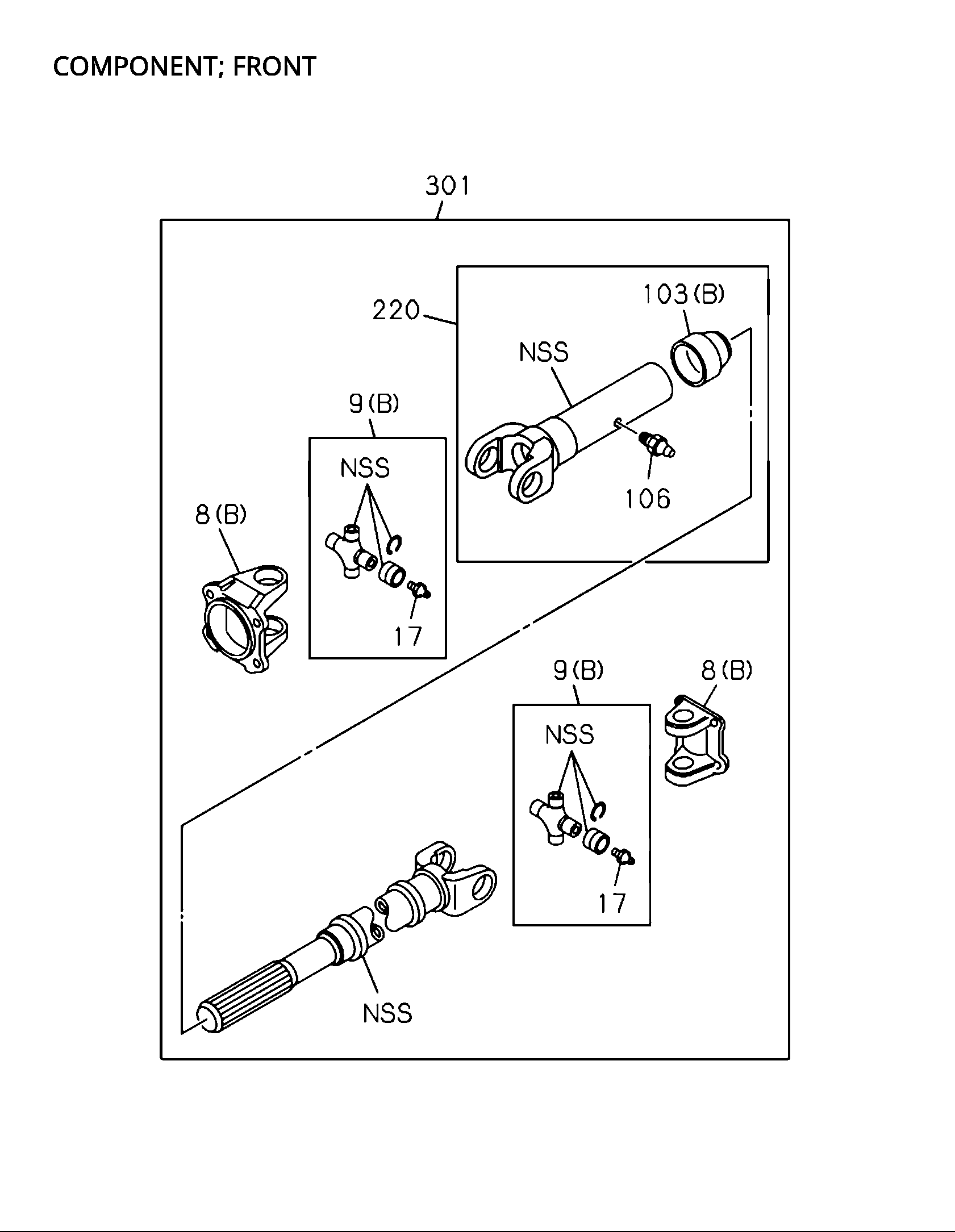

| 301 |
I8-98291 787-1 |
|
SHAFT ASM, PROP,FRT |
1 |
2311- |
|
D E F |
4JJ3 ENG(LNG) A/T 6 SPEED AISIN(Y6A) L=735 |
| 147 |
I0-28661 225-0 |
|
BOLT, ACL BRKT |
2 |
2311- |
|
ABC |
M12X25 FLANGE |
| 218 |
I8-97192 641-0 |
|
WASHER, PL,PROP SHAFT |
1 |
2311- |
|
ABC |
ID=30 H =40 L=35 |
| 9 |
I8-97493 741-0 |
|
JOURNAL ASM, PROP SHAFT |
3 |
2311- |
|
A |
(A) |
| 20 |
I8-97821 102-0 |
|
BEARING ASM, CTR,PROP SHAFT |
1 |
2311- |
|
A |
|
| 301 |
I8-97948 759-1 |
|
SHAFT ASM, PROP,FRT |
1 |
2311- |
|
E |
(D-MAX 2024) RZ4E-TC ENG(RDZ) M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S) L=651 |
| 125 |
I8-97947 664-0 |
|
YOKE ASM, SPLINED,PROP SHAFT |
1 |
2311- |
|
BC |
EXC. HIGH RIDE SUSPENSION(7YC) (B) |
| 9 |
I8-97493 742-0 |
|
JOURNAL ASM, PROP SHAFT |
2 |
2311- |
|
D E F |
(D-MAX 2024) (C) |
| 9 |
I8-97493 741-0 |
|
JOURNAL ASM, PROP SHAFT |
3 |
2311- |
|
BC |
RZ4E-TCX HI-POWER ENG(LNC),4JJ3 ENG(LNG) (A) |
| 300 |
I8-97533 757-1 |
|
SHAFT ASM, PROP,RR |
1 |
2311- |
|
D F |
(D-MAX 2024) RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S) (B) L=1577 |
| 120 |
I8-98354 948-0 |
|
BOLT, YOKE TO RR AXLE |
8 |
2311- |
|
D E F |
(D-MAX 2024) M10X29 |
| 90 |
I0-91510 812-0 |
|
WASHER, LK,FLANGE |
4 |
2311- |
|
ABCDE F |
(D-MAX 2024) (A) ID=12.2 OD=21.6 |
| 125 |
I8-97947 633-0 |
|
YOKE ASM, SPLINED,PROP SHAFT |
1 |
2311- |
|
BC |
RZ4E-TC ENG(RDZ) M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S) (A) |
| 220 |
I8-97945 105-0 |
|
YOKE, SPLINED |
1 |
2311- |
|
D E F |
(D-MAX 2024) |
| 125 |
I8-97947 732-0 |
|
YOKE ASM, SPLINED,PROP SHAFT |
1 |
2311- |
|
A |
(B) |
| 125 |
I8-97947 632-0 |
|
YOKE ASM, SPLINED,PROP SHAFT |
1 |
2311- |
|
A |
(A) |
| 300 |
I8-97821 083-0 |
|
SHAFT ASM, PROP,RR |
1 |
2311- |
|
BC |
4JJ3 ENG(LNG) A/T 6 SPEED AISIN(Y6A) HIGH RIDE SUSPENSION(7YC) (A) L=1852 |
| 300 |
I8-97689 091-1 |
|
SHAFT ASM, PROP,RR |
1 |
2311- |
|
D E F |
4JJ3 ENG(LNG) M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S) (B) L=1491 |
| 9 |
I8-97947 643-0 |
|
JOURNAL ASM, PROP SHAFT |
3 |
2311- |
|
BC |
RZ4E-TC ENG(RDZ) (A) |
| 8 |
I8-97942 850-0 |
|
YOKE, FLANGE,PROP SHAFT |
2 |
2311- |
|
D E F |
(D-MAX 2024) (B) |
| 103 |
I8-97493 756-0 |
|
BOOT, PROP SHAFT |
1 |
2311- |
|
D E F |
(D-MAX 2024) (C) |
| 89 |
I8-97365 450-1 |
|
NUT, YOKE TO RR AXLE |
4 |
2311- |
|
ABCDE F |
(D-MAX 2024) (A) M12 |
| 125 |
I8-97493 737-0 |
|
YOKE ASM, SPLINED,PROP SHAFT |
1 |
2311- |
|
B |
RZ4E-TCX HI-POWER ENG(LNC),4JJ3 ENG(LNG) M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S) HIGH RIDE SUSPENSION(7YC) (A) |
| 300 |
I8-97821 081-0 |
|
SHAFT ASM, PROP,RR |
1 |
2311- |
|
BC |
4JJ3 ENG(LNG) M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S) HIGH RIDE SUSPENSION(7YC) (A) L=1870 |
| 106 |
I0-90301 406-0 |
|
NIPPLE, GREASE,PROP SHAFT |
1 |
2311- |
|
D E F |
(D-MAX 2024) M6 STRAIGHT |
| 300 |
I8-97821 079-0 |
|
SHAFT ASM, PROP,RR |
1 |
2311- |
|
BC |
RZ4E-TC ENG(RDZ) A/T 6 SPEED AISIN(Y6A) HIGH RIDE SUSPENSION(7YC) (A) L=1898 |
| 301 |
I8-98395 176-1 |
|
SHAFT ASM, PROP,FRT |
1 |
2311- |
|
E |
(D-MAX 2024) RZ4E-TC ENG(RDZ) A/T 6 SPEED AISIN(Y6A) L=718 |
| 125 |
I8-97493 737-0 |
|
YOKE ASM, SPLINED,PROP SHAFT |
1 |
2311- |
|
B |
4JJ3 ENG(LNG) M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S) EXC. HIGH RIDE SUSPENSION(7YC) (A) |
| 300 |
I8-97821 080-0 |
|
SHAFT ASM, PROP,RR |
1 |
2311- |
|
B |
RZ4E-TCX HI-POWER ENG(LNC) M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S) HIGH RIDE SUSPENSION(7YC) (A) L=1960 |
| 301 |
I8-97948 763-1 |
|
SHAFT ASM, PROP,FRT |
1 |
2311- |
|
D E F |
4JJ3 ENG(LNG) M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S) L=768 |
| 125 |
I8-97947 732-0 |
|
YOKE ASM, SPLINED,PROP SHAFT |
1 |
2311- |
|
BC |
HIGH RIDE SUSPENSION(7YC) (B) |
| 17 |
I0-90301 406-0 |
|
NIPPLE, GREASE,PROP SHAFT |
4 |
2311- |
|
D E F |
(D-MAX 2024) M6 STRAIGHT |
| 300 |
I8-98395 101-0 |
|
SHAFT ASM, PROP,RR |
1 |
2311- |
|
BC |
4JJ3 ENG(LNG) M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S) EXC. HIGH RIDE SUSPENSION(7YC) (A) L=1874.5 |
| 301 |
I8-98395 176-1 |
|
SHAFT ASM, PROP,FRT |
1 |
2311- |
|
D F |
(D-MAX 2024) RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) A/T 6 SPEED AISIN(Y6A) L=718 |
| 301 |
I8-97948 759-1 |
|
SHAFT ASM, PROP,FRT |
1 |
2311- |
|
D F |
(D-MAX 2024) RZ4E-TCX HI-POWER ENG(LNC),RZ4E-TC ENG(RDZ) M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S) L=651 |
| 103 |
I8-97947 640-0 |
|
BOOT, PROP SHAFT |
1 |
2311- |
|
BC |
M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S) (A) |
| 125 |
I8-97541 995-0 |
|
YOKE ASM, SPLINED,PROP SHAFT |
1 |
2311- |
|
E |
(D-MAX 2024) 4JJ3 ENG(LNG),RZ4E-TC ENG(RDZ) A/T 6 SPEED AISIN(Y6A) (C) |
| 125 |
I8-97947 632-0 |
|
YOKE ASM, SPLINED,PROP SHAFT |
1 |
2311- |
|
BC |
A/T 6 SPEED AISIN(Y6A) (A) |
| 300 |
I8-97533 753-1 |
|
SHAFT ASM, PROP,RR |
1 |
2311- |
|
E |
(D-MAX 2024) RZ4E-TC ENG(RDZ) A/T 6 SPEED AISIN(Y6A) (B) L=1541 |
| 89 |
I8-97246 900-0 |
|
NUT, YOKE TO RR AXLE |
8 |
2311- |
|
D E F |
(D-MAX 2024) (B) M10FLANGE |
