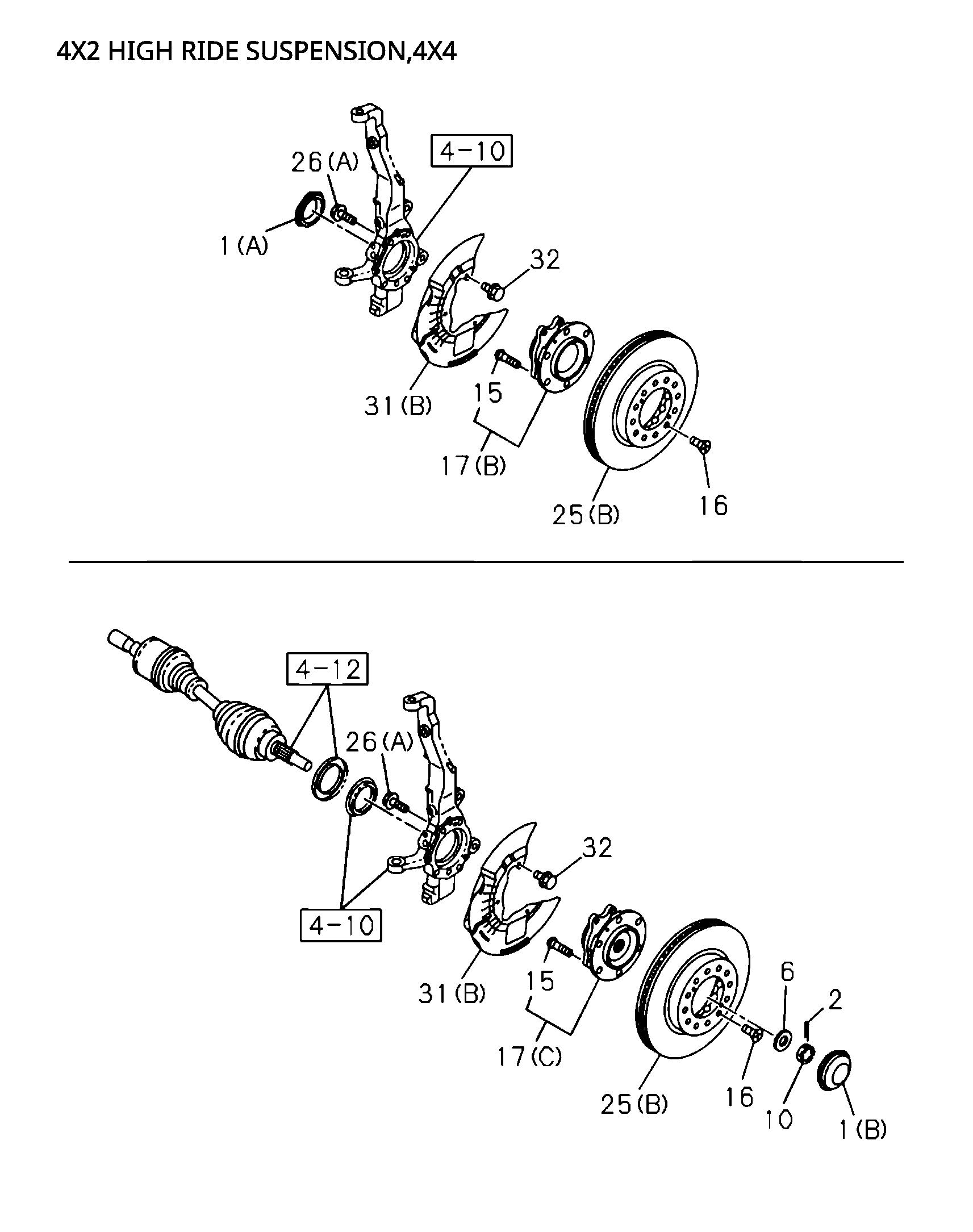

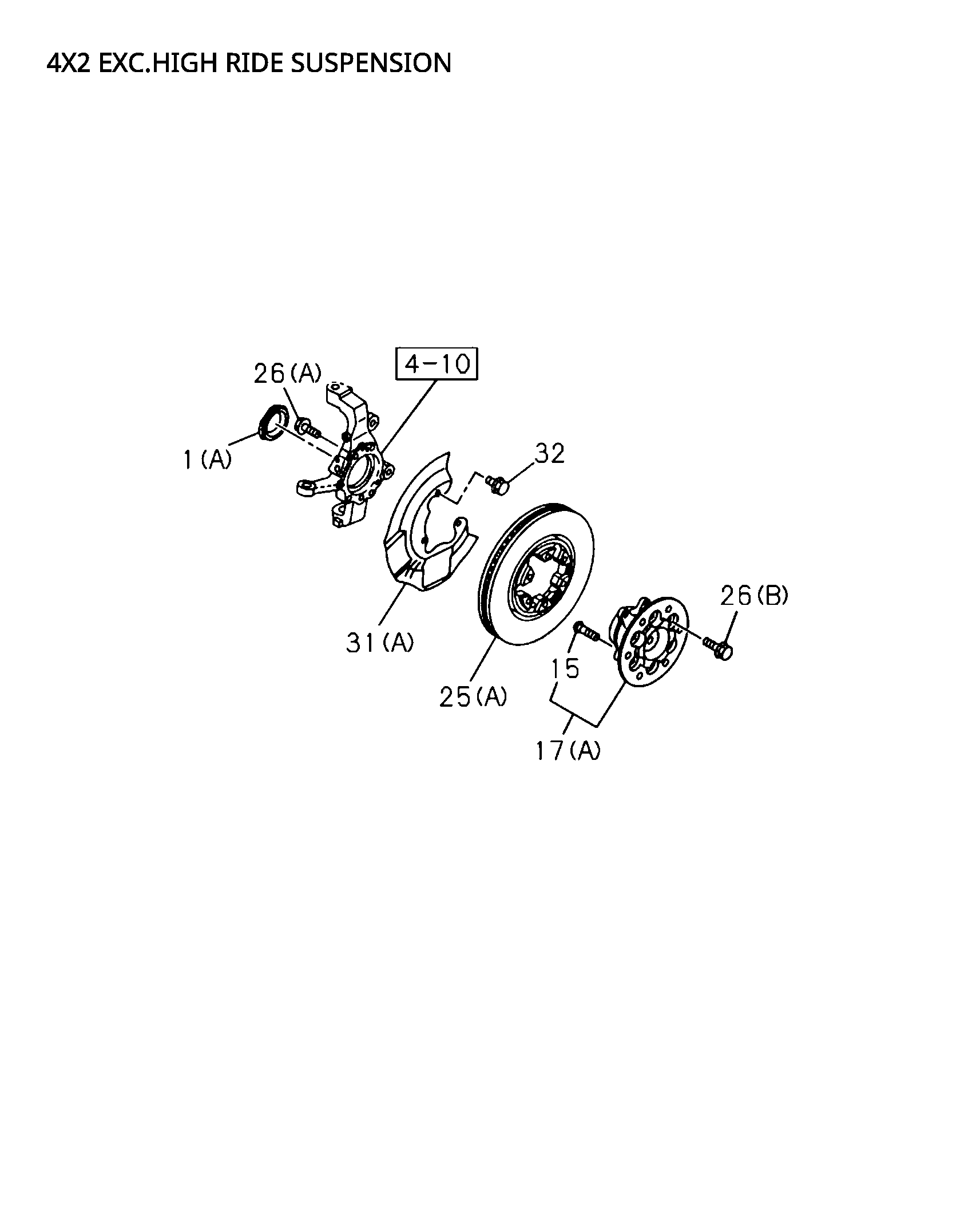

4-11 | FRONT HUB AND DRUM OR ROTOR
DMAX
D-MAX 2024
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 1 | I8-98393 291-0 | CAP, HUB,FRT AXLE | 2 | 2311- | D E F | (D-MAX 2024) (B) | ||
| 2 | I0-81124 040-0 | PIN, SPLIT,BOOSTER,BRKT SIDE | 2 | 2311- | D E F | (D-MAX 2024) | ||
| 25 | I8-98376 755-0 | ROTOR, DISC BRK,FRT | 2 | 2311- | D F | AUSTRALIA EQUIPMENT(B13) (B) | ||
| 25 | I8-98376 755-0 | ROTOR, DISC BRK,FRT | 2 | 2311- | B | FRT&RR 255/65R17 DUNLOP AT25(FNE) AUSTRALIA EQUIPMENT(B13) HIGH RIDE SUSPENSION(7YC) (B) | ||
| 17 | I8-98395 193-0 | HUB, FRT AXLE | 2 | 2311- | A | (B) | ||
| 16 | I0-36410 616-0 | SCREW, DOOR LK | 2 | 2311- | A D E F | (D-MAX 2024) M6X16 CK-HEAD | ||
| 17 | I8-98395 193-0 | HUB, FRT AXLE | 2 | 2311- | BC | HIGH RIDE SUSPENSION(7YC) (B) | ||
| 1 | I8-98392 644-0 | CAP, HUB,FRT AXLE | 2 | 2311- | ABC | (A) | ||
| 17 | I8-98395 192-1 | HUB, FRT AXLE | 2 | 2311- | BC | EXC. HIGH RIDE SUSPENSION(7YC) (A) | ||
| 25 | I8-98376 755-0 | ROTOR, DISC BRK,FRT | 2 | 2311- | C | AUSTRALIA EQUIPMENT(B13) HIGH RIDE SUSPENSION(7YC) (B) | ||
| 6 | I8-97509 779-0 | WASHER, LK,FRT HUB | 2 | 2311- | D E F | (D-MAX 2024) | ||
| 25 | I8-98376 755-0 | ROTOR, DISC BRK,FRT | 2 | 2311- | E | FRT&RR 255/65R17 DUNLOP AT25(FNE) AUSTRALIA EQUIPMENT(B13) (B) | ||
| 16 | I0-36410 616-0 | SCREW, DOOR LK | 2 | 2311- | BC | (D-MAX 2024) HIGH RIDE SUSPENSION(7YC) M6X16 CK-HEAD | ||
| 25 | I8-98376 755-0 | ROTOR, DISC BRK,FRT | 2 | 2311- | A | (B) | ||
| 17 | I8-98395 194-0 | HUB, FRT AXLE | 2 | 2311- | D E F | (D-MAX 2024) (C) | ||
| 15 | I8-98484 478-1 | PIN, WHEEL,FRT AXLE | 12 | 2311- | BC | EXC. HIGH RIDE SUSPENSION(7YC) M 12X37.5 RH THREAD | ||
| 15 | I8-97944 831-1 | PIN, WHEEL,RR AXLE | 12 | 2311- | BC | (D-MAX 2024) HIGH RIDE SUSPENSION(7YC) M12X42.5 RH THREAD | ||
| 15 | I8-97944 831-1 | PIN, WHEEL,RR AXLE | 12 | 2311- | A D E F | (D-MAX 2024) M12X42.5 RH THREAD | ||
| 10 | I1-09442 028-0 | NUT, LK,JOINT BALL | 2 | 2311- | D E F | (D-MAX 2024) M 24 SLOTTED |
