| 16 |
I6-98134 394-0 |
|
SEAL, OIL,RR HUB,OUTER |
2 |
2311- |
|
A BC D E F |
(IADG) |
| 217 |
I0-28650 616-0 |
|
SCREW, TANK TO BRKT |
1 |
2311- |
|
A D E F |
(D-MAX 2024) M6X16 FLANGE |
| 60 |
I8-98396 031-0 |
|
BREATHER, RR AXLE CASE |
1 |
2311- |
|
BC |
(D-MAX 2024) HIGH RIDE SUSPENSION(7YC) (A) L=38.5 |
| 40 |
I6-97323 297-0 |
|
SEAL, OIL,REAR AXLE |
2 |
2311- |
|
ABCDE F |
(IADG) |
| 1 |
I8-98061 813-1 |
|
DRUM, BRK,RR |
2 |
2311- |
|
BC |
(D-MAX 2024) HIGH RIDE SUSPENSION(7YC) SOMBOON |
| 163 |
I9-09952 253-0 |
|
RING, SNAP,AXLE SHAFT |
AR |
2311- |
|
A BC D E F |
(D-MAX 2024) ID=38.5 T=2.00 |
| 59 |
I9-09571 416-0 |
|
GASKET, HD COVER |
1 |
2311- |
|
ABCDE F |
(D-MAX 2024) ID=16.2 OD=24 |
| 25 |
I8-98080 678-2 |
|

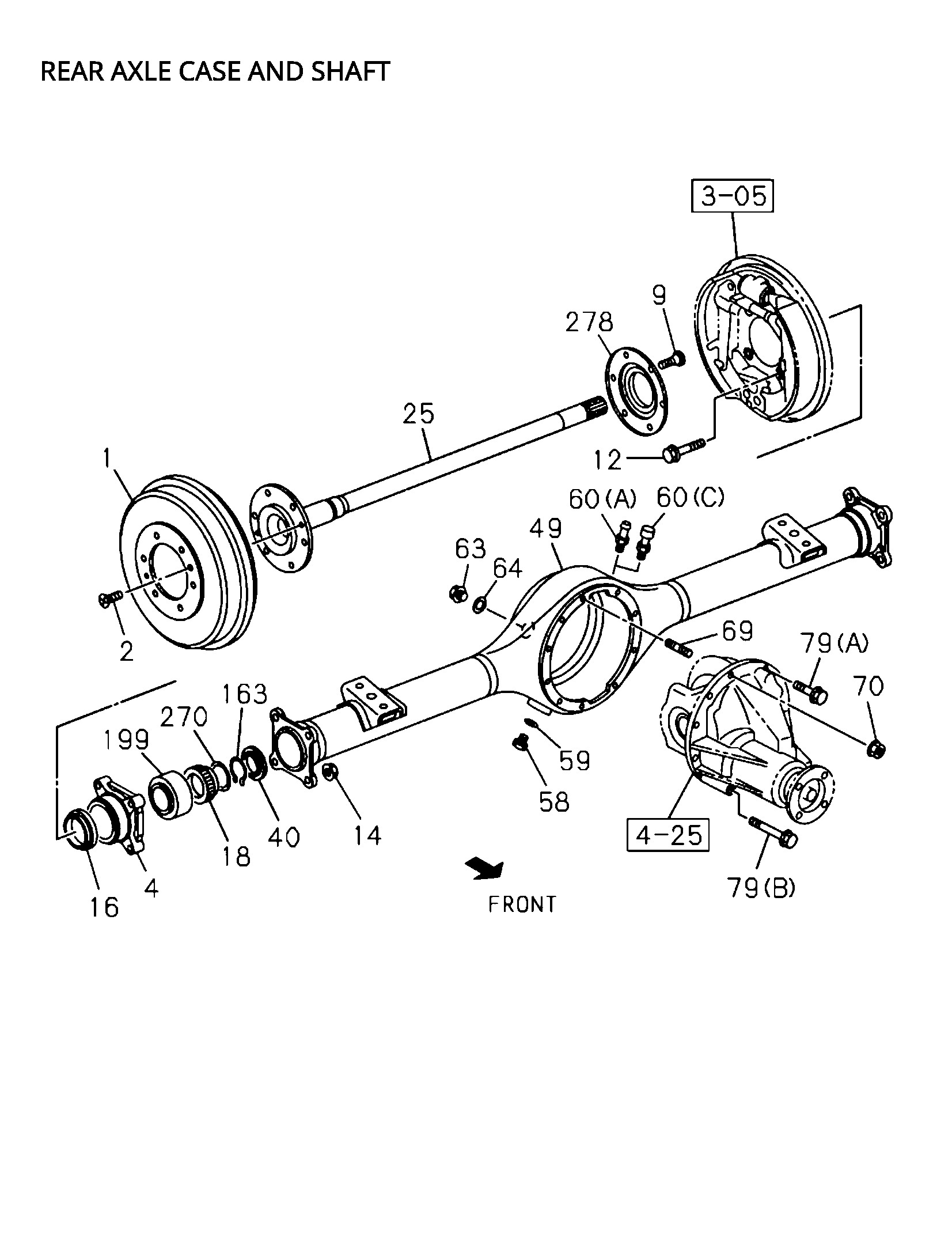

SHAFT, AXLE,RR |
2 |
2311- |
|
ABC |
(D-MAX 2024) |
| 49 |
I8-98481 862-1 |
|
CASE, RR AXLE |
1 |
2311- |
|
D E F |
(D-MAX 2024) M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S) REAR AXLE DIFF LOCK<8CL> |
| 70 |
I0-91180 108-0 |
|
NUT, FLEX HOSE,CLU CONT |
2 |
2311- |
|
D E F |
(D-MAX 2024) 4 WHEEL ANTI LOCK BRAKE<JE5> REAR AXLE DIFF LOCK<8CL> (B) M8 FLANGE |
| 61 |
I8-94368 493-0 |
|
BAND, FRT SEAT |
2 |
2311- |
|
D E F |
(D-MAX 2024) REAR AXLE DIFF LOCK<8CL> (B) L=129.5 |
| 163 |
I9-09180 042-0 |
|
RING,SNAP |
AR |
2311- |
|
ABCDE F |
(D-MAX 2024) ID=38.5 T=1.75 |
| 60 |
I8-98396 031-0 |
|
BREATHER, RR AXLE CASE |
1 |
2311- |
|
A D E F |
(D-MAX 2024) (A) L=38.5 |
| 16 |
I8-98134 394-0 |
|
SEAL, OIL,RR HUB,OUTER |
2 |
2311- |
|
A BC D E F |
(D-MAX 2024) |
| 40 |
I8-97323 297-0 |
|
SEAL, OIL,REAR AXLE |
2 |
2311- |
|
ABCDE F |
(D-MAX 2024) |
| 2 |
I0-36410 616-0 |
|
SCREW, DOOR LK |
2 |
2311- |
|
A BC D E F |
(D-MAX 2024) M6X16 CK-HEAD |
| 18 |
I8-98009 341-0 |
|
RETAINER, RR AXLE |
2 |
2311- |
|
BCDE F |
(D-MAX 2024) 4 WHEEL ANTI LOCK BRAKE<JE5> |
| 62 |
I8-97518 133-0 |
|

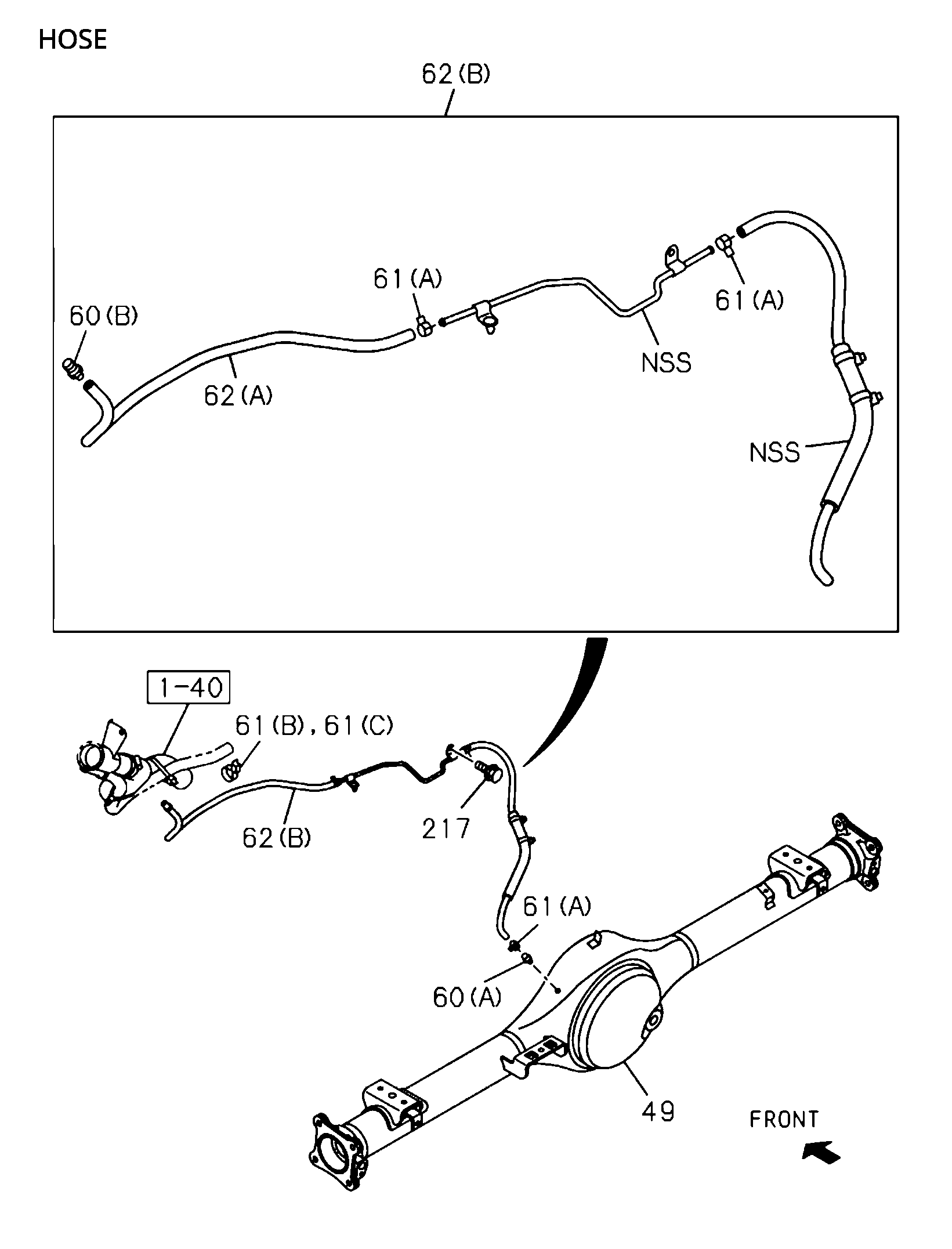

HOSE, RUBBER,BREATHER,RR AXLE |
1 |
2311- |
|
A D E F |
REAR BODY DELETE(8HH) (B) |
| 62 |
I0-04750 300-0 |
|
HOSE, RUBBER,BREATHER,RR AXLE |
1 |
2311- |
|
BC |
(D-MAX 2024) REAR BODY STD CARGO BOX(E63) HIGH RIDE SUSPENSION(7YC) (A) L=580 SERVICED BY L=3000 |
| 18 |
I6-97239 868-0 |
|
RETAINER, RR AXLE |
2 |
2311- |
|
BC D E F |
(IADG) |
| 49 |
I8-98481 858-1 |
|
CASE, RR AXLE |
1 |
2311- |
|
A |
(D-MAX 2024) |
| 79 |
I0-28061 030-0 |
|
BOLT, BRKT |
5 |
2311- |
|
D E F |
(D-MAX 2024) REAR AXLE DIFF LOCK<8CL> (A) M10X30 FLANGE |
| 62 |
I0-04750 300-0 |
|
HOSE, RUBBER,BREATHER,RR AXLE |
1 |
2311- |
|
A D E F |
(D-MAX 2024) REAR BODY STD CARGO BOX(E63) (A) L=580 SERVICED BY L=3000 |
| 9 |
I8-97944 831-1 |
|
PIN, WHEEL,RR AXLE |
12 |
2311- |
|
ABCDE F |
(D-MAX 2024) M12X42.5 RH THREAD |
| 49 |
I8-98481 857-0 |
|
CASE, RR AXLE |
1 |
2311- |
|
BC |
HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> |
| 58 |
I8-97307 060-0 |
|
PLUG, DRAIN,AXLE CASE |
1 |
2311- |
|
ABCDE F |
(D-MAX 2024) M16X12.5 |
| 14 |
I0-91180 212-0 |
|
NUT, TRAILING LINK |
8 |
2311- |
|
ABCDE F |
(D-MAX 2024) M12 FLANGE |
| 61 |
I8-94368 493-0 |
|
BAND, FRT SEAT |
2 |
2311- |
|
BC |
(D-MAX 2024) HIGH RIDE SUSPENSION(7YC) (B) L=129.5 |
| 1 |
I8-97948 038-1 |
|
DRUM, BRK,RR |
2 |
2311- |
|
BC |
EXC. HIGH RIDE SUSPENSION(7YC) AISIN TAKAOKA |
| 62 |
I8-98395 037-2 |
|
HOSE, RUBBER,BREATHER,RR AXLE |
1 |
2311- |
|
BC |
(D-MAX 2024) REAR BODY STD CARGO BOX(E63) HIGH RIDE SUSPENSION(7YC) (B) |
| 70 |
I0-91180 210-0 |
|
NUT, STRG UNIT |
2 |
2311- |
|
ABCDE F |
(D-MAX 2024) (A) M10 FLANGE |
| 25 |
I8-98393 149-0 |
|
SHAFT, AXLE,RR |
1 |
2311- |
R |
D E F |
(D-MAX 2024) REAR AXLE DIFF LOCK<8CL> |
| 61 |
I8-94238 570-0 |
|
CLIP, HOSE,SOLENOID |
1 |
2311- |
|
BC |
(D-MAX 2024) HIGH RIDE SUSPENSION(7YC) (A) ID=11 |
| 60 |
I8-98018 796-0 |
|
BREATHER, RR AXLE CASE |
1 |
2311- |
|
A D E F |
(D-MAX 2024) (B) L=29.6 |
| 278 |
I8-98103 447-2 |
|
CATCHER, OIL |
2 |
2311- |
|
A BC D E F |
(D-MAX 2024) |
| 1 |
I8-98061 813-1 |
|
DRUM, BRK,RR |
2 |
2311- |
|
A D E F |
(D-MAX 2024) SOMBOON |
| 62 |
I0-04750 300-0 |
|
HOSE, RUBBER,BREATHER,RR AXLE |
1 |
2311- |
|
A D E F |
(D-MAX 2024) REAR BODY DELETE(8HH) (A) L=380 SERVICED BY L=3000 |
| 18 |
I8-98009 341-0 |
|
RETAINER, RR AXLE |
2 |
2311- |
|
A |
(D-MAX 2024) |
| 18 |
I8-97239 868-0 |
|
RETAINER, RR AXLE |
2 |
2311- |
|
BC D E F |
EXC. 4 WHEEL ANTl LOCK BRAKE<JE5> |
| 63 |
I8-97307 059-1 |
|
PLUG, OIL FILLER,AXLE CASE |
1 |
2311- |
|
ABCDE F |
(D-MAX 2024) M20X17 |
| 49 |
I8-98481 856-1 |
|
CASE, RR AXLE |
1 |
2311- |
|
BC |
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) |
| 79 |
I0-28061 030-0 |
|
BOLT, BRKT |
7 |
2311- |
|
ABC |
(D-MAX 2024) (A) M10X30 FLANGE |
| 49 |
I8-98481 858-1 |
|
CASE, RR AXLE |
1 |
2311- |
|
BC |
(D-MAX 2024) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) |
| 217 |
I0-28650 616-0 |
|
SCREW, TANK TO BRKT |
1 |
2311- |
|
BC |
(D-MAX 2024) HIGH RIDE SUSPENSION(7YC) M6X16 FLANGE |
| 62 |
I8-98395 037-2 |
|
HOSE, RUBBER,BREATHER,RR AXLE |
1 |
2311- |
|
A D E F |
(D-MAX 2024) REAR BODY STD CARGO BOX(E63) (B) |
| 69 |
I8-98022 413-0 |
|
STUD, AXLE CASE |
2 |
2311- |
|
ABCDE F |
(D-MAX 2024) (A) M10X31 L=43 |
| 55 |
I8-97873 966-0 |
|
PROTECTOR, RR AXLE |
1 |
2311- |
|
D E F |
(D-MAX 2024) 4 WHEEL ANTI LOCK BRAKE<JE5> REAR AXLE DIFF LOCK<8CL> |
| 61 |
I8-94238 570-0 |
|
CLIP, HOSE,SOLENOID |
1 |
2311- |
|
A D E F |
(D-MAX 2024) (A) ID=11 |
| 12 |
I8-98107 914-2 |
|
BOLT, BRG HOLDER TO CASE |
8 |
2311- |
|
ABCDE F |
(D-MAX 2024) M12X59 FLANGE |
| 4 |
I8-98103 450-3 |
|
HOLDER, BRG,AXLE SHAFT |
2 |
2311- |
|
ABCDE F |
(D-MAX 2024) |
| 49 |
I8-98481 860-1 |
|
CASE, RR AXLE |
1 |
2311- |
|
D E F |
(D-MAX 2024) A/T 6 SPEED AISIN(Y6A) EXC. REAR AXLE DIFF LOCK<8CL> |
| 62 |
I8-97518 133-0 |
|
HOSE, RUBBER,BREATHER,RR AXLE |
1 |
2311- |
|
BC |
HIGH RIDE SUSPENSION(7YC) REAR BODY DELETE(8HH) (B) |
| 49 |
I8-98481 858-1 |
|
CASE, RR AXLE |
1 |
2311- |
|
D E F |
(D-MAX 2024) M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. REAR AXLE DIFF LOCK<8CL> |
| 199 |
I8-97216 797-2 |
|
BEARING, RR AXLE |
2 |
2311- |
|
ABCDE F |
(D-MAX 2024) |
| 79 |
I0-28061 090-0 |
|
BOLT, COVER TO CASE |
1 |
2311- |
|
ABCDE F |
(D-MAX 2024) (B) M10X90 |
| 49 |
I8-98481 864-1 |
|
CASE, RR AXLE |
1 |
2311- |
|
D E F |
A/T 6 SPEED AISIN(Y6A) REAR AXLE DIFF LOCK<8CL> |
| 61 |
I8-94238 570-0 |
|
CLIP, HOSE,SOLENOID |
2 |
2311- |
|
BC |
(D-MAX 2024) HIGH RIDE SUSPENSION(7YC) (A) ID=11 |
| 79 |
I0-28061 030-0 |
|
BOLT, BRKT |
7 |
2311- |
|
D E F |
(D-MAX 2024) EXC. REAR AXLE DIFF LOCK<8CL> (A) M10X30 FLANGE |
| 60 |
I8-98006 960-0 |
|
BREATHER, RR AXLE CASE |
1 |
2311- |
|
BC |
EXC. HIGH RIDE SUSPENSION(7YC) (C) L=29 |
| 49 |
I8-98481 855-0 |
|
CASE, RR AXLE |
1 |
2311- |
|
BC |
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION(7YC) |
| 270 |
I9-41519 109-0 |
|
SHIM, DIFF SIDE BRG |
AR |
2311- |
|
ABCDE F |
(D-MAX 2024) T=0.24 |
| 69 |
I8-97874 154-0 |
|
STUD, AXLE CASE |
2 |
2311- |
|
D E F |
(D-MAX 2024) REAR AXLE DIFF LOCK<8CL> (B) M10X40 L=55 |
| 25 |
I8-98080 678-2 |
|
SHAFT, AXLE,RR |
2 |
2311- |
|
D E F |
(D-MAX 2024) EXC. REAR AXLE DIFF LOCK<8CL> |
| 62 |
I0-04750 300-0 |
|
HOSE, RUBBER,BREATHER,RR AXLE |
1 |
2311- |
|
BC |
(D-MAX 2024) HIGH RIDE SUSPENSION(7YC) REAR BODY DELETE(8HH) (A) L=380 SERVICED BY L=3000 |
| 25 |
I8-98393 150-0 |
|
SHAFT, AXLE,RR |
1 |
2311- |
L |
D E F |
(D-MAX 2024) REAR AXLE DIFF LOCK<8CL> |
| 61 |
I8-94368 493-0 |
|
BAND, FRT SEAT |
2 |
2311- |
|
A D E F |
(D-MAX 2024) (B) L=129.5 |
| 60 |
I8-98018 796-0 |
|
BREATHER, RR AXLE CASE |
1 |
2311- |
|
BC |
(D-MAX 2024) HIGH RIDE SUSPENSION(7YC) (B) L=29.6 |
| 64 |
I8-94462 734-0 |
|
GASKET, OIL FILLER,AXLE CASE |
1 |
2311- |
|
ABCDE F |
(D-MAX 2024) ID=20 OD=30 |
| 61 |
I8-94238 570-0 |
|
CLIP, HOSE,SOLENOID |
2 |
2311- |
|
A D E F |
(D-MAX 2024) (A) ID=11 |
| 49 |
I8-98481 857-0 |
|
CASE, RR AXLE |
1 |
2311- |
|
D E F |
M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,REAR AXLE DIFF LOCK<8CL> |
