| 51 |
I8-97503 513-0 |
|
SHIM, PINION,FINAL DRIVE |
AR |
2311- |
|
D E F |
(D-MAX 2024) EXC. REAR AXLE DIFF LOCK<8CL> T=2.30 |
| 79 |
I8-94365 189-0 |
|
PLATE, FRICTION |
4 |
2311- |
|
BC |
(D-MAX 2024) LIMITED SLIP DIFF<G80> |
| 51 |
I8-97503 508-0 |
|
SHIM, PINION,FINAL DRIVE |
AR |
2311- |
|
ABC |
(D-MAX 2024) T=2.20 |
| 20 |
I8-94435 343-0 |
|
WASHER, THRUST,SIDE GEAR |
2 |
2311- |
|
D E F |
(D-MAX 2024) EXC. LIMITED SLIP DIFF<G80>,REAR AXLE DIFF LOCK<8CL> T=0.80 |
| 22 |
I8-94435 308-1 |
|
PIN, CROSS,DIFF PINION |
1 |
2311- |
|
D E F |
(D-MAX 2024) EXC. LIMITED SLIP DIFF<G80>,REAR AXLE DIFF LOCK<8CL> (A) |
| 39 |
I8-97503 950-0 |
|
BEARING, FINAL PINION |
1 |
2311- |
|
E |
(D-MAX 2024) FINAL GEAR RATIO 43/12(GM0),FINAL GEAR RATIO 41/11(GT4),FINAL GEARRATIO 41/10(GT5) REAR AXLE DIFF LOCK<8CL> |
| 73 |
I8-94435 352-0 |
|
SHIM, DIFF SIDE BRG |
AR |
2311- |
|
ABC |
(D-MAX 2024) T=0.30 |
| 21 |
I8-97200 286-0 |
|
GEAR, SIDE,DIFF |
2 |
2311- |
|
D E F |
(D-MAX 2024) LIMITED SLIP DIFF<G80> EXC. REAR AXLE DIFF LOCK<8CL> |
| 229 |
I8-97243 132-0 |
|
CONNECTOR |
1 |
2311- |
|
D E F |
(D-MAX 2024) REAR AXLE DIFF LOCK<8CL> (B) |
| 51 |
I8-97503 507-0 |
|
SHIM, PINION,FINAL DRIVE |
AR |
2311- |
|
ABC |
(D-MAX 2024) T=2.18 |
| 73 |
I8-94435 348-0 |
|
SHIM, DIFF SIDE BRG |
AR |
2311- |
|
D E F |
(D-MAX 2024) EXC. REAR AXLE DIFF LOCK<8CL> T=0.12 |
| 51 |
I8-97503 496-0 |
|
SHIM, PINION,FINAL DRIVE |
AR |
2311- |
|
ABC |
(D-MAX 2024) T=1.96 |
| 70 |
I8-94435 355-0 |
|
BEARING, DIFF CAGE |
2 |
2311- |
|
D E F |
(D-MAX 2024) EXC. REAR AXLE DIFF LOCK<8CL> NSK |
| 73 |
I8-97947 968-0 |
|
SHIM, DIFF SIDE BRG |
AR |
2311- |
|
D E F |
(D-MAX 2024) REAR AXLE DIFF LOCK<8CL> T=0.25 |
| 80 |
I8-97556 401-0 |
|
RING, PRESSURE |
1 |
2311- |
|
D E F |
(D-MAX 2024) REAR AXLE DIFF LOCK<8CL> |
| 60 |
I8-98398 102-0 |
|
GEAR SET, FINAL DRIVE,RR |
1 |
2311- |
|
B D F |
FINAL GEAR RATIO 43/10(GY2) 43/10 |
| 51 |
I8-97503 963-0 |
|
SHIM, PINION,FINAL DRIVE |
AR |
2311- |
|
D E F |
(D-MAX 2024) REAR AXLE DIFF LOCK<8CL> T=2.08 |
| 51 |
I8-97503 495-0 |
|
SHIM, PINION,FINAL DRIVE |
AR |
2311- |
|
D E F |
(D-MAX 2024) EXC. REAR AXLE DIFF LOCK<8CL> T=1.94 |
| 51 |
I8-97503 971-0 |
|
SHIM, PINION,FINAL DRIVE |
AR |
2311- |
|
D E F |
(D-MAX 2024) REAR AXLE DIFF LOCK<8CL> T=2.24 |
| 51 |
I8-97503 509-0 |
|
SHIM, PINION,FINAL DRIVE |
AR |
2311- |
|
D E F |
(D-MAX 2024) EXC. REAR AXLE DIFF LOCK<8CL> T=2.22 |
| 51 |
I8-97503 507-0 |
|
SHIM, PINION,FINAL DRIVE |
AR |
2311- |
|
D E F |
(D-MAX 2024) EXC. REAR AXLE DIFF LOCK<8CL> T=2.18 |
| 55 |
I8-97839 631-0 |
|
CARRIER, DIFF |
1 |
2311-2402 |
|
E |
M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S) FINAL GEAR RATIO 43/11 (GW1) REAR AXLE DIFF LOCK<8CL> |
| 432 |
I8-97556 412-0 |
|
SCREW |
3 |
2311- |
|
D E F |
(D-MAX 2024) REAR AXLE DIFF LOCK<8CL> |
| 51 |
I8-97503 500-0 |
|
SHIM, PINION,FINAL DRIVE |
AR |
2311- |
|
ABC |
(D-MAX 2024) T=2.04 |
| 55 |
I7-55212 111-0 |
|
CARRIER, DIFF |
1 |
2403- |
|
D E F |
(D-MAX 2024) FINAL GEAR RATIO 43/12(GM0),FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11 (GW1),FINAL GEAR RATIO 43/10(GY2) REAR AXLE DIFF LOCK<8CL> |
| 74 |
I8-97556 411-0 |
|
PIN, LK,CROSS PIN |
2 |
2311- |
|
D E F |
(D-MAX 2024) REAR AXLE DIFF LOCK<8CL> |
| 1 |
I8-98395 219-0 |
|
DRIVE ASM, FINAL,RR |
1 |
2311- |
|
E |
4JJ3 ENG(LNG) FINAL GEAR RATIO 41/10(GT5) EXC. LIMITED SLIP DIFF<G80>,REAR AXLE DIFF LOCK<8CL> (A) 41/10 |
| 60 |
I8-98398 114-0 |
|
GEAR SET, FINAL DRIVE,RR |
1 |
2311-2401 |
|
E |
(D-MAX 2024) FINAL GEAR RATIO 43/11 (GW1) 43/11 |
| 126 |
I8-98398 075-0 |
|
COUPLING, DRIVING PINION |
1 |
2311- |
|
D E F |
(D-MAX 2024) REAR AXLE DIFF LOCK<8CL> |
| 1 |
I8-98395 221-0 |
|
DRIVE ASM, FINAL,RR |
1 |
2311- |
|
BC |
FINAL GEAR RATIO 41 /11 (GT4) HIGH RIDE SUSPENSION(7YC) EXC. LIMITED SLIP DIFF<G80> (A) 41/11 |
| 51 |
I8-97503 956-0 |
|
SHIM, PINION,FINAL DRIVE |
AR |
2311- |
|
D E F |
(D-MAX 2024) REAR AXLE DIFF LOCK<8CL> T=1.96 |
| 20 |
I8-94435 346-0 |
|
WASHER, THRUST,SIDE GEAR |
2 |
2311- |
|
A |
(D-MAX 2024) T=1.20 |
| 50 |
I8-97503 951-0 |
|
BEARING, FINAL PINION |
1 |
2311- |
|
E |
(D-MAX 2024) FINAL GEAR RATIO 43/12(GM0),FINAL GEAR RATIO 41/11(GT4),FINAL GEARRATIO 41/10(GT5) REAR AXLE DIFF LOCK<8CL> |
| 1 |
I8-98395 221-0 |
|
DRIVE ASM, FINAL,RR |
1 |
2311- |
|
A |
(A) 41/11 |
| 24 |
I8-98186 829-0 |
|
GEAR, PINION,DIFF |
2 |
2311- |
|
D E F |
(D-MAX 2024) RZ4E-TC ENG(RDZ) EXC. LIMITED SLIP DIFF<G80>,REAR AXLE DIFF LOCK<8CL> Z=10 |
| 55 |
I8-97845 857-0 |
|
CARRIER, DIFF |
1 |
2403- |
|
D E F |
(D-MAX 2024) EXC. REAR AXLE DIFF LOCK<8CL> |
| 20 |
I9-41562 602-0 |
|
WASHER, THRUST,SIDE GEAR |
2 |
2311- |
|
D E F |
EXC. LIMITED SLIP DIFF<G80>,REAR AXLE DIFF LOCK<8CL> T=1.00 |
| 20 |
I8-97556 415-0 |
|
WASHER, THRUST,SIDE GEAR |
1 |
2311- |
|
D E F |
(D-MAX 2024) REAR AXLE DIFF LOCK<8CL> T=1.40 |
| 24 |
I8-98319 771-0 |
|
GEAR, PINION,DIFF |
2 |
2311- |
|
D E F |
RZ4E-TCX HI-POWER ENG(LNC),4JJ3 ENG(LNG) EXC. LIMITED SLIP DIFF<G80>,REAR AXLE DIFF LOCK<8CL> Z=9 |
| 55 |
I8-97839 631-0 |
|
CARRIER, DIFF |
1 |
2311-2402 |
|
D E F |
FINAL GEAR RATIO 43/12(GM0),FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(GY2) REAR AXLE DIFF LOCK<8CL> |
| 60 |
I8-98398 120-0 |
|
GEAR SET, FINAL DRIVE,RR |
1 |
2311- |
|
D E F |
FINAL GEAR RATIO 41 /11 (GT4) 41/11 |
| 20 |
I8-94435 343-0 |
|
WASHER, THRUST,SIDE GEAR |
2 |
2311- |
|
BC |
(D-MAX 2024) EXC. LIMITED SLIP DIFF<G80> T=0.80 |
| 20 |
I8-94435 345-0 |
|
WASHER, THRUST,SIDE GEAR |
2 |
2311- |
|
BC |
(D-MAX 2024) EXC. LIMITED SLIP DIFF<G80> T=1.10 |
| 82 |
I8-94453 932-0 |
|
SPIDER, DIFF PINION |
1 |
2311- |
|
BC |
(D-MAX 2024) LIMITED SLIP DIFF<G80> |
| 1 |
I8-98395 227-0 |
|
DRIVE ASM, FINAL,RR |
1 |
2311- |
|
E |
FINAL GEAR RATIO 43/11 (GW1) LIMITED SLIP DIFF<G80> EXC. REAR AXLE DIFF LOCK<8CL> (B) 43/11 |
| 51 |
I8-97503 962-0 |
|
SHIM, PINION,FINAL DRIVE |
AR |
2311- |
|
D E F |
(D-MAX 2024) REAR AXLE DIFF LOCK<8CL> T=2.06 |
| 76 |
I8-97096 209-0 |
|
DISC, BEVEL |
4 |
2311- |
|
D E F |
(D-MAX 2024) LIMITED SLIP DIFF<G80> |
| 504 |
I8-97556 409-0 |
|
PLUNGER ASM |
1 |
2311- |
|
D E F |
(D-MAX 2024) REAR AXLE DIFF LOCK<8CL> |
| 24 |
I8-98319 771-0 |
|
GEAR, PINION,DIFF |
2 |
2311- |
|
A |
Z=9 |
| 298 |
I8-97556 398-0 |
|
GEAR KIT, DIFF,RR AXLE |
1 |
2311- |
|
D E F |
(D-MAX 2024) REAR AXLE DIFF LOCK<8CL> |
| 60 |
I8-98398 105-0 |
|
GEAR SET, FINAL DRIVE,RR |
1 |
2311- |
|
D F |
(D-MAX 2024) FINAL GEAR RATIO 41/10(GT5) EXC. LIMITED SLIP DIFF<G80>,REAR AXLE DIFF LOCK<8CL> 41/10 |
| 392 |
I8-97556 413-0 |
|
WASHER KIT, THRUST,DIFF |
1 |
2311- |
|
D E F |
(D-MAX 2024) REAR AXLE DIFF LOCK<8CL> (A) |
| 78 |
I8-94453 937-0 |
|
DISC, FRICTION |
4 |
2311- |
|
D E F |
(D-MAX 2024) LIMITED SLIP DIFF<G80> |
| 51 |
I8-97503 505-0 |
|
SHIM, PINION,FINAL DRIVE |
AR |
2311- |
|
ABC |
(D-MAX 2024) T=2.14 |
| 392 |
I8-97556 414-0 |
|
WASHER KIT, THRUST,DIFF |
1 |
2311- |
|
D E F |
(D-MAX 2024) REAR AXLE DIFF LOCK<8CL> (B) |
| 60 |
I8-98398 111-0 |
|
GEAR SET, FINAL DRIVE,RR |
1 |
2311- |
|
E |
FINAL GEAR RATIO 43/11 (GW1) EXC. LIMITED SLIP DIFF<G80>,REAR AXLE DIFF LOCK<8CL> 43/11 |
| 100 |
I8-97503 949-0 |
|
SEAL, OIL,FINAL PINION |
1 |
2311- |
|
D F |
REAR AXLE DIFF LOCK<8CL> |
| 37 |
I8-97948 984-0 |
|
NUT, DRIVING PINION |
1 |
2311- |
|
D E F |
(D-MAX 2024) REAR AXLE DIFF LOCK<8CL> M24 FLANGE |
| 20 |
I8-94435 346-0 |
|
WASHER, THRUST,SIDE GEAR |
2 |
2311- |
|
D E F |
(D-MAX 2024) EXC. LIMITED SLIP DIFF<G80>,REAR AXLE DIFF LOCK<8CL> T=1.20 |
| 20 |
I8-94453 935-0 |
|
WASHER, THRUST,SIDE GEAR |
2 |
2311- |
|
D E F |
(D-MAX 2024) LIMITED SLIP DIFF<G80> EXC. REAR AXLE DIFF LOCK<8CL> T=1.50 |
| 51 |
I8-97503 504-0 |
|
SHIM, PINION,FINAL DRIVE |
AR |
2311- |
|
D E F |
(D-MAX 2024) EXC. REAR AXLE DIFF LOCK<8CL> T=2.12 |
| 20 |
I8-94435 344-0 |
|
WASHER, THRUST,SIDE GEAR |
2 |
2311- |
|
D E F |
(D-MAX 2024) EXC. LIMITED SLIP DIFF<G80>,REAR AXLE DIFF LOCK<8CL> T=0.90 |
| 51 |
I8-97503 498-0 |
|
SHIM, PINION,FINAL DRIVE |
AR |
2311- |
|
D E F |
(D-MAX 2024) EXC. REAR AXLE DIFF LOCK<8CL> T=2.00 |
| 51 |
I8-97503 965-0 |
|
SHIM, PINION,FINAL DRIVE |
AR |
2311- |
|
D E F |
(D-MAX 2024) REAR AXLE DIFF LOCK<8CL> T=2.12 |
| 60 |
I8-98398 108-0 |
|
GEAR SET, FINAL DRIVE,RR |
1 |
2311- |
|
E |
(D-MAX 2024) 4JJ3 ENG(LNG) FINAL GEAR RATIO 41/10(GT5) EXC. LIMITED SLIP DIFF<G80>,REAR AXLE DIFF LOCK<8CL> 41/10 |
| 39 |
I8-97503 950-0 |
|
BEARING, FINAL PINION |
1 |
2311- |
|
D F |
(D-MAX 2024) REAR AXLE DIFF LOCK<8CL> |
| 73 |
I8-94435 349-0 |
|
SHIM, DIFF SIDE BRG |
AR |
2311- |
|
ABC |
(D-MAX 2024) T=0.15 |
| 51 |
I8-97503 957-0 |
|
SHIM, PINION,FINAL DRIVE |
AR |
2311- |
|
D E F |
(D-MAX 2024) REAR AXLE DIFF LOCK<8CL> T=1.98 |
| 60 |
I8-98398 108-0 |
|
GEAR SET, FINAL DRIVE,RR |
1 |
2311- |
|
D E F |
(D-MAX 2024) FINAL GEAR RATIO 41/10(GT5) REAR AXLE DIFF LOCK<8CL> 41/10 |
| 24 |
I8-98186 829-0 |
|
GEAR, PINION,DIFF |
2 |
2311- |
|
BC |
(D-MAX 2024) RZ4E-TC ENG(RDZ) EXC. LIMITED SLIP DIFF<G80> Z=10 |
| 73 |
I8-94435 352-0 |
|
SHIM, DIFF SIDE BRG |
AR |
2311- |
|
D E F |
(D-MAX 2024) EXC. REAR AXLE DIFF LOCK<8CL> T=0.30 |
| 100 |
I8-97502 956-0 |
|
SEAL, OIL,FINAL PINION |
1 |
2311-2402 |
|
D E F |
EXC. REAR AXLE DIFF LOCK<8CL> |
| 60 |
I8-98398 114-0 |
|
GEAR SET, FINAL DRIVE,RR |
1 |
2402- |
|
E |
(D-MAX 2024) FINAL GEAR RATIO 43/11 (GW1) LIMITED SLIP DIFF<G80> EXC. REAR AXLE DIFF LOCK<8CL> 43/11 |
| 51 |
I8-97503 516-0 |
|
SHIM, PINION,FINAL DRIVE |
AR |
2311- |
|
ABC |
(D-MAX 2024) T=2.36 |
| 51 |
I8-97503 500-0 |
|
SHIM, PINION,FINAL DRIVE |
AR |
2311- |
|
D E F |
(D-MAX 2024) EXC. REAR AXLE DIFF LOCK<8CL> T=2.04 |
| 39 |
I7-55184 681-0 |
|
BEARING, FINAL PINION |
1 |
2402- |
|
E |
A/T 6 SPEED AISIN(Y6A) FINAL GEAR RATIO 43/11 (GW1) REAR AXLE DIFF LOCK<8CL> |
| 1 |
I8-98395 239-0 |
|
DRIVE ASM, FINAL,RR |
1 |
2311- |
|
E |
(D-MAX 2024) M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S) FINAL GEAR RATIO 43/11 (GW1) REAR AXLE DIFF LOCK<8CL> (C) 43/11 |
| 126 |
I8-97499 896-0 |
|
COUPLING, DRIVING PINION |
1 |
2311- |
|
D E F |
(D-MAX 2024) EXC. REAR AXLE DIFF LOCK<8CL> |
| 51 |
I8-97503 961-0 |
|
SHIM, PINION,FINAL DRIVE |
AR |
2311- |
|
D E F |
(D-MAX 2024) REAR AXLE DIFF LOCK<8CL> T=2.04 |
| 60 |
I8-98398 120-0 |
|
GEAR SET, FINAL DRIVE,RR |
1 |
2311- |
|
BC |
FINAL GEAR RATIO 41 /11 (GT4) HIGH RIDE SUSPENSION(7YC) 41/11 |
| 55 |
I8-97499 726-0 |
|
CARRIER, DIFF |
1 |
2311-2402 |
|
D E F |
EXC. REAR AXLE DIFF LOCK<8CL> |
| 20 |
I9-41562 602-0 |
|
WASHER, THRUST,SIDE GEAR |
2 |
2311- |
|
BC |
(D-MAX 2024) EXC. LIMITED SLIP DIFF<G80> T=1.00 |
| 20 |
I8-94435 347-0 |
|
WASHER, THRUST,SIDE GEAR |
2 |
2311- |
|
BC |
(D-MAX 2024) EXC. LIMITED SLIP DIFF<G80> T=1.30 |
| 73 |
I8-94435 349-0 |
|
SHIM, DIFF SIDE BRG |
AR |
2311- |
|
D E F |
(D-MAX 2024) EXC. REAR AXLE DIFF LOCK<8CL> T=0.15 |
| 20 |
I8-94435 345-0 |
|
WASHER, THRUST,SIDE GEAR |
2 |
2311- |
|
D E F |
(D-MAX 2024) EXC. LIMITED SLIP DIFF<G80>,REAR AXLE DIFF LOCK<8CL> T=1.10 |
| 71 |
I8-98398 087-0 |
|
CAGE ASM, DIFF,FINAL DRIVE |
1 |
2311- |
|
D E F |
(D-MAX 2024) LIMITED SLIP DIFF<G80> EXC. REAR AXLE DIFF LOCK<8CL> |
| 1 |
I8-98395 219-0 |
|
DRIVE ASM, FINAL,RR |
1 |
2311- |
|
BC |
RZ4E-TCX HI-POWER ENG(LNC),4JJ3 ENG(LNG) FINAL GEAR RATIO 41/10(GT5) EXC. LIMITED SLIP DIFF<G80> (a) 41/10 |
| 37 |
I8-94376 261-1 |
|
NUT, DRIVING PINION |
1 |
2311- |
|
D E F |
(D-MAX 2024) EXC. REAR AXLE DIFF LOCK<8CL> M24 FLANGE |
| 21 |
I8-98319 772-0 |
|
GEAR, SIDE,DIFF |
2 |
2311- |
|
A |
Z=14 |
| 79 |
I8-94453 936-0 |
|
PLATE, FRICTION |
4 |
2311- |
|
BC |
(D-MAX 2024) LIMITED SLIP DIFF<G80> |
| 60 |
I8-98398 105-0 |
|
GEAR SET, FINAL DRIVE,RR |
1 |
2311- |
|
BC |
(D-MAX 2024) RZ4E-TC ENG(RDZ) FINAL GEAR RATIO 41/10(GT5) EXC. LIMITED SLIP DIFF<G80> 41/10 |
| 72 |
I8-97499 732-0 |
|
CAGE, DIFF |
1 |
2311- |
|
BC |
(D-MAX 2024) RZ4E-TC ENG(RDZ) EXC. LIMITED SLIP DIFF<G80> |
| 51 |
I8-97503 968-0 |
|
SHIM, PINION,FINAL DRIVE |
AR |
2311- |
|
D E F |
(D-MAX 2024) REAR AXLE DIFF LOCK<8CL> T=2.18 |
| 1 |
I8-98395 221-0 |
|
DRIVE ASM, FINAL,RR |
1 |
2311- |
|
D E F |
FINAL GEAR RATIO 41 /11 (GT4) EXC. LIMITED SLIP DIFF<G80>,REAR AXLE DIFF LOCK<8CL> (A) 41/11 |
| 70 |
I8-94452 449-1 |
|
BEARING, DIFF CAGE |
2 |
2311- |
|
D E F |
(D-MAX 2024) EXC. REAR AXLE DIFF LOCK<8CL> JTEKT |
| 439 |
I8-97556 410-0 |
|
SPRING, RETURN,DIFF LK |
1 |
2311- |
|
D E F |
(D-MAX 2024) REAR AXLE DIFF LOCK<8CL> |
| 51 |
I8-97503 969-0 |
|
SHIM, PINION,FINAL DRIVE |
AR |
2311- |
|
D E F |
(D-MAX 2024) REAR AXLE DIFF LOCK<8CL> T=2.20 |
| 51 |
I8-97503 970-0 |
|
SHIM, PINION,FINAL DRIVE |
AR |
2311- |
|
D E F |
(D-MAX 2024) REAR AXLE DIFF LOCK<8CL> T=2.22 |
| 20 |
I8-94435 347-0 |
|
WASHER, THRUST,SIDE GEAR |
2 |
2311- |
|
D E F |
(D-MAX 2024) EXC. LIMITED SLIP DIFF<G80>,REAR AXLE DIFF LOCK<8CL> T=1.30 |
| 51 |
I8-97503 509-0 |
|
SHIM, PINION,FINAL DRIVE |
AR |
2311- |
|
ABC |
(D-MAX 2024) T=2.22 |
| 51 |
I8-97503 515-0 |
|
SHIM, PINION,FINAL DRIVE |
AR |
2311- |
|
ABC |
(D-MAX 2024) T=2.34 |
| 24 |
I8-97200 285-1 |
|
GEAR, PINION,DIFF |
4 |
2311- |
|
D E F |
(D-MAX 2024) LIMITED SLIP DIFF<G80> EXC. REAR AXLE DIFF LOCK<8CL> |
| 21 |
I8-98319 772-0 |
|
GEAR, SIDE,DIFF |
2 |
2311- |
|
BC |
RZ4E-TCX HI-POWER ENG(LNC),4iJ3 ENG(LNG) EXC. LIMITED SLIP DIFF<G80> Z=14 |
| 1 |
I8-98395 241-0 |
|
DRIVE ASM, FINAL,RR |
1 |
2311- |
|
E |
FINAL GEAR RATIO 43/12(GM0) REAR AXLE DIFF LOCK<8CL> (B) 43/12 |
| 20 |
I8-94453 935-0 |
|
WASHER, THRUST,SIDE GEAR |
2 |
2311- |
|
BC |
(D-MAX 2024) LIMITED SLIP DIFF<G80> T=1.50 |
| 51 |
I8-97503 514-0 |
|
SHIM, PINION,FINAL DRIVE |
AR |
2311- |
|
D E F |
(D-MAX 2024) EXC. REAR AXLE DIFF LOCK<8CL> T=2.32 |
| 20 |
I8-94435 344-0 |
|
WASHER, THRUST,SIDE GEAR |
2 |
2311- |
|
A |
(D-MAX 2024) T=0.90 |
| 74 |
I9-09878 096-0 |
|
PIN, LK,CROSS PIN |
1 |
2311- |
|
A |
(D-MAX 2024) OD=5 L=35 |
| 72 |
I8-97499 733-0 |
|
CAGE, DIFF |
1 |
2311- |
|
BC |
RZ4E-TCX HI-POWER ENG(LNC),4JJ3 ENG(LNG) EXC. LIMITED SLIP DIFF<G80> |
| 51 |
I8-97503 497-0 |
|
SHIM, PINION,FINAL DRIVE |
AR |
2311- |
|
ABC |
(D-MAX 2024) T=1.98 |
| 100 |
I7-55184 686-0 |
|
SEAL, OIL,FINAL PINION |
1 |
2403- |
|
D E F |
(D-MAX 2024) EXC. REAR AXLE DIFF LOCK<8CL> |
| 50 |
I8-97503 951-0 |
|
BEARING, FINAL PINION |
1 |
2311- |
|
E |
(D-MAX 2024) M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S) FINAL GEAR RATIO 43/11 (GW1) REAR AXLE DIFF LOCK<8CL> |
| 80 |
I8-94453 931-0 |
|
RING, PRESSURE |
2 |
2311- |
|
D E F |
(D-MAX 2024) LIMITED SLIP DIFF<G80> |
| 22 |
I8-97556 399-0 |
|
SPIDER, DIFF PINION |
1 |
2311- |
|
D E F |
(D-MAX 2024) REAR AXLE DIFF LOCK<8CL> (B) |
| 51 |
I8-97503 514-0 |
|
SHIM, PINION,FINAL DRIVE |
AR |
2311- |
|
ABC |
(D-MAX 2024) T=2.32 |
| 20 |
I8-94435 346-0 |
|
WASHER, THRUST,SIDE GEAR |
2 |
2311- |
|
BC |
(D-MAX 2024) EXC. LIMITED SLIP DIFF<G80> T=1.20 |
| 51 |
I8-97503 975-0 |
|
SHIM, PINION,FINAL DRIVE |
AR |
2311- |
|
D E F |
(D-MAX 2024) REAR AXLE DIFF LOCK<8CL> T=2.32 |
| 73 |
I8-94435 353-0 |
|
SHIM, DIFF SIDE BRG |
AR |
2311- |
|
D E F |
(D-MAX 2024) EXC. REAR AXLE DIFF LOCK<8CL> T=0.50 |
| 60 |
I8-98398 117-0 |
|
GEAR SET, FINAL DRIVE,RR |
1 |
2311- |
|
BC |
FINAL GEAR RATIO 41 /11 (GT4) EXC. LIMITED SLIP DIFF<G80>,HIGH RIDE SUSPENSION(7YC) 41/11 |
| 1 |
I8-98395 222-0 |
|
DRIVE ASM, FINAL,RR |
1 |
2311- |
|
E |
FINAL GEAR RATIO 43/12(GM0) EXC. LIMITED SLIP DIFF<G80>,REAR AXLE DIFF LOCK<8CL> (A) 43/12 |
| 21 |
I8-98186 828-1 |
|
GEAR, SIDE,DIFF |
2 |
2311- |
|
BC |
(D-MAX 2024) RZ4E-TC ENG(RDZ) EXC. LIMITED SLIP DIFF<G80> Z=18 |
| 51 |
I8-97503 511-0 |
|
SHIM, PINION,FINAL DRIVE |
AR |
2311- |
|
D E F |
(D-MAX 2024) EXC. REAR AXLE DIFF LOCK<8CL> T=2.26 |
| 51 |
I8-97503 964-0 |
|
SHIM, PINION,FINAL DRIVE |
AR |
2311- |
|
D E F |
(D-MAX 2024) REAR AXLE DIFF LOCK<8CL> T=2.10 |
| 51 |
I8-97503 977-0 |
|
SHIM, PINION,FINAL DRIVE |
AR |
2311- |
|
D E F |
(D-MAX 2024) REAR AXLE DIFF LOCK<8CL> T=2.36 |
| 73 |
I8-94435 350-0 |
|
SHIM, DIFF SIDE BRG |
AR |
2311- |
|
ABC |
(D-MAX 2024) T=0.18 |
| 1 |
I8-98395 214-0 |
|
DRIVE ASM, FINAL,RR |
1 |
2311- |
|
E |
(D-MAX 2024) RZ4E-TC ENG(RDZ) FINAL GEAR RATIO 41/10(GT5) EXC. LIMITED SLIP DIFF<G80>,REAR AXLE DIFF LOCK<8CL> (a) 41/10 |
| 72 |
I8-97499 733-0 |
|
CAGE, DIFF |
1 |
2311- |
|
D E F |
RZ4E-TCX HI-POWER ENG(LNC),4JJ3 ENG(LNG) EXC. LIMITED SLIP DIFF<G80>,REAR AXLE DIFF LOCK<8CL> |
| 100 |
I8-97503 949-0 |
|
SEAL, OIL,FINAL PINION |
1 |
2311- |
|
E |
M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S) FINAL GEAR RATIO 43/11 (GW1) REAR AXLE DIFF LOCK<8CL> |
| 51 |
I8-97503 976-0 |
|
SHIM, PINION,FINAL DRIVE |
AR |
2311- |
|
D E F |
(D-MAX 2024) REAR AXLE DIFF LOCK<8CL> T=2.34 |
| 51 |
I8-97503 516-0 |
|
SHIM, PINION,FINAL DRIVE |
AR |
2311- |
|
D E F |
(D-MAX 2024) EXC. REAR AXLE DIFF LOCK<8CL> T=2.36 |
| 72 |
I8-97499 733-0 |
|
CAGE, DIFF |
1 |
2311- |
|
A |
|
| 42 |
I8-98398 083-0 |
|
COLLAR, DIST,COLLAPSIBLE |
1 |
2311- |
|
ABCDE F |
(D-MAX 2024) |
| 60 |
I8-98398 105-0 |
|
GEAR SET, FINAL DRIVE,RR |
1 |
2311- |
|
E |
(D-MAX 2024) RZ4E-TC ENG(RDZ) FINAL GEAR RATIO 41/10(GT5) EXC. LIMITED SLIP DIFF<G80>,REAR AXLE DIFF LOCK<8CL> 41/10 |
| 24 |
I8-97200 285-1 |
|
GEAR, PINION,DIFF |
4 |
2311- |
|
BC |
(D-MAX 2024) LIMITED SLIP DIFF<G80> |
| 51 |
I8-97503 515-0 |
|
SHIM, PINION,FINAL DRIVE |
AR |
2311- |
|
D E F |
(D-MAX 2024) EXC. REAR AXLE DIFF LOCK<8CL> T=2.34 |
| 73 |
I8-94435 350-0 |
|
SHIM, DIFF SIDE BRG |
AR |
2311- |
|
D E F |
(D-MAX 2024) EXC. REAR AXLE DIFF LOCK<8CL> T=0.18 |
| 51 |
I8-97503 510-0 |
|
SHIM, PINION,FINAL DRIVE |
AR |
2311- |
|
D E F |
(D-MAX 2024) EXC. REAR AXLE DIFF LOCK<8CL> T=2.24 |
| 51 |
I8-97503 503-0 |
|
SHIM, PINION,FINAL DRIVE |
AR |
2311- |
|
ABC |
(D-MAX 2024) T=2.10 |
| 56 |
I7-55198 301-0 |
|
BOLT, BRG CAP |
4 |
2311- |
|
D E F |
FINAL GEAR RATIO 41 /11 (GT4) REAR AXLE DIFF LOCK<8CL> M12X75 FLANGE |
| 73 |
I8-94435 348-0 |
|
SHIM, DIFF SIDE BRG |
AR |
2311- |
|
ABC |
(D-MAX 2024) T=0.12 |
| 1 |
I8-98395 214-0 |
|
DRIVE ASM, FINAL,RR |
1 |
2311- |
|
D F |
(D-MAX 2024) FINAL GEAR RATIO 41/10(GT5) EXC. LIMITED SLIP DIFF<G80>,REAR AXLE DIFF LOCK<8CL> (A) 41/10 |
| 25 |
I8-97556 402-0 |
|
WASHER, THRUST,PINION |
4 |
2311- |
|
D E F |
(D-MAX 2024) REAR AXLE DIFF LOCK<8CL> |
| 51 |
I8-97503 959-0 |
|
SHIM, PINION,FINAL DRIVE |
AR |
2311- |
|
D E F |
(D-MAX 2024) REAR AXLE DIFF LOCK<8CL> T=2.00 |
| 1 |
I8-98395 223-0 |
|
DRIVE ASM, FINAL,RR |
1 |
2311- |
|
BC |
FINAL GEAR RATIO 41/12(GU6) (a) 41/12 |
| 76 |
I8-97096 209-0 |
|
DISC, BEVEL |
4 |
2311- |
|
BC |
(D-MAX 2024) LIMITED SLIP DIFF<G80> |
| 60 |
I8-98398 120-0 |
|
GEAR SET, FINAL DRIVE,RR |
1 |
2311- |
|
BC |
FINAL GEAR RATIO 41 /11 (GT4) LIMITED SLIP DIFF<G80> EXC. HIGH RIDE SUSPENSION(7YC) 41/11 |
| 1 |
I8-98395 216-0 |
|
DRIVE ASM, FINAL,RR |
1 |
2311- |
|
BC |
FINAL GEAR RATIO 41 /11 (GT4) EXC. LIMITED SLIP DIFF<G80>,HIGH RIDE SUSPENSION(7YC) (A) 41/11 |
| 20 |
I8-94365 187-0 |
|
WASHER, THRUST,SIDE GEAR |
2 |
2311- |
|
BC |
(D-MAX 2024) LIMITED SLIP DIFF<G80> T=1.60 |
| 21 |
I8-97200 286-0 |
|
GEAR, SIDE,DIFF |
2 |
2311- |
|
BC |
(D-MAX 2024) LIMITED SLIP DIFF<G80> |
| 60 |
I8-98398 108-0 |
|
GEAR SET, FINAL DRIVE,RR |
1 |
2311- |
|
D E F |
(D-MAX 2024) FINAL GEAR RATIO 41/10(GT5) LIMITED SLIP DIFF<G80> EXC. REAR AXLE DIFF LOCK<8CL> 41/10 |
| 51 |
I8-97503 967-0 |
|
SHIM, PINION,FINAL DRIVE |
AR |
2311- |
|
D E F |
(D-MAX 2024) REAR AXLE DIFF LOCK<8CL> T=2.16 |
| 22 |
I8-94435 308-1 |
|
PIN, CROSS,DIFF PINION |
1 |
2311- |
|
BC |
(D-MAX 2024) EXC. LIMITED SLIP DIFF<G80> (A) |
| 1 |
I8-98395 228-0 |
|
DRIVE ASM, FINAL,RR |
1 |
2311- |
|
D E F |
FINAL GEAR RATIO 41 /11 (GT4) LIMITED SLIP DIFF<G80> EXC. REAR AXLE DIFF LOCK<8CL> (B) 41/11 |
| 51 |
I8-97503 966-0 |
|
SHIM, PINION,FINAL DRIVE |
AR |
2311- |
|
D E F |
(D-MAX 2024) REAR AXLE DIFF LOCK<8CL> T=2.14 |
| 84 |
I8-97503 355-0 |
|
BOLT, FINAL DRIVE GEAR |
12 |
2311- |
|
ABC |
(D-MAX 2024) |
| 51 |
I8-97503 973-0 |
|
SHIM, PINION,FINAL DRIVE |
AR |
2311- |
|
D E F |
(D-MAX 2024) REAR AXLE DIFF LOCK<8CL> T=2.28 |
| 100 |
I7-55184 682-0 |
|
SEAL, OIL,FINAL PINION |
1 |
2402- |
|
E |
(D-MAX 2024) A/T 6 SPEED AISIN(Y6A) |
| 51 |
I8-97503 504-0 |
|
SHIM, PINION,FINAL DRIVE |
AR |
2311- |
|
ABC |
(D-MAX 2024) T=2.12 |
| 60 |
I8-98398 129-0 |
|
GEAR SET, FINAL DRIVE,RR |
1 |
2311- |
|
BC |
FINAL GEAR RATIO 41/12(GU6) 41/12 |
| 55 |
I7-55212 111-0 |
|
CARRIER, DIFF |
1 |
2402-2402 |
|
E |
(D-MAX 2024) A/T 6 SPEED AISIN(Y6A) FINAL GEAR RATIO 43/11 (GW1) REAR AXLE DIFF LOCK<8CL> |
| 55 |
I8-97845 857-0 |
|
CARRIER, DIFF |
1 |
2403- |
|
ABC |
(D-MAX 2024) |
| 21 |
I8-98186 828-1 |
|
GEAR, SIDE,DIFF |
2 |
2311- |
|
D E F |
(D-MAX 2024) RZ4E-TC ENG(RDZ) EXC. LIMITED SLIP DIFF<G80>,REAR AXLE DIFF LOCK<8CL> Z=18 |
| 78 |
I8-94453 937-0 |
|
DISC, FRICTION |
4 |
2311- |
|
BC |
(D-MAX 2024) LIMITED SLIP DIFF<G80> |
| 51 |
I8-97503 955-0 |
|
SHIM, PINION,FINAL DRIVE |
AR |
2311- |
|
D E F |
(D-MAX 2024) REAR AXLE DIFF LOCK<8CL> T=1.94 |
| 55 |
I8-97499 726-0 |
|
CARRIER, DIFF |
1 |
2311-2402 |
|
ABC |
|
| 1 |
I8-98395 214-0 |
|
DRIVE ASM, FINAL,RR |
1 |
2311- |
|
BC |
(D-MAX 2024) RZ4E-TC ENG(RDZ) FINAL GEAR RATIO 41/10(GT5) EXC. LIMITED SLIP DIFF<G80> (A) 41/10 |
| 56 |
I8-97503 454-0 |
|
BOLT, BRG CAP |
4 |
2311- |
|
D E F |
(D-MAX 2024) FINAL GEAR RATIO 43/12(GM0),FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11 (GW1),FINAL GEAR RATIO 43/10(GY2) M12X75 FLANGE |
| 51 |
I8-97503 972-0 |
|
SHIM, PINION,FINAL DRIVE |
AR |
2311- |
|
D E F |
(D-MAX 2024) REAR AXLE DIFF LOCK<8CL> T=2.26 |
| 20 |
I8-94365 187-0 |
|
WASHER, THRUST,SIDE GEAR |
2 |
2311- |
|
D E F |
(D-MAX 2024) LIMITED SLIP DIFF<G80> EXC. REAR AXLE DIFF LOCK<8CL> T=1.60 |
| 51 |
I8-97503 499-0 |
|
SHIM, PINION,FINAL DRIVE |
AR |
2311- |
|
ABC |
(D-MAX 2024) T=2.02 |
| 100 |
I8-97503 949-0 |
|
SEAL, OIL,FINAL PINION |
1 |
2311- |
|
E |
FINAL GEAR RATIO 43/12(GM0),FINAL GEAR RATIO 41/11(GT4),FINAL GEARRATIO 41/10(GT5) REAR AXLE DIFF LOCK<8CL> |
| 1 |
I8-98395 238-0 |
|
DRIVE ASM, FINAL,RR |
1 |
2311- |
|
D E F |
(D-MAX 2024) FINAL GEAR RATIO 41/10(GT5) REAR AXLE DIFF LOCK<8CL> (C) 41/10 |
| 51 |
I8-97503 499-0 |
|
SHIM, PINION,FINAL DRIVE |
AR |
2311- |
|
D E F |
(D-MAX 2024) EXC. REAR AXLE DIFF LOCK<8CL> T=2.02 |
| 60 |
I8-98398 120-0 |
|
GEAR SET, FINAL DRIVE,RR |
1 |
2311- |
|
A |
41/11 |
| 51 |
I8-97503 506-0 |
|
SHIM, PINION,FINAL DRIVE |
AR |
2311- |
|
ABC |
(D-MAX 2024) T=2.16 |
| 60 |
I8-98398 108-0 |
|
GEAR SET, FINAL DRIVE,RR |
1 |
2311- |
|
BC |
(D-MAX 2024) FINAL GEAR RATIO 41/10(GT5) LIMITED SLIP DIFF<G80> 41/10 |
| 56 |
I8-97503 454-0 |
|
BOLT, BRG CAP |
4 |
2311- |
|
D E F |
(D-MAX 2024) FINAL GEAR RATIO 41 /11 (GT4) EXC. REAR AXLE DIFF LOCK<8CL> M12X75 FLANGE |
| 72 |
I8-97499 732-0 |
|
CAGE, DIFF |
1 |
2311- |
|
D E F |
(D-MAX 2024) RZ4E-TC ENG(RDZ) EXC. LIMITED SLIP DIFF<G80>,REAR AXLE DIFF LOCK<8CL> |
| 51 |
I8-97503 502-0 |
|
SHIM, PINION,FINAL DRIVE |
AR |
2311- |
|
ABC |
(D-MAX 2024) T=2.08 |
| 51 |
I8-97503 502-0 |
|
SHIM, PINION,FINAL DRIVE |
AR |
2311- |
|
D E F |
(D-MAX 2024) EXC. REAR AXLE DIFF LOCK<8CL> T=2.08 |
| 20 |
I8-94435 344-0 |
|
WASHER, THRUST,SIDE GEAR |
2 |
2311- |
|
BC |
(D-MAX 2024) EXC. LIMITED SLIP DIFF<G80> T=0.90 |
| 20 |
I8-97066 412-0 |
|
WASHER, THRUST,SIDE GEAR |
2 |
2311- |
|
D E F |
(D-MAX 2024) LIMITED SLIP DIFF<G80> EXC. REAR AXLE DIFF LOCK<8CL> T=1.80 |
| 73 |
I8-94435 351-0 |
|
SHIM, DIFF SIDE BRG |
AR |
2311- |
|
ABC |
(D-MAX 2024) T=0.25 |
| 50 |
I7-55184 680-0 |
|
BEARING, FINAL PINION |
1 |
2402- |
|
E |
A/T 6 SPEED AISIN(Y6A) FINAL GEAR RATIO 43/11 (GW1) REAR AXLE DIFF LOCK<8CL> |
| 73 |
I8-97947 965-0 |
|
SHIM, DIFF SIDE BRG |
AR |
2311- |
|
D E F |
(D-MAX 2024) REAR AXLE DIFF LOCK<8CL> T=0.12 |
| 51 |
I8-97503 497-0 |
|
SHIM, PINION,FINAL DRIVE |
AR |
2311- |
|
D E F |
(D-MAX 2024) EXC. REAR AXLE DIFF LOCK<8CL> T=1.98 |
| 20 |
I8-94435 347-0 |
|
WASHER, THRUST,SIDE GEAR |
2 |
2311- |
|
A |
(D-MAX 2024) T=1.30 |
| 73 |
I8-97947 966-0 |
|
SHIM, DIFF SIDE BRG |
AR |
2311- |
|
D E F |
(D-MAX 2024) REAR AXLE DIFF LOCK<8CL> T=0.15 |
| 1 |
I8-98395 240-0 |
|
DRIVE ASM, FINAL,RR |
1 |
2311- |
|
D E F |
FINAL GEAR RATIO 41 /11 (GT4) REAR AXLE DIFF LOCK<8CL> (c) 41/11 |
| 74 |
I9-09878 096-0 |
|
PIN, LK,CROSS PIN |
1 |
2311- |
|
D E F |
(D-MAX 2024) EXC. LIMITED SLIP DIFF<G80>,REAR AXLE DIFF LOCK<8CL> |
| 51 |
I8-97503 974-0 |
|
SHIM, PINION,FINAL DRIVE |
AR |
2311- |
|
D E F |
(D-MAX 2024) REAR AXLE DIFF LOCK<8CL> T=2.30 |
| 74 |
I9-09878 096-0 |
|
PIN, LK,CROSS PIN |
1 |
2311- |
|
BC |
(D-MAX 2024) EXC. LIMITED SLIP DIFF<G80> |
| 51 |
I8-97503 506-0 |
|
SHIM, PINION,FINAL DRIVE |
AR |
2311- |
|
D E F |
(D-MAX 2024) EXC. REAR AXLE DIFF LOCK<8CL> T=2.16 |
| 71 |
I8-98398 087-0 |
|
CAGE ASM, DIFF,FINAL DRIVE |
1 |
2311- |
|
BC |
(D-MAX 2024) LIMITED SLIP DIFF<G80> |
| 82 |
I8-94453 932-0 |
|
SPIDER, DIFF PINION |
1 |
2311- |
|
D E F |
(D-MAX 2024) LIMITED SLIP DIFF<G80> |
| 60 |
I8-98398 126-0 |
|
GEAR SET, FINAL DRIVE,RR |
1 |
2311- |
|
E |
FINAL GEAR RATIO 43/12(GM0) 43/12 |
| 51 |
I8-97503 505-0 |
|
SHIM, PINION,FINAL DRIVE |
AR |
2311- |
|
D E F |
(D-MAX 2024) EXC. REAR AXLE DIFF LOCK<8CL> T=2.14 |
| 502 |
I8-97556 403-0 |
|
PLATE, POSITION |
1 |
2311- |
|
D E F |
(D-MAX 2024) REAR AXLE DIFF LOCK<8CL> |
| 51 |
I8-97503 511-0 |
|
SHIM, PINION,FINAL DRIVE |
AR |
2311- |
|
ABC |
(D-MAX 2024) T=2.26 |
| 84 |
I8-97503 355-0 |
|
BOLT, FINAL DRIVE GEAR |
12 |
2311- |
|
D E F |
(D-MAX 2024) EXC. REAR AXLE DIFF LOCK<8CL> |
| 46 |
I0-28050 612-0 |
|
BOLT, STAY,PRESSURE REG |
2 |
2311- |
|
D E F |
(D-MAX 2024) REAR AXLE DIFF LOCK<8CL> (A) M6X12 FLANGE |
| 229 |
I8-98398 067-1 |
|
CONNECTOR |
1 |
2311- |
|
D E F |
(D-MAX 2024) REAR AXLE DIFF LOCK<8CL> (A) |
| 50 |
I8-97503 277-0 |
|
BEARING, FINAL PINION |
1 |
2311- |
|
D E F |
(D-MAX 2024) EXC. REAR AXLE DIFF LOCK<8CL> |
| 1 |
I8-98395 228-0 |
|
DRIVE ASM, FINAL,RR |
1 |
2311- |
|
BC |
FINAL GEAR RATIO 41 /11 (GT4) LIMITED SLIP DIFF<G80> (B) 41/11 |
| 505 |
I8-97556 416-0 |
|
WASHER, PLAIN,DIFF LOCK,SOLENO |
1 |
2311- |
|
D E F |
(D-MAX 2024) REAR AXLE DIFF LOCK<8CL> |
| 73 |
I8-94435 351-0 |
|
SHIM, DIFF SIDE BRG |
AR |
2311- |
|
D E F |
(D-MAX 2024) EXC. REAR AXLE DIFF LOCK<8CL> T=0.25 |
| 51 |
I8-97503 513-0 |
|
SHIM, PINION,FINAL DRIVE |
AR |
2311- |
|
ABC |
(D-MAX 2024) T=2.30 |
| 37 |
I8-94376 261-1 |
|
NUT, DRIVING PINION |
1 |
2311- |
|
ABC |
(D-MAX 2024) M24 FLANGE |
| 51 |
I8-97503 512-0 |
|
SHIM, PINION,FINAL DRIVE |
AR |
2311- |
|
ABC |
(D-MAX 2024) T=2.28 |
| 503 |
I8-97556 408-0 |
|
COIL, DIFF LOCK |
1 |
2311- |
|
D E F |
(D-MAX 2024) REAR AXLE DIFF LOCK<8CL> |
| 51 |
I8-97503 512-0 |
|
SHIM, PINION,FINAL DRIVE |
AR |
2311- |
|
D E F |
(D-MAX 2024) EXC. REAR AXLE DIFF LOCK<8CL> T=2.28 |
| 1 |
I8-98395 229-0 |
|
DRIVE ASM, FINAL,RR |
1 |
2311- |
|
E |
FINAL GEAR RATIO 43/12(GM0) LIMITED SLIP DIFF<G80> EXC. REAR AXLE DIFF LOCK<8CL> (B) 43/12 |
| 73 |
I8-97947 970-0 |
|
SHIM, DIFF SIDE BRG |
AR |
2311- |
|
D E F |
(D-MAX 2024) REAR AXLE DIFF LOCK<8CL> T=0.50 |
| 39 |
I8-97503 276-0 |
|
BEARING, FINAL PINION |
1 |
2311- |
|
D E F |
(D-MAX 2024) EXC. REAR AXLE DIFF LOCK<8CL> |
| 56 |
I8-97503 454-0 |
|
BOLT, BRG CAP |
4 |
2311- |
|
ABC |
(D-MAX 2024) M12X75 FLANGE |
| 1 |
I8-98395 226-0 |
|
DRIVE ASM, FINAL,RR |
1 |
2311- |
|
BC |
(D-MAX 2024) FINAL GEAR RATIO 41/10(GT5) LIMITED SLIP DIFF<G80> (B) 41/10 |
| 100 |
I8-97502 956-0 |
|
SEAL, OIL,FINAL PINION |
1 |
2311-2402 |
|
ABC |
|
| 60 |
I8-98398 114-0 |
|
GEAR SET, FINAL DRIVE,RR |
1 |
2402- |
|
E |
(D-MAX 2024) FINAL GEAR RATIO 43/11 (GW1) REAR AXLE DIFF LOCK<8CL> 43/11 |
| 39 |
I8-97503 950-0 |
|
BEARING, FINAL PINION |
1 |
2311- |
|
E |
(D-MAX 2024) M/T MVL 6 SPEED 6Y(Y6P),M/T MVL 6 SPEED 6S(Y6S) FINAL GEAR RATIO 43/11 (GW1) REAR AXLE DIFF LOCK<8CL> |
| 39 |
I8-97503 276-0 |
|
BEARING, FINAL PINION |
1 |
2311- |
|
ABC |
(D-MAX 2024) |
| 46 |
I8-97556 430-0 |
|
BOLT |
4 |
2311- |
|
D E F |
(D-MAX 2024) REAR AXLE DIFF LOCK<8CL> (B) |
| 71 |
I8-98398 086-1 |
|
CAGE ASM, DIFF,FINAL DRIVE |
1 |
2311- |
|
D E F |
(D-MAX 2024) REAR AXLE DIFF LOCK<8CL> |
| 51 |
I8-97503 501-0 |
|
SHIM, PINION,FINAL DRIVE |
AR |
2311- |
|
D E F |
(D-MAX 2024) EXC. REAR AXLE DIFF LOCK<8CL> T=2.06 |
| 73 |
I8-97947 967-0 |
|
SHIM, DIFF SIDE BRG |
AR |
2311- |
|
D E F |
(D-MAX 2024) REAR AXLE DIFF LOCK<8CL> T=0.18 |
| 126 |
I8-97499 896-0 |
|
COUPLING, DRIVING PINION |
1 |
2311- |
|
ABC |
(D-MAX 2024) |
| 1 |
I8-98395 218-0 |
|
DRIVE ASM, FINAL,RR |
1 |
2311- |
|
B |
FINAL GEAR RATIO 43/10(GY2) (A) 43/10 |
| 60 |
I8-98398 108-0 |
|
GEAR SET, FINAL DRIVE,RR |
1 |
2311- |
|
BC |
(D-MAX 2024) RZ4E-TCX HI-POWER ENG(LNC),4JJ3 ENG(LNG) FINAL GEAR RATIO 41/10(GT5) EXC. LIMITED SLIP DIFF<G80> 41/10 |
| 79 |
I8-94453 936-0 |
|
PLATE, FRICTION |
4 |
2311- |
|
D E F |
(D-MAX 2024) LIMITED SLIP DIFF<G80> |
| 51 |
I8-97503 960-0 |
|
SHIM, PINION,FINAL DRIVE |
AR |
2311- |
|
D E F |
(D-MAX 2024) REAR AXLE DIFF LOCK<8CL> T=2.02 |
| 20 |
I8-94365 188-0 |
|
WASHER, THRUST,SIDE GEAR |
2 |
2311- |
|
D E F |
(D-MAX 2024) LIMITED SLIP DIFF<G80> EXC. REAR AXLE DIFF LOCK<8CL> T=1.70 |
| 79 |
I8-94365 189-0 |
|
PLATE, FRICTION |
4 |
2311- |
|
D E F |
(D-MAX 2024) LIMITED SLIP DIFF<G80> |
| 20 |
I8-94435 345-0 |
|
WASHER, THRUST,SIDE GEAR |
2 |
2311- |
|
A |
(D-MAX 2024) T=1.10 |
| 20 |
I8-94435 343-0 |
|
WASHER, THRUST,SIDE GEAR |
2 |
2311- |
|
A |
(D-MAX 2024) T=0.80 |
| 1 |
I8-98395 218-0 |
|
DRIVE ASM, FINAL,RR |
1 |
2311- |
|
D F |
FINAL GEAR RATIO 43/10(GY2) EXC. REAR AXLE DIFF LOCK<8CL> (A) 43/10 |
| 51 |
I8-97503 503-0 |
|
SHIM, PINION,FINAL DRIVE |
AR |
2311- |
|
D E F |
(D-MAX 2024) EXC. REAR AXLE DIFF LOCK<8CL> T=2.10 |
| 73 |
I8-97947 969-0 |
|
SHIM, DIFF SIDE BRG |
AR |
2311- |
|
D E F |
(D-MAX 2024) REAR AXLE DIFF LOCK<8CL> T=0.30 |
| 1 |
I8-98395 215-0 |
|
DRIVE ASM, FINAL,RR |
1 |
2311- |
|
E |
FINAL GEAR RATIO 43/11 (GW1) EXC. LIMITED SLIP DIFF<G80>,REAR AXLE DIFF LOCK<8CL> (A) 43/11 |
| 51 |
I8-97503 495-0 |
|
SHIM, PINION,FINAL DRIVE |
AR |
2311- |
|
ABC |
(D-MAX 2024) T=1.94 |
| 51 |
I8-97503 498-0 |
|
SHIM, PINION,FINAL DRIVE |
AR |
2311- |
|
ABC |
(D-MAX 2024) T=2.00 |
| 50 |
I8-97503 277-0 |
|
BEARING, FINAL PINION |
1 |
2311- |
|
ABC |
(D-MAX 2024) |
| 51 |
I8-97503 496-0 |
|
SHIM, PINION,FINAL DRIVE |
AR |
2311- |
|
D E F |
(D-MAX 2024) EXC. REAR AXLE DIFF LOCK<8CL> T=1.96 |
| 51 |
I8-97503 510-0 |
|
SHIM, PINION,FINAL DRIVE |
AR |
2311- |
|
ABC |
(D-MAX 2024) T=2.24 |
| 73 |
I8-94435 353-0 |
|
SHIM, DIFF SIDE BRG |
AR |
2311- |
|
ABC |
(D-MAX 2024) T=0.50 |
| 55 |
I8-98398 059-2 |
|
CARRIER, DIFF |
1 |
2311- |
|
D E F |
FINAL GEAR RATIO 41 /11 (GT4) REAR AXLE DIFF LOCK<8CL> |
| 1 |
I8-98395 237-0 |
|
DRIVE ASM, FINAL,RR |
1 |
2311- |
|
D F |
FINAL GEAR RATIO 43/10(GY2) REAR AXLE DIFF LOCK<8CL> (c) 43/10 |
| 50 |
I8-97503 951-0 |
|
BEARING, FINAL PINION |
1 |
2311- |
|
D F |
(D-MAX 2024) REAR AXLE DIFF LOCK<8CL> |
| 20 |
I8-94365 188-0 |
|
WASHER, THRUST,SIDE GEAR |
2 |
2311- |
|
BC |
(D-MAX 2024) LIMITED SLIP DIFF<G80> T=1.70 |
| 1 |
I7-55184 827-0 |
|
DRIVE ASM, FINAL,RR |
1 |
2402- |
|
E |
A/T 6 SPEED AISIN(Y6A) FINAL GEAR RATIO 43/11 (GW1) REAR AXLE DIFF LOCK<8CL> (C) |
| 24 |
I8-98319 771-0 |
|
GEAR, PINION,DIFF |
2 |
2311- |
|
BC |
RZ4E-TCX HI-POWER ENG(LNC),4JJ3 ENG(LNG) EXC. LIMITED SLIP DIFF<G80> Z=9 |
| 70 |
I8-94435 355-0 |
|
BEARING, DIFF CAGE |
2 |
2311- |
|
ABC |
(D-MAX 2024) NSK |
| 1 |
I8-98395 226-0 |
|
DRIVE ASM, FINAL,RR |
1 |
2311- |
|
D E F |

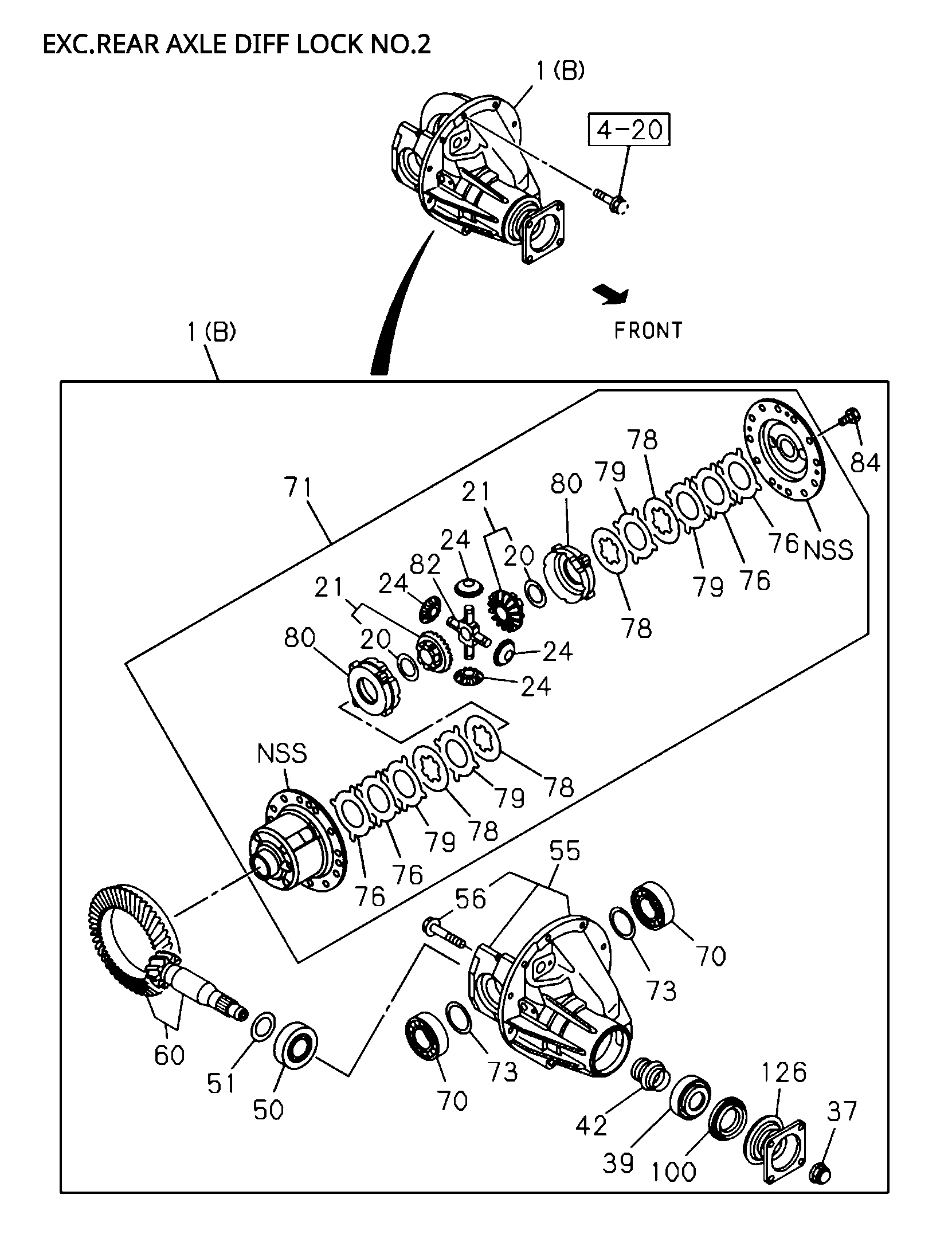

(D-MAX 2024) FINAL GEAR RATIO 41/10(GT5) LIMITED SLIP DIFF<G80> EXC. REAR AXLE DIFF LOCK<8CL> (B) 41/10 |
| 20 |
I8-97066 412-0 |
|
WASHER, THRUST,SIDE GEAR |
2 |
2311- |
|
BC |
(D-MAX 2024) LIMITED SLIP DIFF<G80> T=1.80 |
| 21 |
I8-98319 772-0 |
|
GEAR, SIDE,DIFF |
2 |
2311- |
|
D E F |
RZ4E-TCX HI-POWER ENG(LNC),4JJ3 ENG(LNG) EXC. LIMITED SLIP DIFF<G80>,REAR AXLE DIFF LOCK<8CL> Z=14 |
| 80 |
I8-94453 931-0 |
|
RING, PRESSURE |
2 |
2311- |
|
BC |
(D-MAX 2024) LIMITED SLIP DIFF<G80> |
| 51 |
I8-97503 508-0 |
|
SHIM, PINION,FINAL DRIVE |
AR |
2311- |
|
D E F |
(D-MAX 2024) EXC. REAR AXLE DIFF LOCK<8CL> T=2.20 |
| 100 |
I7-55184 686-0 |
|
SEAL, OIL,FINAL PINION |
1 |
2403- |
|
ABC |
(D-MAX 2024) |
| 51 |
I8-97503 501-0 |
|
SHIM, PINION,FINAL DRIVE |
AR |
2311- |
|
ABC |
(D-MAX 2024) T=2.06 |
| 70 |
I8-94452 449-1 |
|
BEARING, DIFF CAGE |
2 |
2311- |
|
ABC |
(D-MAX 2024) JTEKT |
| 20 |
I9-41562 602-0 |
|
WASHER, THRUST,SIDE GEAR |
2 |
2311- |
|
A |
(D-MAX 2024) T=1.00 |
| 84 |
I8-97503 947-0 |
|
BOLT, FINAL DRIVE GEAR |
12 |
2311- |
|
D E F |

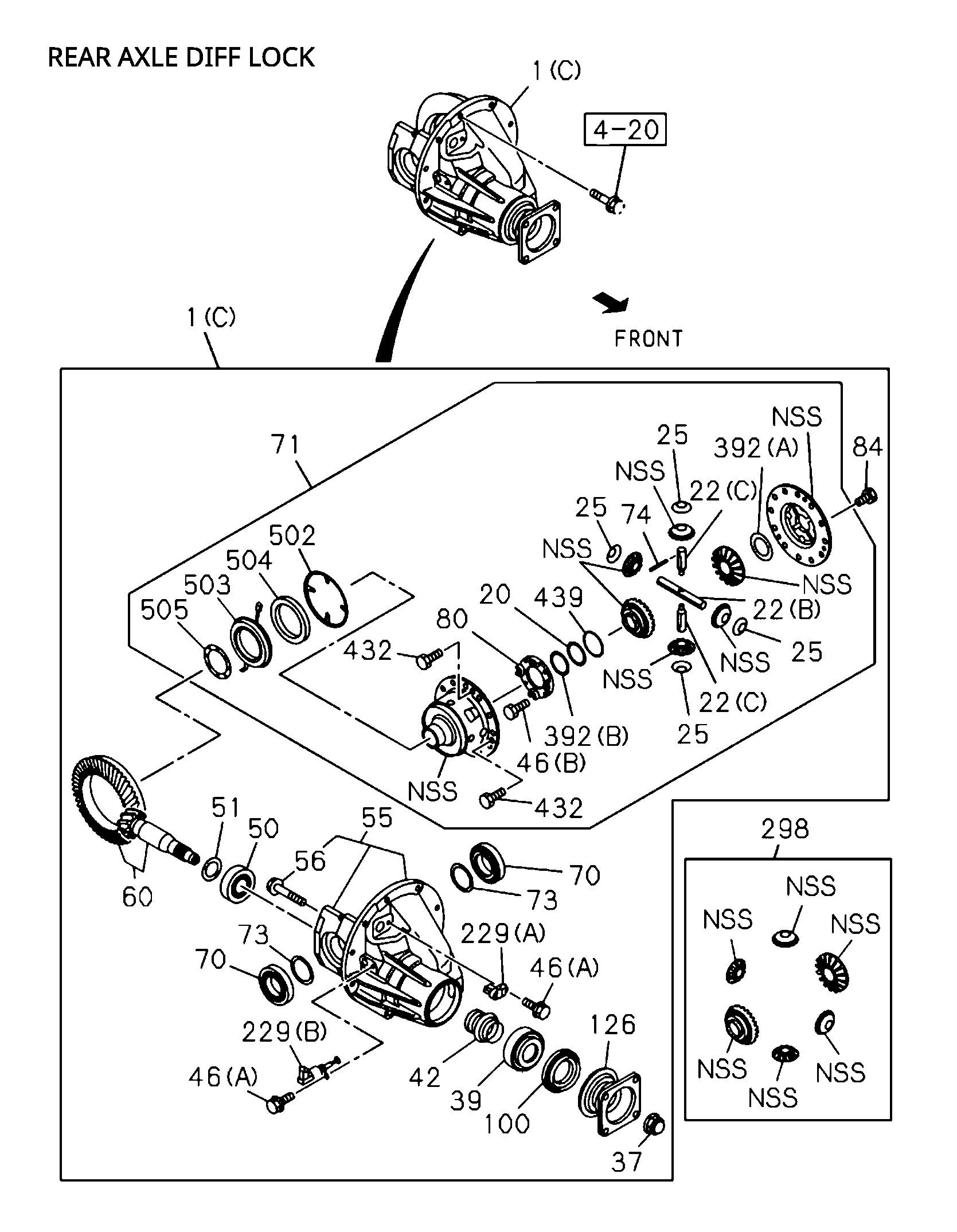

(D-MAX 2024) REAR AXLE DIFF LOCK<8CL> |
| 22 |
I8-97556 400-0 |
|
SPIDER, DIFF PINION |
2 |
2311- |
|
D E F |
(D-MAX 2024) REAR AXLE DIFF LOCK<8CL> (C) |
| 22 |
I8-94435 308-1 |
|
PIN, CROSS,DIFF PINION |
1 |
2311- |
|
A |

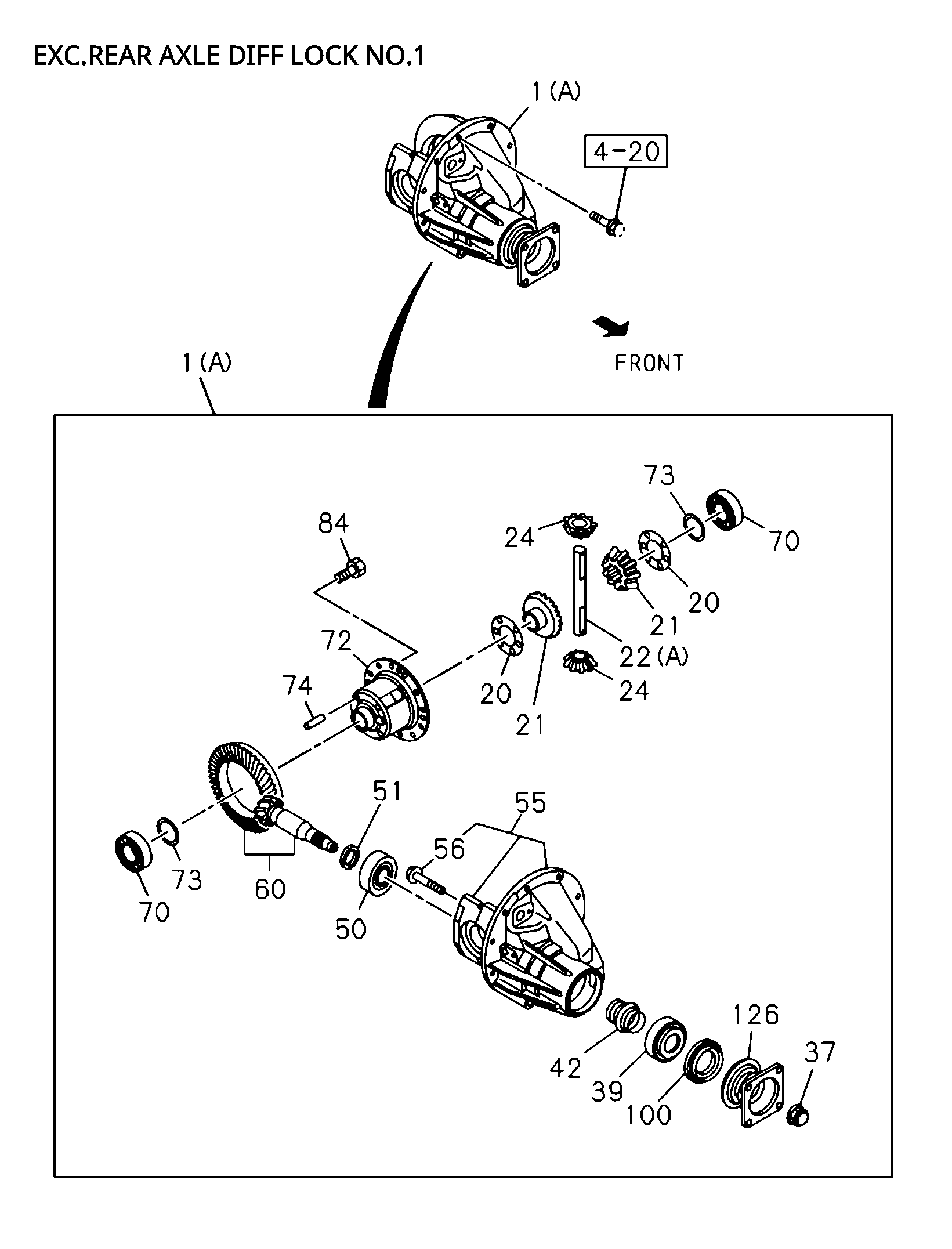

(D-MAX 2024) (A) |
| 70 |
I8-97947 476-0 |
|
BEARING, DIFF CAGE |
2 |
2311- |
|
D E F |
(D-MAX 2024) REAR AXLE DIFF LOCK<8CL> NSK |
