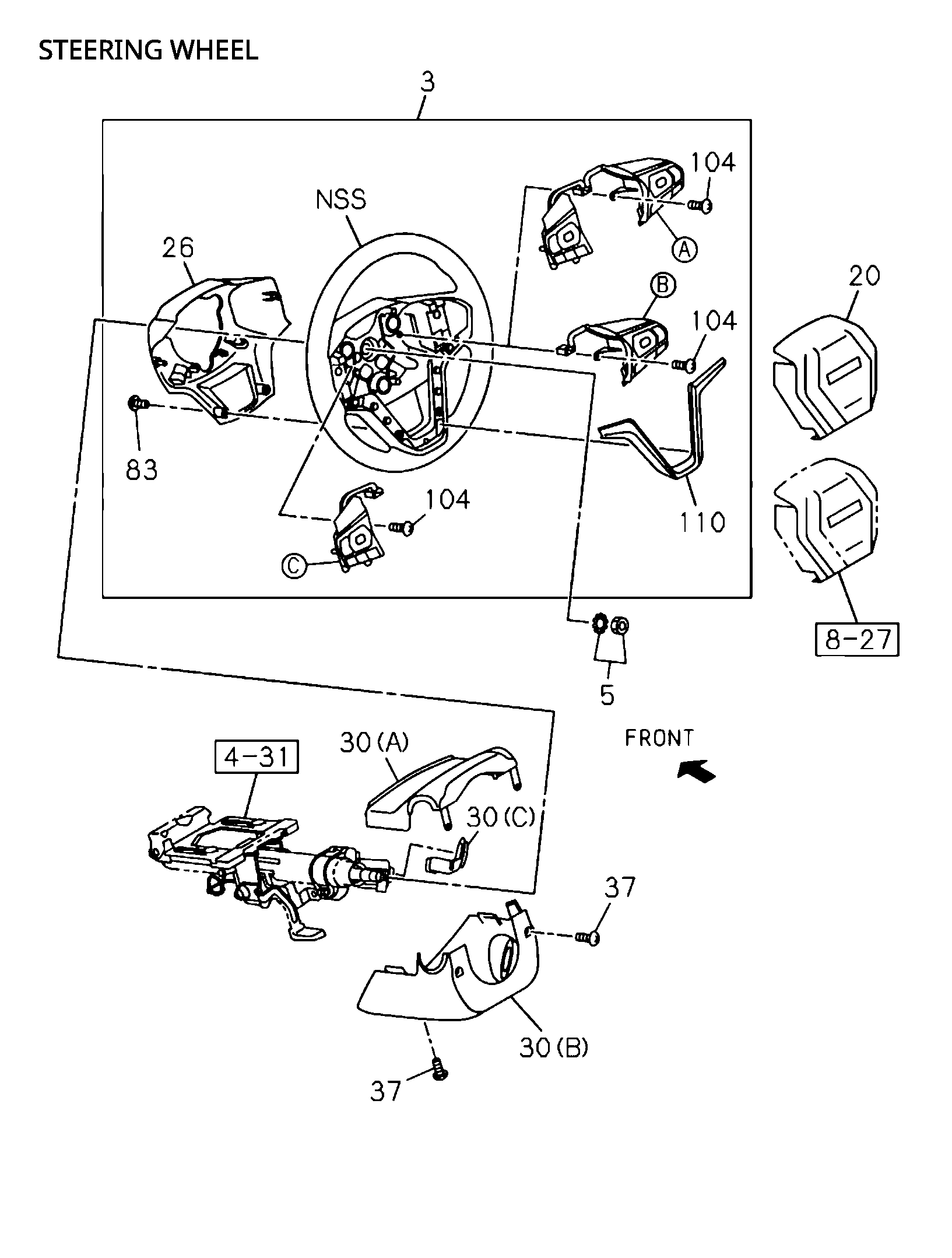

4-30 | STEERING WHEEL AND COWL
DMAX
D-MAX 2024
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 3 | I8-97471 892-1 | WHEEL, STRG | 1 | 2311-2405 | (D-MAX 2024) BLACK | |||
| 104 | I0-71240 410-0 | SCREW, INNER TO OUTER DOOR | 6 | 2311- | (D-MAX 2024) M4X10 TAPPING | |||
| 5 | I8-94455 487-1 | NUT, STEERING | 1 | 2311- | (D-MAX 2024) M12 W/TOOTH WASHER | |||
| 110 | I8-97475 416-0 | BEZEL ASM, STRG WHEEL, LWR | 1 | 2311-2405 | (D-MAX 2024) SILVER | |||
| 26 | I8-97475 414-0 | COVER, STRG WHEEL,LWR | 1 | 2311- | (D-MAX 2024) BLACK | |||

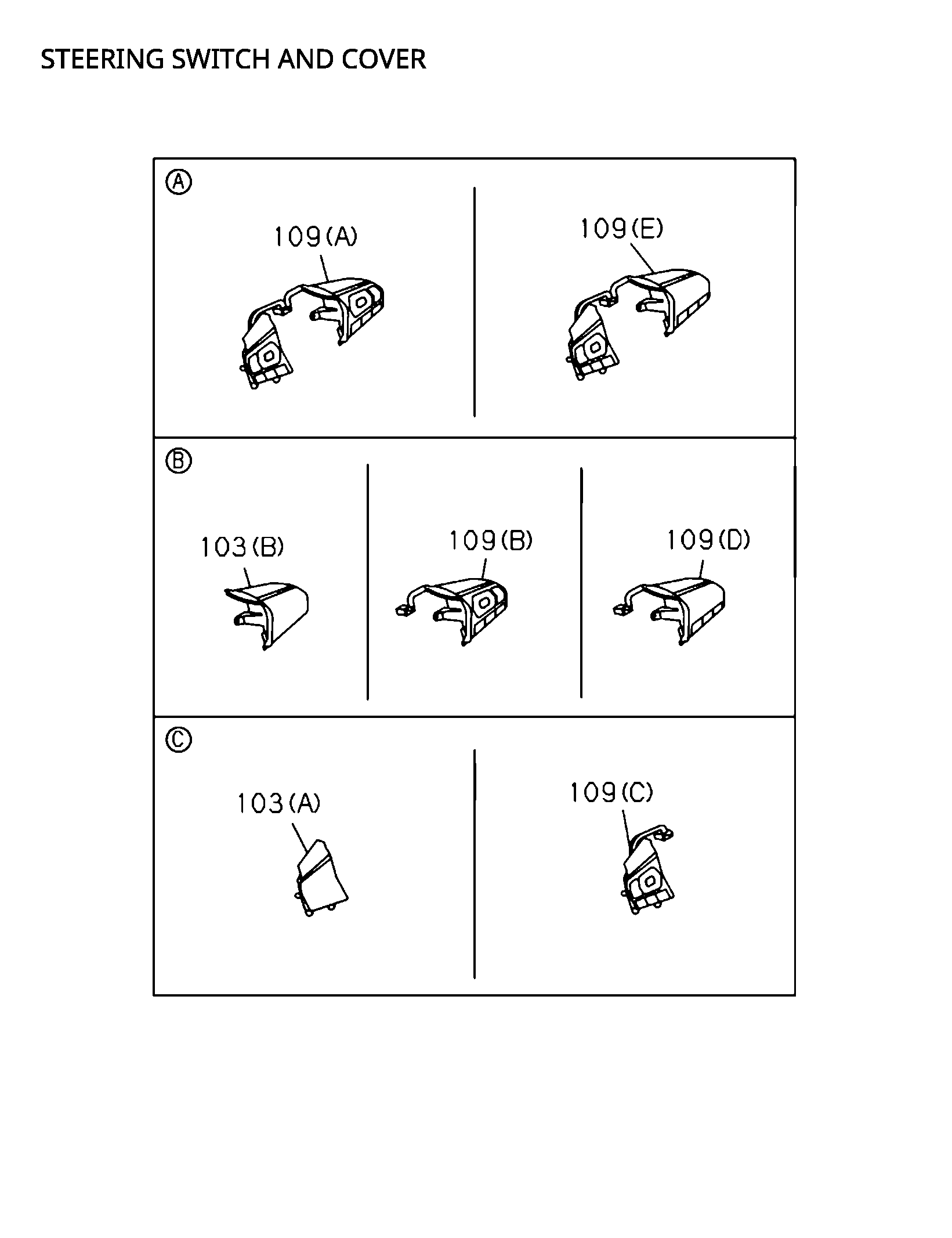

| 109 | I8-97501 275-0 | SWITCH ASM, STEERING | 1 | 2311-2405 | (D-MAX 2024) (E) | |||
| 30 | I8-97472 030-3 | COWL, STEERING | 1 | 2311- | (D-MAX 2024) (B) BLACK | |||
| 83 | I0-71240 410-0 | SCREW, INNER TO OUTER DOOR | 2 | 2311- | (D-MAX 2024) M4X10 TAPPING | |||
| 30 | I8-97471 690-3 | COWL, STEERING | 1 | 2311- | (D-MAX 2024) (A) BLACK | |||
| 37 | I8-98167 449-0 | SCREW, LEVER,ENG HOOD OPENER | 3 | 2311- | (D-MAX 2024) M5X16 TAPPING |
